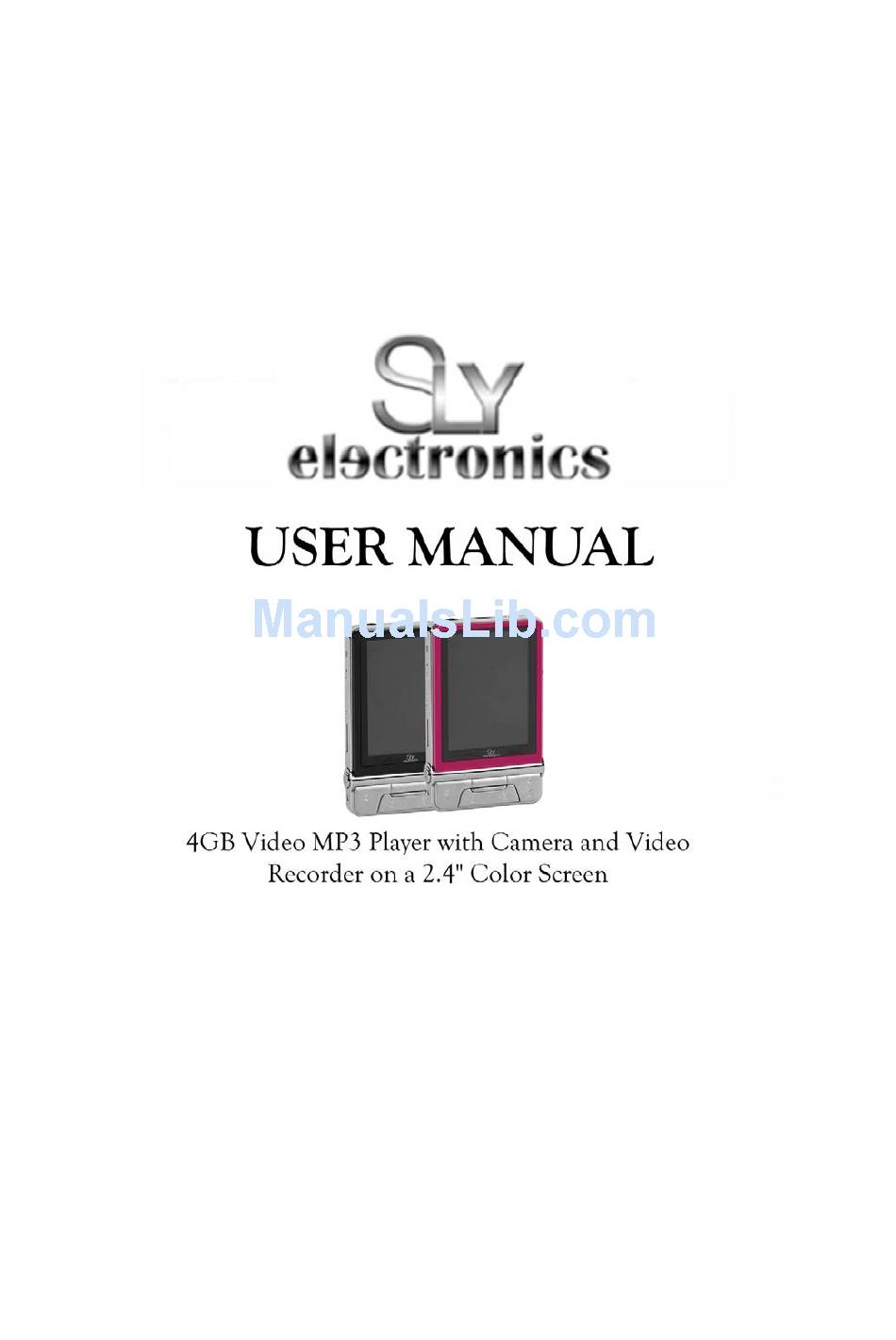

Summary of Contents for Sly Electronics SL414CM
-
Page 2: Table Of Contents
Overview 1. Foreword Thank you for purchasing this player. Please read this manual carefully before using the product. Specifications and software updates may be subject to change without notice. Some pictures in this manual may be different than the product display yet it should perform the same functions. 2. - Page 3 Communicating With The PC………………………………………………………………P18 Adding a TF Card…………………………………………………………………………P19 Adding/deleting Files……………………………………………………………………..P19 Formatting the Player……………………………………………………………………..P20 Disconnecting From the PC………………………………………………………………P21 Technical Specifications…………………………………………………………………..P21 Common Problems……………………………………………………………………….P22 4. Requirement for PC a) At least Pentium 100MHz; b) OS of Windows 98/2000/ME/XP/Vista; c) USB slot; d) CD-ROM drive; e) At least 15MB free hard disk space;...
-
Page 4: Basic Operations
User Guidelines Battery Warnings The icon of the battery with different status Note: If player fails to start, the battery may be empty. Please recharge it and try again. 2. Recharging the Battery Connect one end of the supplied mini USB cable to the player (make sure player is OFF) Connect the other end of the mini USB cable to the computer Charging process begins automatically When it is fully charged, it will show a full battery icon... -
Page 5: Adding Pictures
to get to the Main Menu). Transferring Files Adding Pictures – Copy & Paste 1) Connect the player using the USB cable. 2) Once the player has been detected, go to My Computer. 3) Select the Removable Disk that correlates to your player. 4) In a new window, go to the folder of your pictures and copy the picture file(s) you want (jpeg files only). -
Page 6: Adding Videos
• Right-click and select Paste. Your music folder will now be visible next to the AUDIO, VIDEO, PICTURE, and EBOOK folders. • Go to Windows Media Player and add files to the Sync List that you would like transferred to your player. •... -
Page 7: Adding Txt Files
Figure 2: Converting a Video After conversion is complete, safely remove the Removable Disk (player). 4. Adding TXT Files (E-Book) 1) Connect your player using the USB cable. 2) Once your player has been detected,go to My Computer. 3) Select the Removable Disk that correlates to your player. 4) Go to the folder of your txt file(s) and copy the txt file(s) you want. -
Page 8: Video Player
Figure 3: Main Menu 2. Video Player a) To enter video player mode: • Use the directional keys to choose the Video Player mode icon in the Main Menu, shown in Figure 4 (below). • Short-press the PLAY key to enter video player mode. Figure 4: Video Player Mode b) Video Configuration •... -
Page 9: Audio Player
Current DelFile Exit Figure 5: Video Player Sub-Menu c) Playing Videos • Press to select the file you want to play in the video mode menu, then short-press the PLAY key to begin playing the video. • While playing, short-press PLAY to pause the video, and press it again to resume playing. •... - Page 10 audio player. • Press to scroll through the sub-menu options, and short-press the PLAY key to access them. • Press PLAY to confirm your choice. • Press MENU to go back to the audio player menu. The functions of the audio player sub-menuare listed below: Current Loop Mode Random...
-
Page 11: Picture View
Figure 8: Audio Playback Screen e) Exiting the audio player mode • While in the audio player menu, short-press the MENU key to go back to the Main Menu Picture View a) To enter the Picture View Mode • Use the directional keys to choose the Picture View icon in the Main Menu, shown in Figure 9. •... -
Page 12: Camera
Wall Paper Exit Figure 10: Picture View Sub-Menu c) Viewing Pictures • In the Thumbnail mode, use to select the row of files you want to show in the Picture View menu, and then short-press the PLAY key to show. •... - Page 13 Camera shown in Figure 12. • Press to scroll through the sub-menu options, and short-press the PLAY key to access them. • Press PLAY to confirm your choice. The functions of the Camera mode sub-menu are shown in Figure 12 (below): Single Mode Continuous...
- Page 14 Figure 13: DV Mode • The top-left of the viewfinder screen shows the status and video size. • The bottom-left of the viewfinder screen is the available video time with the remaining memory. • The bottom-rightof the viewfinder screen is the zoom level. •...
-
Page 15: Audio Recording
c) Recording in DV mode • Press to adjust the zoom level before you begin recording. • Short-press the PLAY key to start recording. • Short-press the PLAY key again when you are finished recording and it will automatically save what was recorded. -
Page 16: Learning Mode (E-Book)
Figure16. • Short-press PLAYto go to the Learning mode. Figure 16: Learning Mode b) Accessing E-Books • Select the TXT icon to access your E-books or .TXT files (Figure 17). Figure 17: TXT Icon c) Learning Mode Configuration • Long-pressing the MENU key while in the Learning mode will display the sub-menu. •... -
Page 17: Tool
d) Reading TXT Files • When reading TXT files, use to scroll up and down the selected txt file. e) Exiting the Learning mode • While in Learning mode, short-press the MENU key to go back to the Main Menu. 9. -
Page 18: System Setup
Creating TXT files in the Notepad • To create a txt file,select NEW from the Notepad’s sub-menu. • and the VOL key to select letters,symbols and numbers. • Short-press the PLAYkey to confirm. *Note:This product only supports txt files less than 64kb,or it will show overload or error. Memory •... - Page 19 Language Default Sound Auto Off Style Power Mode Language Default Sound Auto Off Style Power Save English Speaker Never Lovely Never Chinese 3 Minutes Pretty Half Minutes Chinese T Key Tone 15 Minutes One Minutes Japanese 60 Minutes Three Minutes Korean French German...
- Page 20 • Press “Next” and then choose the item of “Add New Hardware Wizard” in the window. • Click “Next” and press “View”. • Select the folder of WIN98 in the CD-ROM drive and select “Next”. • Click “Setup”. After the setup, reboot your PC. •...
-
Page 21: Adding A Tf Card
3. U-Disk Status • While the player is on, connect the player to PC with USB cable, and it is in U-Disk status. 4. Adding a TF card This product supports TF cards with the slot shown below: Figure 22: TF Card •... -
Page 22: Disconnecting From The Pc
Figure 23: Formatting Screen • In the Warning window, select “OK” to start the formatting (this will erase all data on the player). Figure 24: Formatting Confirmation Window Warning: • Select the proper format type before formatting or else the product may be damaged. •... -
Page 23: Technical Specifications
4) Select USB mass storage device. 5) Click STOP. 6) Click OK. 7) You will be prompted that you may safely remove the device. 8) Disconnect the player from the computer by removing the USB cable from the player. Figure 25: Safely Remove Hardware Window Technical Specifications Profile 82mm*52mm*12.5mm (length×width×thickness) - Page 24 Problem Possible Reason Solution Recharge for at least 4 hours; Switch player off and Battery empty Unit will not turn on then ON (and Press Play for 7 seconds). Invalid operation Auto off Battery shortage; Recharge; Go to System Setup → Power Mode Battery empty Recharge (Make sure player is in OFF position) USB wire damaged...
