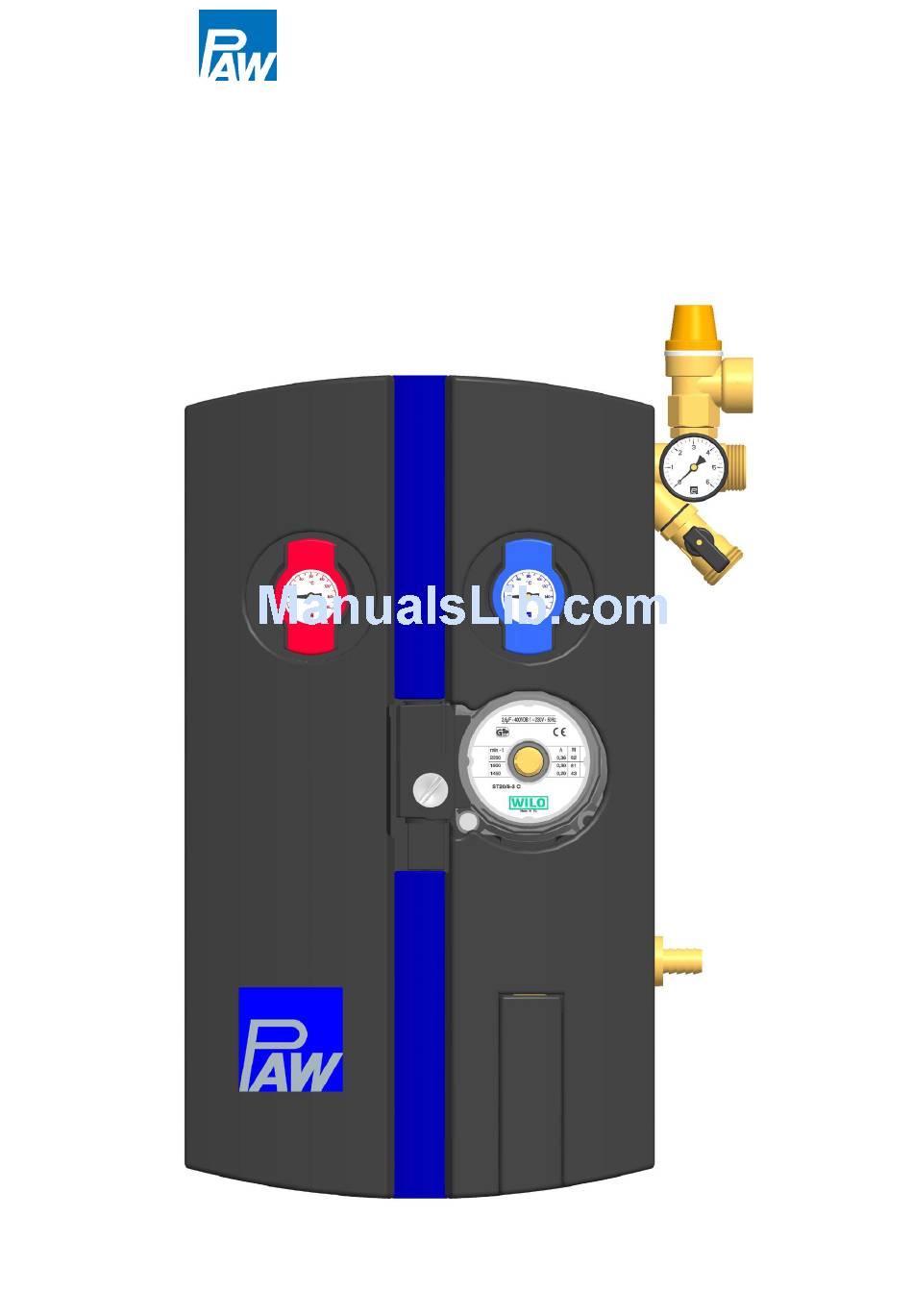

- Page 1 In North America for technical Assistance Contact Solarnetix Inc. 416/699-6746 www.solarnetix.com / info@solarnetix.com User Guide FlowCon FA Solar Stations Page 1 of 12...
-
Page 2: Specifications
Specifications: Solar station “FlowCon“ Height: ( incl. insulation ) 550 mm/ 21 5/8 in Width: ( incl. insulation ) 280 mm/ 11 in Spacing supply/ return: 125 mm/ 4.9 in Pressure max.: 8 bar/ 116 PSI Temperature max.: 120°C/248°F Short-term 160 °C/320°F Tube connections: ¾“... -
Page 3: Installation Instructions
Installation Instructions Wall Mounting: 1. Determine the location were the solar station will be installed. 2. Take the complete solar station out of the packaging. 3. Take off the thermometer with handle by tearing strongly forward. 4. Take off the front insulation shell of the solar station. Leave the solar station assembled with the back insulation shell 5. - Page 4 Commissioning Filling, Flushing and Commissioning of the Solar Station 1. Connect the pressure hose to the fill valve (2) below the pressure gauge (1) and open the valve. 2. Connect the flush hose to the flush valve (4) on the flow meter (on the ball valve below the pump) and open the valve.
- Page 5 Draining the Solar Loop 1. Open the flow check valves located inside the ball valves (see the following instructions). 2. Open the venting valves at the highest point (above the collectors). 3. Open the valve at the lowest point of the installation, if possible near the connection of the storage (not included in the delivery) or at the flush valve (outlet valve) below the pump.
- Page 6 Flow Check Valves The flow check valves are integrated inside the thermometer ball valves and have an opening pressure of 200 mm / 7 “ W.C. each. In order to fill, bleed or drain the system, the flow check valves need to be open. For this, you have to bring the handles of the ball valves into a 45°...
- Page 7 Solar Safety Valve The solar station is equipped with a Diaphragm safety pressure relief valve for solar heating systems. The following warnings have to be taken into consideration for the assembly and the operation. The safety valve has to be well accessible. The functioning of the valve may not be reduced or disabled by any barriers! The presence of dirt traps/strainers or other restrictions between the collector (field) and the safety valve are prohibited!
- Page 8 User Guide for the Flow Meter It is recommended to respect the following instructions in order to achieve the highest metering precision possible. The flow meter is a volume flow measuring device with an integrated balancing valve. The indication range is 1 -13 l / min. Type of volume flow inside the collector field Systems which are planned to have bigger temperature differences and in total higher temperatures inside the collectors are called Low –...
- Page 9 (Permanent Air Separator) The Air-Stop The Air-Stop was developed by PAW for the permanent degasification of the heat transfer fluid in solar installations. Inside the Air-Stop, the separated air accumulates and be evacuated via an air bleed valve when required.
-
Page 10: Optional Accessories
List of Spare Parts for the “FlowCon FA“ Solar Station Item# Item description Solar pump 130 mm/ 5 1/8” Safety valve ½" ¾“ 6 bar/ 87 PSI Counter cross ¾“ ½“ Drain valve ½“, brass Heavy type valve 1/4" for pressure gauge G 1/4”female x G 3/8’’... - Page 11 Attention! Please always mention the item number of the solar station while ordering spare parts! Page 11 of 12...
-
Page 12: Limited Warranty
WILO PUMPS Limited Warranty All Classic Star and Circo Star circulator pumps manufactured by WILO AG are warranted to the original user only to be free of defects in materials and workmanship for a period of 30 months from the date of manufacture or 24 months from the date of installation, whichever expires first.
