Installation

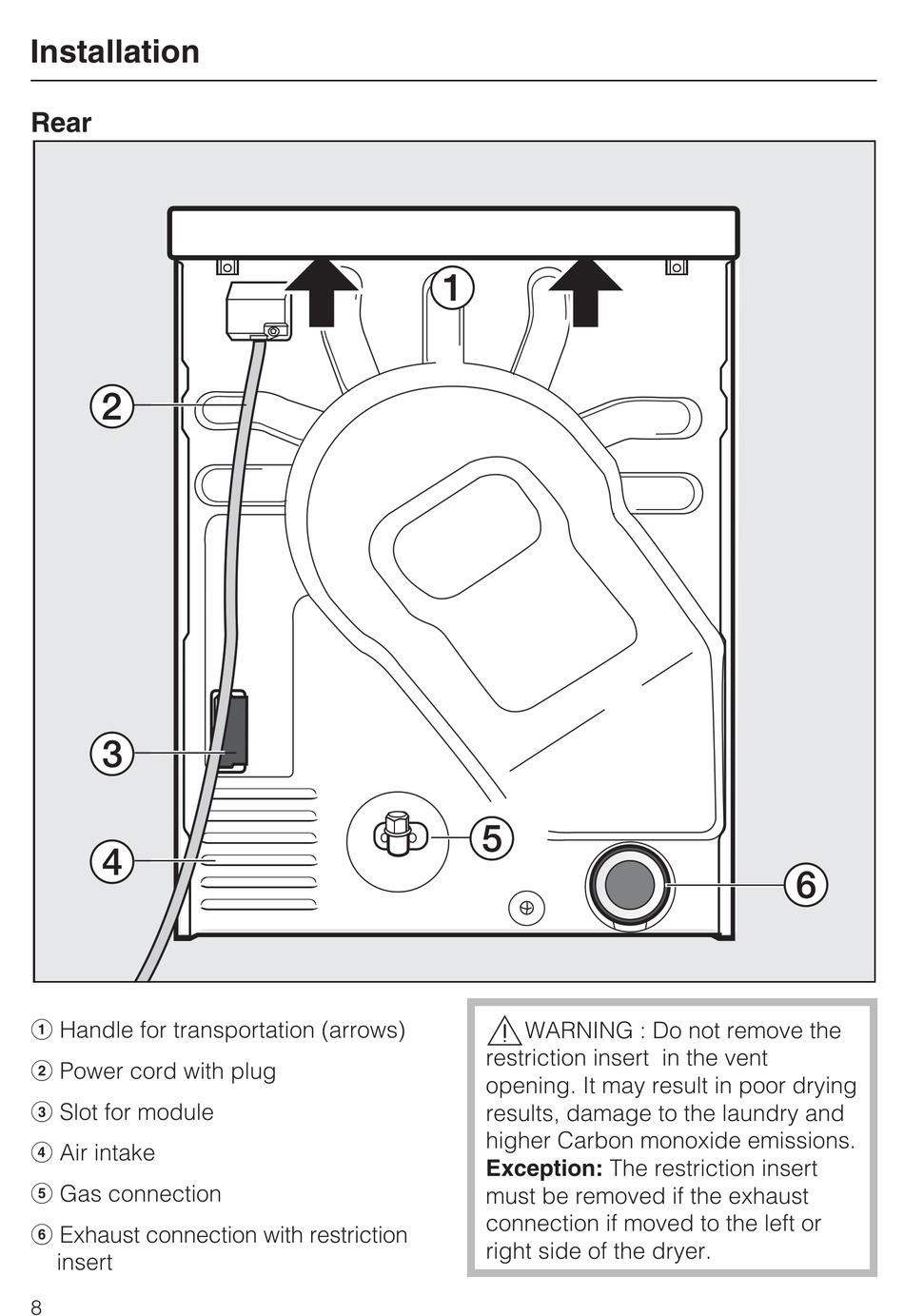

Rear
Handle for transportation (arrows)
Power cord with plug
Slot for module
Air intake
Gas connection
Exhaust connection with restriction
insert
8
,
WARNING : Do not remove the
restriction insert in the vent
opening. It may result in poor drying
results, damage to the laundry and
higher Carbon monoxide emissions.
Exception: The restriction insert
must be removed if the exhaust
connection if moved to the left or
right side of the dryer.
