Summary of Contents for Aopos T250II

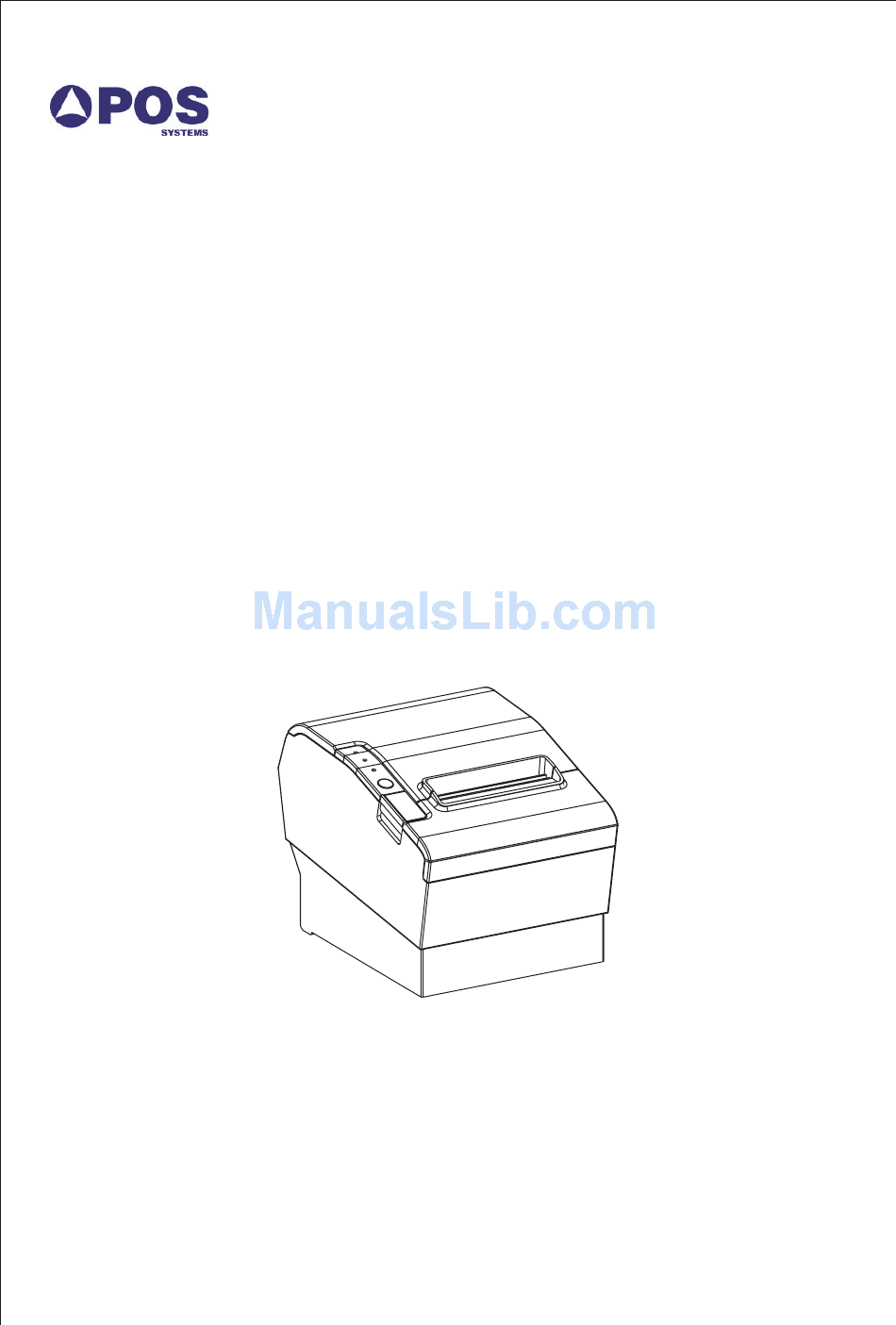

- Page 1 User’s Manual AOPOS T250II THERMAL RECEIPT PRINTER Proficient in Commercial POS Receipt printers...
-
Page 2: Safety Notice
1.Safety Notice: Don't touch the printer head with anything. * Don't touch the cutter blade. * Don't bend the power cord excessively or place any heavy objects onto it. * Don't use the printer when it is out of order. This can cause a fire or and electrocution. * When connecting or disconnecting the plug, always hold the plug but not the cord. - Page 3 4. Features * 250mm/sec high-speed printing * Support Kitchen Printing and Ethernet Printing * High print quality * Low working noise * Support cashdrawer kick-out * Easy maintenance * Various interface available (Parallel, Serial, USB, Ethernet) * Built-in data buffer * Support character enlargement, bold, underline, line spacing and character spacing * Support NV images download * Low energy consumption and low operation cost...
-
Page 4: Specifications
5.Specifications AOPOS T250II Model Paper end detection Support Printing speed 250mm/sec Paper roll Dimension: width: 79.5±0.5mm Max diameter: 83mm Roll diameter: Inside: 12mm Outside: Minimum 18mm Maximum 26mm Printing width 79.5±0.5mm Dot pitch 576dots / line&512dots / line Character size ANK Character, Font A: 12×24dots,... -
Page 5: Printer Connection
6. Printer Connection a. Plug the DC cord connector into the printer's power connector. b. Plug the data cable connector into the printer's interface connector. c. Plug the drawer cable into the drawer kick-out connector on the back of the printer next to the interface connector. - Page 6 Press here to open the cover 8. Setting the Printing Mode (DIP switches) The DIP switches are used to set the printer to perform various functions, such as cutter mode, character set, speed, beeper, print density and etc. 1. Remove the DIP switches cover on the bottom of the printer.
-
Page 7: Printer Installation
9. Printer Installation a. Flat Printing b. Stand Printing Remove the bottom cover, there are two holder for wall mounting. 10. Printer View Top View Side View Bottom View... -
Page 8: Buttons And Indicators
11. Buttons and Indicators Power Switch POWER Error Indicator ERROR Power Indicator PAPER FEED Button FEED 12. Functions of buttons and indicators （1）. FEED Button Press to feed paper manually. （2）. PAPER Indicator When this indicator is lighting as well as the ERROR indicator, printer is out of paper. When this indicator is dim as well as the ERROR indicator, printer has paper. -
Page 9: Driver Installation
front cover 1. The front cover is on the top of the printer 2. Open the front cover by the arrow direction Wheel Gear 3. After the front cover is opened 4. Turn the gear to reset the cutter 14. Driver Installation... - Page 16 WARNING: All rights reserved. No part of this publication may be reproduced, stored in a retrieval, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission. The company reverses the rights of modifications of manufacture technology, assembly, software and hardware without notice.
