Page 1: User Manual

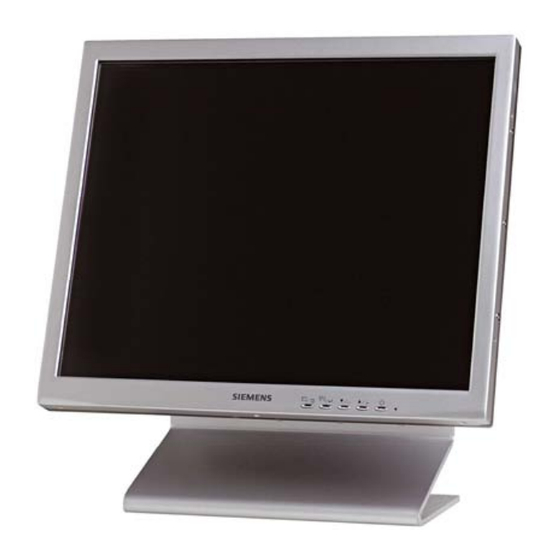

CMTC1515 / CMTC1715 / CMTC1915 15” /17” /19” TFT CCTV Color Monitor User Manual Fire Safety & Security Products Siemens Building Technologies... - Page 2 Data and design subject to change without notice. / Supply subject to availability. © 2006 Copyright by Siemens Building Technologies AG Wir behalten uns alle Rechte an diesem Dokument und an dem in ihm dargestellten Gegenstand vor. Der Empfänger erkennt diese Rechte an und wird dieses Dokument nicht ohne unsere vorgängige schriftliche Ermächtigung ganz oder teilweise Dritten zugänglich machen oder...
-
Page 3: Table Of Contents
Enabling/Disabling the De-Interlace Function.........24 Adjusting the VOV (Video On Video) Setting..........25 Options for OSD Setup ................25 Enabling/Disabling Inputs ...............26 Reset to Factory Default Setting .............26 9.10 Exit the OSD Main Menu ................26 Siemens Building Technologies Fire Safety & Security Products 01.2006... - Page 4 Troubleshooting Tips ................27 Disposal ....................28 Keyword index..................29 Siemens Building Technologies Fire Safety & Security Products 01.2006...
-
Page 5: Introduction
This monitor supports some special functions for video/audio application: PIP (Picture In Picture), VOV (Video On Video), 3D comb filter, de-interlace, over scan, auto impedance switch for looping video connection and looping audio connection. Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 6: Work Safety Information
Unplug this product from the wall outlet and refer servicing to qualified service personnel in the event that: Liquid is spilled into the product or the product is exposed to rain or water. – Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 7: Safety Guidelines
Code Type Size of Conductors in Cord Maximum Current Rating of Unit 18 AWG 10 Amps 16 AWG 12 Amps 14 AWG 12 Amps 18 AWG 10 Amps 17 AWG 12 Amps Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 8: For European Countries
BROWN must be connected to the terminal in the plug which is marked with the letter L or colored RED. If you have any questions concerning the proper power cord to use, please consult the dealer from whom you purchased the product. Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 9: Standards And Guidelines
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de classe B satisfait toutes les exigences des réglementations canadiennes inhérentes aux équipements générant des interférences. Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 10: Compliance Information For The U.s.a
The device complies with the requirements of the ECC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility”, and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety”. Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 11: Emc-Declaration Of Conformity
Immunity : EN55024: 1998 Generic immunity standards. The following manufacturer/importer or authorized representative established within the EU is responsible for this declaration. Company name: Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Address: D-76181 Karlsruhe Siemens Building Technologies Fire Safety &... -
Page 12: Technical Data
Dimensions (H x L x W) 335 x 349 x 160 mm 380 x 374 x 160 mm 420 x 410.5 x 160 mm Weight (monitor only) 6.0 Kg 8.5 Kg 9.5 Kg Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 13: Hardware Installation
Display Timing of PC Mode or check your video card manual or Windows 98/XP/2000 “Read Me” file for further information on the video card. After these issues have been resolved, continue the setup procedure as described below. Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 14: Lcd Monitor Installation
Alternatively, connect the composite signal (video, S-video) cable from the back of the video unit to the back of the monitor. Switch on the power supply to the computer system or AV equipment, then to the LCD monitor. Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 15: Connection And Buttons
Connection and Buttons Connection and Buttons Connection CMTC1515 / CMTC1715 CMTC1915 Composite (AV) video input and output There are two sets of AV video inputs and outputs that can be used. This monitor also supports the “auto looping” function, permitting the connection of another monitor from the output connectors. - Page 16 DC 12V/5.0A adapter input Please insert the DC connecter of a 12 volt power Adapter when AC power input source is not used. DC 12V/0.5A output to camera or other device. Siemens Building Technologies Fire Safety & Security Products 01.2006...
-
Page 17: Buttons
If the LED indicator lamp is green, the unit is in normal operating mode. When DVI and PC input source applications are being used, the LED indicator lamp will change to orange when it is in power-saving mode. Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 18: The Display Timing Of Pc Mode
1024x768@75 Hz 1328x804 60.241 74.927 80.000 AV MODES 720x600@50 Hz 916x312 15.625 50.000 13.500 NTSC 720x480@60 Hz 909x262 15.750 60.000 13.500 NOTE SXGA modes are not supported by the 15” LCD monitor. Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 19: Adjusting The Osd Screen (Dvi And Pc)
This option is used to adjust the image contrast. SHARPNESS This option is used to adjust the focus of the screen image (does not support DVI source). VOLUME This option is used to adjust the sound volume. Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 20: Configuration Of The Phase, Clock, Positioning Of Image
This option is used to adjust the vertical position of the image. PHASE This option is used to reduce horizontal striping in the screen image. CLOCK This option is used to reduce vertical striping in the screen image. Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 21: Adjusting Pip (Picture In Picture) Setting
OSD TIMEOUT This option is used to set the timeout of the OSD Menu. There are seven options for the automatic timeout: 5, 10, 15, 20, 30, 45 and 60 seconds. Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 22: Open The Information
Press the MENU/EXIT button once to exit the main menu. If the MENU/EXIT button is not pressed, the monitor will automatically exit the adjusting screen after a preset time (in seconds). Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 23: Adjusting The Osd Screen (Av Equipment)
This option is used to adjust the clarity of the screen image. SATURATION This option is used to adjust the color density. TINT This option is used to adjust the color tint (NTSC only). Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 24: Adjusting Color
9.1: OSD Main Menu. There are two options for this setting: STILL This option is used to disable the de-interlace function. MOTION This option is used to enable the de-interlace function. Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 25: Adjusting The Vov (Video On Video) Setting
OSD TIMEOUT This option is used to set the timeout of the OSD Menu. There are seven options for the automatic timeout: 5, 10, 15, 20, 30, 45 and 60 seconds. Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 26: Enabling/Disabling Inputs
Press the MENU/EXIT button once to exit the main menu. If the MENU/EXIT button is not pressed, the monitor will automatically exit the adjusting screen after a preset time (in seconds). Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 27: Troubleshooting Tips
1. Make sure that both audio inputs are connected properly. The Can see picture audio input connectors have AV/ S-video/PC line in. but no sound is audible 2. Check to see whether the volume is turned all the way down. Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 28: Disposal
It is a precondition for reuse and recycling of used electrical and electronic equipment. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. Siemens Building Technologies Fire Safety & Security Products 01.2006... -
Page 29: Keyword Index
