ANCHORING YOUR SAFE
In order to fulfill the requirements of the EN certification your safe must be
anchored to a suitable wall or floor using the masonry fixing kit supplied.
2. Open the safe and remove any shelves.
3. Using a pencil or sharp object, mark out the position of the two drilling
holes; use the base or rear holes (whichever provide fixing to the stronger
material)
4. Close the safe and remove it to provide sufficient space to drill the fixing
holes.
5. Using a hammer drill – drill holes 80mm deep. The bolts are 10mm in
diameter, you will need an 11mm concrete drill bit
6. Clear the drill holes and remove any debris using a vacuum cleaner.
7. Secure the safe using the bolts supplied. Do this by feeding the bolt
directly through the hole in the safe into the hole in the anchoring
material. Use a socket wrench to fully tighten the bolts in place
www.Secure-Line.net
1. Place the safe in the position
you have selected. Before
marking or drilling any holes
ensure that there are no pipes or
cables present at the fixing
point. If there is skirting board
present this should be removed
to allow the safe to be fitted
flush against the wall.
USER MANUAL

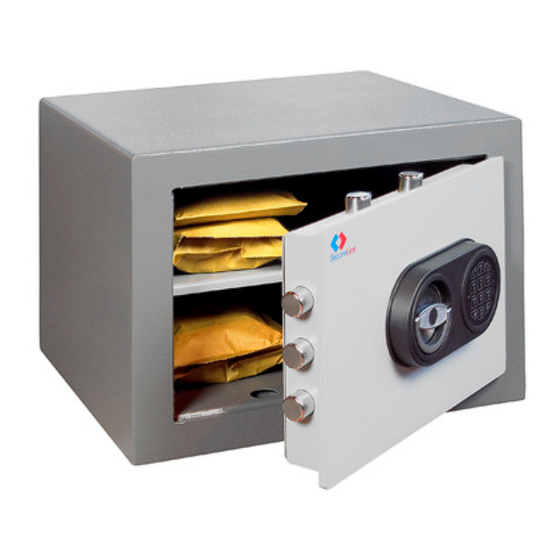

SECURELINE CASTELLE SAFE
Models SL02710, SL02711, SL02712, SL02713,
SL02714, SL02810, SL02811, SL02812, SL02813 &
SL02814
Advertisement
Table of Contents
Related Manuals for SecureLine SL02710
Summary of Contents for SecureLine SL02710
- Page 1 3. Using a pencil or sharp object, mark out the position of the two drilling holes; use the base or rear holes (whichever provide fixing to the stronger Models SL02710, SL02711, SL02712, SL02713, material) SL02714, SL02810, SL02811, SL02812, SL02813 &...
- Page 2 ELECTRONIC LOCK The lock is operates with a numeric six digit code or a word of six letters. A secondary code can be added if required. Each key press is confirmed with an audio and light signal. TO OPEN (figure A) Enter code (the factory code is set as 1 2 3 4 5 6).
