Summary of Contents for Erbauer ERB379PLN

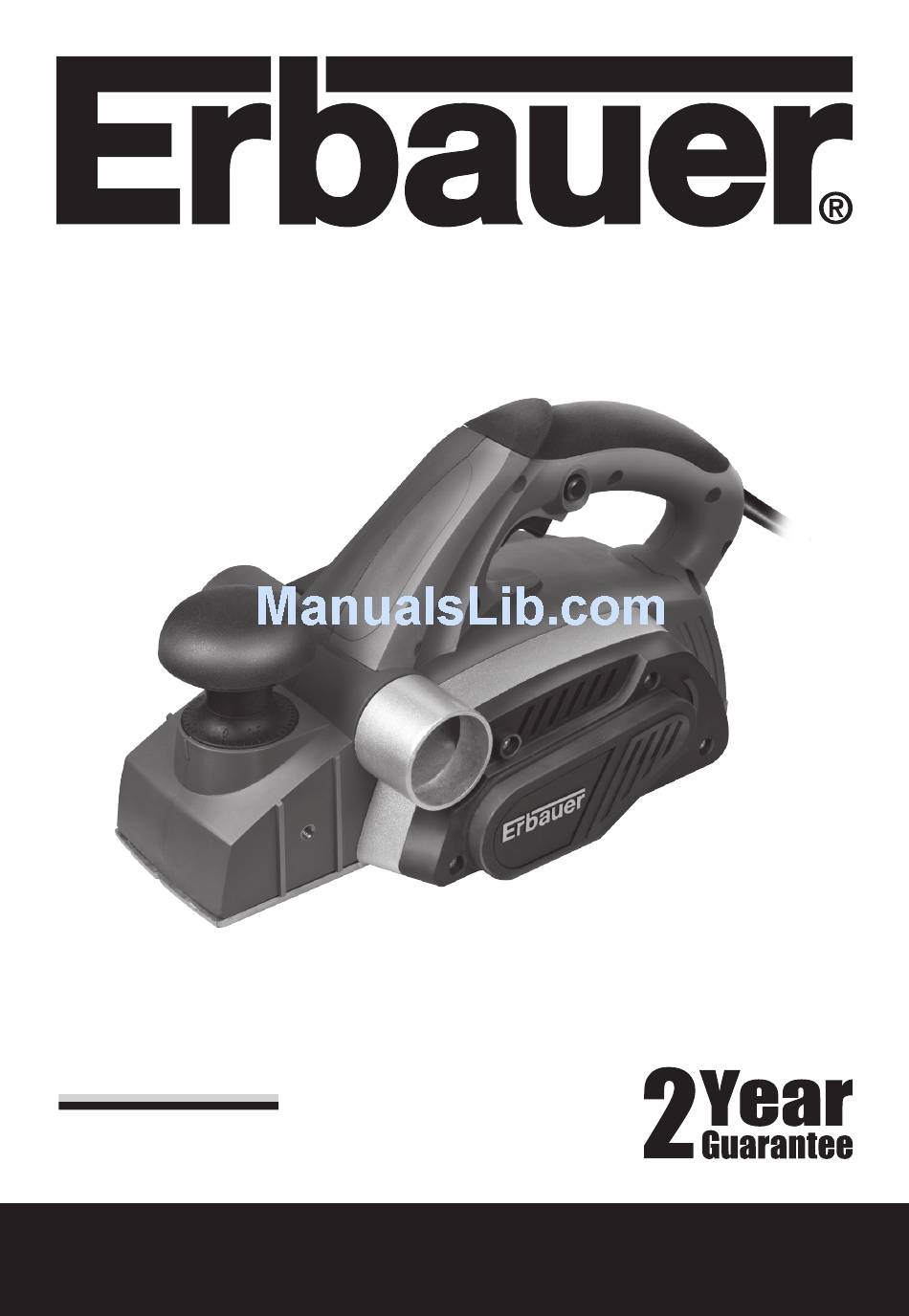

- Page 1 ERB379PLN 4MM PLANER...
- Page 2 Original Instructions (Version 2.0)
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your electric (corded) power tool or battery-operated (cordless) power tool. - Page 5 an RCD reduces the risk of electric shock. 3. Personal safety a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
- Page 6 and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
- Page 7 of control and serious injury. 2. Hold the power tool by insulated gripping surfaces only, because the cutter may contact its own cord. Cutting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. 3.
- Page 8 being cut to reduce saw vibration, blade jumping and blade breakage. 17. Before cutting, check the cutting line is free of nails, screws, etc. 18. If possible, ensure the work-piece is firmly clamped to prevent movement. Never stop the cutting blade by applying side pressure to the blade.
- Page 9 Warning: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled.
- Page 10 SYMBOLS To reduce the risk of injury, user must read instruction manual Warning Double insulation Wear ear protection Wear eye protection Wear dust mask Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
- Page 11 4MM PLANER...
- Page 12 LOCK-OFF BUTTON ON/OFF SWITCH CUTTING DEPTH ADJUSTMENT KNOB DRIVE BELT COVER DUST EXHAUST OUTLET DUST BAG PARALLEL GUIDE PARALLEL GUIDE CONNECTOR REBATE GUIDE LOCKING SCREWS HEX KEY SPANNER DUST EXTRACTION ADAPTOR...
-
Page 13: Technical Data
TECHNICAL DATA Voltage 230-240V~50Hz Power input 1050W No load speed 15500/min Max cutting width 82mm Max cutting depth Max rebating depth 14mm Protection class Weight 3.7kg NOISE INFORMATION A weighted sound pressure: : 96 dB (A) =3.0 dB (A) A weighted sound power: : 107 dB (A) =3.0 dB (A) Wear ear protection when sound pressure is over... - Page 14 OPERATING INSTRUCTIONS Note: Before using the tool, read the instruction book carefully. Intended Use The machine is intended for planing of firmly supported wooden materials, such as beams and boards. It is also suitable for beveling edges and rebating. Fig. 1 1.
- Page 15 4. EDGE CHAMFERING (See Fig. 4, 5) Caution: Always use both hands on the tool for any operation. It assures to maintain control and avoid the risk of serious personal injury. The workpiece must always be properly supported and clamped so that both hands will be free to control the planer.
- Page 16 8. USING THE DUST COLLECTION BAG(See Fig.9) Your planer is equipped with a dust bag for collection of wood chips in the work area. Make sure the zipper on the bag is fully closed. To fit the dust bag, simply insert the tube end of the bag into the dust extraction outlet.
-
Page 17: Drive Belt Replacement
direction of cut as well as how the tapered edge of the old blades are oriented. The tapered edge of the new blades must be in the same orientation as the original blades. Using your finger press the safety cover down, then using the tip of a spanner (or screwdriver) to push blade out of the drum and then remove. -
Page 18: Maintenance
11. CORRECT PLANER BLADE SETTING (See Fig.15) Your planing surface will end up rough and uneven, unless the blade is set properly and securely. The blade must be mounted so that the cutting edge is absolutely level, that is, parallel to the surface of the rear base. -
Page 19: Environmental Protection
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For further information visit www.recycle-more.co.uk. 4MM PLANER... -
Page 20: Plug Replacement
PLUG REPLACEMENT (UK & IRELAND ONLY) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: BLUE =NEUTRAL Brown = Live As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows. -
Page 21: Declaration Of Conformity
EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 EN 60745-2-14 EN 60745-1 Authorised Signatory and technical file holder Date: 09/03/15 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 4MM PLANER...
