Tzone TZ-AVL301 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AVL301 V1.0.1
1 MAIN FEATURES.............................................................................................. 2
2. For Your Safety................................................................................................... 2
3 AVL301 Characteristics........................................................................................3
4. Getting Start........................................................................................................ 4
4.1 Hardware Features..................................................................................4
4.2 Light and Button Functionality............................................................... 5
4.3First Use......................................................................................................8
TZ-AVL301
GPS Tracker
User Guide V1.0.1
Contents
Aug 20 , 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TZ-AVL301 and is the answer not in the manual?

Questions and answers

Related Manuals for Tzone TZ-AVL301

Summary of Contents for Tzone TZ-AVL301

  • Page 1: Table Of Contents

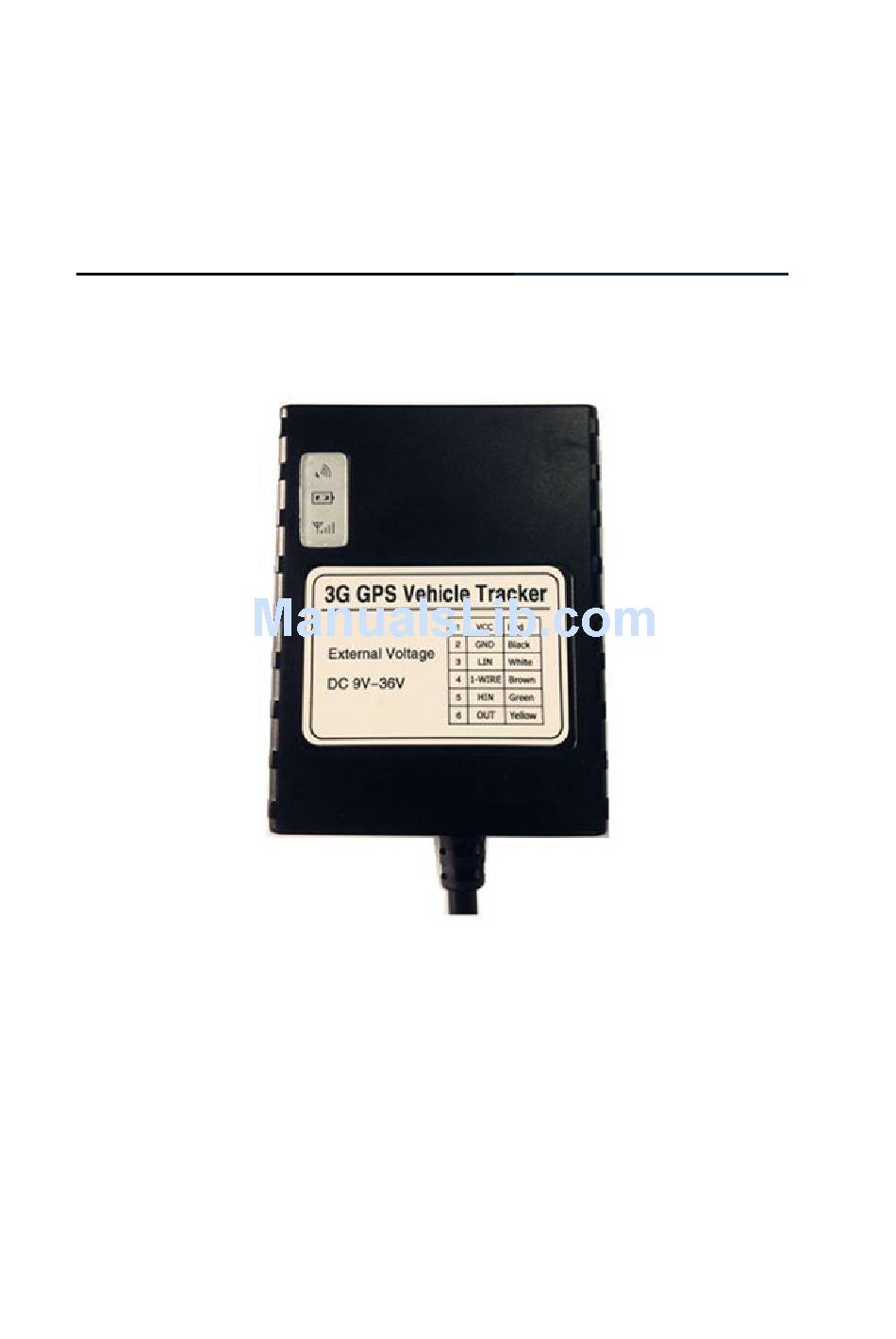

    AVL301 V1.0.1 Aug 20 , 2014 TZ-AVL301 GPS Tracker User Guide V1.0.1 Contents 1 MAIN FEATURES....................2 2. For Your Safety....................2 3 AVL301 Characteristics..................3 4. Getting Start......................4 4.1 Hardware Features..................4 4.2 Light and Button Functionality............... 5 4.3First Use......................8...

  • Page 2: Main Features

    AVL301 V1.0.1 Aug 20 , 2014 5. Track by SMS and GPRS..................8 5.1 Track by SMS....................8 5.2 Track by GPRS between Server and Tracker........... 10 6. Main function....................12 6.1 Other useful function................12 7. The format of the GPRS..................12 8.

  • Page 3: Avl301 Characteristics

    AVL301 V1.0.1 Aug 20 , 2014 danger. Switch off in hospitals Follow any restrictions. Switch the unit off near medical equipment. Switch off in aircraft Follow any restrictions. Wireless devices can cause interference in aircraft. Switch when Do not use the unit when at a refueling point. Do not refueling use near fuels or chemicals.

  • Page 4: Getting Start

    AVL301 V1.0.1 Aug 20 , 2014 4. Getting Start This section will describe how to setup your AVL301 after installation. 4.1 Hardware Features The AVL301 device is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation. The packet contains: 1.The AVL301 device.

  • Page 5: Light And Button Functionality

    AVL301 V1.0.1 Aug 20 , 2014 4.2 Light and Button Functionality AVL301 I/O Port...

  • Page 6: Led Status

    AVL301 V1.0.1 Aug 20 , 2014 Pin No. Pin Name Description Power supply for module Ground pin Negative Digital Input Input1 Data channel for 1-Wire 1-wire Positive Digital Input Input 2 reserved reserved reserved reserved Digital Output.Channel A. Digital Output A LED Status Blue LED - indicating GPS status on for 0.1 second and off for 2.9 seconds...
  • Page 7 AVL301 V1.0.1 Aug 20 , 2014 Connect Ibutton (Port 4)

  • Page 8: First Use

    AVL301 V1.0.1 Aug 20 , 2014 4.3First Use Please read this manual before using your AVL301. Please read this manual before using your AVL301. 4.4.1 Ensure that your AVL301 has a working SIM installed. - Check that the SIM has not run out of credit (Test the SIM in a phone to make sure it can send and receive SMS) - Check that the SIM Lock code is turned off - If you require the function of sending an SMS location report...
  • Page 9 AVL301 V1.0.1 Aug 20 , 2014 AVL301 will respond with a SMS with format as follows:: Lat: +2232.723 N Long: +11403.534 E Spd: 000km/h Fix: A Sat: 04 GSM： 20 Batt: 90.00% Time: 12/03/10 09:50:34 2. -Content Description: Lat: +2232.723 N North latitude —...

  • Page 10: Track By Gprs Between Server And Tracker

    AVL301 V1.0.1 Aug 20 , 2014 Or you can use local map software on PDA or car navigation to input the coordinates. 5.2 Track by GPRS between Server and Tracker 5.2.1 ID Number We use the IMEI number of the GSM module as the ID to identify the different devices. 5.2.1 Set APN Command: *$$$$$$,011,APN,Username,Password# Description: Set APN details for the tracker...
  • Page 11 AVL301 V1.0.1 Aug 20 , 2014 Example: *000000,016,1# 5.2.4 Set the interval of the GPRS Command: *$$$$$$,018,XXX,YYY# Description: This command set the time interval to send the GPRS date. Note: XXX is the time interval to send the GPRS date, the unit is second, X=0, means stop to send GPRS.

  • Page 12: Main Function

    AVL301 V1.0.1 Aug 20 , 2014 6. Main function 6.1 Other useful function  Get current location: *$$$$$$,000#  Get the IMEI from the device: *$$$$$$,801#  Reboot the device by SMS: *$$$$$$,991#  Initialization the device *$$$$$$,990,099# 7. The format of the GPRS Please refer to the document AVL301GPRS protocol .
  • Page 13 AVL301 V1.0.1 Aug 20 , 2014 *$$$$$$,011,APN,Username, APN : APN string (must < 28 APN,Username,Password Password# chars) User name: Your username (must < 28 chars) Password: Your password (must < 28 chars) haven't username password, then left it blank. For example: *000000,011,CMNET,,## haven't username and password) Set IP Address &...
  • Page 14 AVL301 V1.0.1 Aug 20 , 2014 Initialization Tracker *$$$$$$,990,099# It will set all parameter to factory default value (Excluding the Password). Reboot by SMS command *$$$$$$,991# It will reboot the AVL301by this SMS command. Clear data flash *$$$$$$,500# Clear stored in the flash memory inside the machine Map Link *$$$$$$,100#...

  • Page 15: Q&A

    AVL301 V1.0.1 Aug 20 , 2014 (Default) X=1, Active this function. Y= [10,9999]/ Minutes, Reboot time interval data flash switch *$$$$$$,601,X# X=0,Disable data flash function X=1,enable data flash function (Default) 9. Q&A 1. Question: Unit will not turn on Answer: 1) Battery needs to charge.

  • Page 16: Update The Firmware Of The Avl

    AVL301 V1.0.1 Aug 20 , 2014 Answer: 1) Unit doesn`t have a open sky 2) Bad GPS reception 3) Battery is low Resolution: 1) Move the unit to an open sky. Tall buildings, trees, cloud or heavy rain will case the bad GPS reception.
  • Page 17 AVL301 V1.0.1 Aug 20 , 2014 B. Connect the AVL unit to PC through RS232 cable, View the com port that the cable used...
  • Page 18 AVL301 V1.0.1 Aug 20 , 2014 1）Turn on AVL device 2）Build a New Hyper terminal connect, fill the name, example as IAP_DL 3）Choose the Com Port that the RS232 Cable used Setup all the option like show in the picture follow...
  • Page 19 AVL301 V1.0.1 Aug 20 , 2014 4）Into Configure Mode...
  • Page 20 AVL301 V1.0.1 Aug 20 , 2014 5）Turn Off AVL device 1）Keep the SOS button is pressed and Turn on Power ，Device all indicator will keep light at same time，(all of the device’s indicator will be keep light for a moment)Hyper terminal will display the interface like the picture follow 2）Press Keypad 1，Hyper terminal will display( waiting for the file to be sent...
  • Page 21 AVL301 V1.0.1 Aug 20 , 2014 3）Then chose send file ( Send  Send file) 4）Choose the firmware that you want to Update； Protocol Choose: Ymodem...
  • Page 22 AVL301 V1.0.1 Aug 20 , 2014 5）Press Send button, Will display a New Windows that show the update process. 6） When finish Update,will appear "Programming Completed Successfully!", GSM and GPS light is always on, press Keypad 2 end the upgrade mode, GPS and GSM light will turn off.
  • Page 23 AVL301 V1.0.1 Aug 20 , 2014 (7) When the AVL301 LED is blinking back to normal mode. Make sure about 2 mins later, then turn Off and Turn On AVL301 again.(at this times the firmware will load the parameter to the unit ).
  • Page 24 AVL301 V1.0.1 Aug 20 , 2014...
  • Page 25 AVL301 V1.0.1 Aug 20 , 2014...
  • Page 26 AVL301 V1.0.1 Aug 20 , 2014...
  • Page 27 AVL301 V1.0.1 Aug 20 , 2014...
  • Page 28 AVL301 V1.0.1 Aug 20 , 2014...
