  • Page 1 User’s Manual...
  • Page 2 User’s Manual. Visit our website http://www.inbody.com to view and download further information about the functions of the InBody770, the explanation of results output, and more. Biospace Co., Ltd reserves the right to modify the appearance, specifications, and etc.

  • Page 3: Table Of Contents

    User’s Manual Contents I. InBody 770 Installation A. Product Components B. Operating Environment C. Installation Instructions D. Initial Setup E. Connecting Printer, Stadiometer, Blood Pressure Monitor, and Barcode Reader F. Maintenance II. InBody Test A. Precautionary Steps B. Test Instructions C.

  • Page 4: Inbody770 Installation

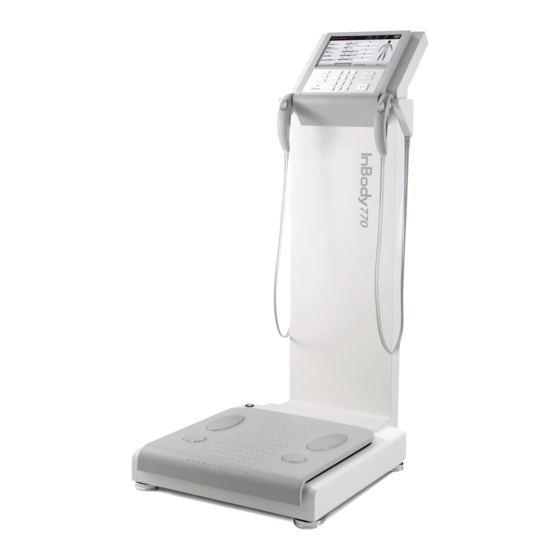

    I. InBody770 Installation A. Product Components The InBody770 consists of the following components. Please make sure all of the following components are present. * Please inspect each component of the InBody770 for defects prior to installation. InBody770 ➊ Adapter (DC 12V, 3.4A) 1 EA ➋...

  • Page 5: Operating Environment

    Test results may also be inaccurate. Never clean the hand and foot electrodes with liquid spray or detergent directly. The equipment may corrode • and/or malfunction if the liquid or detergent leaks inside. Use the InBody Tissue when cleaning the InBody770.
  • Page 6 주 의 참 고 주 의 Do not use a knife or scissors to remove the packing bands. Keep packing bands for repacking the InBody • in the future. 4. Please refer to the following illustrations to remove the Packing Bands from both hand electrode cables.
  • Page 7 6. Tighten the hexagonal screws, on the InBody770 joint, by rotating the Hexagonal Wrench clockwise. Hexagonal screws 7. Please refer to the following illustrations to insert the Hinge Cover. 8. Level the InBody770 by rotating the leveling screws under the footplate to the left and right so that the air bubble is centered.
  • Page 8 9. Connect the adapter ( ) to the power input port, which is located on the rear panel ( ). Connect the adapter ( ➋ ➊ ➋ to the power cord ( ). Plug the power cord ( ) into a grounded 3-socket outlet. ➌...
  • Page 9 AUTION NOTE DANGER Caution 참 조 주 의 참 고 주 의 If the InBody770 is not plugged into a grounded outlet, it may cause damage through electric surges or • product malfunction. This may affect the test results. The test results may be inaccurate if the InBody770 is under electrical interference. Do not install the InBody770 •...

  • Page 10: Initial Setup

    D. Initial Setup 1. The InBody770 automatically starts booting when it is turned on. While booting, it performs a self weight calibration. * While booting (about 5 minutes), make sure there is nothing on top of the footplate. Please do not stand on the footplate, or place objects on the footplate.
  • Page 11 : You can export test results as an excel file on a USB Thumb Drive. Exported test results can be viewed as an excel file on a computer. 08. Data Backup/Restoration : Back up the InBody Test results to a USB Thumb Drive or restore test results using a backup file on a USB Thumb Drive. 09. Printer Setup : Connect the printer to the InBody.
  • Page 12 : Adjust the alignment of where the results will be printed on the results sheets. 16. Internet Options : You can connect the InBody to the Internet. When the InBody is connected to the internet, can connect to data management software Lookin’Body120, regardless of location.
  • Page 13 2) Troubleshooting: See additional information on how to use the InBody. Refer to troubleshooting checklist when there are problems that occur during the InBody use/test. 01. Customer Service Information : See the customer service contact information saved under the Setup of the Administrator Menu ‘24.

  • Page 14: Connecting Printer, Stadiometer

    1) First turn off the InBody770 and then the printer. * You may experience connection issues in connecting the printer to the InBody770 if the InBody is turned on. 2) Plug the USB cable provided with the printer into the USB HOST port on the rear panel of the InBody770 and plug the other end of the USB cable into the printer.
  • Page 15 1) First turn off the InBody770 and then the blood pressure monitor. * You may experience connection issues in connecting the blood pressure monitor to the InBody770 if the InBody is turned on. 2) Plug the serial cable provided with the blood pressure monitor to the 9-pin blood pressure monitor serial port on the rear panel of the InBody770.

  • Page 16: Maintenance

    F. Maintenance NOTE DANGER Caution 참 조 주 의 참 고 주 의 Place the hand electrodes on the hand electrode holder to prevent the electrodes from falling down. Dropped • hand electrodes may cause malfunctions. Do not extend the handles of the hand electrodes beyond its limitation. •...

  • Page 17: Inbody Test

    Children and people with limited mobility should be supervised or assisted when attempting to test on the InBody. • After an individual with any kind of contagious disease or infection tests on the InBody, use an InBody Tissue • to clean the equipment.

  • Page 18: Test Instructions

    * The screens vary according to the Setup of the Administrator Menu ‘02. Self Mode/Professional Mode’. Professional Mode: An examiner is present and guiding the examinee through the InBody Test. Self Mode: The examinee takes the InBody Test following the instructions that are displayed on screen. 2. Weight measurement begins.

  • Page 19: Test Posture

    6. When the test is completed, the results will be shown on screen. Professional Mode Self Mode C. Test Posture The examinee must maintain proper posture to have accurate test results. * The test will proceed when there is good electrical contact. Your arms must not touch the sides of your body.

  • Page 20: Transportation And Storage

    III. Transportation and Storage A. Cautions during Transportation When transporting, have two people keep the InBody770 parallel to the ground. B. Repacking Instructions Once the InBody770 is installed, avoid transporting the equipment. If it must be transported, repack it in the following sequence.
  • Page 21 Polyethylene foam cover Packing material CAUTION NOTE DANGER Caution 참 조 주 의 참 고 주 의 Always use the protective packing materials provided by BIOSPACE when repacking. • 7. Place the InBody into the packing box.

  • Page 22: Transportation And Storage Environment

    8. Place the Adapter into the Adapter box as illustrated below. Insert the Adapter box and Hinge Cover into the packing material. Packing Pad 9. Place the packing pad over the equipment and tape up the packing box. Packing Pad C.

  • Page 23: Frequently Asked Questions (Faq)

    BIOSPACE. * Customer contact information can be found under Setup of the Administrator Menu ‘24. Customer Service Information’. A. Regarding the InBody If a problem arises with the InBody770, you may first attempt to check the ‘Troubleshooting’ in the Administrator Menu.
  • Page 24 If you cannot enter the Administrator Menu due to touchscreen problems, • please restart the InBody. The InBody stores the last touchscreen alignment and will automatically recall the previous touchscreen settings. The InBody can also recognize if its touchscreen alignment is off screen and will automatically take the user to the calibration screen after restarting.

  • Page 25: Regarding The Inbody Test

    • harmful to the body? that is not harmful to the body. The safety of the InBody has been tested and proven. The InBody products have been approved for medical use by the CE and all over the world. Many medical institutions around the world are actively using the InBody.

  • Page 26: Others

    IEC60601-1-2 (EN60601-1-2), an international standard for electromagnetic conformity. A. Exterior and Functions The following are the names and functions of each part of the InBody. * Please inspect each component of the InBody770 for damage prior to installation.
  • Page 27 2. Footplate Front sole electrode: The examinee makes contact with this electrode by stepping with the front part of their foot. ➊ Rear sole electrode: The examinee makes contact with this electrode by stepping with the heel of their foot. ➋...
  • Page 28 3. Rear Panel Rear cover: Designed to be opened only by BIOSPACE service personnel for checking internal circuits, etc. ➊ 9-pin blood pressure monitor serial port (Female, RS-232C): Used for connecting the InBody770 to a ➋ blood pressure monitor. * Only compatible with a BIOSPACE blood pressure monitor. 9-pin PC serial port (Female, RS-232C): Used for connecting the InBody770 to Lookin’Body120 installed ➌...

  • Page 29: Safety Information

    B. Safety Information Indicators 9-pin serial port (Female, RS-232C) LAN port (Ethernet, 10T Base) USB port Safety Symbols Dangerous High Voltage Warning, Caution BF Type Equipment Adapter Power On Power Off Follow instructions for use Suivez les instructions d’utilisation WARNING Electric shock hazard –...

  • Page 30: Classification

    No Empirical Estimation Calculation Method Outputs Results and Interpretations (InBody Results Sheet) Body Composition Analysis (Total Body Water, Protein, Soft Lean Mass, Minerals, • Fat Free Mass, Body Fat Mass, Weight) Muscle-Fat Analysis (Weight, Skeletal Muscle Mass, Body Fat Mass) •...
  • Page 31 Impedance (Each segment and each frequency) Optional Equipment Stadiometer from BIOSPACE and Blood pressure monitor from BIOSPACE Logo Name, Address, and Contact Information can be shown on the InBody Results Sheet. Digital Results LCD Monitor, Data management software Lookin’Body120 Types of Result Sheets...
  • Page 32 Database Test results can be saved if the member ID is utilized. The InBody can save up to 100,000 results. Test Mode Self Mode, Professional Mode Administrator Menu Setup: Configure settings and manage data Troubleshooting: Additional information to help use the InBody770...
  • Page 36 Copyright ⓒ1996 ~ Biospace Co., Ltd. All rights reserved. BM-ENG-C7-A-131213...
