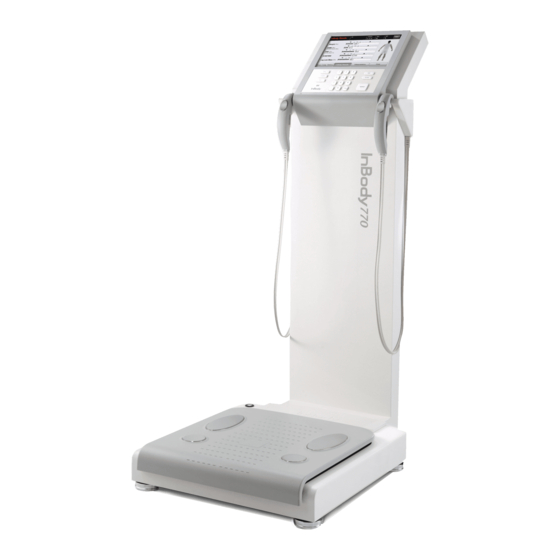

inbody 770 User Manual

Hide thumbs Also See for 770:
Table of Contents

Advertisement

Quick Links

User's Manual
USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 770 and is the answer not in the manual?

Questions and answers

Related Manuals for inbody 770

Summary of Contents for inbody 770

  • Page 1 User’s Manual...
  • Page 2 This manual might have typographical errors, and its content can be changed without prior notice. InBody Co., Ltd. shall not be liable for any errors, incidental, or consequential damages that occurred by not complying with the content of the User’s Manual.

  • Page 3: Table Of Contents

    III. Transportation and Storage A. Cautions during Transportation B. Repacking Instructions C. Transportation and Storage Environment IV. Frequently Asked Questions (FAQ) A. Regarding the InBody B. Regarding the InBody Test V. Others A. Exterior and Functions B. Safety Information C. Classification D. Specifications...

  • Page 4: Inbody770 Installation

    I. InBody770 Installation A. Product Components The InBody770 consists of the following components. Please make sure all of the following components are present. * Please inspect each component of the InBody770 for defects prior to installation. ❶ InBody770 ❷ Adapter (DC 12V, 3.4A/3.34A) 1 EA Keypad ❸...

  • Page 5: Operating Environment

    Never clean the hand and foot electrodes with liquid spray or detergent directly. The equipment may corrode and/or malfunction if the liquid or detergent leaks inside. Use the InBody Tissue when cleaning the InBody770. * For inquires regarding the InBody Tissue, please contact InBody.
  • Page 6 Caution 참 조 주 의 참 고 주 의 • Do not use a knife or scissors to remove the packing bands. Keep packing bands for repacking the InBody in the future. DANGER Attention 참 조 주 의 참 고...
  • Page 7 4. Please refer to the following illustrations to remove the Packing Bands from both hand electrode cables. 5. Completely raise the upper part of the InBody770. 6. Tighten the hexagonal screws, on the InBody770 joint, by rotating the Hexagonal Wrench clockwise. Hexagonal screws 7.
  • Page 8 8. Level the InBody770 by rotating the leveling screws under the footplate to the left and right so that the air bubble is centered. * Leveling the equipment is necessary for accurate measurement of weight. There are a total of 5 leveling screws. Level Indicator Leveled Not leveled...
  • Page 9 InBody770 first. This is necessary to minimize electrical surges on the InBody770. Always use the specified adapter provided by InBody as it is a part of the InBody770. Using other adapters • may result in malfunction of the InBody770.
  • Page 10 Lorsque vous éteignez l'équipements, éteignez d'abord l'InBody770. Ceci est nécessaire afin de réduire les risques de surtensions électriques sur l'InBody770. Utilisez toujours l'adaptateur fourni par InBody, puisque c'est une pièce de l'InBody770. L'utilisation d'autres • adaptateurs peut entraîner la défaillance de l'InBody770.

  • Page 11: Initial Setup

    D. Required Settings 1. The InBody770 automatically starts booting when it is turned on. While booting, it performs a self weight calibration. * While booting (about 5 minutes), make sure there is nothing on top of the footplate. Please do not stand on the footplate, or place objects on the footplate.
  • Page 12 : Back up InBody Test results to a USB Thumb Drive or restore test results using a backup file on a USB Thumb Drive. 09. Printer Setup : Connect the printer to the InBody. A connected printer will allow for printing results sheets after testing. 10. Results Sheet Types : Select which results sheets to utilize with the InBody770. (InBody Results Sheet and Body Water Results Sheet).
  • Page 13 : Adjust the alignment of where the results will be printed on the results sheets. 16. Internet Options : You can connect the InBody to the Internet. When InBody is connected to the internet, can connect to data management software Lookin’Body120, regardless of location.
  • Page 14 InBody use/test. 01. Customer Service Information : See the contact information of InBody. Please contact InBody if your problem cannot be resolved through the ‘Troubleshooting’ or if you have further inquiries regarding the InBody Test.

  • Page 15: Connecting Printer, Stadiometer, And Blood Pressure Monitor

    1) First turn off the InBody770 and then the printer. * You may experience connection issues in connecting the printer to the InBody770 if the InBody is turned on. 2) Plug the USB cable provided with the printer into the USB HOST port on the rear panel of the InBody770 and plug the other end of the USB cable into the printer.
  • Page 16 Enable the Bluetooth connection. Bluetooth can connect the InBody to Lookin’Body 120 or other devices. Select ‘Stadiometer’ to connect via Bluetooth. * Only one device can be connected via Bluetooth at a time. The InBody will disconnect any other device and then connect to the stadiometer.
  • Page 17 1) First turn off the InBody770 and then the blood pressure monitor. * You may experience connection issues in connecting the blood pressure monitor to the InBody770 if the InBody is turned on. 2) Plug the serial cable provided with the blood pressure monitor to the 9-pin blood pressure monitor serial port on the rear panel of the InBody770.

  • Page 18: Maintenance

    F. Maintenance DANGER Caution 참 조 주 의 참 고 주 의 • Place the hand electrodes on the hand electrode holder to prevent the electrodes from falling down. Dropped hand electrodes may cause malfunctions. • Do not place any objects on the footplate. •...

  • Page 19: Inbody Test

    Children and people with limited mobility should be supervised or assisted when attempting to test on the InBody. • After an individual with any kind of contagious disease or infection tests on the InBody, use an InBody Tissue to clean the equipment.
  • Page 20 • Avant le test, bien essuyer la paume des mains et la plante des pieds avec l'InBody Tissue. Effectuer le test peut être difficile si les paumes et les plantes du candidat sont trop sèches ou si le candidat a trop de callosités.

  • Page 21: Test Instructions

    * The screens vary according to the Setup of the Administrator Menu ‘02. Self Mode/Professional Mode’. Professional Mode: An examiner is present and guiding the examinee through the InBody Test. Self Mode: The examinee takes the InBody Test following the instructions that are displayed on screen. 2. Weight measurement begins.

  • Page 22: Test Posture

    6. When the test is completed, the results will be shown on screen. Professional Mode Self Mode C. Test Posture The examinee must maintain proper posture to have accurate test results. * The test will proceed when there is good electrical contact. Your arms must not touch the sides of your body.

  • Page 23: Transportation And Storage

    III. Transportation and Storage A. Cautions during Transportation When transporting, have two people keep the InBody770 parallel to the ground. B. Repacking Instructions Once the InBody770 is installed, avoid transporting the equipment. If it must be transported, repack it in the following sequence.
  • Page 24 Packing material Caution 참 조 주 의 참 고 주 의 • Always use the protective packing materials provided by InBody when repacking. Attention 참 조 주 의 참 고 주 의 • Utilisez toujours l'emballage de protection fournis par InBody lors du ré-emballage.

  • Page 25: Transportation And Storage Environment

    8. Place the Adapter into the Adapter box as illustrated below. Insert the Adapter box and Hinge Cover into the packing material. Packing Pad 9. Place the packing pad over the equipment and tape up the packing box. Packing Pad C.

  • Page 26: Frequently Asked Questions (Faq)

    Insert the power cord completely into the adapter. The problem may occur if you are using a power adapter that was not provided • by InBody. Always connect a power adapter (DC 12V, 3.4A/3.34A) provided by InBody. Power adapter...
  • Page 27 If you cannot enter the Administrator Menu due to touchscreen problems, • please restart the InBody. The InBody stores the last touchscreen alignment and will automatically recall the previous touchscreen settings. The InBody can also recognize if its touchscreen alignment is off screen and will automatically take the user to the calibration screen after restarting.

  • Page 28: Regarding The Inbody Test

    • harmful to the body? that is not harmful to the body. The safety of the InBody has been tested and proven. The InBody products have been approved for medical use by the CE and all over the world. Many medical institutions around the world are actively using the InBody.

  • Page 29: Others

    Others * The InBody770 is manufactured according to the quality management procedure of InBody. InBody complies with the ISO9001 and ISO13485 which are international quality management systems. * This equipment satisfies the IEC60601-1 (EN60601-1), an international safety standard for electronic medical equipment. This equipment also satisfies the IEC60601-1-2 (EN60601-1-2), an international standard for electromagnetic conformity. A. Exterior and Functions The following are the names and functions of each part of the InBody.
  • Page 30 2. Footplate ❶ Front sole electrode: The examinee makes contact with this electrode by stepping with the front part of their foot. ❷ Rear sole electrode: The examinee makes contact with this electrode by stepping with the heel of their foot. ❸...
  • Page 31 USB HOST port: Used for connecting to a printer or a USB Thumb Drive. ❽ Power input port: Used for connecting to the power adapter. * Always use the specified adapter provided by InBody as it is a part of the InBody770. Using other adapters may result in malfunction of the InBody770. Power switch: Used for turning on/off the equipment.
  • Page 32 DANGER Warning 참 조 주 의 참 고 주 의 • Do not touch signal input, signal output or other connectors, and the patient simultaneously. • External equipment intended for connection to signal input, signal output or other connectors, shall comply with relevant IEC Standard(e.g., IEC60950 for IT equipment and IEC60601-1 series for medical electrical equipment).

  • Page 33: Safety Information

    B. Safety Information Indicators 9-pin serial port (Female, RS-232C) LAN port (Ethernet, 10T Base) USB port Safety Symbols Dangerous High Voltage Warning, Caution BF Type Equipment Adapter Power On Power Off Etc. Symbols European Conformity Serial number 1639 Manufacturer Direct current Authorized representative in the Operating instructions EUROPEAN COMMUNTY...

  • Page 34: Classification

    Outputs Intercellular Water, Extracellular Water, Total Body Water, Dry Lean Mass, Lean Body (InBody Results Sheet) Mass, Body Fat Mass, Weight, Skeletal Muscle Mass, Body Mass Index, Percent Body Fat, Segmental Lean Analysis (Right Arm, Left Arm, Trunk, Right Leg, Left Leg), Segmental...
  • Page 35 Provides audible indication for test in progress, test complete, and successfully saved settings changes. Database Test results can be saved if the member ID is utilized. The InBody can save up to 100,000 results. Test Mode Self Mode, Professional Mode...
  • Page 36 Compatible Printer Laser/Inkjet Printers * A list of printers compatible with the InBody770 can be found at https://www.inbodyservice.com Dimension 20.7W) × 33.6(L) × 46.3(H): inch 526(W) × 854(L) × 1175(H): mm Equipment Weight 83.8lbs (38kg) Test Time About 50 seconds 50 ~ 104˚F (10 ~ 40˚C), 30 ~ 75% RH, 70 ~ 106kPa Operation Environment Storage Environment...
  • Page 40 1639 ©2021 InBody Co., Ltd. All rights reserved. BM-USA-C7-G-210303...
