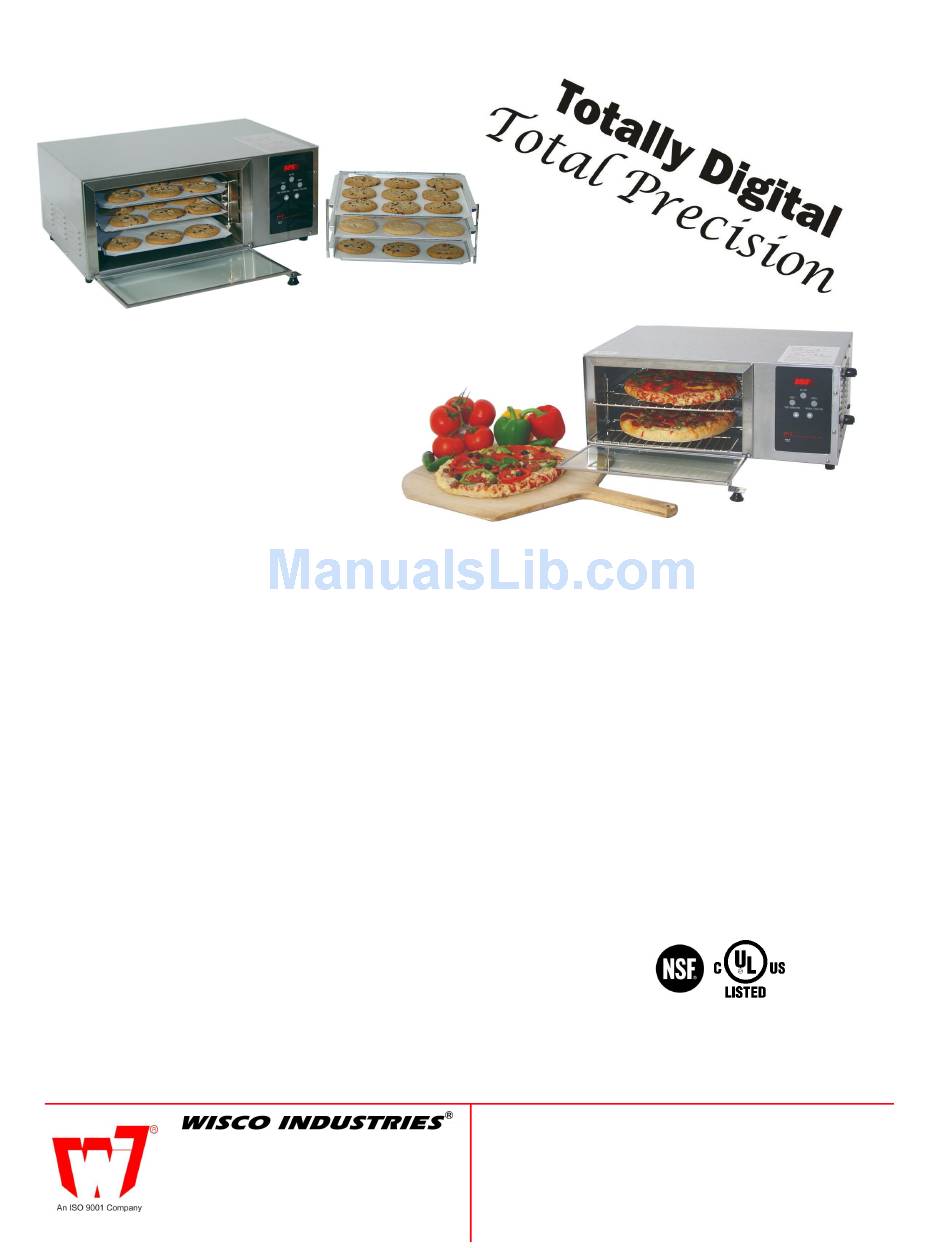

MODEL 616
Precision baking at its best! This compact
convection oven can bake it all. From cookies,
muffins and biscuits to frozen snacks,
hors d'oeuvres and even pizza. Heated,
circulating air throughout the oven provides
even baking while a digital control provides a
precise baking temperature for a perfect turnout
every time.
FEATURES:
- Digital display that is user friendly
- Precise, adjustable time and temperature control
- Temperatures ranging from 150 - 450 deg. F
- Preheat & Memory cycle mode with "hold" feature
- All stainless steel enclosure
- Tempered glass, spring loaded door
- 3 aluminum pans (13" x 13") incl. w/cookie oven
- 2 wire grills (13" x 13") incl. w/pizza oven
AVAILABLE ACCESSORIES:
- Cooling rack; holds both styles of racks (#616CR)
- Boxed set of (3) cookie pans (616PS#)
- Parchment paper: 500 sheets (#18167-1)
1000 sheets (#18167-2)
Conversion Kits:
- Cookie oven to Pizza oven: (#18052) Incl. 2 wire grills
and internal side support rack
- Pizza oven to Cookie oven: (#18017) Incl. 3 cookie pans
and internal side support rack
FP140114-M
02/10
DIGITAL CONVECTION OVEN
P.O. BOX #10
OREGON,WI 53575
PHONE: 608-835-3106
FAX: 608-835-8273
www.thepizzaoven.biz
MODEL 616-WG
ELECTRICAL DATA:
- 120 volts, 12.7 amps, 1470 watts
- Best when operated on an individual branch circuit
- 6' power cord length
(May not reflect shipping dimensions)
DIMENSIONS:
9"H x 22-1/2"W x 15"D
Inside dimension: 7"H x 13-1/2"W x 14-1/2"D
WEIGHT:
Approx. 44 lbs. (May not reflect shipping weight)
LIMITED WARRANTY:
Wisco Industries, Inc. expressly warrants the product will be free from defects in workmanship and materials for a period of
1 year from the date of shipment. WISCO DISCLAIMS AND EXCLUDES ANY AND ALL OTHER EXPRESS OR IMPLIED
WARRANTIES, INCLUDING WITHOUT LIMITATION, ANY AND ALL WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
Buyer agrees that its SOLE AND EXCLUSIVE REMEDY against Wisco and Wisco's SOLE AND EXCLUSIVE LIABILITY arising
out of any defect or nonconformity in the product shall be replacement/exchange of such nonconforming countertop food service
equipment at Wisco's expense. No countertop food service equipment shall be returned without Wisco's consent. IT IS AGREED
THAT WISCO'S MAXIMUM LIABILITY SHALL NOT IN ANY CASE EXCEED THE SALE PRICE FOR THE COUNTERTOP
EQUIPMENT CLAIMED TO BE DEFECTIVE OR NONCONFORMING.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 616-WG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wisco Industries 616-WG

  • Page 1 LIMITED WARRANTY: Wisco Industries, Inc. expressly warrants the product will be free from defects in workmanship and materials for a period of P.O. BOX #10 1 year from the date of shipment. WISCO DISCLAIMS AND EXCLUDES ANY AND ALL OTHER EXPRESS OR IMPLIED...
  • Page 2: Cleaning Instructions

    IMPORTANT: Read the following safety and operation instructions to avoid injury and to avoid damage to equipment or property. Plug unit into a properly grounded electrical outlet of the correct voltage, size and plug configuration for this unit. We recommend usage on an individual branch circuit of at least 15 amps for best results.
  • Page 3 OPERATING INSTRUCTIONS - A more basic version can also be found on a decal located on the top of the unit Activating the Controller When power is first applied to the controller several diagnostic tests are automatically performed including lighting all the display segments and displaying the current firmware revision level (r1.4).
  • Page 4: Additional Notes

    Viewing Actual Oven Temperature For test purposes the actual oven temperature can be viewed during a baking cycle by pressing the UP and DOWN buttons simultaneously. If the temperature is below 100 deg. F (38 deg. C) “LO” is displayed. Open Thermocouple During initial power up if a Thermocouple is not connected an error code “Prb”...
  • Page 5: Troubleshooting

    UP and DOWN buttons. ADDITIONAL NOTES: If you have further questions in regards to this piece of equipment - please contact Wisco Industries, Inc. directly at: (608)835-3106 or (800)999-4726; fax (608)835-8273 for further information. *Please be sure to have the complete model # and serial # available.
  • Page 7 Page 7...
  • Page 8 608-835-3106/800-999-4726 FAX: 608-835-8273 WISCO INDUSTRIES INC. www.thepizzaoven.biz REPAIR PARTS FOR MODEL 616B ITEM NO. PART NO. DESCRIPTION 00601NSK DOOR ASSEMBLY (INCLUDES ITEMS #2-5) 0016133 #8-32 X 3/8" PHNS S.S. 0018030 DOOR KNOB 0018154B DOOR SPRING 008223 #8 X 1" SMS PHIL SCR...
