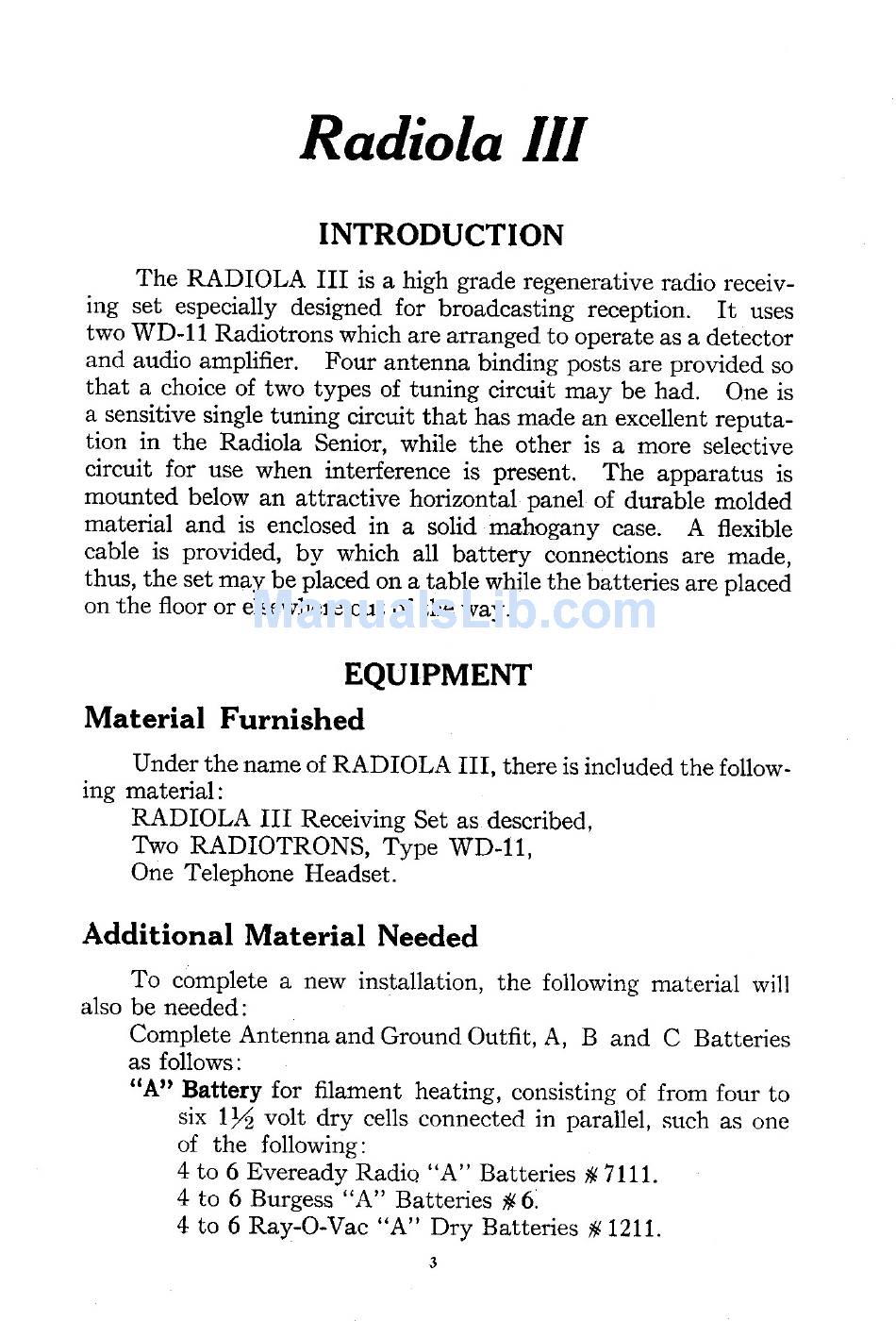

Radiola III
INTRODUCTION

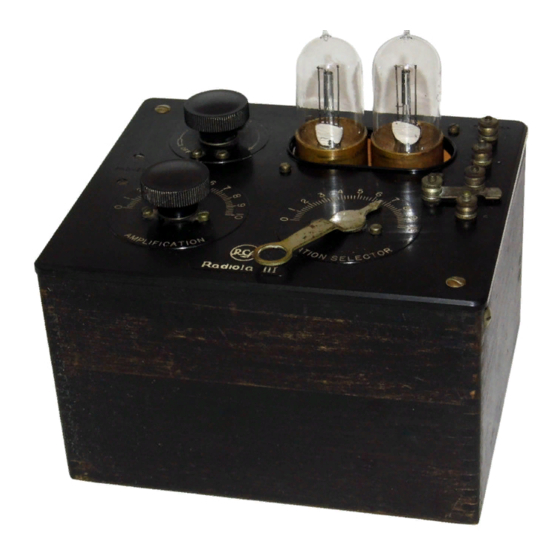

The RADIOLA III is a high grade regenerative radio receiv-
ing set especially designed for broadcasting reception.
It uses
two
WD-11 Radiotrons
which
are arranged to operate as a detector
and
audio amplifier.
Four antenna binding
posts are
provided
so
that
a choice of two types of tuning circuit may be had.
One is
a
sensitive single tuning circuit that has made an excellent reputa-
tion in the Radiola Senior, while the other is a more selective
circuit for use when interference is present.
The apparatus is
mounted below an attractive horizontal panel of durable molded
material and is enclosed in a solid mahogany case.
A flexible
cable
is provided, by which all battery connections are
made,
thus,
the set may be placed on a table while the batteries are placed
on the floor or elsewhere out of the way.
EQUIPMENT
Material Furnished
Under the name of RADIOLA III, there is included the follow-
ing material:
RADIOLA III Receiving Set
as.
described,
Two RADIOTRONS, Type WD-l1 ,
One Telephone Headset.
Additional Material Needed
To complete a new installation, the following material will
also
be needed:
Complete Antenna and Ground
Outfit, A,
Band C Batteries
as follows:
"A"
Battery for filament heating, consisting
of
from four to
six
172
volt dry cells connected in
parallel,
such as one
of the following:
4
to 6 Eveready RadiQ "A" Batteries
'fI,
7111.
4 to 6 Burgess "A" Batteries
'fI,
6.
4 to 6 Ray-O-Vac "An Dry Batteries
'fI,
1211.
3
Radiola III
INTRODUCTION
The RADIOLA III is a high grade regenerative radio receiv-
ing set especially designed for broadcasting reception.
It uses
two
WD-11 Radiotrons
which
are arranged to operate as a detector
and
audio amplifier.
Four antenna binding
posts are
provided
so
that
a choice of two types of tuning circuit may be had.
One is
a
sensitive single tuning circuit that has made an excellent reputa-
tion in the Radiola Senior, while the other is a more selective
circuit for use when interference is present.
The apparatus is
mounted below an attractive horizontal panel of durable molded
material and is enclosed in a solid mahogany case.
A flexible
cable
is provided, by which all battery connections are
made,
thus,
the set may be placed on a table while the batteries are placed
on the floor or elsewhere out of the way.
EQUIPMENT
Material Furnished
Under the name of RADIOLA III, there is included the follow-
ing material:
RADIOLA III Receiving Set
as.
described,
Two RADIOTRONS, Type WD-l1 ,
One Telephone Headset.
Additional Material Needed
To complete a new installation, the following material will
also
be needed:
Complete Antenna and Ground
Outfit, A,
Band C Batteries
as follows:
"A"
Battery for filament heating, consisting
of
from four to
six
172
volt dry cells connected in
parallel,
such as one
of the following:
4
to 6 Eveready RadiQ "A" Batteries
'fI,
7111.
4 to 6 Burgess "A" Batteries
'fI,
6.
4 to 6 Ray-O-Vac "An Dry Batteries
'fI,
1211.
3
