BYAN SYSTEM, INC.
413 LINDEN
LUSK, WY 82225
(800) 223-2926
MODEL 800A/900B SERIES
VEHICULAR SWING
GATE OPERATOR
INSTALLATION AND TECHNICAL MANUAL
BYAN SYSTEMS, INC. OF LUSK, WYOMING, DEMANDS THAT YOU AS AN INSTALLER
INFORM YOUR CUSTOMER OF ALL SAFETY EQUIPMENT THAT SHOULD BE INSTALLED
ON EACH JOB SITE. THIS IS IN ACCORDANCE WITH YOUR LEGAL LIABILITY TO YOUR
CUSTOMER. ENSURE THAT THE PROTECTION AND WARNING SIGNALING DEVICES ARE
OPERATIONAL AND VISIBLE. THESE STEPS WILL AID IN YOUR DEFENSE SHOULD YOU
BECOME INVOLVED IN LITIGATION REGARDING INJURY OR DAMAGE.
ATTENTION: ALL INSTALLERS EXPERIENCED OR NOT PLEASE REVIEW
PAGES 4 AND 9 BEFORE YOU INSTALL THIS ACTUATOR.
P.O. BOX 1384
FAX (307) 334-2028
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Byan System 800A Series
Summary of Contents for Byan System 800A Series

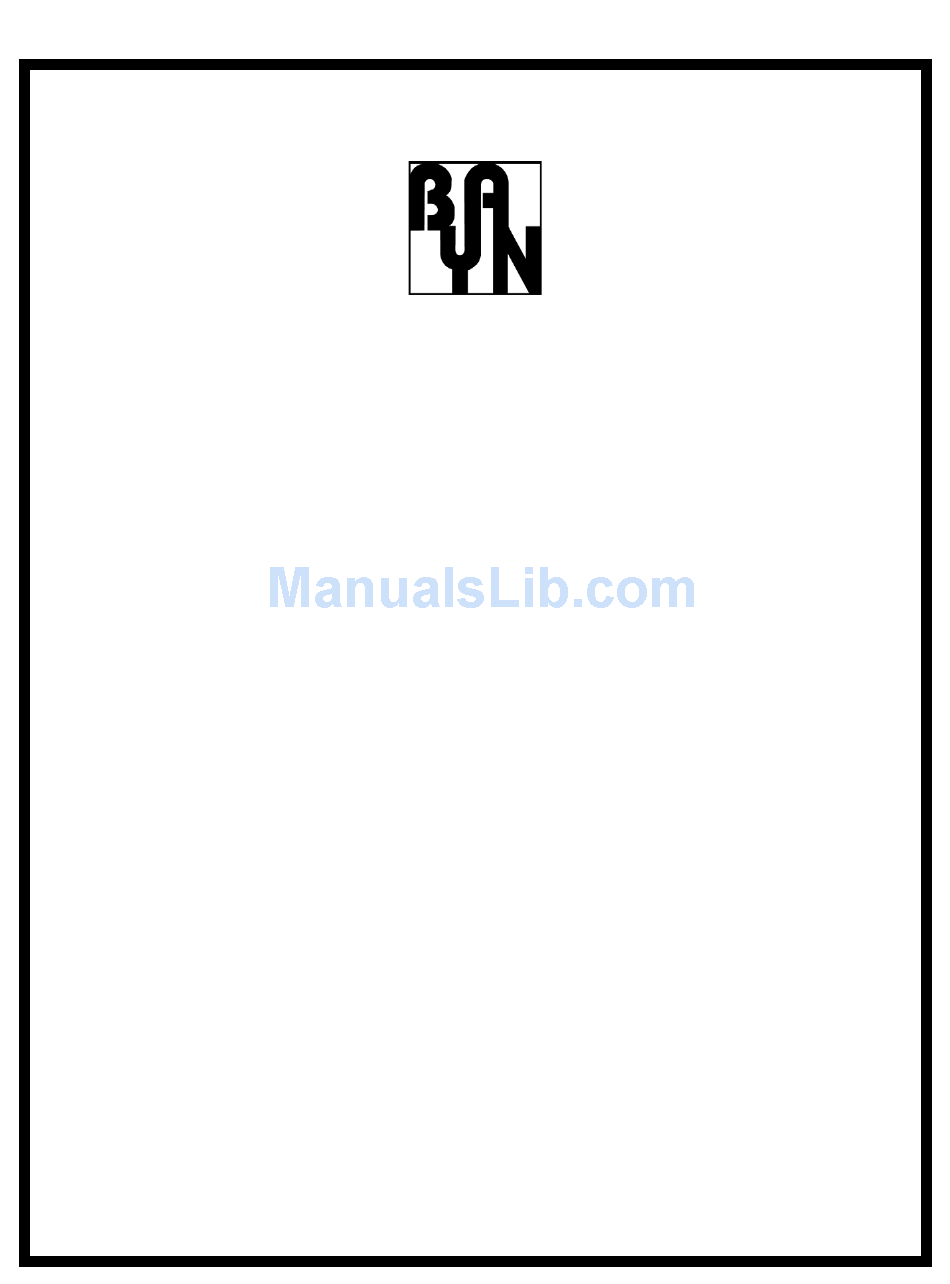

- Page 1 BYAN SYSTEM, INC. 413 LINDEN LUSK, WY 82225 (800) 223-2926 MODEL 800A/900B SERIES VEHICULAR SWING GATE OPERATOR INSTALLATION AND TECHNICAL MANUAL BYAN SYSTEMS, INC. OF LUSK, WYOMING, DEMANDS THAT YOU AS AN INSTALLER INFORM YOUR CUSTOMER OF ALL SAFETY EQUIPMENT THAT SHOULD BE INSTALLED ON EACH JOB SITE.
-
Page 2: Table Of Contents
BYAN SYSTEMS, INC. Automated Gate and Access Control Products TABLE OF CONTENTS DESCRIPTION PAGE NO. USAGE CLASSES FOR VEHICULAR GATE OPERATOR TECHNICAL DATA ABOUT THE OPERATOR BEFORE YOU INSTALL DURING INSTALLATION PROCEDURES INSTALLATION COMPLETION/FOLLOW UP INSTALLING THE OPERATOR PURGING THE OPERATOR PRESSURE ADJUSTMENTS HYDRAULIC FLUID MANUAL BYPASS... -
Page 3: Usage Classes For Vehicular Gate Operator
BYAN SYSTEMS, INC. Automated Gate and Access Control Products USAGE CLASSES FOR VEHICULAR GATES CLASS I – RESIDENTIAL VEHICULAR GATE OPERATOR A VEHICULAR GATE OPERATOR (OR SYSTEM) INTENDED FOR USE IN A HOME OF ONE TO FOUR SINGLE FAMILY DWELLING, OR A GARAGE OR PARKING AREA ASSOCIATE THEREWITH. -
Page 4: Technical Data About The Operator
BYAN SYSTEMS, INC. Automated Gate and Access Control Products 800A/900A SERIES TECHNICAL DATA MODEL 800A: 220 VAC SINGLE PHASE MODEL 900B: 115 VAC SINGLE PHASE ELIMINATOR SERIES BUILT-IN THERMAL OVERLOAD CAPACITOR RATING: 10UF FOR THE 800A 35UF FOR THE 900A STANDARD WORKING PRESSURE: 1350 PSI MAXIMUM WORKING PRESSURE:... -
Page 5: Before You Install
BYAN SYSTEMS, INC. Automated Gate and Access Control Products BEFORE INSTALLATION 1. VERIFY THE GATE POST IS PLUM AND GATE LEAF SWINGS FREELY. 2. PERFORM ANY REQUIRED MAINTENANCE BEFORE CONTINUING. 3. VERIFY THE COMMERCIAL POWER CIRCUIT BREAKERS ARE ISOLATED AND RATED FOR THE SPECIFIC LOAD. -
Page 6: Installation Completion/Follow Up
BYAN SYSTEMS, INC. Automated Gate and Access Control Products INSTALLATION COMPLETION 1. INSTALL PLACARDS AND SAFETY EQUIPMENT AND TEST. 2. “REMOVE” ALL DEBRIS AND OBSTRUCTIONS FROM THE TRAVEL PATH OF THE GATE LEAF(S). 3. TURN ON AND LABEL THE COMMERCIAL POWER CIRCUIT BREAKER AND REMOVE THE “USED”... -
Page 7: Installing The Operator
BYAN SYSTEMS, INC. Automated Gate and Access Control Products INSTALLING THE OPERATOR ! ADVISORIES! A. THIS LINEAR ACTUATOR MUST ME MOUNTED SO THE PISTON FULLY EXTENDS AND FULLY RETRACTS. WHEN FULLY RETRACTED THERE SHOULD BE 1/8 INCH PISTON LEFT OUT OF THE FRONT. B. -
Page 8: Purging The Operator
BYAN SYSTEMS, INC. Automated Gate and Access Control Products 12. CONNECT THE CORD PER THE ELECTRICAL CONNECTION DETAILS. NOTE: IT IS HELPFUL TO INSTALL A SINGLE GANG WEATHER PROOF BELL BOX ON THE GATE POST ACROSS FROM THE OPERATOR. THEN WIRE FROM THE CONTROL BOX CAN BE PULLED TO THIS POINT AND CONNECTED TO THE S.O. -
Page 9: Pressure Adjustments
BYAN SYSTEMS, INC. Automated Gate and Access Control Products HYDRAULIC FLUID BYAN SYSTEMS OPERATORS US A “SHELL OIL PRODUCTS” TELLUS T-15, THIS FLUID HAS A RELATIVELY LOW VISCOSITY SO IT WILL START TO FLOW QUICKLY ON COLD DAYS. WHEN THE FLUID RISES TO OPERATING TEMPERATURE, THERE IS NO RUSH OF THIN FLUID CAUSING POOR HYDRAULIC PERFORMANCE, OR WORSE YET, EXCESSIVE PUMP WEAR, FAILURE AND EXPENSIVE DOWNTIME. -
Page 10: Manual Bypass
BYAN SYSTEMS, INC. Automated Gate and Access Control Products MANUAL BYPASS THE MANUAL BYPASS VALVE IS FOR THE ABILITY TO RELEASE THE OPERATOR IN THE EVENT OF A POWER FAILURE OR MALFUNCTION. IT IS LOCATED UNDER THE KEYED CAP ON TOP OF THE OPERATOR. A METRIC ALLEN WRENCH IS SUPPLIED IN THE CAP TO RELEASE THE BYPASS VALVE. -
Page 11: Mounting Geometry
BYAN SYSTEMS, INC. Automated Gate and Access Control Products 413 Linden • Lusk, WY 82225 • (800) 223-2926... -
Page 12: Mounting Bracket Location
BYAN SYSTEMS, INC. Automated Gate and Access Control Products MOUNTING DIMENSIONS 800A/900A I/O SERIES GATE OPERATOR 4” GATE W/ 2” GATE LEAF INWARD SWING DON’T USE THESE DIMENSION FOR LONG OPERATORS PLEASE CALL FOR CORRECT DIMENSIONS DEGREE 7-1/4 2-1/4 2-3/4 6-7/8 2-1/4 2-3/4... -
Page 13: Front Mounting Detail
BYAN SYSTEMS, INC. Automated Gate and Access Control Products 413 Linden • Lusk, WY 82225 • (800) 223-2926... -
Page 14: Wiring The Control And Accessories
BYAN SYSTEMS, INC. Automated Gate and Access Control Products RECOMMENDED WIRE SIZES HIGH VOLTAGE A.C. 14 AWG TO 400 FEET 12 AWG TO 650 FEET 10 AWG TO 1000 FEET 8 AWG TO 1650 FEET 6 AWG TO 2650 FEET LOW VOLTAGE A.C. - Page 15 BYAN SYSTEMS, INC. Automated Gate and Access Control Products G2M CONTROL BOARD DESCRIPTION G2M-115V/220V SINGLE PHASE MICRO CONTROLLED BOARD THIS ELECTRONIC CONTROL UNIT IS SUITABLE FOR SINGLE-PHASE MOTORS, AND CAN DRIVE UP TO TWO DIFFERENT MOTORS. THERE IS LEAF DELAY INCORPORATED WITH THE USE OF A PLUG IN CARD.
- Page 16 BYAN SYSTEMS, INC. Automated Gate and Access Control Products CLOSING BUTTON: USED ONLY TO CLOSE THE GATE. STOP BUTTON: (NORMALLY CLOSE CONTACT), STOPS THE GATE IN OPENING/CLOSING. THREE ADJUSTABLE TIMES BLUE TIMER: OPENING TIMER ONLY CONTROLS THE OPENING TIME BETWEEN 3 TO 30 SECONDS. RED TIMER: CLOSING TIMER ONLY CONTROLS THE CLOSE TIME BETWEEN 3 TO 30 SECONDS.
- Page 17 BYAN SYSTEMS, INC. Automated Gate and Access Control Products DIP SWITCH ASSEMBLY OPERATION MODE SELECTION; OPTION REVERSING STROKE FUNCTION ACTIVE INACTIVE (OPERATOR FIRST WILL CLOSE FOR 1 SECOND) STEP-BY-STEP FUNCTION* ACTIVE INACTIVE AUTOMATIC CLOSING FUNCTION ACTIVE INACTIVE REVERSING BUTTON IS NOT ACTIVE INACTIVE OPERATIVE DURING OPENING...
- Page 18 BYAN SYSTEMS, INC. Automated Gate and Access Control Products SELECTABLE OPTIONS SWITCH S3 OPTION EXTENDS RUN OPENING AND CLOSING OPENING AND CLOSING TIME TIME (30 SECONDS TO 1 TIME (3 SECONDS TO 30 MINUTE) SECONDS) REPOSITIONING ACTIVE INACTIVE THE DOOR * * WITH THIS OPTION ACTIVE AND THE DOOR CLOSED THE DOOR IS CLOSED FOR 2 SECONDS EVERY HOUR, AND IF THE DOOR IS OPENED THE DOOR IS OPENED FOR 2 SECONDS EVERY HOUR.
- Page 19 BYAN SYSTEMS, INC. Automated Gate and Access Control Products CONTROL CONTACT TERMINAL DESCRIPTION ENTRAPMENT ALARM OUTPUT ENTRAPMENT ALARM OUTPUT 24VAC OUTPUT @ 1 AMP MAX 24VAC OUTPUT @ 1 AMP MAX. ELECTRIC LOCK RELEASE 12VDC ELECTRIC LOCK RELEASE 12VDC ENTRAPMENT ALARM RESET ENTRAPMENT SAFETY CONTACT COMMON TO SAFETY CONTACT REVERSING SAFETY CONTACT...
-
Page 20: Connecting The Operator
BYAN SYSTEMS, INC. Automated Gate and Access Control Products POWER & MOTOR CONNECTION TERMINAL DESCRIPTION COMMERCIAL POWER SUPPLY 115V NEUTRAL (WHITE) [220V LINE (BLACK)] COMMERCIAL POWER SUPPLY 115V LINE (BLACK) [220V LINE (RED)] MOTOR # 1 CLOSE DIRECTIONAL (BLACK) MOTOR #1 OPEN DIRECTIONAL (BLACK MOTOR #1 COMMON (WHITE) MOTOR #2 CLOSE DIRECTIONAL (BLACK) MOTOR #2 OPEN DIRECTIONAL (RED) - Page 21 BYAN SYSTEMS, INC. Automated Gate and Access Control Products SECOND MOTOR CARD T2M CHARACTERISTICS: THIS CARD IS SUITABLE FOR DRIVING A SECOND MOTOR THROUGH THE CONTROL UNIT, SELECTING THE OPENING DELAY TIME AND THE CLOSING DELAY TIME BETWEEN THE TWO MOTORS. THE LIMIT SWITCHES OF THE SECOND MOTOR SHOULD BE CONNECTED TO THIS CARD.
-
Page 22: Loop Connectors
BYAN SYSTEMS, INC. Automated Gate and Access Control Products LOOP DETECTOR CONNECTIONS THE MOLLEX CONNECTOR HAS 11 WIRE LEADS 12 INCHES LONG. THE PIN OUT IS AS FOLLOWS: - POWER B+ BLACK - POWER B- BLUE - RELAY A COMMON (PULSE OR PRESENCE) ORANGE - RELAY A NORMALLY CLOSED (PULSE OR PRESENCE) YELLOW... - Page 23 BYAN SYSTEMS, INC. Automated Gate and Access Control Products TO THE INSULATION? THE OUTER DIAMETER IS 0.115” FOR 14 GA. WIRE AND 0.013” FOR 16 GA. WIRE. WHEN INSTALLED IN A ” (0.250) SLOT, AS IS OFTEN DONE, THE TURNS OF WIRE CAN LAY SIDE BY SIDE IN THE SLOT AND THE TURNS TWIST UNDER THE PRECEDING TURNS AND NOT STACK SNUGLY IN A SINGLE LAYER, AS THEY SHOULD BE.
- Page 24 BYAN SYSTEMS, INC. Automated Gate and Access Control Products 413 Linden • Lusk, WY 82225 • (800) 223-2926...
- Page 25 BYAN SYSTEMS, INC. Automated Gate and Access Control Products 413 Linden • Lusk, WY 82225 • (800) 223-2926...
- Page 26 BYAN SYSTEMS, INC. Automated Gate and Access Control Products 413 Linden • Lusk, WY 82225 • (800) 223-2926...
-
Page 27: Warranty
BYAN SYSTEMS, INC. Automated Gate and Access Control Products FOUR YEAR LIMITED WARRANTY This warranty pertains only to products manufactured for/or by Byan Systems, Inc. for gate operating systems, accessories, and equipment. These products are warranted against all defective material for forty-eight months from the date of sale. Defective material returned must be prepaid and accompanied by a Byan Systems, Inc. -
Page 28: End User Safety
BYAN SYSTEMS, INC. Automated Gate and Access Control Products END USER SAFETY “THE GATE AUTOMATION AND ACCESS CONTROL MANUFACTURER” HAS NO CONTROL OVER THE GATE SYSTEM YOU HAVE AUTOMATED. THE WORD “SYSTEM” HEREIN REFERS TO THE GATE POST, GATE LEAF, HINGING, ALL AUTOMATION EQUIPMENT, ACCESSORY DEVICES, THE CONSTRUCTION AND INSTALLATION THEREOF. - Page 29 BYAN SYSTEMS, INC. Automated Gate and Access Control Products PROTECTION DEVICES IN THE AREA, ON THE GATE, OR THE EQUIPMENT ITSELF. 4. “CAUTION!!!” NEVER ALLOW CHILDREN TO RIDE ON THE GATE(S) OR PLAY AROUND THE ELECTRICAL ENCLOSURES 5. NEVER OPERATE A GATE SYSTEM WITHOUT VISUAL CONTACT SO IT CAN BE SUSPENDED IF NECESSARY.
-
Page 30: Customer Acknowledgment
BYAN SYSTEMS, INC. Automated Gate and Access Control Products CUSTOMER ACKNOWLEDGMENT DEAR _________________________________ (CUSTOMER/COMPANY NAME) VEHICULAR GATE OPERATING SYSTEMS PROVIDE CONVENIENCE AND SECURITY TO THEIR USERS. BECAUSE THESE MACHINES PRODUCE SUCH HIGH LEVELS OF FORCE, ALL GATE OPERATING SYSTEM DESIGNERS, INSTALLER AND END USERS NEED TO BE AWARE OF THE POTENTIAL HAZARDS ASSOCIATED WITH IMPROPERLY DESIGNED, INSTALLED OR MAINTAINED SYSTEMS.
