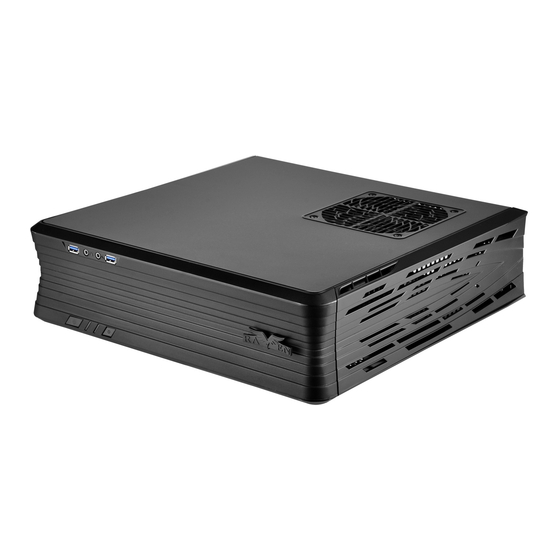

SilverStone Raven SST-RVZ01B User Manual
  1. Manuals
  2. Brands
  3. SilverStone Manuals
  4. Enclosure
  5. Raven SST-RVZ01B
  6. User manual

SilverStone Raven SST-RVZ01B User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Raven SST-RVZ01B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SilverStone Raven SST-RVZ01B

Summary of Contents for SilverStone Raven SST-RVZ01B

  • Page 2: Table Of Contents

    The following manual and guides were carefully prepared by the RAVEN engineering team to help you maximize the potential of your SilverStone product. Please keep this manual for future reference when upgrading or performing maintenance on your system. A copy of this manual can also be downloaded from our website at: http://www.silverstonetek.com...

  • Page 3: Specifications

    Redefine expectations Specifications Model SST-RVZ01B (black) Material Reinforced plastic outer shell, steel body Color Black Motherboard Mini-DTX, Mini-ITX Drive Bay Exposed Slim slot-loading optical x 1 Internal 3.5" x 1 2.5” x 3 Cooling System 1 x 120mm fan, 1500rpm, 18dBA Bottom 1 x 120mm fan, 1500rpm, 18dBA ;...

  • Page 4: Disassemble Chart

    Disassemble Chart FAN FILTER X 1 2.5” HDD X 2 GRAPHICS CARD SUPPORT BRACKET SLOT - LOADING OPTICAL DRIVE TOP COVER (OPTION) HDD CAGE 2.5” HDD X 1 12015 FAN X 1 FAN FILTER X 2 MINI - ITX (OPTION) 12015 FAN X 1 USB 3.0 + SPK + MIC POWER BUTTON...
  • Page 5 Disassemble Chart FRONT BACK...

  • Page 6: Installation Guide

    lnstallation Guide Ослабьте два винта на задней Unscrew the screws from the rear панели корпуса и снимите верхнюю of the chassis then remove the top крышку. cover. 섀시 후면에 있는 두 개의 나사를 Lösen Sie die beiden Schrauben 푼 다음 상단 커버를 분리합니다. von der Rückseite des Gehäuses, entfernen Sie dann die obere Abdeckung.
  • Page 7 lnstallation Guide Unscrew the screws from PSU Отвинтите винт кронштейна bracket then remove it. блока питания и извлеките его. PSU 케이스의 나사를 풀어 케이스를 Lösen Sie zum Abnehmen die 분리합니다. Schraube an der Netzteilhalterung. Dévissez les vis du support du bloc PSUケージのネジを緩めて取...
  • Page 8 If you want to use SilverStone Если вы собираетесь использовать lnstallation Guide NT06-PRO or other similar CPU SilverStone NT06-PRO или аналогичную cooler, please relocate the top panel систему охлаждения процессора, 120mm fan to the bottom vent near переставьте 120-мм вентилятор с...
  • Page 9 lnstallation Guide We recommend at this point На этом этапе мы рекомендуем connecting all the necessary подключить к системной плате все cables including the SATA необходимые кабели, включая cables to the motherboard. кабели SATA. Wir empfehlen, an diesem Punkt 이 시점에서 SATA 케이블을 포함하여 alle erforderlichen Kabel, 필요한...
  • Page 10 lnstallation Guide Place the PSU bracket on top of the Установите кронштейн блока chassis then connect the power cord питания в верхней части корпуса и to the PSU. подключите кабель питания к блоку питания. PSU 브래킷을 섀시 상단에 위치시킨 Bringen Sie die Netzteilhalterung im 후...
  • Page 11 Remove expansion slot cover and Снимите крышку слота расширения и lnstallation Guide install graphics card into the graphics установите графическую карту на card support bracket. кронштейн крепления графической карты. Entfernen Sie die Abdeckung des 확장 슬롯 커버를 벗기고 그래픽 카드를 Erweiterungssteckplatzes und 그래픽...
  • Page 12 lnstallation Guide Install 2.5”HDD/SSD and slim Установите 2,5-дюймовый жесткий slot-loading optical drive onto the или твердотельный диск и тонкий graphics card support bracket. оптический привод с загрузкой через слот на крепежный кронштейн графической карты. Installieren Sie eine 2,5-Zoll- 2.5”HDD/SSD와 슬림형 슬롯 로딩 Festplatte/SSD und ein optisches 방식...
  • Page 13 lnstallation Guide Make sure all the cables are Проверьте правильность properly connected. подключения всех кабелей. Achten Sie darauf, dass sämtliche 모든 케이블이 제대로 연결되었는지 Kabel richtig angeschlossen sind. 확인하십시오. Vérifier que tous les câbles sont 全てのケーブルが確実に接続されて correctement branchés. いることを確認します。 Asegúrese de que todos los cables 確定所有線材都已正確的安裝...
  • Page 14 lnstallation Guide В зависимости от ваших требований или предпочтений Depending on requirement or preference, adhere four rubber установите четыре резиновых стойки для использования в stands for horizontal use or install the rubber pads for vertical горизонтальном положении или четыре резиновых прокладки use.

  • Page 15: Connector Definition

    Connector definition (1) Front Panel Connectors Guide: Front panel connector installation no polarity, so they can be connected in any orientation A.Power switch and reset switch installation guide: Please refer to the motherboard manuals for the motherboard’s “Front Panel Connector” or “System Panel Connector” pin definitio Power switch and reset switch have no polarity, so they can be connected in any orientation.
  • Page 16 Connector definition (1) Front Panel Connectors B:LED indicators installation guide Please refer to the motherboard manuals for the motherboard’s “Front Panel Connector ” or “System Panel Connector” pin definition.; the white/black wires are negative while other colors are positive wires. The Power LED wires are separate pins for compatibility with different motherboard pin definition so please make sure they are connected in the right polarity by referring to your motherboard manual.
  • Page 17 A continuación tiene la definición de pines de los conectores frontales de E/S, también debe consultar el manual de su placa base para c omprobar la referencia de los pines para E/S frontales. Los conectores de E/S de SilverStone son de bloque para simplificar la instalación.

  • Page 18: Component Size Iimitations

    Component size limitations The RVZ01 can accommodate all standard size components and even some that are out of spec, please refer to the following guidelines for component selection and future upgrade considerations. (1) CPU cooler height limitation A.Height limitation: The RVZ01 has 83mm height limitation for CPU cooler B.Upper boundary: the cooler can protrude 11mm over the motherboard’s top edge.
  • Page 19 Component size limitations (2) PSU limitation The RVZ01 supports only standard SFX power supply with a 100mm depth. In the illustration, the PSU is situated in the front part of the chassis with the 90 degrees connector extension cable installed. The extension cable shall not exceed the upper or the lower boundary.
  • Page 20 Component size limitations (3) Graphics card/expansion card length limitation A. Length limitation The RVZ01 can support 13”(330mm) consumer level graphics cards. Please contact us if you find a card that does not fit. Das RVZ01 nimmt bis zu 330 mm lange Grafikkarten auf. Bitte wenden Sie sich an uns, falls Sie keine passende Karte finden können. Le RVZ01 peut supporter la plupart des cartes graphiques du marché...
  • Page 21 Component size limitations (3) Graphics card/expansion card length limitation B. Width limitation (i) The standard width for graphics card is 4.38”. (11.12cm) (ii) With the graphics card holder installed, the maximum allowable width for graphics card is 5.18”. (13.16cm) (iii) Without the graphics card holder, the maximum allowable width for graphics card is up to 5.88”. (14.93cm) (i)Die Standardbreite bei Grafikkarten beträgt 11,12 cm.
  • Page 22 Component size limitations (3) Graphics card/expansion card length limitation C. Thickness limitation (i)Calculated from the bottom of the graphics card PCB to the top, the total thickness limitation is 68mm. (ii)With the standard 34.8mm-thick dual slot graphics card installed, the maximum thickness of the fans is 32mm. (iii)With the standard 14.5mm-thick single slot graphics card and the included 15mm-thick fans installed, the maximum thickness of the water cooling radiator is 38mm.
  • Page 23 Component size limitations (3) Graphics card/expansion card length limitation (i)Ограничение по толщине от нижнего до верхнего края печатной платы составляет 68 мм. (ii)При установке стандартной двусторонней графической карты толщиной 34,8 мм максимальная толщина вентиляторов составляет 32 мм. (iii)При установке стандартной одногнездовой графической карты толщиной 14,5 мм и вентиляторов толщиной 15 мм максимальная толщина...

  • Page 24: Optimal Thermal Performance Layout

    Optimal Thermal Performance Layout (1) To improve thermal performance, we recommend using SilverStone NT06-PRO CPU cooler. A. The NT06-PRO must be installed rearward on motherboard such as ASUS P8Z77-I DELUXE. Please install cooler with caution for this type of configuration.
  • Page 25 Optimal Thermal Performance Layout (1) To improve thermal performance, we recommend using SilverStone NT06-PRO CPU cooler. B.The CPU socket on Z87 motherboard is closer to the edge. We recommend installing NT06-PRO toward left side. B.Der CPU-Sockel am Z87-Motherboard befindet sich näher am Rand. Wir empfehlen, den NT06-PRO nach links ausgerichtet zu installieren.
  • Page 26 Optimal Thermal Performance Layout (1) To improve thermal performance, we recommend using SilverStone NT06-PRO CPU cooler. C. Intel reference Mini-ITX motherboard layout has CPU socket next to PCI Express slot, NT06-PRO should have no installation problems with this layout. C. Das Intel Mini-ITX-Motherboard-Layout hat den CPU-Sockel neben dem PCI-Express-Steckplatz; der NT06-PRO sollte keine Installationsprobleme mit diesem Layout haben.
  • Page 27 Optimal Thermal Performance Layout (1) To improve thermal performance, we recommend using SilverStone NT06-PRO CPU cooler. D.For additional information on NT06-PRO dimensions, please visit our website. E.Theoretically, NT06-PRO’s heat pipes may not work optimally when installed facing downward. However, during RVZ01’s thermal testing phase, we did not detect any performance difference among different orientation when using a 95W LGA115X based CPU.
  • Page 28 Optimal Thermal Performance Layout (2) If you use a high-end graphics card, the pre-installed case fan on the bottom vent below graphics card should provide plenty of cooling for them. If you use graphics card with omni-direction or open air cooler, we recommend having two case fans on the bottom vents. Wenn Sie eine Grafikkarte mit omnidirektionalem und Open-Air-Kühler verwenden, empfehlen wir zwei Gehäuselüfter an den unteren Belüftungsöffnungen.
  • Page 29 Optimal Thermal Performance Layout (3) Storage device temperature A.The RVZ01 is designed as a high performance gaming platform, we recommend using SSD as the primary storage device as they are more heat-resistant. B. By the design, RVZ01’s case fans are not designed for cooling 3.5” hard drives. We recommend using low RPM hard drives or models with better heat resistance.
  • Page 30 Optimal Thermal Performance Layout (4)Vertical/horizontal placement A. Because most vents are situated on the bottom, placing the RVZ01 vertically will result in better temperature than in horizontal position. B. When using the case horizontally, please be sure of adhering rubber stands to the bottom. A.
  • Page 31 Optimal Thermal Performance Layout (5) Recommendation for water cooling A.When sufficient budget is allowed, we recommended using DIY water cooling. B. A Laing DDC pump can be mounted onto the center 2.5” brace. The mounting holes are shown in the illustration above. C.
  • Page 32 Optimal Thermal Performance Layout (5) Recommendation for water cooling D.A dual, stacked power connector housing shown circled on the top of the example photo may interfere with the water cooling radiator; the dual-slot display output connectors shown in the lower circle on the other hand, will not have any interference issues. D.Ein im oberen Bereich des Beispielfotos eingekreistes duales gestapeltes Netzanschlussgehäuse kann sich mit dem Wasserkühlkörper ins Gehege kommen;...
  • Page 33 Optimal Thermal Performance Layout (5) Recommendation for water cooling E. As illustrated above, the indicated numbers are the clearance when two 120mm fans are installed. F. The clearance above the CPU area is illustrated above. The additional clearance toward the rear is reserved for the space required by top cover installation.
  • Page 34 Optimal Thermal Performance Layout (6) Cable routing There is some space between the front panel and the side of the graphics card reserved for the cable routing. Es befindet sich zur Kabelführung etwas Platz zwischen der Frontblende und der Seite der Grafikkarte. Il y a un certain espace entre le panneau avant et le côté...

  • Page 35: Maintenance And Upgrade

    (depending on your environment). The RVZ01 includes ultra-fine magnetic filters (model: FF123) which can be easily removed. If you accidentally loose/damage filters or need additional ones for backup, please contact your local SilverStone retailers or distributors for purchasing information: http://www.silverstonetek.com/wheretobuy_all.php Das vorteilhafte Luftdruckdesign des RVZ01 ist eine effektive Konfiguration, die Staubablagerungen innerhalb des Gehäuses...
  • Page 36 Maintenance and upgrade (1) Fan filter removal guide El diseño de presión de aire positiva de la RVZ01 es una configuración efectiva que reducirá la acumulación de polvo dentro de la carcasa. Pequeñas partículas de polvo ó pelusa se irán acumularán con el transcurso del tiempo en los filtros de entrada en lugar de en los componentes del interior de la carcasa.
  • Page 37 Maintenance and upgrade (2) Fan removal guide The fan on the top cover can be Сняв верхнюю крышку, можно dismounted after removing the демонтировать установленный top cover. на ней вентилятор. 상단 커버에 있는 팬은 상단 커버를 Der Lüfter an der oberen Blende 벗긴...

  • Page 38: Protect Your Computer

    Maintenance and upgrade (2) Fan removal guide 하단 통풍구에 있는 팬을 떼어내려면 먼저 그래픽 카드 홀더를 분리해야 합니다. 팬을 떼어내기 전에 필터를 분리할 것을 권장합니다. グラフィックスカード・ホルダーは、底部換気口のファンを外す前に取り外す必要があります。 ファンを外す前にフィルタを取り外すことをお勧めいたします。 底座的風扇拆卸前需要移除顯示卡架 我們建議在拆卸風扇前先移除濾網 底座的风扇拆卸前需要移除显示适配器架 我们建议在拆卸风扇前先移除滤网 Protect Your Computer (1) Kensington Security Slot Note: Cable security lock is not included with RVZ01 A lock and cable can be purchased on the market for use with the Kensington security slot located on rear of RVZ01 to prevent removal of the entire computer or top cover.Caution: Please check for compatibility before purchasing the lock and cable for use with RVZ01’s Kensington security slot.

  • Page 39: Q&A

    Protect Your Computer 켄싱턴 보안 슬롯에 사용할 수 있는 자물쇠와 케이블은 별도로 구입 하실 수 있으며, RVZ01의 뒤쪽을 잠그므로, 컴퓨터 전체의 사이드 패널을 제거 할 수 없게 해 줍니다. 주의: RVZ01용 켄싱터 보안 잠금 장치를 구입하기전에 호환성을 확인하시기 바랍니다. RVZ01後部に配置されたケンジントンセキュリティスロットに合ったロックとケーブルは市場で購入でき、コンピュータ全体またはパネルの 盗難を防止するのに使用できます。注意：RVZ01のケンジントンセキュリティスロットに使用するロックとケーブルを購入する前に、互換性...
  • Page 40 Q&A D: RVZ01 entra nel Sugo Pack? R: Sì. E rimane altro spazio! D: NT06-PRO può essere utilizzato senza ventilatore in RVZ01? R: Noi non lo consigliamo. D: Tutto è installato correttamente, perché non si avvia? R: Se il PSU dispone di un interruttore CA, assicurarsi che l'interruttore sia in posizione "ON". Вопрос: Корпус...

  • Page 41: Warranty Information

    Replacement product will be warranted for remainder of the warranty period or thirty days, whichever is longer. All products should be sent back to the place of purchase if it is within 30 days of purchase, after 30 days, customers need to initiate RMA procedure with SilverStone Technology in USA by first downloading the “USA RMA form for end-users”...
