Bicycles4u ELYSIUM Owner's Manual

Advertisement

Saddle
Saddle Post
Carrier
Mudguard
Spoke
This manual contains important safety, assembly,
operational and maintenance advice.
THIS MANUAL SHOULD BE READ BEFORE
OPERATING THE BICYCLE
Owner's Manual
ELYSIUM
Shaft drive
www.bicycles4u.com
Frame
Folding
Mechanism
Pedal
Kickstand
Handle Bars
Shaft
Stem
Stem
Folding
Mechanism
Rim
Fork
Motor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELYSIUM and is the answer not in the manual?

Questions and answers

Summary of Contents for Bicycles4u ELYSIUM

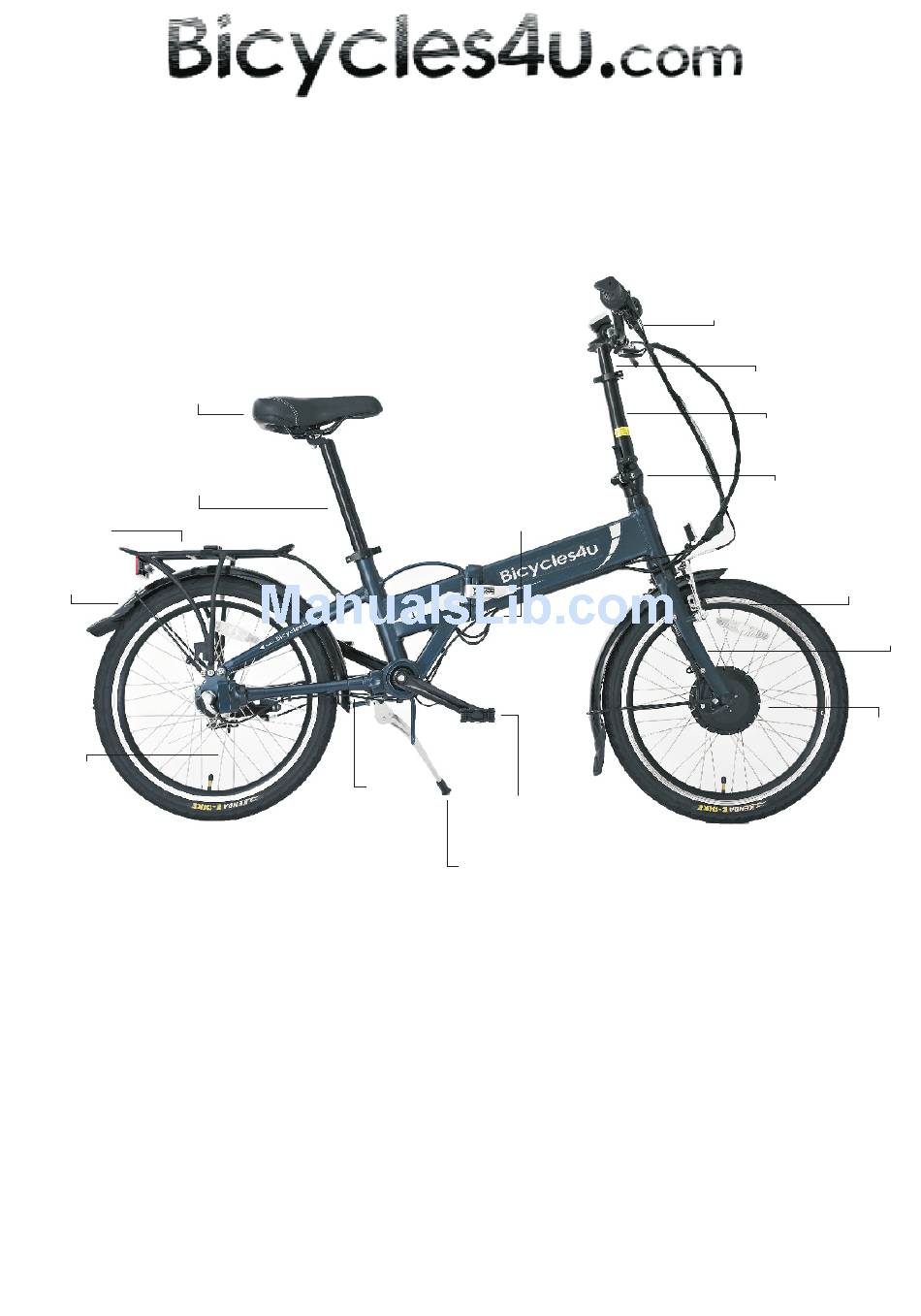

  • Page 1 Owner’s Manual ELYSIUM Handle Bars Shaft Saddle Stem Frame Saddle Post Folding Stem Mechanism Folding Carrier Mechanism Mudguard Fork Motor Spoke Shaft drive Pedal Kickstand This manual contains important safety, assembly, operational and maintenance advice. THIS MANUAL SHOULD BE READ BEFORE OPERATING THE BICYCLE www.bicycles4u.com...
  • Page 2: User Security

    User Security Regular check’s for safety before riding 1) Check if the handlebar stem and saddle post are safely inserted. Take note of the maximum height markings (MIN. INSERTION) on the tube. 2) Check the brake shoes for excess wear. If there is wear, you should replace them before riding. 3) Check if the nuts on the front and rear axis are securely fixed.
  • Page 3: Battery And Charging

    Battery and charging Instructions on the bike operation 1) To turn the power ON and OFF 2) Use the key to lock or unlock the press the power button. battery from the frame. 1) Press the power button to 2)Three Lights = Battery Full Full Half...
  • Page 4: Safe Charging

    Steps to charge the battery 1) Confirm that the local power supply corresponds with the requirement of the charger. The input voltage is between 100V-240V. 2) The battery can be charged on the e-bike or removed from the e-bike and charged separately.
  • Page 5 Step by Step instructions for folding and assembling Steps to fold the bike 1) Remove the safety catch then loosen the quick release. (for handlebar stem). 2) Fold the stem towards the left. 3) Pull the trigger of the pedal and fold it downwards simultaneously. 4) Remove the safety plug then loosen the quick release.
  • Page 6: Troubleshooting

    Please make sure the folding and quick release levers are locked tightly How to adjust the folder 3. Make sure the folder is 2. Use a 3.0mm allen 1. Use a 2.5mm allen tightly secured after locking it key to tighten the handle key to release the handle 1)In order to ensure long term service of your e-bike, please use genuine parts.
  • Page 7: General Maintenance Remarks

    General Maintenance Remarks Adjusting the height of the seat/handlebar In order to adjust the height of the seat/handlebar you’ll have to unlock the lever that can be seen in the pictures below, adjust the saddle/handlebar stem height to the desired position without exceeding the mark carved onto the saddle’s tube.
  • Page 8 Brakes The brake-shoes which are fixed on the V-brake and Roller-brake wear out in time causing gap widening between the brake-shoes and the rim flank. This is indicated by the increase of the leeway of the brake lever The left brake lever controls the rear and the right brake lever controls the front brake.
