- Page 1 TM101W545L Quick Start Guide...
-
Page 2: Customer Service

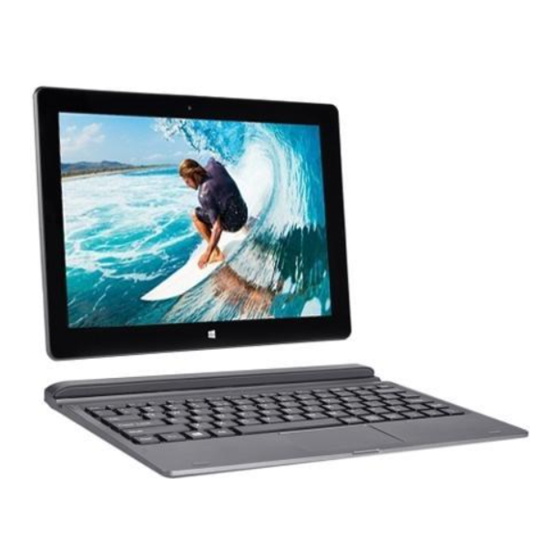

IPS touch screen that ensures ultra wide viewing angles, you’ll enjoy the TM101W545L for many years to come. Use finger gestures to navigate the tablet or connect the keyboard to turn your device into a laptop. -
Page 3: Features & Package Contents
10. Static discharge is normal and can occur in an electronic device. Although not life threatening, it may - Micro USB Port corrupt files or damage memory and its content. Do not use accessories that are not from Nuvision. 11. Dismantling the tablet will void the manufacturer’s warranty. If you are experiencing problems, review - TF Memory Card Slot the FAQ section of this manual. -
Page 4: Tablet Overview
Headphone: Insert headphones for private listening or connect with amplified speakers. Micro USB Power Port: Connect to power supply to recharge tablet; connect an TMAX DIGITAL,INC. MODEL:TM101W545L FCC ID: 2AAP6M1042 INPUT: 5V/2A external flash drive or other compatible device. MADE IN CHINA Micro TF Memory Card Slot: The built-in storage card reader slot supports an optional TF memory card for additional storage. - Page 5 Connecting the Tablet and Keyboard Your tablet features a specially designed magnetic hinge that attaches and secures the tablet and keyboard together, enabling quick and easy docking. 1. Dock Port Undocking the Tablet Connect the 5-pin magnetic dock Firmly grasp the tablet and secure the port to support the keyboard, keyboard at the same time, then gently touchscreen and USB functions.
-
Page 6: Charging The Battery
Charging the Battery Battery Care Connect the power adapter to a wall outlet, then to the tablet’s microUSB port as shown. Operating temperature: Your device is designed to function between 32°F and It is recommended to fully charge the battery before first use. A battery status indicator 95°F (or 0°C to 35°C). - Page 7 Starting your Tablet Desktop Mode for Use as a Laptop Power On/Off/Standby Mode/Reset ON: Press and hold the side POWER button on the side for a couple of seconds until the logo screen appears, then release. OFF: Press and hold the side POWER button.
- Page 8 Start Menu / Tablet Task Bar Overview The Start Menu screen consists of colorful static and live tiles that provide quick access to built-in apps, mail, entertainment, and the latest in news, weather, and sports. You can reposition tiles to other areas of the screen, resize them, or pin them to the Desktop Task Bar.
-
Page 9: Common Finger Gestures
Common Finger Gestures Swipe left from the right edge for Search, Pinch to Zoom: Some apps (such as Maps, Browser, and Gallery) allow you to Swipe right from the left edge to access open apps. Share, and Settings. zoom in and out by placing two fingers on the screen at once. Spread fingers apart to zoom in or pinch together to zoom out. -
Page 10: Action Center
Apps Menu Action Center To display the convenient and easy to use Apps menu, tap or click the All Apps button in the Start Menu. Launch apps, features and programs that are set up alphabetically. Slide your finger or scroll up and down to view all apps on your tablet. The Action Center is the central location to view alerts, notifications, all of your settings, Add / Remove / Resize Apps and more. -
Page 11: Microsoft Edge
Microsoft Edge Cortana, your Voice-Activated Personal Assistant Speak to Cortana and request the weather forecast, set personal reminders, send an email, find specific files, search the web, and more. Summon Cortana by speaking clearly and slowly into the microphone. Start by saying the command, “Hey Cortana!”... - Page 12 3D Builder / Movies & TV / Additional Storage Creating a Microsoft Account / Adding an Email Account 3D Builder Create models and print in 3D using the new 3D Builder app. The app was created to make loading, manipulating and printing 3D models easy and fun.
-
Page 13: Connecting To The Internet
Connecting to the Internet Using USB, Micro USB and Bluetooth Devices USB flash drive or hard drive The tablet utilizes WiFi 802.11b/g/n networks to connect with the internet. In order to Insert a USB flash drive or external hard drive into the connect, you will need the following: Tablet USB port using the included transfer cable. -
Page 14: Windows Store
Windows Store Using the Cameras Front and Rear Cameras Your tablet features two 2MP cameras. With the front-facing camera you can video chat and take selfies. Use the rear camera to take photos or record videos. To take a photo or record video, open the Camera app and tap the on screen Camera or Video shutter button. - Page 15 Using the Cameras (Cont.) Camera Function Guide Change Camera: Tap to switch between front and rear cameras. Camera Adjustments Menu: Adjust Brightness, White Balance, ISO and Shutter. Self Timer / Settings : Activate timer, or select specific camera settings such as recording speed (Video) and Aspect Ratio.
- Page 16 OneNote and OneDrive Limited Warranty TMAX Digital Inc warrants this NuVision product against defects in material or workmanship for Personal Cloud Storage a period of one (1) year from the original date of purchase. During this period, TMAX Digital Inc will replace a defective part with a new or refurbished part without a charge to you.
-
Page 17: Limited Warranty
Limited Warranty processed so have information available including date of purchase, serial number and the problem with the product. Should a problem be determined to be within the limits of the warranty you will be provided with an (RMA) authorization number and instruction. Proof of purchase must be confirmed before any warranty service can be provided.
