Summary of Contents for Bacharach eco-20202

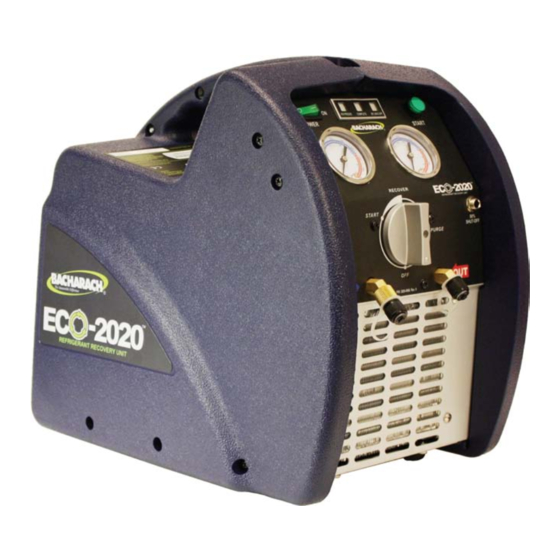

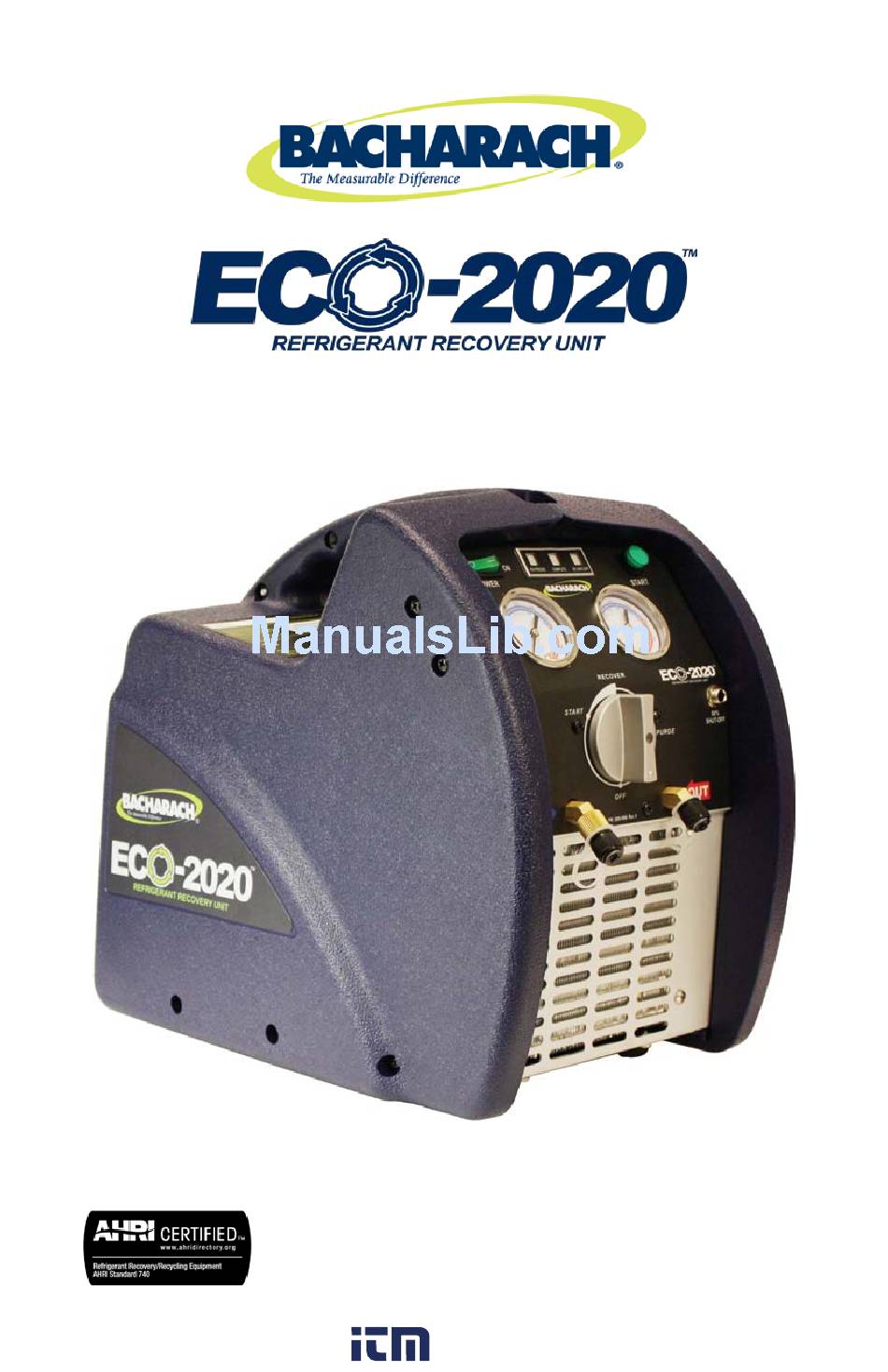

  • Page 1 High Performance • Oilless • Residential • Light Commercial Product Leadership • Training • Service • Reliability User Manual 2020-9000 Rev. 0 September 2013 0.561.8187 information@itm. www. .com...
  • Page 2 Bacharach within one (1) year after the date of purchase of this Product from an authorized Bacharach distributor, as indicated on the original sales receipt.
  • Page 3: Table Of Contents

    Refrigerant Recovery Unit Table of Contents SECTION 1. INTRODUCTION ................. 4 1.1. Safety (General Prerequisites) ..............4 1.2. Safety (Proper Surroundings) ..............5 1.3. Safety (Proper Setup) ................5 1.4. Safety (Proper Operations) ............... 6 1.5. Specifications .................... 7 1.6. Components ....................
  • Page 4: Introduction

    Refrigerant Recovery Unit Section 1. Introduction 1.1. Safety (General Prerequisites) KNOW YOUR EQUIPMENT! Before operating this unit, please read this manual in its entirety. It is important that you have a thorough understanding of the procedures outlined in this manual. Failure to follow these procedures could void all manufacturer warranties.
  • Page 5: Safety (Proper Surroundings)

    Refrigerant Recovery Unit 1.2. Safety (Proper Surroundings) AVOID DANGEROUS ENVIRONMENTS! Although the unit can be used outdoors, do not operate in the rain or in wet locations. Secure the unit when working above floor level. This equipment should not be used in the vicinity of spilled or open containers of flammable materials.
  • Page 6: Safety (Proper Operations)

    Refrigerant Recovery Unit 1.4. Safety (Proper Operations) WARNING! Only cylinders rated at 400 psi or greater and certified for R410A should be used to recover R410A. Failure to use the proper cylinder can be extremely dangerous. USE RECOMMENDED ACCESSORIES! Follow the instructions that accompany all accessories.
  • Page 7: Specifications

    AHRI Standard 740-1998. For refrigerant recovery rates, refer to AHRI’s Certified Refrigerant Recovery/ Recycling Equipment Directory located at the following web URL. http://www.ahridirectory.org/ahridirectory/pages/rrr/RRREDirectory.pdf For additional information contact Bacharach, Inc. 2020-9000 Rev 0 0.561.8187 information@itm.
  • Page 8: Components

    Refrigerant Recovery Unit 1.6. Components Figure 1. ECO-2020 (Front View Showing Control Knob Operation) 2020-9000 Rev 0 0.561.8187 information@itm. www. .com...
  • Page 9: Figure 2. Eco-2020 (Front Panel And Gauge Details)

    Refrigerant Recovery Unit Figure 2. ECO-2020 (Front Panel and Gauge Details) 2020-9000 Rev 0 0.561.8187 information@itm. www. .com...
  • Page 10: Figure 3. Shoulder Strap (Showing Connecting Points)

    Refrigerant Recovery Unit Figure 3. Shoulder Strap (Showing Connecting Points) Figure 4. Filter and 4-Inch Hose 2020-9000 Rev 0 0.561.8187 information@itm. www. .com...
  • Page 11: Figure 5. Optional 80% Shut-Off Cable

    Refrigerant Recovery Unit Figure 5. Optional 80% Shut-off Cable Figure 6. Power Connector, Example Power Cord, and Sample Power Labels 2020-9000 Rev 0 0.561.8187 information@itm. www. .com...
  • Page 12: Operation

    IMPORTANT: A in-line filter should always be used and should be replaced frequently. Each type of refrigerant must have its own filter. For optimal results, use only Bacharach replacement filters. IMPORTANT: In order to gain maximum recovery speed, a hose with inner diameter larger than 3/16”...
  • Page 13: High Pressure Shut-Off Feature

    Refrigerant Recovery Unit IMPORTANT: After use, turn the knob to the OFF position (to close inlet/outlet valves). Input and output fittings should be covered with protective caps when the unit is not in operation. Moisture in the air is harmful to the recovery process and will shorten the lifespan of the unit.
  • Page 14: Rev 0 Information@Itm

    (particularly from the bottom of recovery cylinders) can enter the ECO- 2020 and become lodged in the valve seats causing damage and resulting in leaks. We recommend using Bacharach in-line filter P/N 2020-0001 for optimum recovery speed. IMPORTANT: Make all hose connections as shown in Figure 7.
  • Page 15: Figure 7. Recovery Configuration

    Refrigerant Recovery Unit 2020-9000 Rev 0 0.561.8187 information@itm. www. .com...
  • Page 16: Purge Mode

    Refrigerant Recovery Unit 2.6. Purge Mode IMPORTANT: The unit must be purged after each use. Liquid refrigerant remaining in the unit may expand, damage the components, and pollute the environment. Step Description (Purge Mode) Note that the unit stops automatically after recovery is complete. Turn the control knob to the PURGE position.
  • Page 17 Refrigerant Recovery Unit IMPORTANT: Make all hose connections as shown in Figure 8. Ensure that all connections are correct and secure. Step Description (Liquid Push/Pull Recovery Mode) Switch off power to the refrigerant equipment and connect power to the ECO-2020. Turn the control knob to the START position.
  • Page 18 Refrigerant Recovery Unit 2020-9000 Rev 0 0.561.8187 information@itm. www. .com...
  • Page 19: Recovery Tips

    Refrigerant Recovery Unit 2.8. Recovery Tips • Use the shortest hoses possible. Long hoses increase the recovery time. Remove all restrictions in the hoses. Hoses with ball valves at the ends are better than hoses that are self-sealing. • When possible, temporarily remove Shrader core valves (if used) from the service ports prior to the recovery process, as these valves significantly restrict recovery flow and extend recovery time.
  • Page 20: Maintenance And Troubleshooting

    Refrigerant Recovery Unit Section 3. Maintenance and Troubleshooting 3.1. Troubleshooting Fault Possible Cause(s) Solution(s) Compressor High pressure shut off Lower pressure below 435 psi won’t start (Red alarm light) (30 bars) Motor failure or other Replace the components. component damage. Factory service is required.
  • Page 21: Exploded Drawing Showing Spare Parts

    Refrigerant Recovery Unit 3.2. Exploded Drawing Showing Spare Parts 2020-9000 Rev 0 0.561.8187 information@itm. www. .com...
  • Page 22 Refrigerant Recovery Unit Part Spare Part Description Number Item # 0304-3461 Power supply cord, CEE 7/7 0304-3462 Power supply cord, SANS 164-1 0304-3467 Power supply cord, AS 3112 0304-3468 Power supply cord, NEMA 5-15 3015-5636 Power supply cord, BS 1363 2020-0001 In-line filter 2020-0002...
  • Page 23: Accessories

    Refrigerant Recovery Unit Part Spare Part Description Number Item # 2020-0027 Valve plate assembly 2020-0028 O-ring, 10.8 x 1.8 mm (I.D. x wall thickness) 2020-0029 Exhaust valve 2020-0030 Exhaust valve spring 2020-0031 O-ring, 32.5 x 1.8 mm (I.D. x wall thickness) 2020-0032 Cylinder cover assembly 2020-0033...
  • Page 24: Wiring Diagram

    Refrigerant Recovery Unit 3.4. Wiring Diagram 2020-9000 Rev 0 0.561.8187 information@itm. www. .com...
  • Page 25 Refrigerant Recovery Unit Code Component Code Components Power Outlet Low Pressure Switch Power Switch 80% Shut-Off Switch Overload Protection Device Red LED (High Pressure) Compressor Motor Red LED (Shut-Off) Centrifugal Switch Green LED Start Capacitor Power LED Running Capacitor Start Button Motor Thermal Protectors Control Module Electronic Transformer...
  • Page 26 Refrigerant Recovery Unit 2020-9000 Rev 0 0.561.8187 information@itm. www. .com...
  • Page 27: Declaration Of Conformity

    EN 55014-1:2006 EN 60335-1:2002 and EN 60335-2-34:2002 Signature: Name: Doug Keeports Title: President Date: August 26, 2013 The technical documentation file required by this directive is maintained at the corporate headquarters of Bacharach, Inc. 2020-9000 Rev 0 0.561.8187 information@itm. www. .com...
  • Page 28 Refrigerant Recovery Unit World Headquarters 621 Hunt Valley Circle, New Kensington, Pennsylvania 15068 Phone: 724-334-5000 • Toll Free: 1-800-736-4666 • Fax: 724-334-5001 Website: www.MyBacharach.com • E-mail: help@MyBacharach.com 2020-9000 Rev 0 0.561.8187 information@itm. www. .com...
