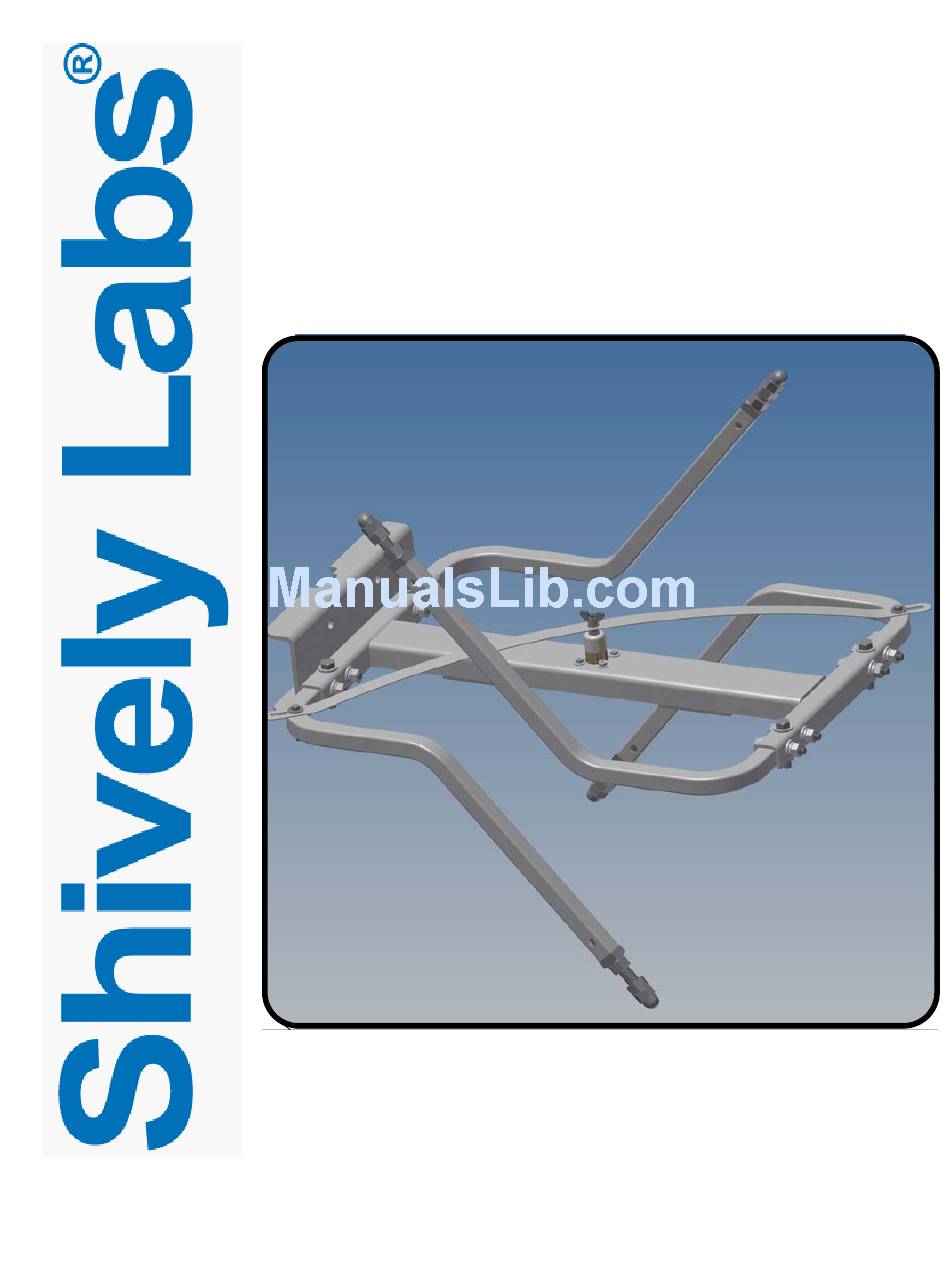

- Page 1 Circularly Polarized FM Broadcast Antenna Versa2une (SLV) 1 to 4-bay, full-wave-spaced Instruction Manual Installation, Operation, & Maintenance...
- Page 2 Congratulations! Thank you for purchasing one of the finest FM broadcast antennas on the market today. The Shively Labs Versa2une is the top-of-the-line in its class for its simplicity, superior performance and durability. Your purchase is backed by the best technical support in the industry. Shively is a leading manufacturer in the broadcast industry, providing an extensive range of antennas, transmission line and components.
- Page 3 IMPORTANT Please read this manual in its entirety before beginning installation of your antenna! Failure to follow the installation and operation instructions in this manual could lead to failure of your equipment and might even void your warranty! This manual applies only to one- to four-bay SLV antennas (SLV-1 to SLV-4) with full-wave bay spacing.
-
Page 5: Table Of Contents
Table of Contents Chapter 1 Preparation ................ 1 Check the shipment................1 Torque specifications................1 Table 1 Torque specifications ............1 Check the parts..................1 Prepare the mounting location............... 2 Figure 1 Tower layout, single-bay antenna ........2 Figure 2 Tower layout, two-bay antenna .......... 3 Figure 3 Tower layout, four-bay antenna.......... - Page 6 Table of Contents Install the feedstrap................18 (continued) Figure 26 Remove wingnut ............18 Figure 27 Feedstrap to endseal ............. 18 Figure 28 Feedstrap to arms ............19 Figure 29 Feedstrap ends bent down ..........19 Attach the coax cable................20 Figure 30 Form coax cable ............
- Page 7 Table of Contents Chapter 10 Maintenance ..............37 (continued) Log ....................37 Inspection ..................37 Paint ....................37 Return Policy ..................37 Chapter 11 Parts ................39 Parts list..................... 39 Table 2 Parts List ................ 39...
-
Page 9: Chapter 1 Preparation
Preparation Preparation Check the shipment. BEFORE As soon as you receive your antenna, signing for the shipment: a. Check to be sure all the material has arrived. b. Check for evident damage to any of the boxes. c. If any boxes are missing, or if any are obviously damaged, describe the problem in a WRITTEN note on the shipping papers BEFORE signing them. -
Page 10: Prepare The Mounting Location
Preparation Prepare the mounting location. Figure 1. Tower layout, single- bay antenna Remember! It is YOUR responsibility to ensure that your installa- tion meets all applicable codes and the centerline- of-radiation requirements of your FCC construction permit. -
Page 11: Figure 2 Tower Layout, Two-Bay Antenna
Preparation Figure 2. Tower layout, two-bay antenna... -
Page 12: Figure 3 Tower Layout, Four-Bay Antenna
Preparation Figure 3. Tower layout, four-bay antenna... -
Page 13: High-Band Or Low-Band
Preparation High-band or low- 87.5 - 98 MHz = Low-band band? 98.1 - 108 MHz = High-band. Determine "A" dimension. Figure 4. Low-band and high- band "A" dimension values... -
Page 15: Chapter 2 Arm Assembly
Arm Assembly Arm Assembly Assemble arms. a. Screw the acorn nut (Figure 5, 1) onto the 230 mm threaded rod (2) as far as it will go. Figure 5. Arm assembly a b. Screw a M12 hex nut (Figure 6, 3) tightly against the acorn nut. Figure 6. -
Page 16: Figure 10 Arm Assembly - Complete
Arm Assembly (Figure 10) Repeat for the other 3 arms. Figure 10. Arm assembly - complete g. Repeat for the other bays, if applicable. -
Page 17: Chapter 3 Bay Assembly (Without Radomes)
Bay Assembly (without radomes) Bay Assembly (without radomes) Attach the arms to the NOTE This step may be made easier by clamping the radiator to a surface or radiator. mounting it temporarily on a vertical pole. (Figure 11) Identify the mounting holes to be used. Figure 11. -
Page 18: Figure 13 Channel Attachment
Bay Assembly (without radomes) c. Attach the channel mount (Figure 13, 7) and arms, using M8 hardware (8, 9, 10, and 11), finger-tight only. Figure 13. Channel attachment CAUTION To ensure proper arm alignment, always tighten the nuts on the vertical bolts before tightening the horizontal ones. -
Page 19: Install The Feedstrap
Bay Assembly (without radomes) Figure 15. Arm attachment - complete Install the feedstrap. a. Remove the wingnut (Figure 16, 12), the top lockwasher, and the topmost flat washer from the endseal (13). Leave the second flat washer in place. Figure 16. Remove wingnut b. -
Page 20: Figure 17 Feedstrap To Endseal
Bay Assembly (without radomes) Figure 17. Feedstrap to endseal c. Using the M5 hardware (Figure 18, 15, 16, 17, and 18), secure the feedstrap to the innermost holes in the arms. Figure 18. Feedstrap to arms... -
Page 21: Connect The Coax Cable
Bay Assembly (without radomes) Connect the coax CAUTION Stressing a coax connection after assembly can detune the system. cable. Therefore, never make a connection and then bend or twist the cable, or use the connector to force the coax into shape. Form the cable first, then attach it to the connector. -
Page 22: Figure 21 Finished Antenna Bay Assembly
Bay Assembly (without radomes) This completes assembly of your antenna bay without radomes (Figure 21 page 14). If your antenna has multiple bays, repeat this chapter for the remaining bays. Then please proceed to Mounting the Antenna Bay(s) on page 23. Figure 21. -
Page 23: Chapter 4 Bay Assembly (With Radomes)
Bay Assembly (with radomes) Bay Assembly (with radomes) Attach the mount a. Attach a center mount channel (Figure 22, 7) and two end mount channels (21) to the radome back half (22), using the threaded rods (2) and M12 channels to the hardware (3, 23, 24) as shown. -
Page 24: Attach The Arms To The Radiator
Bay Assembly (with radomes) Attach the arms to the NOTE This step may be made easier by clamping the radiator to a surface or radiator. mounting it temporarily on a vertical pole. (Figure 23) Identify the mounting holes to be used. Figure 23. -
Page 25: Figure 25 Radome, Inner Arms To Radiator
Bay Assembly (with radomes) c. Attach the radome assembly (assembled above) and the inner arms (Figure and 5) to the radiator (6), using M8 hardware (8, 9, 10, and 11), finger- tight only. NOTE The channel of the radiator fits into the rectangular slot in the back of the radome half. -
Page 26: Install The Feedstrap
Bay Assembly (with radomes) Install the feedstrap. a. Remove the wingnut (Figure 26, 12), the top lockwasher, and the topmost flat washer from the endseal (13). Leave the second flat washer in place. Figure 26. Remove wingnut b. Using the wingnut, secure the feedstrap (Figure 27, 14) to the endseal. -
Page 27: Figure 28 Feedstrap To Arms
Bay Assembly (with radomes) c. Using the M5 hardware (Figure 28, 15, 16, 17, and 18), secure the feedstrap to the innermost holes in the arms. Figure 28. Feedstrap to arms d. (High-band only) Bend the ends of the feedstrap down over the arms to allow clearance inside the radome (Figure 29). -
Page 28: Attach The Coax Cable
Bay Assembly (with radomes) Attach the coax cable. CAUTION Stressing a coax connection after assembly can detune the system. Therefore, never make a connection and then bend or twist the cable, or use the connector to force the coax into shape. Form the cable first, then attach it to the connector. -
Page 29: Install The Radome Front Half
Bay Assembly (with radomes) Install the radome a. Using the 1/4" hardware (Figure 32, 27), attach the radome front half (28) to the radome back half (22). front half. Figure 32. Radome front half installation b. Using splice tape (Figure 33, 20, provided with the antenna) and Dow Corning 744 adhesive-sealant (26), seal: •... - Page 30 Bay Assembly (with radomes) This completes assembly of your antenna bay with radomes (Figure 34 page 22). If your antenna has multiple bays, repeat this chapter for the remaining bays. Then please proceed to Mounting the Antenna Bay(s) on page 23. Figure 34.
-
Page 31: Chapter 5 Mounting The Antenna Bay(S)
Mounting the Antenna Bay(s) Mounting the Antenna Bay(s) Mount the antenna bay NOTE If the supporting structure is non-metallic (for example, a chimney or a on the tower leg or tree), run a ground cable (customer-supplied) from the antenna mount pole. -
Page 32: Figure 36 Mount The Antenna Bay(S) (With Radomes)
Mounting the Antenna Bay(s) c. (With radomes only) Similarly, clamp the upper and lower end mount channels (21) to the tower leg or pole (Figure 36). Do not tighten fully. Figure 36. Mount the antenna bay(s) (with radomes) (Figure 37) Adjust the antenna heading. Figure 37. -
Page 33: Figure 38 Tighten Mounting Hardware
Mounting the Antenna Bay(s) (Figure 38) Tighten the mounting hardware (Figure , 3, 23, 24) on the threaded rods (2). Torque in accordance with Table 1 on page 1. Figure 38. Tighten mounting hardware. f. Retouch the tower paint as necessary. g. -
Page 35: Chapter 6 Connecting The Antenna (Single-Bay)
Connecting the Antenna (single-bay) Connecting the Antenna (single-bay) Connect the coax CAUTION Stressing a coax connection after assembly can detune the system. feedline cable. Therefore, never make a connection and then bend or twist the cable, or use the connector to force the coax into shape. Form the cable first, then attach it to the connector. -
Page 36: Connect The Transmission Line Cable
Secure the transmission line cable to the mounting pole or tower leg, using customer-supplied cable clamps. Installation of your Versa2une is complete. Please proceed to Startup. NOTE If you have any problems with installation, call Shively and talk with a... -
Page 37: Chapter 7 Connecting The Antenna (2 Or More Bays)
Connecting the Antenna (2 or more bays) Connecting the Antenna (2 or more bays) Mount the power divider(s). Two-bay antenna: Using two power divider mounting kits (Figure 41, 30), mount the power divider (31) to the mounting structure with its outlet ports roughly halfway between the antenna bays. -
Page 38: Figure 42 Power Divider Mounting (Four-Bay)
Connecting the Antenna (2 or more bays) Four-bay antenna: Using two power divider mounting kits (Figure 41, 30), mount the power divider (32) to the mounting structure with its outlet ports roughly halfway between the antenna bays. Locate the mounts as close to the ends of the power divider as you can. -
Page 39: Secure The Coax Feedline Cables
Connecting the Antenna (2 or more bays) Secure the coax CAUTION Stressing a coax connection after assembly can detune the system. feedline cables. Therefore, never make a connection and then bend or twist the cable, or use the connector to force the coax into shape. Form the cable first, then attach it to the connector. -
Page 40: Connect The Transmission Line Cable
Secure the transmission line cable to the mounting pole or tower leg, using customer-supplied cable clamps. Installation of your Versa2une is complete. Please proceed to Startup. NOTE If you have any problems with installation, call Shively and talk with a... -
Page 41: Chapter 8 Startup
RF emissions at close range are hazardous. NOTE The Versa2une does not require pressurization or purging. Optimize VSWR. (Figure 45) Apply a low-power signal to the antenna and read reflected power (VSWR). -
Page 43: Chapter 9 Troubleshooting
Troubleshooting Troubleshooting Broad Spectrum RF This indicates that some component is not in good electrical contact with the tower. Make sure mounts are tight, that tower paint has been removed from Noise under the mounts, and that components of other systems are likewise in good contact with the tower. -
Page 45: Chapter 10 Maintenance
Maintenance Maintenance WARNING Whenever a rigger is on the tower in the area of the antenna, shut off the signal and lock it off so that it cannot be turned on accidentally. RF emissions at close range are hazardous. We recommend that you keep a log of VSWR readings and any other perfor- mance notes and maintenance history for your antenna. -
Page 47: Chapter 11 Parts
Parts Parts Parts list. NOTE Item callouts are consistent across all the illustrations in this technical sheet. Table 2. Parts List Description without radomes with radomes Shively P/N Appearance (not to scale) bays bays bays bays 1. "Acorn" nut, M12 x 1.75 2. - Page 48 Parts Table 2. Parts List (continued) Description without radomes with radomes Shively P/N Appearance (not to scale) bays bays bays bays 11. Lock washer, M8 (in hardware kit) 12. Wing nut (shipped on endseal, item 13) 13. Endseal (part of radi- ator) 14.
- Page 49 Parts Table 2. Parts List (continued) Description without radomes with radomes Shively P/N Appearance (not to scale) bays bays bays bays 25. Clamp half 26. Dow Corning 744 DO 88060 adhesive- sealant, cartridge 27. Radome flange bolt 93585-G504 kit (contains 24 1/4-20 bolts, 24 nuts, 48 flat washers, 24 lock washers)
