Page 1: User Manual

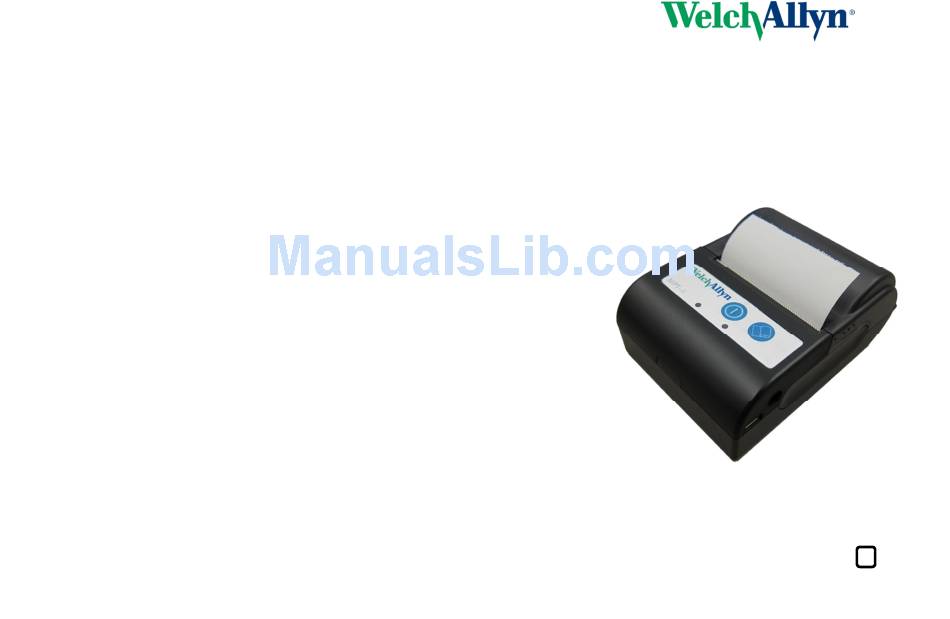

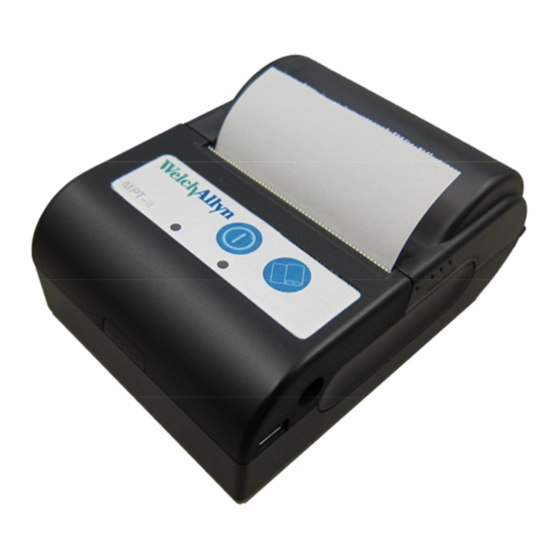

MPT-II Mobile Thermal Mini Printer User Manual Manufactured for: Welch Allyn, Inc. 39408 4341 State Street Road Skaneateles Falls, NY 13153 USA Material 105886 www.welchallyn.com DIR 80019155 Ver. C 8105300 Rev A... - Page 3 1. Cautions • RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE • DISPOSE OF USED BATTERIES ACCORDING TO LOCAL REGULATIONS • DO NOT PLACE THE BATTERY IN FIRE OR HEAT THE BATTERY • DO NOT CONNECT THE POSITIVE TERMINAL AND THE NEGATIVE TERMINAL OF THE BATTERY TO EACH OTHER WITH ANY METAL OBJECT •...
-
Page 4: General Information
User manual 1 pcs. Connection cable supplied separately, depending on instrument. 3. Operation Paper loading: Open the lid by pushing on the sides, insert paper roll as shown, and close the lid. Reorder paper from your local Welch Allyn distributor. - Page 5 Battery pack insertion: RS-232 pinout: Insert battery as shown. 1. TXD 2. RTS 3. DND 4. Reserved pins 5. RXD 6. Reserved pins Battery pack: Power on: 2-cell Li-Ion battery pack 7.4V-1500mAh Push POWER BUTTON for two seconds to power ON or OFF. One short beep will be heard at power ON, two short beeps at power OFF.
-
Page 6: Technical Specifications
2. Let the instrument / PC search for other Bluetooth devices Infrared (RAW_IR, VIR, IrDA) 3. A device called MPT-II should occur in the list of devices Bluetooth Class2 (up to 10m range) – serial port profile (SPP) 4. Finish pairing For detailed instructions how to initiate Bluetooth search, please refer to your device’s user manual.
