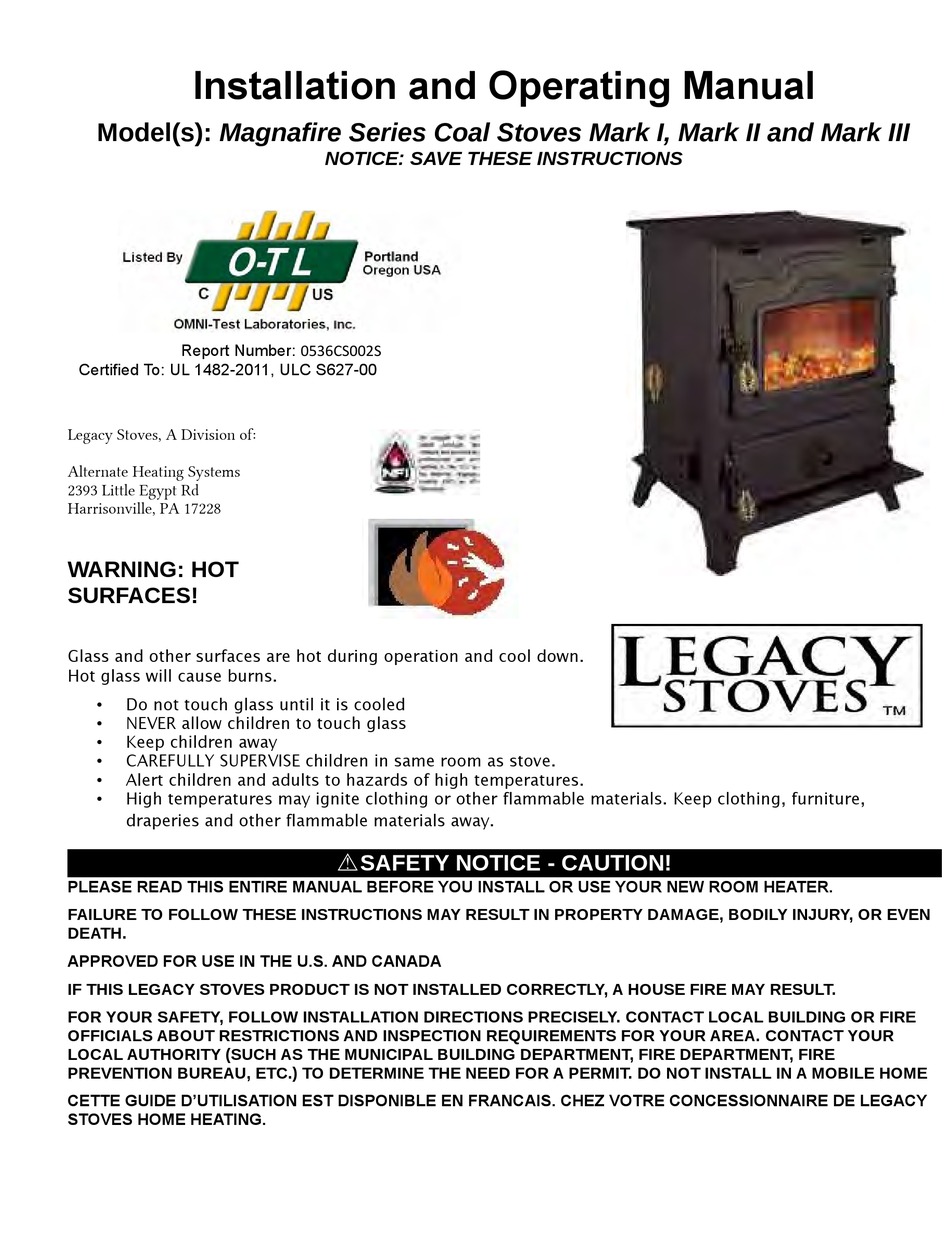

Installation and Operating Manual
Model(s): Magnafire Series Coal Stoves Mark I, Mark II and Mark III
Report Number: 0536CS002S
Certified To: UL 1482-2011, ULC S627-00
Legacy Stoves, A Division of:
Alternate Heating Systems
2393 Little Egypt Rd
Harrisonville, PA 17228
WARNING: HOT
SURFACES!
Glass and other surfaces are hot during operation and cool down.
Hot glass will cause burns.
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as stove.
•
Alert children and adults to hazards of high temperatures.
•
High temperatures may ignite clothing or other flammable materials. Keep clothing, furniture,
•
draperies and other flammable materials away.
PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL OR USE YOUR NEW ROOM HEATER.
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN
DEATH.
APPROVED FOR USE IN THE U.S. AND CANADA
IF THIS LEGACY STOVES PRODUCT IS NOT INSTALLED CORRECTLY, A HOUSE FIRE MAY RESULT.
FOR YOUR SAFETY, FOLLOW INSTALLATION DIRECTIONS PRECISELY. CONTACT LOCAL BUILDING OR FIRE
OFFICIALS ABOUT RESTRICTIONS AND INSPECTION REQUIREMENTS FOR YOUR AREA. CONTACT YOUR
LOCAL AUTHORITY (SUCH AS THE MUNICIPAL BUILDING DEPARTMENT, FIRE DEPARTMENT, FIRE
PREVENTION BUREAU, ETC.) TO DETERMINE THE NEED FOR A PERMIT. DO NOT INSTALL IN A MOBILE HOME
CETTE GUIDE D'UTILISATION EST DISPONIBLE EN FRANCAIS. CHEZ VOTRE CONCESSIONNAIRE DE LEGACY
STOVES HOME HEATING.
NOTICE: SAVE THESE INSTRUCTIONS
⚠SAFETY NOTICE - CAUTION!
Advertisement
Table of Contents
Related Manuals for Legacy Mark I
Summary of Contents for Legacy Mark I
- Page 1 DEATH. APPROVED FOR USE IN THE U.S. AND CANADA IF THIS LEGACY STOVES PRODUCT IS NOT INSTALLED CORRECTLY, A HOUSE FIRE MAY RESULT. FOR YOUR SAFETY, FOLLOW INSTALLATION DIRECTIONS PRECISELY. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSPECTION REQUIREMENTS FOR YOUR AREA. CONTACT YOUR LOCAL AUTHORITY (SUCH AS THE MUNICIPAL BUILDING DEPARTMENT, FIRE DEPARTMENT, FIRE PREVENTION BUREAU, ETC.) TO DETERMINE THE NEED FOR A PERMIT.
-
Page 3: Introduction
Please read this entire instruction manual before attempting to install or operate your new stove. If you have further questions regarding your new stove, contact your Legacy Stoves dealer. - Page 4 Legacy Stoves Mark Series Stove Label measures: 9.5" high X 8.5" wide...
-
Page 5: Table Of Contents
Table of Contents ⚠SAFETY NOTICE - CAUTION!........................1 Introduction..............................4 Additional Warnings and Notices........................7 Installation..............................8 1. Safety Considerations..........................8 1.1 KEEP CHILDREN AWAY-MAY CAUSE SERIOUS BURNS............8 1.2 FUEL / FIRING INFORMATION....................8 1.3 CURING PAINT..........................8 1.4 MOBILE HOMES..........................8 2. Assembly& Installation.........................8 2.1 UNPACKING AND INSPECTION OF PARTS................8 2.2 LOCATING THE STOVE......................8 2.3 FLOOR PROTECTION........................8 2.4 ASSEMBLY............................9... -
Page 6: Additional Warnings And Notices
Additional Warnings and Notices This appliance is also approved for installation into a shop. MARK I MARK II MARK III CONTACT YOUR LOCAL BUILDING OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA BARCODE LABEL PREVENT HOUSE FIRES: Install and use only in accordance with manufacturer’s installation and operation instructions and local building codes. In absence of any local codes, installation must meet minimum requirements of NFPA 211 in USA. -
Page 7: Installation
Installation 1. Safety Considerations 1.1 KEEP CHILDREN AWAY-MAY CAUSE SERIOUS BURNS CAUTION: All surfaces of the stove are hot while in operation. Do not touch. Keep Children Away. Wear gloves while tending stove. Serious burns will result if special care is not taken. 1.2 FUEL / FIRING INFORMATION DANGER! FIRE HAZARD! DO NOT USE CHEMICALS OR FLUIDS TO START OR “FRESHEN UP”... -
Page 8: Assembly
2.4 ASSEMBLY Slide the blower into the slotted bracket on the rear of the stove. The blower will rest at the bottom of the slot. The shaker handle bolts onto the shaker block using the bolts and lock washers provided. The draft control is bolted through the hole in the center of the ash door as shown below. -
Page 9: Venting
From NFPA 211 2013: The cross-sectional area of the chimney system must not be less than that of the flue collar. (For The Mark I and Mark III served by a round chimney, the diameter must be at least 6 inches) Chimney systems which are completely internal below the roofline must be no more than three times the crosssectional area of the flue collar (28.3 in2 X 3 = 84.8 in2). -
Page 10: What To Do If You Have A Problem
D) Trees or other topographical barriers - Trees that are taller than the house can cause the air currents to ?ow downward over the peak of the roof. This would lead to a down draft effect on the chimney. This can also be caused by adjacent buildings or structures. - Page 11 D) Masonry Fireplace Chimney Connections - In some situations, a code compliant chimney originally used for a masonry fireplace may be used. The chimney must be lined with the needs of the heating appliance in mind, including minimum and maximum sizes. The lining will comply with one of the following: Clay flue lining complying with the requirements of ASTM C315 or •...
- Page 12 E) Manufactured Chimney Connections - When venting using a prefabricated chimney, be sure to contact local building code authorities, and to follow the manufacturer’s instructions exactly . USE ONLY THE MANUFACTURER’S PARTS. DO NOT USE MAKESHIFT INSTALLATION TECHNIQUES. ALL PREFABRICATED CHIMNEYS MUST BE TESTED TO EITHER THE U.S.
-
Page 13: Grates
Follow these steps to ensure safe and efficient operation of your Mark I or Mark III stove. You will need to start a fire in the appliance to establish a draft in the chimney flue. Refer back to these instructions after reading the entire manual. -
Page 14: Operation
CONTACT WITH THE BOTTOM OF THE GRATES ACT AS AN INSULATOR INTENSIFYING THE HEAT ON THE GRATES, AND WILL CAUSE THE GRATES TO WARP. GRATE DAMAGE FROM ASH BUILD UP IS EASILY RECOGNIZED. PLEASE REFER TO YOUR WARRANTY TO SEE LEGACY STOVESTM LIMIT OF LIABILITY IN CASES OF ABUSE OR NEGLECT. -15-... -
Page 15: Safety
5.7 SAFETY Whenever a loading door is opened, it should always be cracked slightly to allow oxygen to enter and burn any gasses that may be present. Failure to do this may result in a sudden ignition of the gasses, leading to an explosion. A stove should never be filled with excess coal to where the exhaust is impeded. -
Page 16: Coal/Fuel Handling And Storage
Should the glass in the load door break, do NOT operate the stove with a broken glass. It will be necessary to replace the glass. NEVER replace the glass with a generic item. ALWAYS use the proper replacement part from your Legacy Stoves dealer. Refer to parts list near end of this manual. - Page 17 Position the glass within the door, and reinstall the retainer and the four capscrews. -18-...
-
Page 18: Warranty Information
7. Warranty Information Alternate Heating Systems LIFETIME LIMITED WARRANTY Alternate Heating Systems, on behalf of its hearth brands (”AHS”), extends the following warranty for AHS gas, wood, pellet, coal and electric hearth appliances that are purchased from an AHS authorized dealer. WARRANTY COVERAGE: AHS warrants to the original owner of the AHS appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the AHS appliance... - Page 19 WARRANTY CONDITIONS: This warranty only covers AHS appliances that are purchased through an AHS authorized dealer or distributor. A • list of AHS authorized dealers is available on the AHS branded websites. This warranty is only valid while the AHS appliance remains at the site of original installation. •...
-
Page 20: Service Parts
8. Service Parts Service Parts – Mark I Magnafire Freestanding Coal Stove Beginning Mfrg Date: N/A 1-90-03224-1 (Black w/Door) Ending Mfrg Date: Active Retired Units 1-70-03224-1 (Black), Ending Manufacturing Date: June 2011 1-70-03224-4 (Metallic Blue) Ending Manufacturing Date: Jan 2010... - Page 21 Service Parts (continued) Mark I Beginning Mfrg Date: N/A Ending Mfrg Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer. Provide model number and serial number when requesting service parts from your dealer. Item Description...
- Page 22 Service Parts Mark II Beginning Manufacturing Date: N/A Ending Manufacturing Date: Nov 2013 IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer. Provide model number and serial number when requesting service parts from your dealer. Item Description Comments Part Number Load Door –...
- Page 23 Service Parts (continued) Mark II Beginning Manufacturing Date: N/A Ending Manufacturing Date: Nov 2013 IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer. Provide model number and serial number when requesting service parts from your dealer. Item Description Comments Part Number...
- Page 24 Service Parts Mark III Magnafire Freestanding Coal Stove Beginning Mfrg Date: N/A 1-90-03227-1 (Black w/Door) Ending Mfrg Date: Active Retired Units 1-70-03227-1 (Black) Ending Manufacturing Date: June 2011 1-70-03228-1 (Black) Ending Manufacturing Date: June 2011 1-70-03227-2 (Charcoal) Ending Manufacturing Date: June 2011 1-70-03228-2 (Charcoal) Ending Manufacturing Date: June 2011 1-70-03227-3 (Goldenfire) Ending Manufacturing Date: June 2011 1-70-03228-3 (Gold, Ending Manufacturing Date: June 2011...
- Page 25 Service Parts (continued) Mark III Beginning Mfrg Date: N/A Ending Mfrg Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer. Provide model number and serial number when requesting service parts from your dealer. Item Description Comments Part Number Ash Door, Roped...
- Page 26 Service and Maintenance Log Date of Service Performed By Description of Service -27-...
-
Page 27: Service And Maintenance Log
Service and Maintenance Log Date of Service Performed By Description of Service -28-... -
Page 28: Service And Maintenance Log
Advanced Design Old Fashioned Values (Signature of Boxer) Your premium quality hearth product designed and assembled by the experienced and skilled members at Alternate Heating Systems in Harrisonville, PA, USA. -29-...
