hayneedle ALZ387-1 Assembly Instructions

Tiburon mosaic fire pit with cover
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
ITEM Number :
Product Name:
PRE-ASSEMBLY PREPARATION:
· Unpack parts on a clean, flat surface and check against the parts list.
· This fire pit is intended for outdoor use only. DO NOT use on a wooden deck.
· Do not use near flammable or combustible objects or materials.
·It is intended to burn wood logs only.
· Not for use by children. Keep children & pets away from open flames.
· Never leave burning fire pit unattended.
· Always extinguish fire thoroughly before leaving the fire pit.
· The lift handle on the mesh screen will be hot and unsafe to directly touch during use.
Carefully use the included poker when handling.
· Do not use the fire pit as cooking appliance. It is not designed for grilling food.
· Keep the small parts, including BOLTS AND NUTS away from the children.

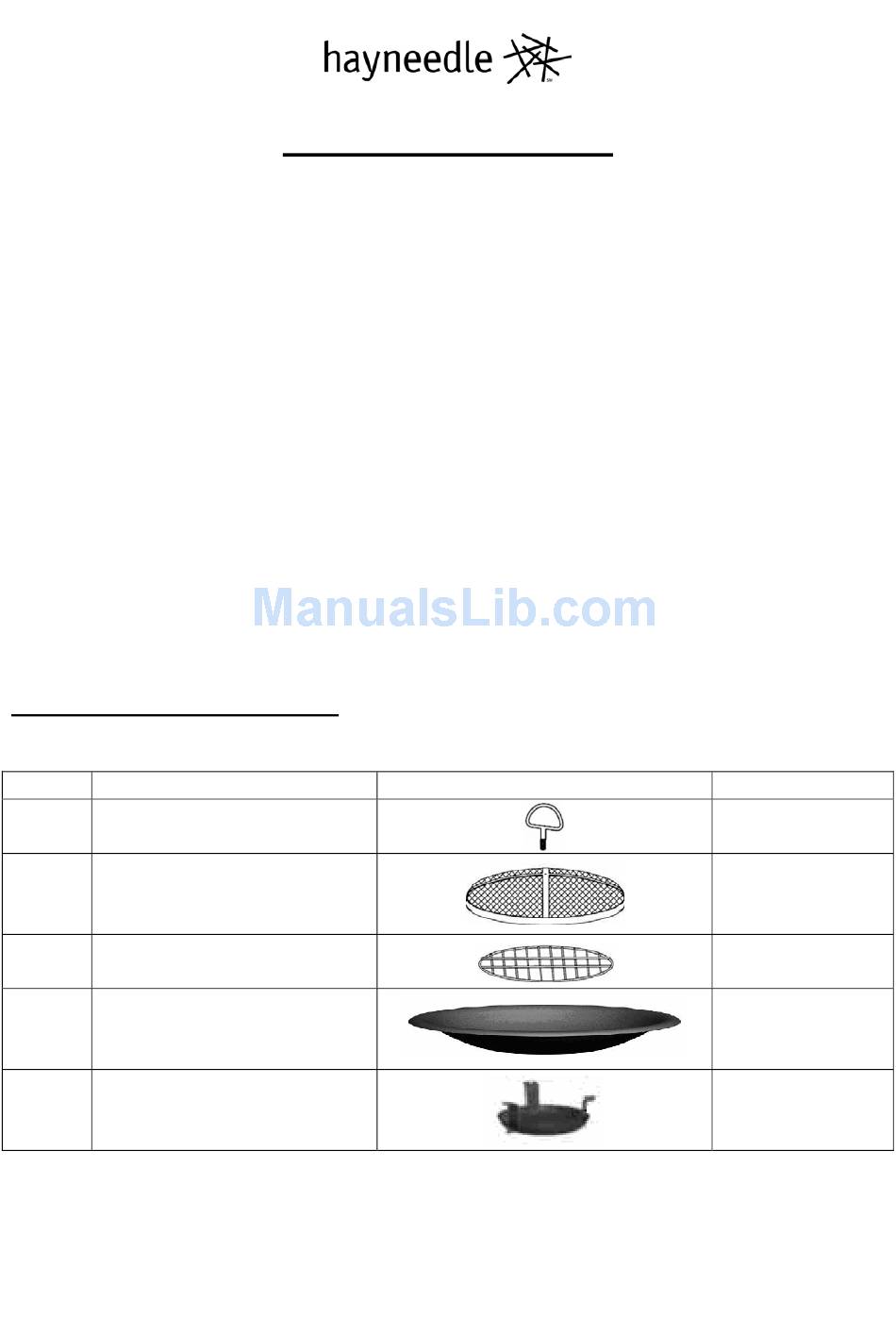

Panel and Fittings Identification:
NO.
A
Screen handle
B
Mesh screen
C
Log grate
D
Fire bowl
E
Ashtray

Assembly Instructions

ALZ387-1
Tiburon Mosaic Fire Pit with Cover
PARTS
1.888.880.4884
IMAGES
QTY.
1
1
1
1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALZ387-1 and is the answer not in the manual?

Questions and answers

Related Manuals for hayneedle ALZ387-1

Summary of Contents for hayneedle ALZ387-1

  • Page 1: Assembly Instructions

    1.888.880.4884 Assembly Instructions ITEM Number : ALZ387-1 Product Name: Tiburon Mosaic Fire Pit with Cover PRE-ASSEMBLY PREPARATION: · Unpack parts on a clean, flat surface and check against the parts list. · This fire pit is intended for outdoor use only. DO NOT use on a wooden deck.
  • Page 2 Slate top Bottom ring Poker M6 Nut M5 Bolt M5 Nut M6 Bolt M8 Nut PVC cover Step By Step Assembly Instructions Step 1: Choose a level location for set up. Step 2: Insert Screen handle (A) into hole in Mesh screen (B) and tighten it with Nut (AA) underside to secure.
  • Page 3 Step 3: Attach Ashtray (E) to Bowl (D) using Bolt(BB) x 3pcs and Nut (CC) x3pcs. Fig 2. Fig 2 Step 4: Connect Leg (G) with Bottom ring (H) with Bolt (DD) x 4pcs. Do not tighten them at this time. Fig 3. Fig 3 Step 5: Upend Slate top (F).
  • Page 4 Step 6: Turn over the assembled piece. Place Fire bowl (D), Log rack (C) and Mesh screen (B) as below illustration. Use poker in your possible convenience. Fig 5. Fig 5 The PVC cover (M) with crack-proof construction is weather resistant.
