Summary of Contents for Harley Benton HBAC-20

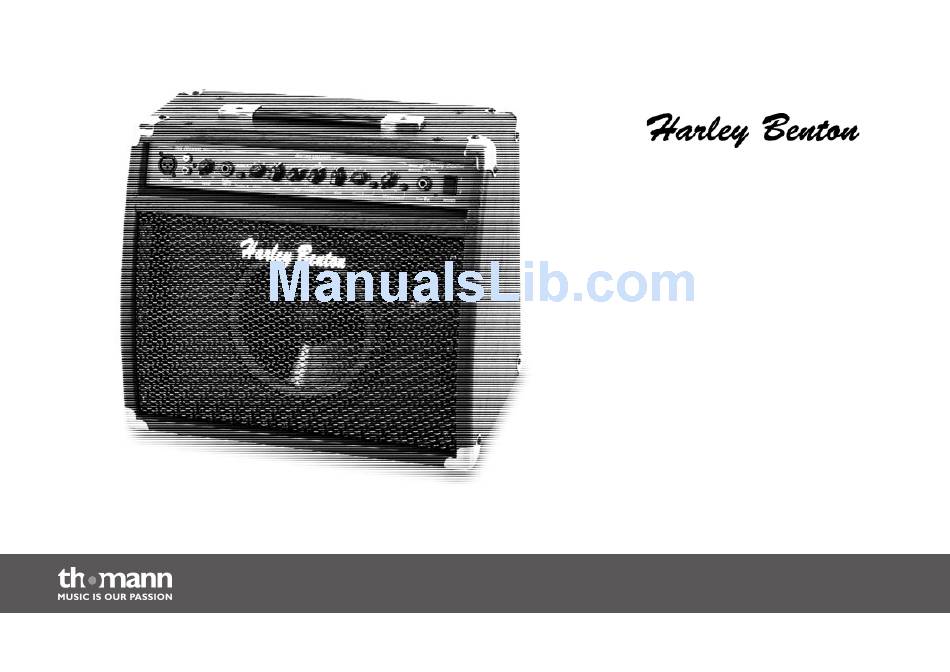

- Page 1 HBAC-20 guitar combo user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 21.02.2014, ID: 117741...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 7 Features............................... 11 Installation and starting up........................ 12 Components and functions........................ 13 Technical specifications........................19 Plug and connection assignment....................20 Protecting the environment......................22 HBAC-20... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device, include the manual for the next owner. - Page 5 NOTICE! This combination of symbol and signal word indicates a possible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. HBAC-20...
- Page 6 General notes Warning signs Type of danger Warning – danger zone. guitar combo...
-
Page 7: Safety Instructions
Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. HBAC-20... - Page 8 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug.
- Page 9 If this is not possible, keep a greater distance or use suffi‐ cient ear protectors. NOTICE! Risk of fire Do not cover the device nor any ventilation slots. Do not place the device near any direct heat source. Keep the device away from naked flames. HBAC-20...
- Page 10 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.
-
Page 11: Features
– XLR microphone / line input with dedicated volume control – RCA CD / line input – 1/4" guitar input, active / passive switchable 3-band EQ with parametric mids Reverb and chorus switchable and adjustable Line out Energy-saving mode HBAC-20... -
Page 12: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 13: Components And Functions
Components and functions Components and functions Front panel HBAC-20... - Page 14 Components and functions 1 [Mic/Line] XLR input for dynamic microphones or other balanced signals. 2 [CD/Line] RCA sockets for additional signal input, e.g. a CD player or other devices with line level output. 3 [Level] Mic/Line channel volume control. This control does not affect the CD/Line input. 4 [Guitar Input] 1/4"...
- Page 15 12 [Reverb] Toggle switch to turn the reverb effect for the guitar channel on and off. 13 [Chorus] Chorus control for the guitar channel. 14 [Chorus] Toggle switch to turn the chorus effect for the guitar channel on and off. HBAC-20...
- Page 16 Components and functions 15 [Line out] 1/4" phone socket to feed the signal to another amp, mixing console or similar device. 16 Pilot LED When turning on the power switch, the amplifier is in standby mode and the power indicator LED should be GREEN. When an audio signal is present at the [Guitar Input], the power indicator LED will turn RED, indicating that the ampli‐...
- Page 17 Components and functions Rear panel HBAC-20...
- Page 18 Components and functions 18 IEC chassis connector with fuse holder. Find technical specifications about replacement fuses and operating supply voltage below and next to the fuse holder. guitar combo...
-
Page 19: Technical Specifications
Max. gain 51 dB Operating supply voltage AC 220 – 240 V , 50/60 Hz Fuse 250 mA / 250 V, slow-blow Dimensions (W × D × H) 423 mm × 250 mm × 360 mm Weight 11.3 kg HBAC-20... -
Page 20: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 21 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding HBAC-20...
-
Page 22: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 24 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
