Summary of Contents for Acqua GY-NE255FR

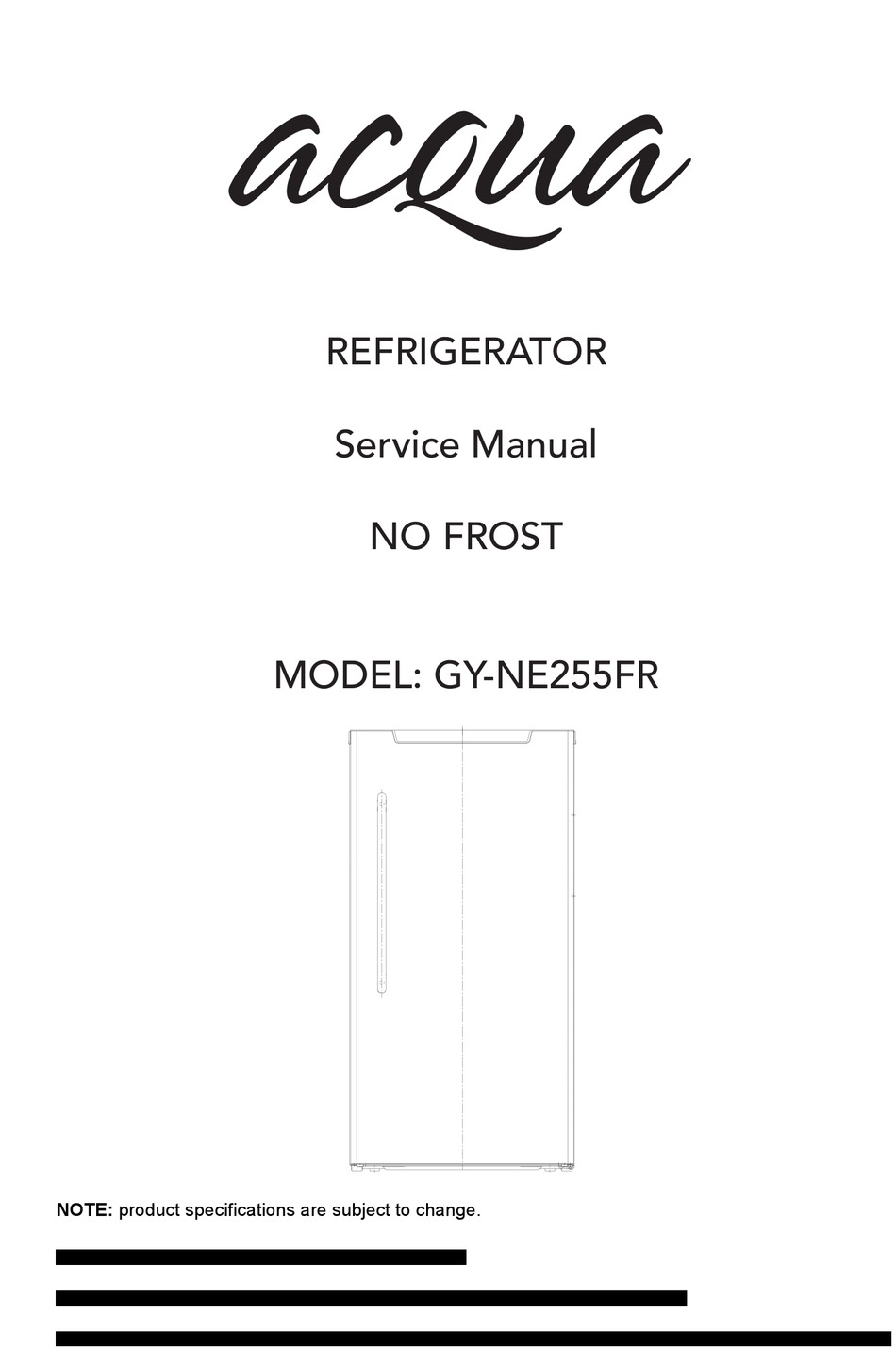

- Page 1 REFRIGERATOR REFRIGERATOR REFRIGERATOR Service manual Service Manual Service manual NO FROST NO FROST NO FROST MODEL: RS-30WC4SFY MODEL: GY-NE255FR MODEL: RS-30WC4SF NOTE: product specifications are subject to change. NOTE: product specifications are subject to change.
-
Page 2: Table Of Contents
■ Contents Parts Description................................1 Circuit diagram ................................2 Cooling diagram ................................2 The guide for Disassembly Common parts of Refrigerator..................3 ◆ The instruction of replacing the main board and display board..............3 ◆ The instruction of of replacing fan motor ...................... 4 ◆... -
Page 3: Circuit Diagram
04. Middle drawer 05. Lower drawer ■ Circuit diagram ■ Cooling diagram... -
Page 4: The Guide For Disassembly Common Parts Of Refrigerator
■ The guide for Disassembly Common parts of Refrigerator ◆ The instruction of replacing the main board and display board. Unscrew the top Cover’s screws Remove the top cover Replace the display board... -
Page 5: The Instruction Of Of Replacing Fan Motor
Remove the electron box cover and replace the main board. ◆ The instruction of of replacing fan motor Remove the wind channel plate in freezer chamber. Put off the foam Unscrew the assembly of fan motor ◆ The instruction of replacing temperature control capillary tube . Open the sensor cover with you finger... -
Page 6: The Instruction Of Replacing Evaporator Temperature Sensor
Put off the sensor cover and replace the sensor ◆ The instruction of replacing evaporator temperature sensor Remove the wind channel plate in freezer chamber and foam Remove the screws of Cover Board of Wiring Area. Then you can easy to replace the evaporator temperature sensor... -
Page 7: Troubleshooting
Disconnect the connecting wire of the PTC Starting relay and Overload protector. ■ TROUBLESHOOTING ◆ The solution for digital display code problem: There are total 2 sensors，one is near Evaporator which can be only seen when open wind channel plate in freezer chamber,this is evaporator temperature sensor. - Page 8 The location of the sensor inside the cabinet Open the sensor cover with you finger Put off the sensor cover Using the multimeter with the ohm switch to measure the resistor of sensor, if sensor is bad ,change a new one. Or else ,go on next step.
- Page 9 Unscrew the top Cover’s screws Remove the top cover Remove the electron box cover Checking the connection of main board have problem or not. The solution for “E2”problem:...
-
Page 10: The Common Problem Judgement Method
Open the door and put out all the drawers Remove the wind channel plate in freezer chamber. Put off the foam The location of the evaporator temperature sensor always fixed on the suction tube as attached (sometimes it fixed on the right middle of the evaporator). - Page 11 start 1.2 Is the power voltage too low？ 1.3 Is the sensor irrational setting? 1.4 Is the ambient temperature too low? 1.5 Is the circuit on power? 1.6 Is there some default in compressor 1.7 Is the refrigeration system blocked by ice or dirty, please stop the unit and restart after 10 minutes to see if the compressor can start.
-
Page 12: The Solution For The Common Problem
Refrigerator’s two 8.1 As condensation tube is placed here and caused the above phenomenon, sides or the back which is normal. heat the cabinet surface 9.1 Air humidity is too large. condensation ◆ The solution for the common problem. 1.Cooling is not enough good (Many reasons might cause that cooling not enough good, as blow :) Reason analysis... - Page 13 pressure of system with pressure meter to see if it is normal. b, higher temperature of compressor surface. C, cut off the discharging tube, to see if you can block the gas coming out of the tube when compressor is working. Some time there is something blocked the filter of liquid cycle system, so that unit is not 5) There is something...
-
Page 14: Note
absorbing becomes higher. It is Ice blocking. B, there is offal block the capillary Phenomenon of failure: If the capillary is blocked by something such as offal etc., the sound of liquid flow disappears. The ice on the evaporator defrosts First stop unit for several minutes, and then The pressure of absorbing open charging tube, discharge all of gas. - Page 15 Ⅰ Ⅱ Ⅰ Ⅱ...
-
Page 19: Parts List
■ Parts list:...
