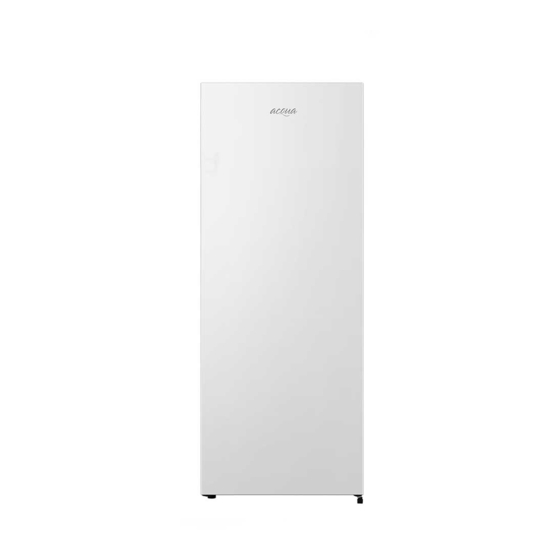

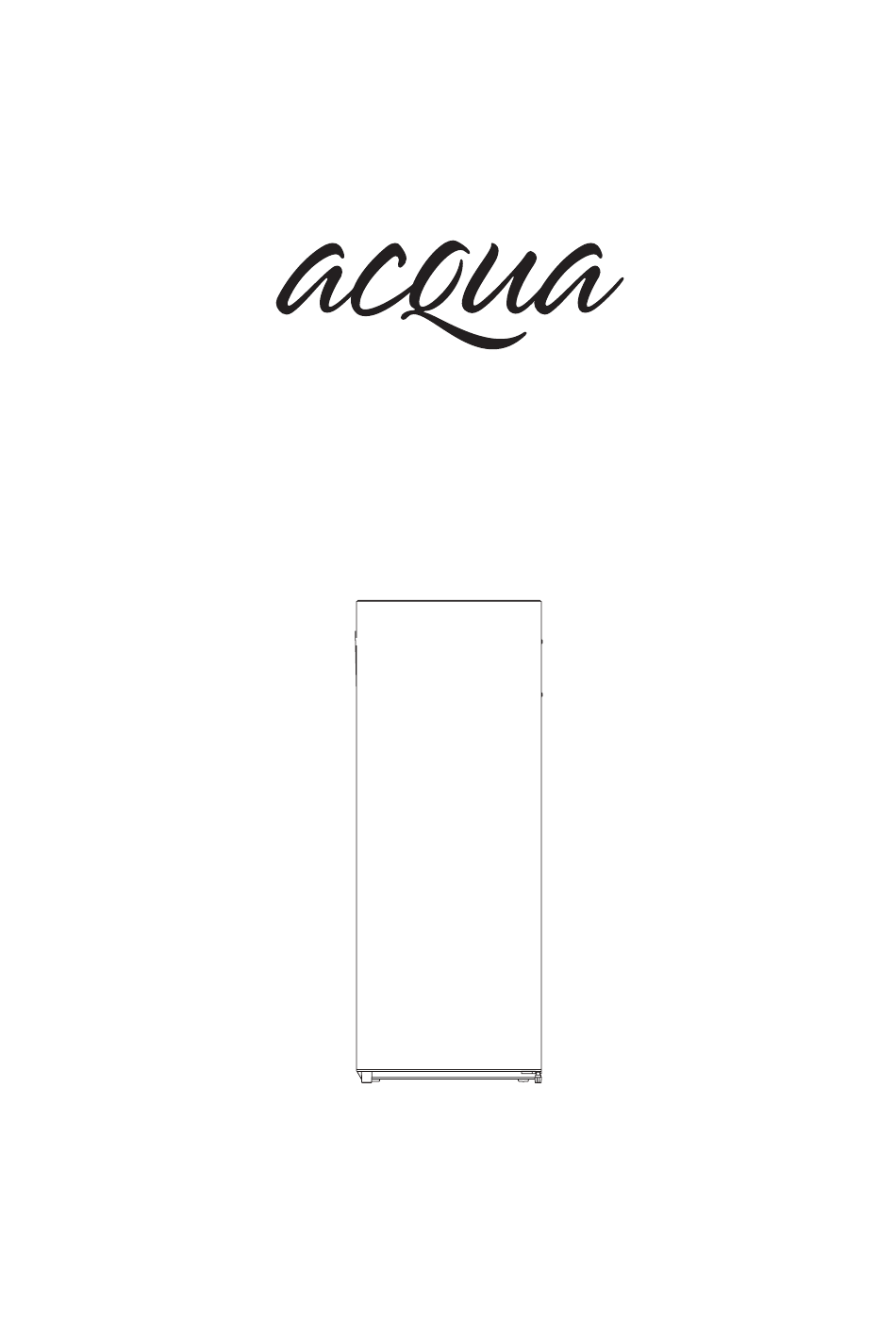

- Page 1 REFRIGERATOR INSTRUCTION MANUAL GY-NE242RF...
-
Page 2: Table Of Contents
Troubleshooting CONTENTS Safety and warning information ..2 Reversing the door ......11 Installing your new appliance ..... 7 Helpful hints and tips ......14 Description of the appliance ....8 Cleaning and care ......15 Using your appliance ......9 What to do if ........ - Page 3 General safety This appliance is intended to be used in domestic households only. • WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Page 4 Refrigerant Troubleshooting The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged.
- Page 5 Daily use • Do not store flammable gas or liquids in the appliance, there is a risk of an explosion. • Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.) • When unplugging always pull the plug from the mains socket, do not pull on the cable.
- Page 6 Installation Important! Troubleshooting • For electrical connection carefully, follow the instructions given in this manual. Unpack the appliance and check if there are damages on it. • Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought It. In this case retain packing. •...
-
Page 7: Installing Your New Appliance
INSTALLING YOUR NEW APPLIANCE Before using the appliance for the • Stand your appliance in a dry first time, you should review the place to avoid moisture damage. following tips. • Keep the appliance out of direct Ventilation of appliance sunlight, rain or frost. -
Page 8: Description Of The Appliance
Troubleshooting DESCRIPTION OF THE APPLIANCE 1. Controller box and LED light 2. Refrigerator shelf 3. Vegetable drawer cover 4. Vegetable drawer 5. Adjustable bottom feet 6 Upper door shelf 7. Lower door shelf 8. Refrigerator door Note: Due to constant development of our products, your refrigerator may differ slightly from... -
Page 9: Using Your Appliance
USING YOUR APPLIANCE Accessories Install the door shelf 1 Movable shelves/trays • Various glass, plastic storage shelves or wire trays are included with your appliance- different models have different combinations and different models have different features. Firstly tilt the left side of the door shelf ,and make sure the notch has •... -
Page 10: Operation
Troubleshooting OPERATION Starting up and temperature Reason: when the ambient regulation temperature is high, the compressor must run continuously to maintain the • Insert the plug of the connection low temperature in the appliance. lead into the plug socket with protective earth contact. -
Page 11: Reversing The Door
REVERSING THE DOOR NOTE: It is recommended that a 1. Stand the refrigerator upright. service agent carries out any door Open the upper door to take out hinge modification at the customers all door racks (to avoid damage) cost. Any cost or subsequent and then close the door. - Page 12 4. Remove the upper hinge axis, Troubleshooting transfer it to reversed side and tighten securely, then put it in a safe place. 7. Lay the refrigerator on soft foam packaging or similar material. Remove both adjustable bottom feet parts, and the lower hinge part by unscrewing the special flange self-tapping screws.
- Page 13 10. Transfer the upper hinge part and into the upper hole of the door, and adjust the position of the door (please support the door with your hand when doing it), fixing the upper hinge part with the special flange self-tapping screws. 11.
-
Page 14: Helpful Hints And Tips
Troubleshooting HELPFUL HINTS AND TIPS Noises during operation Hints for fresh food refrigeration The following noses are To obtain the best performances: characteristic of refrigeration • Do not store warm foods or appliances: evaporating liquids in the Clicks Whenever the compressor appliance. -
Page 15: Cleaning And Care
CLEANING AND CARE For hygienic reasons the appliance bicarbonate of soda, and then rinse (including exterior and interior with warm water using a wrung-out accessories) should be cleaned sponge or cloth (Dont use spray regularly (at least every two months). cleaner.) Wipe completely dry before replacing the shelves and drawers. -
Page 16: What To Do If
Troubleshooting TROUBLESHOOTING If you experience a problem with your Warning! Do not try to repair the appliance or are concerned that the appliance yourself. If the problem appliance is not functioning correctly, persists after you have made the you can carry out some easy checks checks mentioned below, contact an before calling for a service, please see authorised service agent or the shop... - Page 17 TROUBLESHOOTING A layer of frost This model of refrigerator is cyclic and not frost free. Because occurs in the of this it is normal for ice/moisture beads to form on the back compartment wall of this unit. Check the door seal is still sealing correctly, place a torch in to see if there is any light you can see.
-
Page 18: Disposal Of The Appliance
Troubleshooting DISPOSAL OF THE APPLIANCE It is prohibited to dispose of this appliance in domestic household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose the packaging in a suitable collector container to recycle it. Before disposal of appliance. 1.
