Instruction Manual
5 Burner Gas Hob
S5GONGW13/S5GONGB13

Advertisement

Table of Contents
loading

Summary of Contents for Sandstrom S5GONGW13

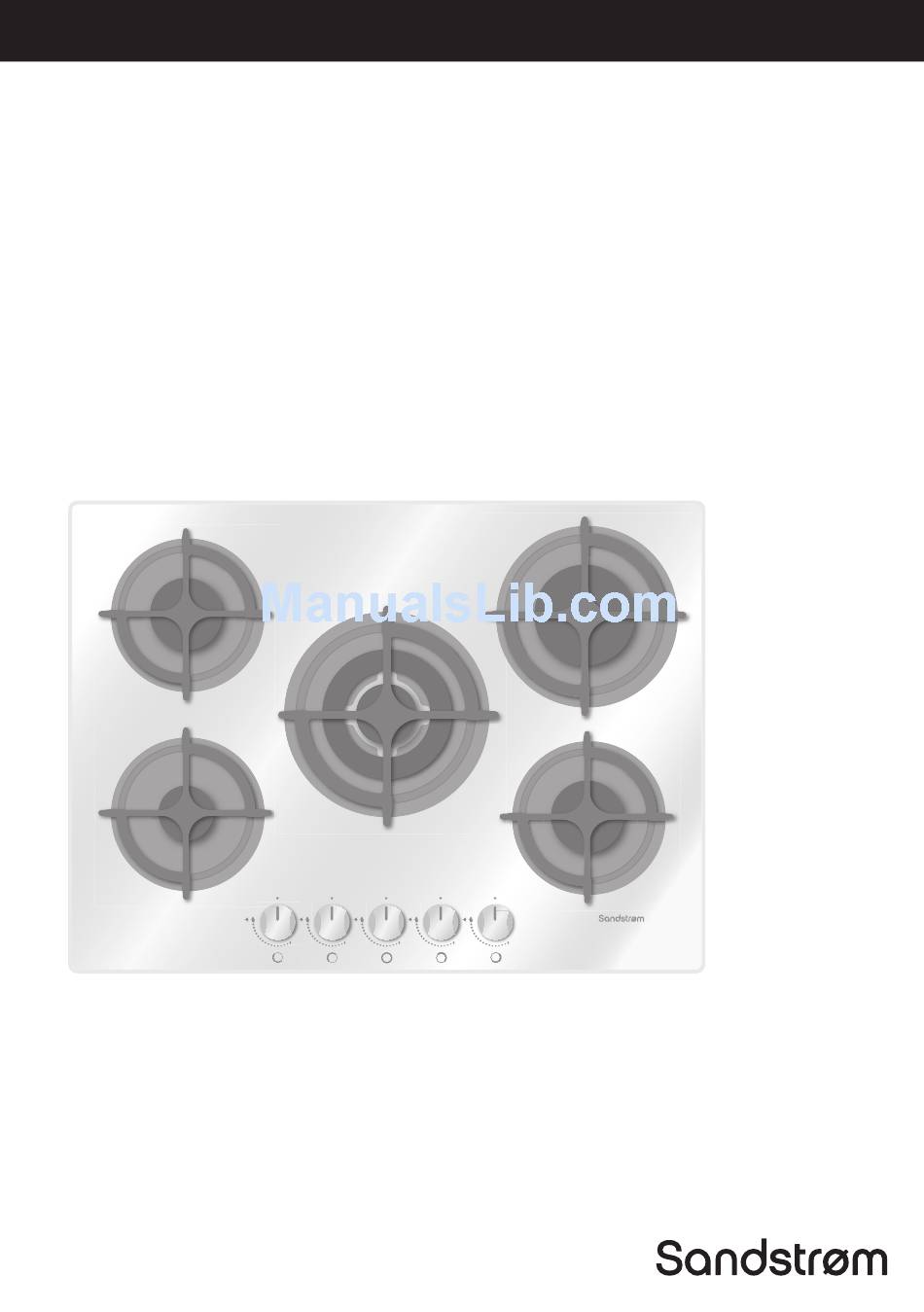

  • Page 1 Instruction Manual 5 Burner Gas Hob S5GONGW13/S5GONGB13...
  • Page 2: Table Of Contents

    Contents Safety Warnings ........................4 Unpacking ..........................6 Product Overview ........................7 Main Unit ............................Control Panel ............................ Before Using Your New Hob ....................8 Lighting the Hob ........................8 Manual Ignition (in case of electricity failure) ................Flame Failure Safety Feature ......................If the Burner Does Not Light ......................
  • Page 3 Conversion from NG to LPG or from LPG to NG ..............21 Method .............................. Adjusting the Gas Rate ......................... Burner Configuration Table ......................
  • Page 4: Safety Warnings

    Safety Warnings IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE • This appliance must be installed by a qualified Gas Safe registered engineer. The manufacturer is not responsible for any damage caused by incorrect installation. • Check whether there is any damage to the appliance after you have unpacked it. If any damage is found, do not use the appliance and contact the store where you purchased it. • This appliance is for indoor domestic use only. • This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating. • The hob is fitted with a moulded mains plug. The mains plug must remain accessible or a switch providing full disconnection incorporated in the fixed wiring. • If the mains cable gets damaged, it should be replaced by an authorized service agent or qualified electrician in order to avoid a hazard. • The hob must be used in a well ventilated location and installed on a flat/level surface. • Only operate your appliance in a dry atmosphere. • Keep the electrical cables of your other appliances away from hot areas; do not let them touch the appliance. • Ensure that the appliance is switched off at the mains supply switch and allowed to completely cool down before cleaning or performing any maintenance to avoid the possibility of an electric shock or burns. • The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use. Keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).
  • Page 5 • P rolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present. • This appliance is not intended for use by persons (including children) with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. • Cleaning and user maintenance shall not be made by children without supervision. • Children should be supervised to ensure that they do not play with the appliance. • The appliance and its accessible parts become hot during use. Young children should be kept away. • Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover the flame e.g. with a lid or a fire blanket. • Danger of fire: Do not store items on the cooking surfaces. • When the hob is hot never touch any parts that get hot. Allow the hob to cool before touching these parts. • Before starting to use your appliance, keep curtains, tulle/netting, paper or flammable materials away from your appliance. • Do not keep combustible or flammable things on or near the appliance. • Do not use steam cleaners for cleaning the appliance. • The appliance is not intended to be operated by means of an external timer or separate remote-control system.
  • Page 6: Unpacking

    Thank you Thank you for purchasing your new Sandstrøm Gas Hob. Like all Sandstrøm products our gas hobs take inspiration from traditional Scandinavian values of quality and functionality, combined with modern innovations and a flair for simply looking good. These operating instructions will help you use it properly and safely. You must spend some time reading this manual in order that you fully understand all the operational features it offers.
  • Page 7: Product Overview

    Product Overview Main Unit 1. Standard Burner (65 mm) 4. Extra Large Burner (125 mm) 2. Small Burner (45 mm) 5. Standard Burner (65 mm) 3. Large Burner (90 mm) 6. Control Panel Control Panel 1. Selects front left burner 4. Selects back right burner 2. Selects back left burner 5. Selects front right burner 3. Selects centre burner...
  • Page 8: Before Using Your New Hob

    Before Using Your New Hob Before using your new hob, please: • Read this manual fully, taking special note of the ‘Safety Warnings’ section. • Plug the hob into the electricity supply and turn it on so that the ignition circuit will work. • This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating. • The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed.
  • Page 9: Flame Failure Safety Feature

    3. Hold an ignition source (e.g. candle lighter) close to the side of the burner and press the burner control in fully to release and light the gas. The control must still be held down for approximately 5 – 10 seconds after the burner has lit. Releasing the controls too soon will extinguish the flame. 4. Adjust the controls as required. Flame Failure Safety Feature The flame supervision device (FSD) probe cuts off the gas supply to the burner within one minute if the flame is extinguished. If the flames are accidentally extinguished, turn off the burner and do not try to light it again for at least one minute (to allow the gas to disperse). When lighting the burner, hold down the control for approximately 5 – 10 seconds after the burner has lit. Releasing the control too soon will extinguish the flame. If the Burner Does Not Light If the burner does not light, check that: • The hob is connected to the electrical supply and the supply is switched on. • The gas is turned on. • You have held down the control for at least 5 – 10 seconds after the flame has been lit. • The ignitors are sparking. If the ignitors are not sparking, they may be dirty or wet. Clean them gently with a small nylon brush such as a toothbrush as shown opposite and allow to dry fully. Ensure the electrical supply has been disconnected before cleaning. Flame failure probe Ignitor To avoid damage to the ignition circuit NEVER light the hob when the burners are not in place.
  • Page 10: Cookware Guidelines

    Cookware Guidelines To get the best out of your hob, follow these simple suggestions: • Use saucepans with thick flat bottoms. Food in a saucepan with an uneven bottom will take longer to cook. • Do not use large saucepans or frying pans that overlap the edges of your hob as this can deflect heat onto your worktop and damage the surface, and may also cause a hazard. • Always make sure saucepans are stable. Using very heavy saucepans may bend the trivet/pan support or deflect the flame. • Always lift the cookware when removing from the hob, do not drag. • When you need to boil, simmer or fry food, first set the temperature to the High position. Once the food is boiling, reduce the temperature to maintain a steady heat to cook your food thoroughly. Doing this will reduce the cooking time and save energy. • Pan sizes should be as per the table shown below. Burners Minimum Diameter Maximum Diameter Extra Large 24 cm 26 cm Large 20 cm 22 cm Standard 16 cm 18 cm Small 10 cm 14 cm...
  • Page 11: Cleaning And Maintenance

    Cleaning and Maintenance • To avoid shock hazard, always disconnect the hob from the electrical supply. • Steam Cleaners must not be used to clean this product. Cooking Part Cleaning Method Important Trivets/pan supports, • Hot soapy water and nylon scourer •...
  • Page 12: Cleaning Burner Parts And Pan Supports

    Cleaning Burner Parts and Pan Supports You can remove and clean these parts with hot soapy water or non-abrasive detergents. Clean spills regularly before they become burnt on, especially spills of vinegar, coffee, milk, salt water, lemon or tomato juice. Do not wash these parts in a dishwasher. After cleaning, check that the burner rings and burner caps are dry before replacing correctly. It is very important to check that the burner rings and burner caps have been correctly positioned. Failure to do so can cause serious problems. To avoid damage to the ignition circuit NEVER light the hob when the burners are not in place. Replacing the Burners Check that: • The ignitor is always clean to ensure trouble-free sparking. • The FSD probe is always clean to ensure correct operation of the safety valves. • All the burner parts are assembled correctly. • Both the ignitor and probe must be very carefully cleaned using a toothbrush.
  • Page 13: Hints And Tips

    Hints and Tips Problem Possible Solutions My burner does not light • Check the hob is plugged in and the electricity is switched on • Check the gas supply valve is turned on and the gas supply to the house is working. You should hear the gas when you turn a burner on •...
  • Page 14: Specifications

    Specifications Model No. S5GONGW13/S5GONGB13 Rated Voltage (V) 220 – 240 Rated Frequency (Hz) Power Consumption (W) NG or LPG (Default set to NG) Gas Type Net Weight (kg) External Product Dimensions (cm) Width x Depth 68 x 50 Internal Product Dimensions (cm)
  • Page 15: Installation

    Installation • This appliance must be installed and serviced only by a suitably qualified and Gas Safe Registered engineer, and in accordance with the current editions of the following standards and regulations or other locally applicable regulations: Gas Safety (Installation and Use) Regulations Building Regulations British Standards (BS 5440, BS 6172 and BS 6891) Regulations for Electrical Installation (BS 7671, (Latest Edition))
  • Page 16: Location

    Location • The hob should be located in a kitchen or kitchen/diner, but not in a bathroom, shower room, garage or a bed sitting room with a volume less than 20 cubic metres. • Before making the cut out in the worktop ensure that there is a minimum distance of 50 mm between the rear edge of the hob and the wall. • A minimum distance of 175 mm must be left between the side edges of the hob and any adjacent cabinets or walls. • The minimum distance combustible material can be fitted above the hob in line with the edges of the hob is 450 mm. • The minimum distance combustible material can be fitted directly above the hob is 760 mm. • The furniture walls adjacent to the cooker must be made of heat resistant material (check with your furniture supplier). The veneered synthetic material and the glue used must be resistant to a temperature of 150°C in order to avoid ungluing or deformations. Curtains 2000 When fitting the hob with a cooker hood above The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).
  • Page 17: When The Hob Is First Installed

    When the Hob is First Installed Once the hob has been installed, it is important to remove any protective materials, which were put on in the factory. Any gas installation must be carried out by a Gas Safe Registered engineer. The manufacturer will not accept liability, should the above instructions or any of the other safety instructions incorporated in this manual are ignored. Connect the threaded elbow to the gas supply input if required. The washer (supplied) must be fitted between these components, if any adjustments are made ensure parts are screwed together without using excessive force. Fitting The dimensions of the cut-out are given in the diagram. Width: 553 mm Depth: 473 mm 63.5mm Product Overall Dimensions 473mm Width: 680 mm Depth: 500 mm 63.5mm 175mm 553mm...
  • Page 18: Fitting The Hob Into The Worktop

    Fitting the Hob into the Worktop When fitted, the metal base of the hob should rest against the worktop. Do not allow the glass surface of the hob to rest against the worktop as it could cause damage to the glass. 1. Remove all removeable parts from the hob. 2. Turn the hob upside down and place it on a soft surface to avoid scratching. 3. Measure the width and depth of the outer edge of the hob glass and cut the self adhesive sealing tape (supplied) to the correct lengths.
  • Page 19: Electrical Connection

    Electrical Connection The flexible mains lead is supplied connected to a BS1363 fused plug, having a fuse of 3Amp capacity. If this plug does not fit the socket in your home, it should be replaced with a suitable plug as outlined below. Should the mains lead of the appliance ever require replacing, we recommend that this be carried out by a qualified electrician who must replace it with a lead of the same size and temperature rating. The wires in the mains lead are coloured in accordance with the following code: Green & Yellow = Earth Blue = Neutral Brown = Live The wire which is coloured green and yellow must be connected to the terminal marked E ( ) Earth. The wire which is coloured blue must be connected to the terminal marked N (Neutral). The wire which is coloured brown must be connected Neutral Live (Brown) to the terminal marked L (Live). (Blue) Ensure all screws are adequately tightened. Earth Do not over tighten as you may risk damaging (Green/Yellow) the screw threads. The plug and socket must be accessible after installation, or an all-pole disconnection switch provided in the fixed wiring in accordance with the local wiring regulations.
  • Page 20: Gas Connection

    Gas Connection Any gas installation must be carried out by a Gas Safe Registered engineer. Connection to the gas supply should be with either rigid or semi-rigid pipe, i.e. steel or copper. The connection should be suitable for connecting to 1/2 inch BSP male thread. When the final connection has been made, it is essential that a thorough leak test is carried out on the hob and installation. Ensure that the main connection pipe does not exert any strain on the hob. It is important to install the elbow correctly, with the shoulder on the end of the thread, fitted to the hob connecting pipe. Failure to ensure the correct assembly will cause leakage of gas. 1. 90 degree connection elbow 2. Washer 3. End of manifold with 1/2 inch BSP male thread Check the Hob After Installation & Before Using When the hob has been fully installed it will be necessary to check the minimum flame setting. To do this, follow the step below, 1. Turn the gas tap to the maximum position and ignite 2. Set the gas tap to the minimum flame position then turn the control from minimum to maximum several times. If the flame is unstable or is extinguished adjust the gas rate. 3. Perform a gas tightness test.
  • Page 21: Conversion From Ng To Lpg Or From Lpg To Ng

    Conversion from NG to LPG or from LPG to NG The replacement/conversion of the gas hob should only be undertaken by a Gas Safe Registered Engineer. The hob is supplied for use with Natural Gas only and cannot be used on any other gas without modification.
  • Page 22: Burner Configuration Table

    4. Upon completion stick the replacement rating plate sticker on the under side of the hob. 5. Replace the rubber seal (if removed) and the control. When the setting is right check regulation by quickly rotating the control from the maximum to the minimum delivery position. The flame must not go out and remain stable throughout the range. Burner Configuration Table Gas Category G30/31 Normal Pressure (mbar) 28 – 30/37 Extra Large Burner Injector Diameter (mm) 0.90 1.21 Nominal Rating (W) 3100 3100 Consumption 225/222 gr/h 295 lt/h Large Burner Injector Diameter (mm) 0.83 1.17 Nominal Rating (W) 2800...
  • Page 24 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0844 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate. This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Limited (Registered in England No. 504877), Maylands Avenue, Hemel Hempstead, Hertfordshire HP2 7TG. UK IB-S5GONGW_B13-130805V2...
