Summary of Contents for GeneMate GP-Series

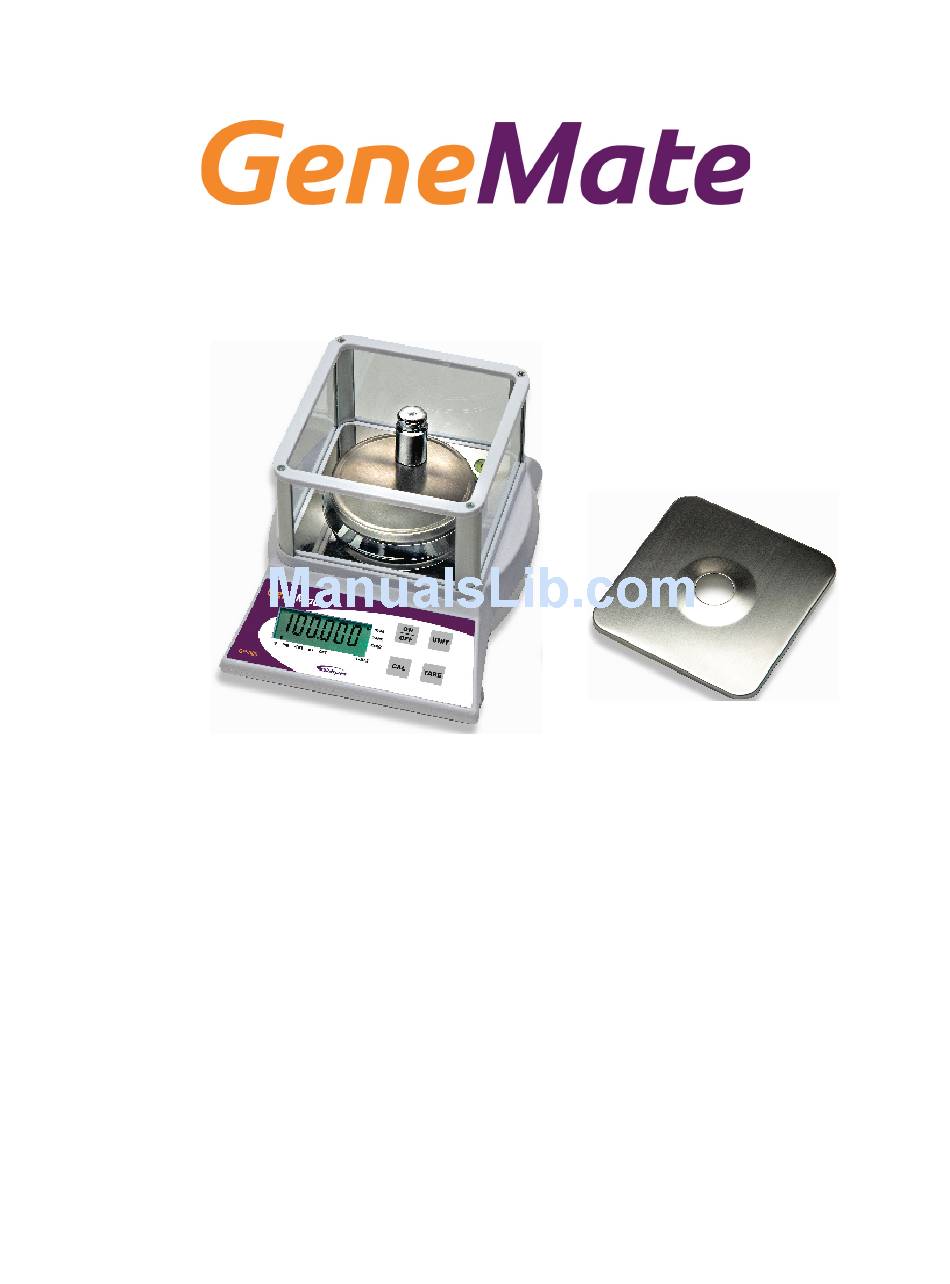

- Page 1 GP-Series Portable Balances Operation Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS………………………………………………………. 1 GETTING STARED……………………………………………………………… 1 INSTALLATION & SET-UP…………………………………………………….. 2 POWER CONNECTION & BATTERY OPERATION…………………………2 LEVELING…………………………………………………………………………3 CALIBRATION…………………………………………………………………… 3 WEIGH MODE SETTINGS................3 BACKLIGHT SETTINGS……….…………….………………………………… 4 AUTO OFF SETTINGS…………..…………………………………………….. 4 TARE FUNCTION…………………..…………………………………………….5 CARE & MAINTENANCE…..……….…………………………………………...5 ERROR MESSAGES & TROUBLESHOOTING GUIDE.….….………..6 SERVICE &... -
Page 3: Safety Precautions
Congratulations and thank you for selecting a GeneMate GP-Series Portable balance. Your balance was designed and manufactured to give you years of service. SAFETY PRECAUTIONS - Check the instrument for any visible signs of damage before you apply power. - Ensure the power supply is compatible with your instrument AND the local line voltage. -
Page 4: Installation & Set-Up
- Level the instrument. - Allow 30 minutes for warm-up. - Calibrate. All GP-Series are calibrated at the factory prior to shipment. Transportation of the instrument plus the differences in barometric pressure, humidity and ambient temperate conditions require calibration at the point of use. -
Page 5: Leveling
5000g ASTM Class 4* * Or Better WEIGH MODE SETTINGS THE GP-Series offers five modes of measurement. Press the UNIT KEY to toggle between weigh modes. The > indicator inside the display will highlight the selected weigh mode. GP-SERIES Weigh Modes:... -
Page 6: Backlight Settings
AUTO SHUTOFF SETTINGS All GP-Series balances come with an AUTO OFF feature, typically used in the battery operation mode. The AUTO OFF feature is deactivated at the factory. However, should you wish to activate the Auto Off feature: Press ON/OFF Key to turn the power off, press again to turn power on. -
Page 7: Tare Function
TARE FUNCTION TARE is defined as net weight. Should you wish to use a beaker, flask or some other container for your sample simply place the container on the weigh pan and press the TARE KEY. Please note that any container that is “tared” will decrease the remaining capacity available on the balance by the weight of the container. -
Page 8: Error Messages & Troubleshooting Guide
ERRROR MESSAGES & TROUBLESHOOTING GUIDE ERROR CODE ISSUE SOLUTION Blank Display Power Check Adapter & Outlet ERR-0 Overload Capacity Exceeded Or Damaged Weigh Cell ERR-2 Zero Tracking (weight Remove All Weight From on weigh pan during Weigh Pan and Cycle power on sequence) Power Stainless Steel Weigh... -
Page 9: Service & Technical Support
SERVICE & TECHNICAL SUPPORT If you have ANY questions or require technical, application or service support please contact BioExpress at 800-999-2901. Please note that the manufacturer and its affiliates cannot take back any instrument that has been exposed to biological or hazardous material contamination for replacement, credit, repair or disposal. -
Page 10: Ce Compliance & Marking
CE COMPLIANCE & MARKING This instrument complies with European Standards and EC Directives: Electromagnetic Compatibility (EMC) Council Directive 89/336/EEC Applicable European Standards: Limitation of Emissions in accordance with standard EN 61326-1 Class B for residential areas. 72/23/EEC “Electrical Equipment Design within Certain Voltage Limits” Applicable European Standards: EN 60950 Safety Requirements for electrical equipment for measurement, control and... -
Page 11: Specifications
SPECIFICATIONS Model Capacity Readability Linearity Tare Range B-1852-120 120g 0.001g 0.003g 0 to 120g B-1852-500 500g 0.01g 0.02g 0 to 500g B-1852-1500 1500g 0.05g 0.1g 0 to 1500g B-1852-3000 3000g 0.1g 0.2g 0 to 3000g B-1852-6000 6000g 1.0g 2.0g 0 to 6000g Common Specifications: Pan Size: B-1852-120:... -
Page 12: Instrument Diagram
INSTRUMENT DIAGRAM LEFT SIDE AC ADAPTER INSERT WEIGHT DISPLAY ON/OFF UNIT TARE BOTTOM BATTERY COMPARTMENT Batteries are not included DISPLAY LOW BATTERY INDICATOR Page 10...
