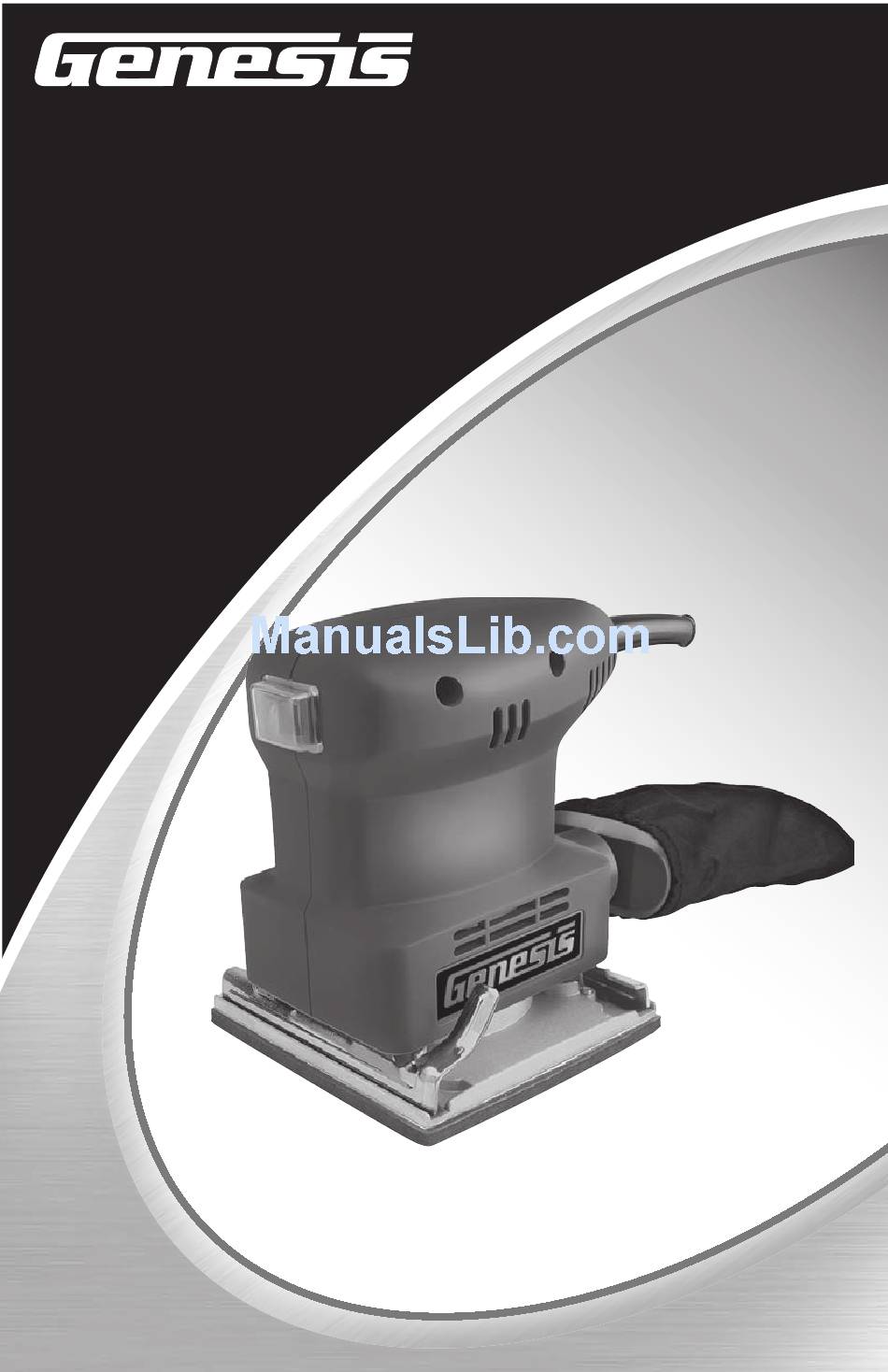

- Page 1 Sheet Palm Sander Ponceuse de paume 1/4 feuille Lijadora de mano de 1/4 de hoja Operator’s Manual Manuel d’utilisation Manual del Operario GPS2303...
-
Page 2: Specifications
1/4 Sheet Palm Sander 1.5A Operator’s Manual Specifications: • Model: GPS2303 • Input: 120 V~ 60 Hz, 1.5 Amps • No Load Speed: 10,000 OPM • Pad Size: 4-1/4" x 4" (110mm x 100mm) • Dust Collection Through pad Includes: Dust collection bag, Paper punch plate, and Sandpaper assortment WARNING: To reduce the risk of injury, user must read and understand this operator’s manual before operating this tool. Save this Manual for future reference. -
Page 3: Electrical Safety
WARNING: READ AND UNDERSTAND ALL WARNINGS, CAUTIONS AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS WORK AREA SAFETY: Keep your work area clean and well lit •... - Page 4 • Use the correct power tool for the job. Don’t force the tool or attachment to do a job for which it is not designed. • Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired or replaced by an authorized service center • Turn power tool off, and disconnect the plug from the power source and/or battery pack from the power tool before making any adjustments, changing the accessories, or storing the tools Such preventive safety measures reduce the risk of an accidental start up which may cause personal injury • Store idle tool out of reach of children and other inex erienced persons. It is dangerous in the hand of untrained users. • Maintain power tools with care. Check for proper alignment and binding of moving parts, component breaks, and any other conditions that may affect the tool’s operation. A guard or any other part that is damaged must be properly repaired or replaced by an authorized service center to avoid risk of personal injury. • Use recommended accessories. Using accessories and attachments not recommended by the manufacturer or intended for use on this type tool may cause damage to the tool or result in personal injury to the user. Consult the operator’s manual for recommended accessories. 1/4 Sheet Palm Sander Operator’s Manual GPS2303...
-
Page 5: Extension Cords
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control • Feed the work piece in the correct direction and speed. Feed the work piece into a blade, cutter, or abrasive surface against the direction of the cutting tool’s direction of rotation only. Incorrectly feeding the work piece in the same direction may cause the work piece to be thrown out at high speed. • Never leave the tool running unattended, turn the power off. Do not leave the tool until it comes to a complete stop. • Never start the power tool when any rotating component is in contact with the work piece. WARNING: USE OF THIS TOOL CAN GENERATE AND DISBURSE DUST OR OTHER AIRBORNE PARTICLES, INCLUDING WOOD DUST, CRYSTALLINE SILICA DUST AND ASBESTOS. Direct particles away from face and body. Always operate tool in a well-ventilated area and provide for proper dust removal. - Page 6 Exposure to even low levels of lead can cause irreversible brain and nervous system damage. Young and unborn children are particularly vulnerable. Before beginning any paint removal process you should determine whether the paint you are removing contains lead. This can be done by your local health department or by a professional who uses a paint analyzer to check for lead. 1/4 Sheet Palm Sander Operator’s Manual GPS2303...
- Page 7 WARNING: Lead-based paint should only be removed by a professional. Persons removing paint should follow these guidelines • Keep the work area well ventilated. Open the windows and put an exhaust fan in one of them. Be sure the fan is moving air from inside to outside. • Remove or cover any carpets, rugs, furniture, clothing, cooking utensils, and air ducts. • Place drop cloths in the work area to catch any paint chips or peelings. Wear protective clothing such as extra work shirts, overalls and hats • Work in one room at a time. Furnishings should be removed or placed in the center of the room and covered. Work areas should be sealed off from the rest of the dwelling by sealing doorways with drop cloths. • Children, pregnant or potentially pregnant women and nursing mothers should not be present in the work area until the work is done and all cleanup is complete.
- Page 8 Failure to do so could result in serious personal injury. Contents in Package: Description Description Sander Paper Punch Plate Dust Bag Sandpaper Operator’s Manual 1/4 Sheet Palm Sander Operator’s Manual GPS2303...
-
Page 9: Operation
OPERATION WARNING: Always check that the power supply corresponds to the voltage on the rating name plate. WARNING: Always be sure that the tool is switched off and unplugged before adjusting, adding accessories, or checking a function on the tool. Switch Action WARNING: Before plugging in the tool, always check to see that the tool... - Page 10 To Empty the Dust Collection Bag • Unplug the sander from the power source. • Remove the dust bag from its rear mount by gripping the sander with one hand and the dust bag with your other hand. Then pull the dust bag straight back. • To empty the bag you simply turn it on end with round mounting tube at the front of the bag pointing downward and shake the content from the bag into a container. To Reinstall the Dust Collection Bag: • Unplug the sander from the power source. • Insert the mounting tube into the dust exhaust port at the rear of the sander until it is firmly set in place. Sanding Operation Your sander smooths the workpiece surface by the pad moving in tiny circles at high speed. This type of sanding action called "orbital motion", giving your sander a very fast cutting action for quick removal of large amounts of stock, especially with the coarser grit abrasive papers. On most sanding jobs, orbital motion gives you the ability to sand in any direction irrespective of the wood’s grain. However, to attain a better finish, it is best to sand "with" the grain. To Use the Sander • Clamp or otherwise secure the workpiece to prevent it from moving while you’re sanding. • Hold the tool in front and away from you and clear of the workpiece. Start the sander by pressing the switch to the "I" (ON) position and let it come up to full speed. 1/4 Sheet Palm Sander Operator’s Manual GPS2303...
-
Page 11: Maintenance
• Slowly lower your sander onto the workpiece, then move the sander in slow forward & backward strokes. Do not force or push the tool down on the workpiece (the weight of the tool is sufficient pressure). This allows the motor and abrasive paper to operate at their most efficient speed. Excessive pressure causes the motor to slow down, preventing the abrasive from cutting effectively and causing the abrasive to prematurely wear out. When the motor is slowed by excessive pressure, the motor will quickly overheat and possibly cause motor damage in addition to producing an inferior workpiece surface. • Do not sand in one spot too long; the sander can easily remove too much material, producing an uneven surface. Use long sweeping strokes while sanding, gradually moving to progressively finer grit abrasive paper until the desired surface finish is achieved. •. Your sander’s lightweight and comfortable palm grip make it ideal for doing work overhead and on vertical surfaces. • With 3-sided flush sanding capability you’re able to sand in corners, cabinet interiors, box interiors, etc. When you are ready to change paper or are finished with a job, lift the sander away from the work surface, press the switch into the "O" (OFF) position, then unplug the sander to prevent inadvertently starting prior to tool storage. MAINTENANCE CLEANING Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc. WARNING: Do not at any time let brake fluids, gasoline, petroleum- based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury. -
Page 12: Two Year Warranty
THIS PRODUCT IS NOT WARRANTED IF USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES. ACCESSORIES INCLUDED IN THIS KIT ARE NOT COVERED BY THE 2 YEAR WARRANTY. TOLL-FREE HELP LINE 888-552-8665 For questions about this or any other GENESIS Product, please call Toll-Free: www.richpowerinc.com Or visit our web site: ©Richpower Industries, Inc. All Rights reserved Richpower Industries, Inc. 736 Hampton Road Williamston, SC 29697 Printed in China, on recycled paper 1/4 Sheet Palm Sander Operator’s Manual GPS2303... - Page 13 Richpower Industries, Inc. 736 Hampton Road Williamston, SC USA www.richpowerinc.com...
