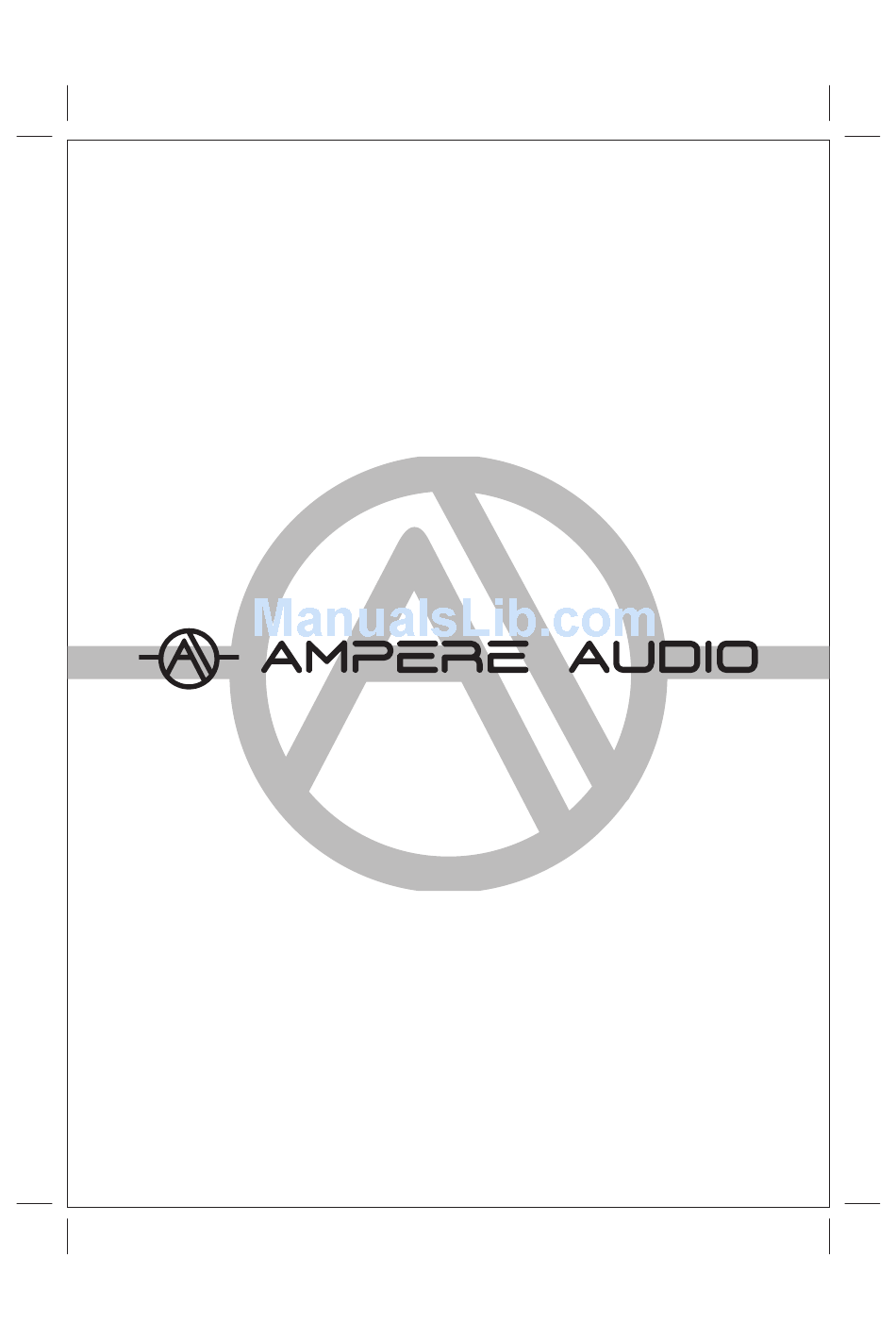

- Page 1 Owner's manual AA-1000. 1 D AA-2000. 1 D AA-3800. 1 D Manual size : 150 x 210mm...
-
Page 2: Installation
Installation In case you install the amplifiers by yourself, please read owners' manual very carefully. Before you start your installation, please take all steps into consideration. If in doubt, please contact with authorized distributors / dealers to check installation and turn in your car audio systems. -
Page 3: Panel Layout

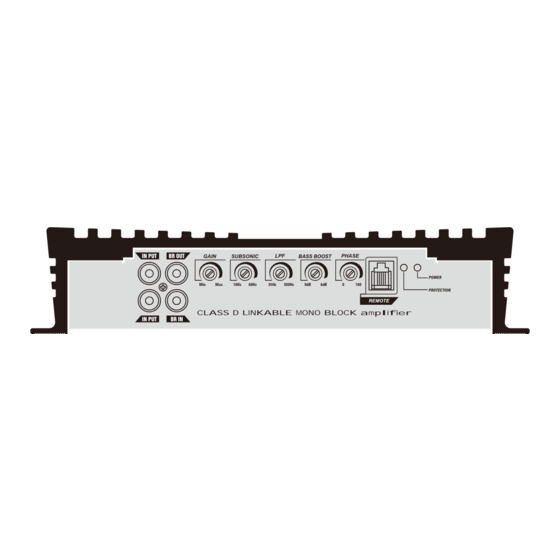

Panel Layout (Model : AA-1000.1D / AA-2000.1D / AA-3800.1D) IN PUT BR OUT GAIN SUBSONIC BASS BOOST PHASE POWER 10Hz 60Hz 35Hz 300Hz PROTECTION REMOTE CLASS D LINKABLE MONO BLOCK amplifier IN PUT BR IN INPUT Connect preamp signal cables from head unit to RCA input of the amplifiers. -
Page 4: Speaker Outputs
+12V(B+), GND, REM (Model : AA-1000.1D) POWER FUSE SPEAKER (Model : AA-2000.1D / AA-3800.1D) SPEAKER Caution POWER This amplifier is not supplied with internal fuse in itself. Make sure you install in-line fuse holder from terminal of battery. GND (GROUND CONNECTION) For connection to the chassis’... -
Page 5: Single Connection
+12V ), GND, REM Connection (Model : AA-1000.1D) SINGLE CONNECTION POWER FUSE SPEAKER Remote GROUND turn on Recommend fuse rating (See the page 8) HEAD UNIT 12V BATTERY DAISY CHAIN (LINKED) CONNECTION MASTER AMPLIFIER POWER FUSE SPEAKER Remote turn on... - Page 6 +12V ), GND, REM Connection (Model : AA-2000.1D / AA-3800.1D) SINGLE CONNECTION SPEAKER Caution POWER This amplifier is not supplied with internal fuse in itself. Make sure you install in-line fuse holder from terminal of battery. Remote GROUND turn on Recommend fuse rating (See the page 8) HEAD UNIT...
-
Page 7: Speaker Connection
Speaker Connection (Model : AA-1000.1D / AA-2000.1D / AA-3800.1D) SINGLE CONNECTION SPEAKER POWER IN PUT BR OUT GAIN SUBSONIC BASS BOOST PHASE POWER 10Hz 60Hz 35Hz 300Hz PROTECTION REMOTE CLASS D LINKABLE MONO BLOCK amplifier IN PUT BR IN Speaker... -
Page 8: Specifications
Specifications MODEL CODE AA-1000.1D AA-2000.1D Continuous Power Output @14.4V Input -RMS power, 4 ohms mono : 300W x 1CH : 1000W x 1CH -RMS power, 2 ohms mono : 600W x 1CH : 2000W x 1CH -RMS power, 1 ohm mono...
