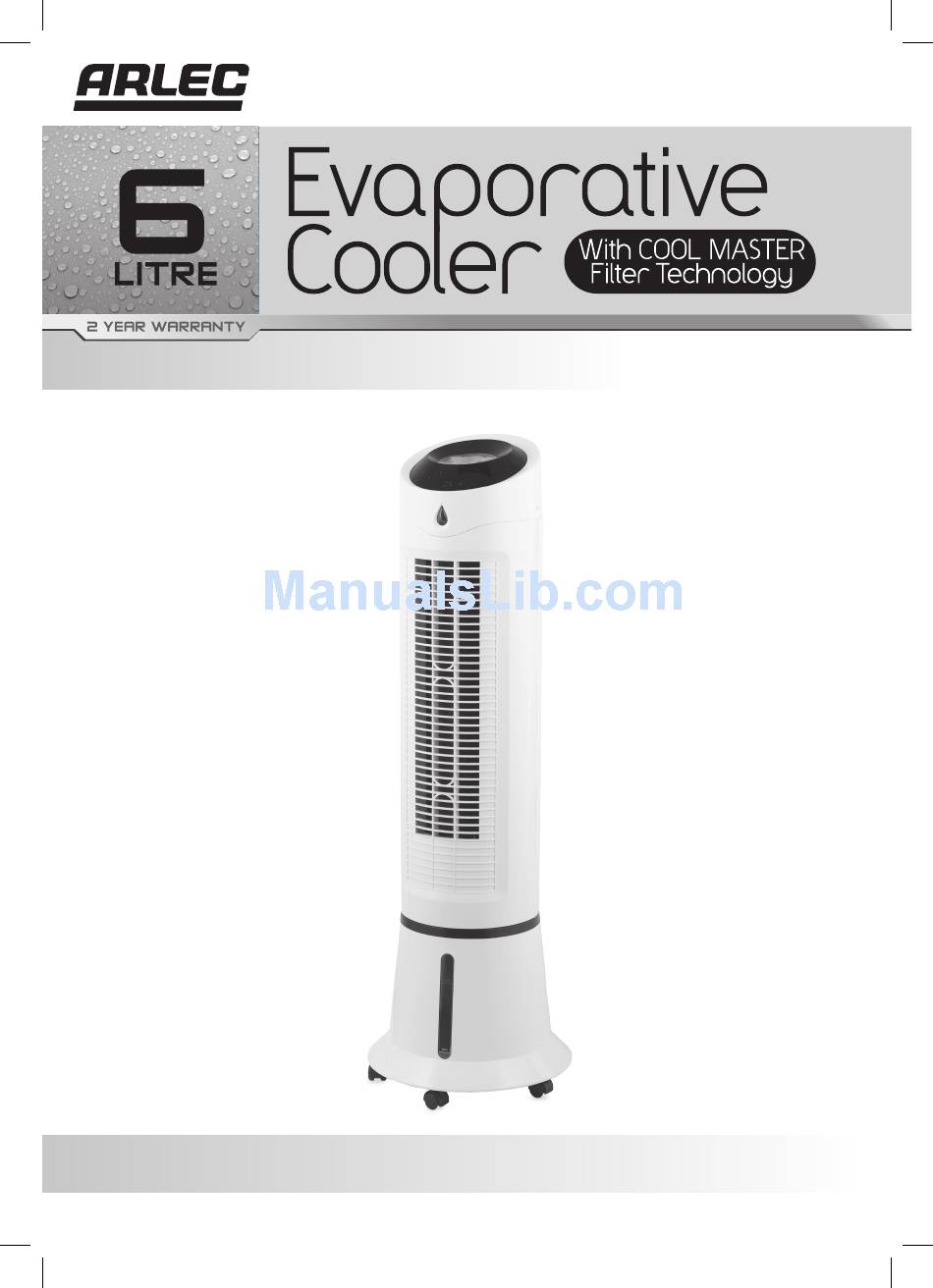

- Page 1 CPIN002242 Instruction Manual Model AEC007 Important! Please read these instructions carefully AEC007 Instructions.indd 1 2/08/11 10:25 AM...
- Page 2 • ALWAYS keep a clearance of at least 20cm from walls furniture and curtains • ALWAYS turn off and unplug the unit when not in use • ALWAYS switch off, and unplug the unit before filling up with water or ice • Adequate clean water should be put into the water tank within the water level limits shown on the level indicator. • Should you wish to move the unit any great distance, or before storing it, always drain the water from the tank using the plug provided at the bottom of the unit. • When draining the water tank always do this over a water tray, outside so that water does not damage the carpet or flooring ENERGY SAVING TIPS • Use the unit in the recommended room size of up to 20m2 (assuming standard 2.4m ceiling height) • Do not locate the evaporative cooler where furniture or other objects can obstruct the air flow. • Keep blinds/curtains closed during the sunniest part of the day • Close the fireplace damper, floor and/or wall registers, so cool air does not escape through the chimney or duct work • Keep the air filter clean • Set the unit to maximum cooling and high speed ventilation for the initial startup, then adjust the unit down to a more comfortable setting as required AEC007 Instructions.indd 2 2/08/11 10:25 AM...
- Page 3 6. Water Storage tank 7. Caster wheels 8. Dust Filter 9. Honey Comb cooling pad 10. Water inlet 11. Mains power cord 12. Drain Cap Button Pad & Display Panel 1. On / SPEED Button 2. Cooler/ Humidifier Button 3. Time Button 4. Ion Generator Button 5. Mode Button 6. Swing Button 7. Off Button Remote Control AEC007 Instructions.indd 3 2/08/11 10:25 AM...
- Page 4 Press this button and the unit will swing sideways and swing indicator LED will glow on the indicator. Press this button again and the unit will stop oscillating. Timer Button Set the Timer to a desired operating time (0.5 Hour to 7.5 Hours) by pressing the Timer button repeatedly. Each time the button is pressed the time interval is incremented by 0.5hrs and the corresponding time setting will be displayed on the seven segment display. 0.5h→1h→1.5h→2h……→7.5h→0→back to 0.5h When the set time has been reached the unit will shut off automatically and will stay in a standby mode. Cool / Humidifier Button Press this button and the unit will beep once and will start its cooler and humidifier function and the corresponding indicator LED will glow on the display panel. This function is recommended for higher/ efficient cooling effect under any mode. Warning: Please do not use Cooler / Humidifier function when there is no water in water tank this may result in a noisy operation and will damage the motor permanently. Mode Button Change the mode to the desired type (Normal, Natural and Sleep) by pressing the Mode button repeatedly. Normal Mode:- When the unit is turned ON it will stay in Normal mode and the corresponding LED will glow on the display panel. Under this mode the fan speed remains constant at set speed (Low / Medium/ High). This mode is recommended for normal operation Natural Mode:- Press the Mode button until the LED corresponding to the natural mode glows on the display panel. Under this mode the fan speed varies randomly (Low/Medium/High and off) giving the effect of natural breeze. It is recommended to set the fan speed to high under this mode for a better result. AEC007 Instructions.indd 4 2/08/11 10:25 AM...
- Page 5 Sleep Mode:- Press the Mode button until the LED corresponding to the Sleep mode glows on the display panel. Under this mode the fan speed switches ON and OFF at set speeds thus saving energy during the night. If to start the fan speed is set to High the fan will operate for half an hour in each fan speed setting The cycle will continue until the preset time is reached or the unit is turned off. If the fan speed is set to Medium the unit will operate for 0.5hr in Medium and then switch to Low setting and will operate for 0.5hr. After 0.5hr the unit will switch back to medium and the cycle continues unit the preset time is reached or the unit is turned off. If the fan is set to Low speed setting the fan will continue to operate in low setting until the preset time is reached or the unit is turned off. Anion Generator Button Press this button to and the built is negative ion generator will start to release negative ions. When this function is used the corresponding LED indicator will be on. Under this mode negative Ions are blown throughout the room by the fan to neutralize the positive charge in the particles of smoke and dust that float in the air, thereby losing their energy & will no longer remain in the air. The combination of negative ions on bacteria may deter the bacteria growth or even kill the bacteria. Negative ions are effective in creating a cleaner and more sterile environment leading to a healthier lifestyle. Remote Control The remote controller requires 1x CR2032 3V Lithium battery (Button cell). To install the batteries remove the battery covers as per the marking shown on the battery cover. Insert the battery with the + marking on the battery facing up. Put the battery cover back before use. The remote controller has all the same functions as the buttons on the control panel of the air cooler. To use the remote control make sure that the air cooler unit is plugged into the mains supply, then point the remote to the sensor located at the display panel and press the desired button. The remote control operating range is 6 metres. Make sure there is no obstacle between the remote and the sensor. AEC007 Instructions.indd 5 2/08/11 10:25 AM...
- Page 6 Storage and Drainage Sufficient water needs to be stored in the storage tank (located at the bottom of the unit) to ensure supply of cool air. Before storing water in the unit, switch the unit off and unplug from the mains supply. Slide out the storage tank cover and pour in the water (When adding water, please pay attention to the water level indicator on the front of the unit.) Once the tank is filled put back the storage tank cover. Always use clean water. To drain the water when the unit is not in use 1. Position a water tray flat on the floor beneath the drain hole. 2. Unscrew the drain cap at the bottom of the unit and then remove the water plug from the drain hole allowing the water to drain out. (Refer to the figure below). 3. When the drain tray is almost full replace the water plug into hole and empty the tray. AEC007 Instructions.indd 6 2/08/11 10:25 AM...
- Page 7 ( 8˚C less than the ambient temperature). Use of Chiller bottle:- 1) Keep the chiller bottles (supplied) away from the children as they contain chemical based crystals. 2) Put the chiller bottle inside the freezer until they are completely frozen. 3) Place the bottle inside the storage tank and then fill the tank. Cleaning and Maintenance Always switch off and unplug from the mains supply before attempting any kind of cleaning and maintenance. After extended period of use, replace the water in the tank with fresh water. The air filter (only) at the inlet at the rear of the unit can be cleaned if required. The filter should be cleaned in a mild soapy solution then left to dry before replacing. External enclosure can be cleaned with a damp cloth. Specifications:- Model No AEC007 Rated Voltage 220-240Vac Rated Frequency 50Hz Current 0.3A Rated Power 45 watt Water Capacity 6 litres Operational Time Setting 0.5 – 7.5hrs Air Flow 150 m AEC007 Instructions.indd 7 2/08/11 10:25 AM...
- Page 8 This guarantee is in addition to and does not take away from any other rights and remedies you may have under any relevant law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Proof of purchase Please retain your proof of purchase for all warranty claims. For all Sales & Warranty enquiries Arlec Australia Pty Ltd. (A.C.N. 009 322 105) Building 3, 31-41 Joseph Street, Blackburn North, Victoria, 3130 P.O. Box 1065, Blackburn North LPO Blackburn North, 3130 Phone (03) 9982 5111 Fax 1300 360 650 custservice@arlec.com.au CPIN002242 AEC007 Instructions.indd 8 2/08/11 10:25 AM...
