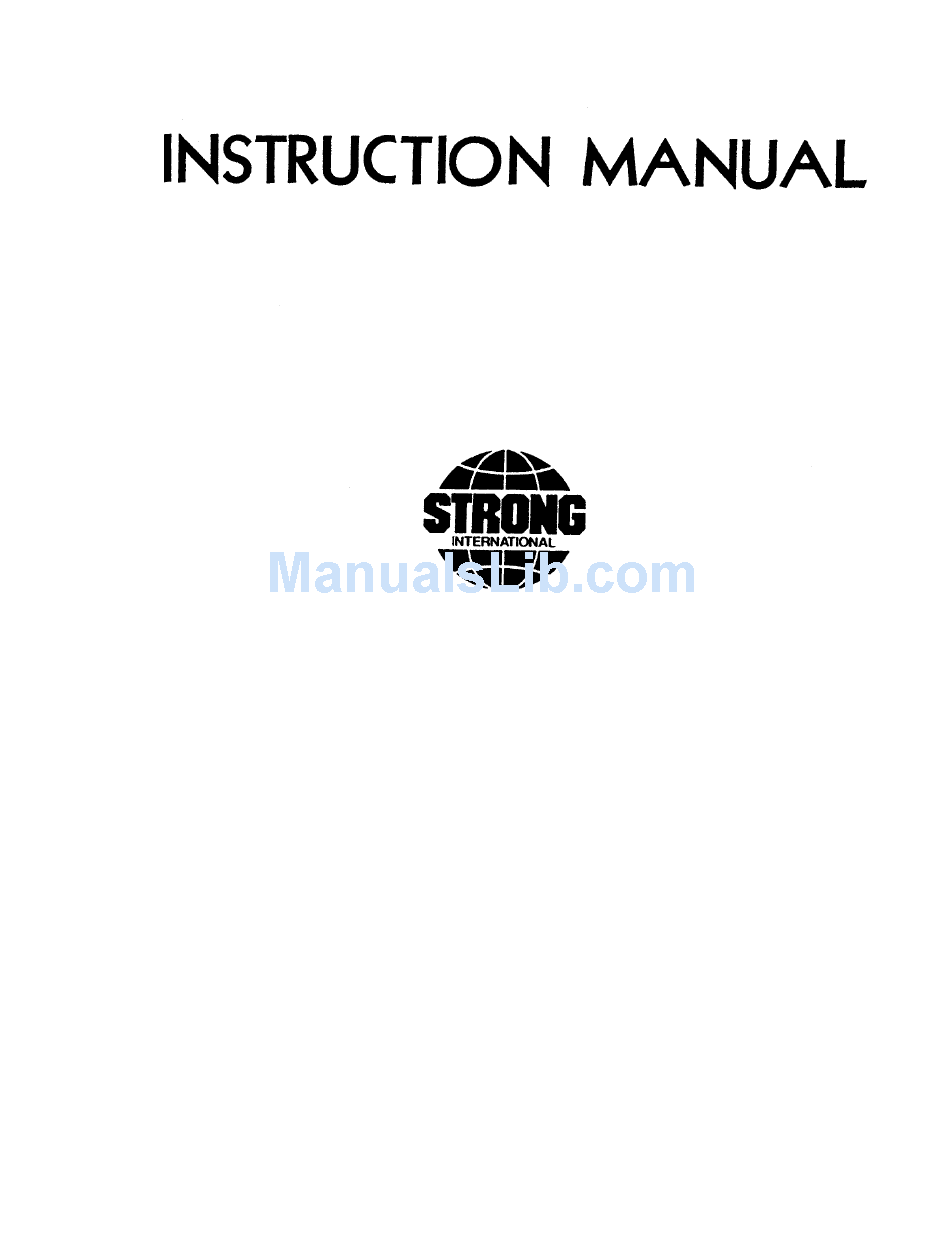

- Page 1 TrussTrouper 1.2 Follow Spotlight Equipment Type 41080 Issue 7/99 STRONG INTERNATIONAL a division of Ballantyne of Omaha, Inc. 4350 McKinley Street Omaha, Nebraska 68112 USA Tel 402/453-4444 • Fax 402/453-7238...
- Page 3 THE SPOTLIGHT is shipped with a yoke adaptable for truss mounting. An optional folding floor stand assembly, and overhead Hanger Kit, are available from Strong International. Lens mechanisms are available in Long, Medium and Short throw configurations, and are readily mounted to the TrussTrouper as the application or venue require.
- Page 4 INSTALLATION - OPERATION INSPECT THE UNIT upon receipt. Any damage must be reported to the freight carrier immediately. It is the responsibility of the consignee, not the shipper, to file damage claims. THE HMI BULB is included in the accessory kit packed with the spotlight. DO NOT touch the quartz envelope when handling the bulb;...
-
Page 5: Maintenance
RUSS ROUPER SPOTLIGHT may be suspended from a ceiling or overhead truss by means of an optional Hanger Kit. This kit is available through your authorized Strong Inter- national Dealer. ELECTRICAL CONNECTION for the 41080-01 or -02 (120 V.AC, 60 Hz.) requires a 120 V.AC, three prong 15 ampere grounded outlet. - Page 6 OPERATION OF OPTICAL SYSTEM THE OPTICAL SYSTEM of the TrussTrouper consists of a spot size selector, an iris assembly to reduce the size of the spot aperture, and a fade-out chopper assembly to permit reducing light output from full intensity to complete douse. The iris and chopper controls are mounted on the back of the lamphouse and are fully accessible from either side of the unit.
- Page 7 OPERATION OF COLOR BOOMERANG THE COLOR BOOMERANG is equipped with six color holders. Additional filter holders can be supplied by an authorized Strong International Dealer. TO OPERATE INDIVIDUAL COLOR FILTERS, engage the desired filter selector lever. A rocker catch located in the color disc housing holds the filter in position.
- Page 8 TrussTrouper 1.2 Wiring Diagram 115 V.AC 115 V.AC Neutral Phase Grnd “POWER” Top Cover Interlock Blowers On/Off “ON” Hours Power Supply Igniter 1200 Watt HMI TT/06...
-
Page 9: Wiring Diagram
WIRING DIAGRAM Parts List Ref. Desig. Part No. Description B1,2 61-98002 Blower, 115 V.AC, 50/60 Hz. 88253 Blower Power Cord & Plug 21-61216 POWER Indicator Light; Red; 115 V.AC 21-61217 Switch Cap, “POWER” 21-61193 ON Indicator Light, Green (with S2) 41103 HMI Bulb, 1200 Watt 81-32007... - Page 10 TT/08...
- Page 11 FIGURE 1 Parts List Item Part No. Description 25396 Screw, 10-32 Captive 81-28002 Hand Rail 41-70004 Washer, Hand Rail 41908 Rear Panel (Welded to Item 6) 41-35023 Hand Rail Fastening Nut, 1/4-28 Hex 41908 Lamphouse Cover, Welded Assembly (incl. Item 4) 41315 Bottom Cover, Welded Assembly 11-40037...
- Page 12 TT/10...
- Page 13 FIGURE 2 Parts List Item Part No. Description 41257 Bulb Contact 41255 Upper Bulb Retainer 41300 Reflector 41-51075 Mounting Screw, 8-32 x 1" Bind Head 41-35008 Spacer 41907 Bulb Mounting Pedestal 41-51490 Mounting Screw, 6-32 x 3/8" Pan Head 41103 HMI Bulb, 1200 Watt Double-Ended 01304 Mounting Screw, 8-32 x 5/16"...
- Page 14 FIGURE 2 Parts List (continued) Item Part No. Description 41264 Iris Spacer Plate 41265 Lens Retaining Ring 41302 Condensor Lens 41281 Condensor Lens Mounting Ring 41277 Lens Ring Guide Rod 41271 Phenolic Bushing 48103 Knob, Red Plastic 41370 Threaded Shaft 41-70004 Flatwasher, 1/4"...
- Page 15 FIGURE 2 Parts List (continued) Item Part No. Description 25446 HMI Power Supply Assembly 51168 Knurled Knob, Bulb Positioning Control (3 req’d.) 41336 Spacer, Bulb Adjustment (3 req’d.) 25387 Balance Slide Bracket (2 req’d.) 41227 Switch Mounting Bracket 21-61193 Lighted Switch (S3 & DS2), ON/OFF 21-61216 Indicator Light (DS1), POWER 41283...
- Page 16 FIGURE 3 COLOR BOOMERANG Assembly No. 41904 Item Part No. Description 45308 Color Release Pushbutton 41239 Boomerang Cover Plate 45306 Pivot Stud Bushing 01743 Pivot Stud Bolt, 1/4-20 x 3-1/2" 01704 Hitch Pin (4 req’d.) 41-70002 Washer (12 req’d.) Retainer Plate, Rear 51-58029 Compression Spring 41240...
- Page 17 FIGURE 3 Parts List (continued) Item Part No. Description 18121 Retainer Plate, Front 01754 Nylon Hexnut, 1/4-20 (2 req’d.) 00889 Shakeproof Lockwasher, 1/4" 45308 Hook (early models only) 46150 Clip (3 req’d. per Color Holder) 01515 Screw, 4-40 x 1/4" (2 req’d. per Color Holder) 18118 Color Frame (2 req’d.
