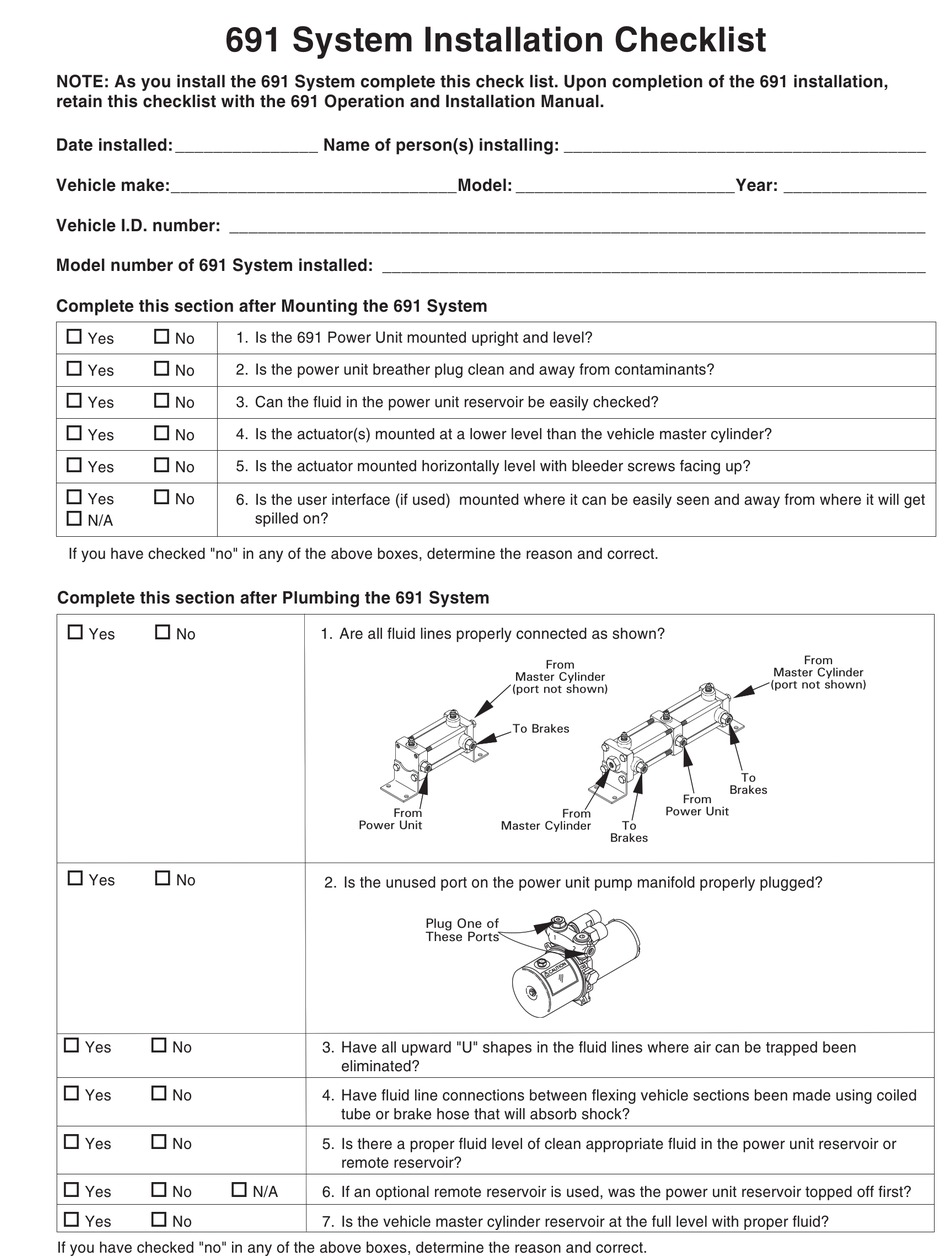

691 System Installation Checklist

NOTE: As you install the 691 System complete this check list. Upon completion of the 691 installation,
retain this checklist with the 691 Operation and Installation Manual.
Date installed: _______________ Name of person(s) installing: ______________________________________
Vehicle make:______________________________Model: _______________________Year: _______________
Vehicle I.D. number: _________________________________________________________________________
Model number of 691 System installed: _________________________________________________________
Complete this section after Mounting the 691 System
o o
Yes No
o o
Yes No
o o
Yes No
o o
Yes No
o o
Yes No
o o
Yes No
o
N/A
If you have checked "no" in any of the above boxes, determine the reason and correct.
Complete this section after Plumbing the 691 System
o o
Yes No
o o
Yes No
o o
Yes No
o o
Yes No
o o
Yes No
o o o
Yes No
o o
Yes No
If you have checked "no" in any of the above boxes, determine the reason and correct.
1. Is the 691 Power Unit mounted upright and level?
2. Is the power unit breather plug clean and away from contaminants?
3. Can the fluid in the power unit reservoir be easily checked?
4. Is the actuator(s) mounted at a lower level than the vehicle master cylinder?
5. Is the actuator mounted horizontally level with bleeder screws facing up?
6. Is the user interface (if used) mounted where it can be easily seen and away from where it will get
spilled on?
1. Are all fluid lines properly connected as shown?
From
Power Unit
2. Is the unused port on the power unit pump manifold properly plugged?
3. Have all upward "U" shapes in the fluid lines where air can be trapped been
eliminated?
4. Have fluid line connections between flexing vehicle sections been made using coiled
tube or brake hose that will absorb shock?
5. Is there a proper fluid level of clean appropriate fluid in the power unit reservoir or
remote reservoir?
N/A 6. If an optional remote reservoir is used, was the power unit reservoir topped off first?
7. Is the vehicle master cylinder reservoir at the full level with proper fluid?
From
Master Cylinder
(port not shown)
To Brakes
From
Master Cylinder
Plug One of
These Ports
Master Cylinder
(port not shown)
To
Brakes
From
Power Unit
To
Brakes
From
