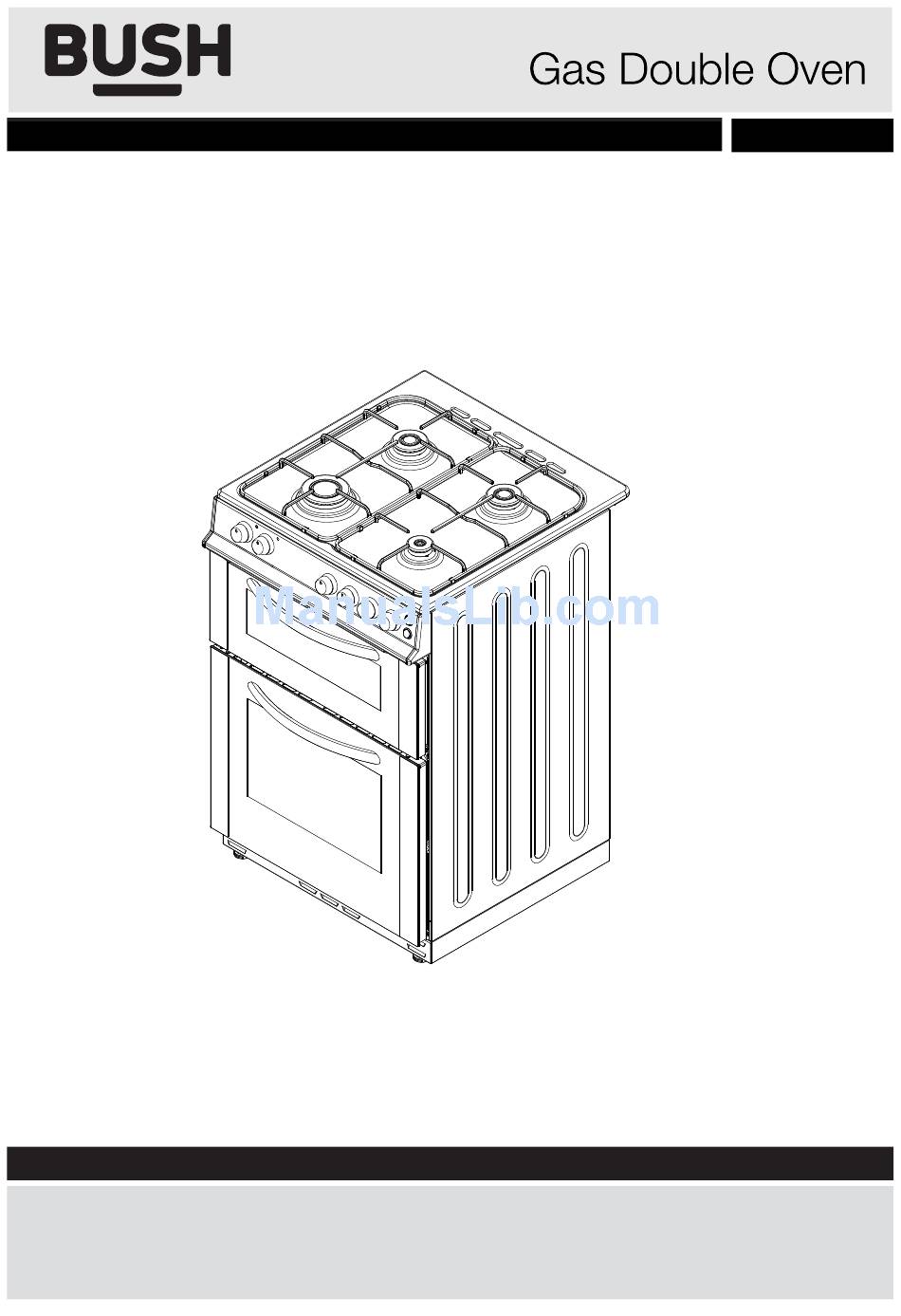

Operating Instructions - Please keep for future reference
AG56DW - AG56DA
These instructions contain important information that will help you get the best from your
appliance, ensuring safe and correct installation, use and maintenance.
If you need help or have damaged or missing parts, call the Customer Helpline on 0345 257 7271
Issue 2 - 09/07/10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G56DW and is the answer not in the manual?

Questions and answers

Related Manuals for Bush G56DW

Summary of Contents for Bush G56DW

  • Page 1 Operating Instructions - Please keep for future reference AG56DW - AG56DA These instructions contain important information that will help you get the best from your appliance, ensuring safe and correct installation, use and maintenance. If you need help or have damaged or missing parts, call the Customer Helpline on 0345 257 7271 Issue 2 - 09/07/10...

  • Page 2: Table Of Contents

    Contents Customer Helpline 0345 257 7271 Parts Safety Information Installation User instructions 8-13 Using the hob Using the oven and grill Using the digital minute minder Cleaning and Maintenance Cleaning and Maintenance Transporting the cooker Trouble Shooting Technical specifications 16-17 Injector table Guarantee Product code...

  • Page 3: Parts

    Parts Customer Helpline: 0345 257 7271 If you have damaged or missing parts, call the Please familiarise yourself with the parts and accessories listed below 1. Pan supports x 2 Gas burner 2. Gas burner 11. Ignition switch 3. Rapid burner 12.

  • Page 4: Safety Information

    Safety Information Customer Helpline 0345 257 7271 Important - Please read these instructions fully before installation READ THESE INSTRUCTIONS CAREFULLY WARNING: If the surface is cracked, AND COMPLETELY BEFORE USING YOUR switch off the appliance to avoid the APPLIANCE, AND KEEP IT IN A CONVENIENT possibility of electric shock.
  • Page 5 Safety Information Customer Helpline 0345 257 7271 Important - Please read these instructions fully before installation All possible security measures have been CAUTION: Accessible parts may be taken to ensure your safety. Since the glass hot when the cooking or grilling is in may break, you should be careful while use.
  • Page 6 Safety Information Customer Helpline 0345 257 7271 Important - Please read these instructions fully before installation coming out of the oven. There may be a risk of CAUTION: Glass lids may burns. shatter when heated. Turn off all the burners before Do not put flammable or combustible shutting the lid.

  • Page 7: Installation

    Installation Customer Helpline 0345 257 7271 Positioning & electrical connection IMPORTANT - All Gas installations must be carried out by a suitably qualified person. For information on choosing a gas installer contact the ‘Gas Safe Register’. For specific gas installation, refer to the separate installation guide.
  • Page 8 Installation Customer Helpline 0345 257 7271 Positioning & electrical connection IMPORTANT - Electrical connections must be carried out by a suitably qualified person and in accordance with all relevant local building and installation regulations. Electrical connections 1. This appliance is fitted with fused plug which Electrical connection diagram should be inserted into a suitable mains socket.

  • Page 9: User Instructions

    User Instructions Customer Helpline 0345 257 7271 Using the hob Ignition of the burners IMPORTANT - Flame safety device: To determine which knob controls which burner, Hob Burners check the position symbol above the knob. Hobs equipped with flame failure device provide Manual Ignition of the Gas Burners security in case of accidentally extinguished flame.
  • Page 10 User Instructions Customer Helpline 0345 257 7271 Using the hob Control of the hob burners The knob has 3 positions: Off (0), maximum (big flame symbol) and minimum (small flame symbol). After you ignite the burner in maximum position; you can adjust the flame length between maximum and minimum positions.
  • Page 11 User Instructions Customer Helpline 0345 257 7271 Using the hob WARNING - Use only flat pans and with a sufficiently thick base. WARNING - Ensure that the base of the pan is dry before placing it on the burners. WARNING - The temperature of accessible parts may be high when the appliance is operating.

  • Page 12: Using The Oven And Grill

    User Instructions Customer Helpline 0345 257 7271 Using the oven and grill If your appliance has a grill pan and handle set as an accessory, refer to accessories section for its usage. WARNING - Ensure that the grill is turned off before closing the door.
  • Page 13 User Instructions Customer Helpline 0345 257 7271 Using the oven and grill Control of the Oven Burner trays during cooking or you can remove the top tray when the food is cooked and move the lower Ensure the glass lid is in the upright position.After tray to the higher shelf to finish cooking you ignite the oven burner as explained before, you can adjust the temperature inside the oven as...

  • Page 14: Using The Digital Minute Minder

    Cleaning and Maintenance Customer Helpline 0345 257 7271 Cleaning and Maintenance Cleaning Be sure that all control switches are in the off position and your appliance has cooled down before cleaning your oven. Turn off the appliance. Check the cleaning products are recommended by the manufacturer.

  • Page 15: Cleaning And Maintenance

    Cleaning and Maintenance Customer Helpline 0345 257 7271 Cleaning and Maintenance Burner Caps If it does not have the original case; prepare a carriage box so that the appliance, especially Periodically, enameled pan support, enameled external surfaces (glass and painted surfaces) of covers, burner heads must be washed with soapy oven is protected against external forces.

  • Page 16: Trouble Shooting

    Trouble Shooting Customer Helpline 0345 257 7271 Basic troubleshooting before contacting service WARNING – If you smell gas, immediately turn of the gas supply at the mains and open all windows and doors to ventilate the area. Do not operate any electrical appliances including lighting switches and wall sockets.

  • Page 17: Technical Specifications

    Technical Specifications Customer Helpline 0345 257 7271 Injector Table Tota l Cons umpti on: 28~30 mba r 12,3 kW 894 g/h Ga s Ca tegory: II2H3+ G20 20 mba r G30/G31 28-30/37 mba r Destination:GB Class:1 LARGE BURNER DIA. of INJECTOR (1/100mm) NOMINAL RATING (KW) CONSUMPTION 218,1 g/h...

  • Page 18: Technical Specifications

    Technical Specifications Customer Helpline 0345 257 7271 AG56DW AG56DA Model/Item Power supply 230-240V~ 230-240V~ Maximum gas consumption 12.3 kW 12.3 kW Size(H x W x D) 900x600x600 mm 900x600x600 mm We apologise for any inconvenience caused by any minor inconsistencies in these instructions , which may occur as a result of product improvemenst and development.
  • Page 20 Customer Helpline: 0345 257 7271. 52113538 R003 05/15...
