Owners manul for elliptical trainer

Advertisement

BR2710
* This item is for consumer use only and it is not meant for commercial use.
* This item is for consumer use only and it is not meant for commercial use.
OW NER ' S MA NUAL
OW NER ' S MA NUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BR2710 and is the answer not in the manual?

Questions and answers

Austin Guzman
July 12, 2025

How do I order 2 replacement "Steel Plate of Handle Pulse" part #49 for my elliptical?

Subscribe to Our Youtube Channel

Summary of Contents for body Power BR2710

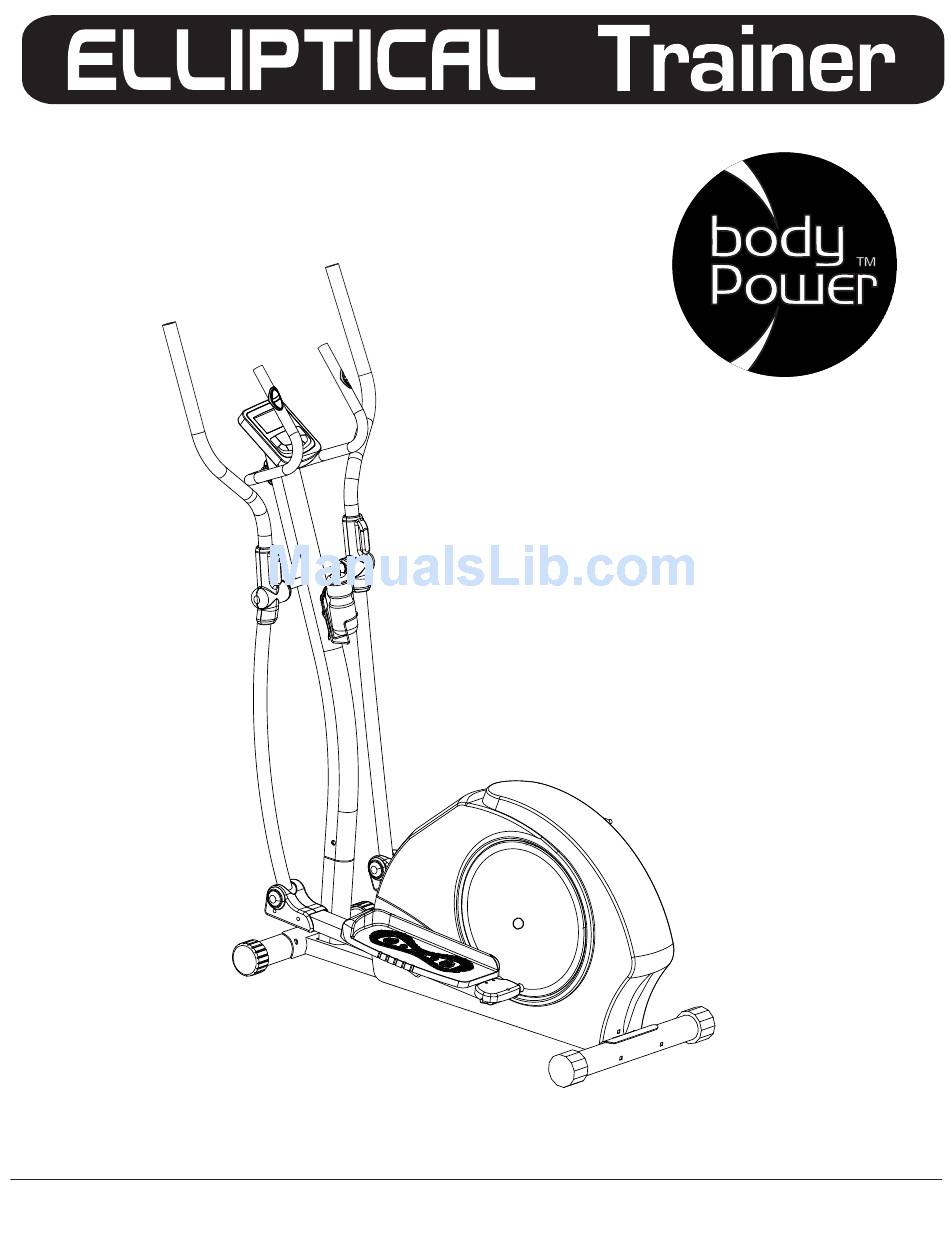

  • Page 1 BR2710 * This item is for consumer use only and it is not meant for commercial use. * This item is for consumer use only and it is not meant for commercial use. OW NER ’ S MA NUAL OW NER ’ S MA NUAL...
  • Page 2 This page intentionally left blank...
  • Page 3: General Information

    General Information Safety Storage and Use Before you undertake any exercise program, Your product is intended for use in clean please be sure to consult with your doctor. dry conditions. You should avoid storage in Frequent strenuous exercise should be excessively cold or damp places as this may approved by your doctor and proper use lead to corrosion and other related problems.
  • Page 4: Hardware List

    Hardware List The following hardware is used to assemble your unit. Please take a moment to familiarize yourself with these items. PLEASE NOTE: some of these parts may have already been pre-assembled on your unit. pre-assembled pre-assembled 59. Special Washer pre-assembled pre-assembled BR 2710...
  • Page 5: Parts Listing

    Parts Listing The following parts list describes all of the parts illustrated on the exploded diagram on the following page. Please note, most of these parts are already pre-assembled on your unit. Description Description Main Frame 29L/29R Left/Right Lower Handlebar Rear Stabilizer Bolt (M8x15 mm) Adjustable End Cap...
  • Page 6: Exploded Diagram

    Exploded Diagram The following diagram is provided to help you familiarize yourself with the parts and hardware that will be used during the assembly process. Please note that not all of the parts and hardware you see here will be used while you are assembling the machine because some of these items are already pre-installed.
  • Page 7: Assembly Instructions

    Assembly Instructions A s s e m b l y S t e p 1 Hardware Required Stabilizer Assembly Secure the Front Stabilizer (#7) and Rear Stabilizer (#2) to the Main Frame (#1) by using four Carriage Bolts (#4), four Arc Washers (#5) and four Cap Nuts (#6) BR 2710 Page 5...
  • Page 8 Assembly Instructions A s s e m b l y S t e p 2 Hardware Required Front Post Assembly: A. With the help of an assistant, connect the Sensor Wire (Lower) (#24a) to the Sensor Wire (Middle) (#24b). B. Secure the Front Post (#31) to the Main Frame (#1) by using four Bolts (#30) and four Washers (#17).
  • Page 9 Assembly Instructions Hardware Required A s s e m b l y S t e p 3 Lower Handlebar Assembly: The two Spacers (#33) and Special Washers (#59) are already pre-assembled on the two bars that are protruding from the Front Post (#31).Ensure that they are properly in place as indicated in the assembly below.Slide the Left Lower Handlebars (#29L) with the longer end of the shaft towards the center of the Front Post (#31).
  • Page 10 Assembly Instructions A s s e m b l y S t e p 4 Hardware Required Upper Handlebar Assembly : Attach the Upper Handlebars (#46L & #46R) to the Lower Handlebars (#29L & #29R) and secure them with four Carriage Bolts (#36), four Arc Washers (#35) and four Cap Nuts (#6).
  • Page 11 Assembly Instructions A s s e m b l y S t e p 5 Hardware Required Middle Handlebar Assembly : Attach the Middle Handlebar (#53) onto the front side of the Front Post (#31),then secure it by using two Spring Washers #60.Screw (M4x12 mm) (#38) and two Bolts (#55).
  • Page 12 Assembly Instructions A s s e m b l y S t e p 6 Hardware Required Pedal Assembly: Attach the Pedals (#18L & #18R) to Pedal Arm (#11L & #11R) then secure with four Hex Bolts (#19), four Washers (#17) and four Nylon Nuts (#16).
  • Page 13 Assembly Instructions A s s e m b l y S t e p 7 Hardware Required Bottle Assembly: The two Screws (#41) and two Washers (#42) for the Water Bottle Holder (#44) have already been pre-installed onto the Front Post (#31).Remove the two Screws(#41) and two Washers(#42) located on the Front Post (#31) as illustrated.
  • Page 14 Assembly Instructions A s s e m b l y S t e p 8 AC Adapter Assembly Plug in the AC Adapter (#58) male plug into the female socket located at the rear of the unit as shown by the arrow. BR 2710 Page 12...
  • Page 15: Safety Instructions

    Safety Instructions • Make sure all bolts are tightened. • Check for loose parts and components • Check to see if there are any tears or bends in the welding or metal. BR 2710 Page 13...
  • Page 16: Computer Operation

    Computer Operation I. To operate the monitor A-0. Plug in the AC Adapter to power supply. You will see this first screen followed by the next one. A-1. You may select different training mode of MANUAL, PROGRAM, USER or TARGET H.R. by pressing UP, DOWN buttons (a1). Press MODE button to confirm.
  • Page 17 Computer Operation B-6 During all training period, you may press ST/STOP to stop monitor counting at anytime. C. Training in PROGRAM mode - press UP button until PROGRAM shows up on the upper line, press MODE to confirm. (c1) (c2) (c3) (c4) C-1 The initial set program profile is P1 (c1 &...
  • Page 18 Computer Operation left-upper corner) and beep for 8 times to remind you.(d6) D-5 You may press ST/STOP button to start training again. The function which has achieved to zero will start from previous set data counting down, and other set function data will keep counting up or down from previous records. D-6 During all training period, you may press ST/STOP to stop monitor counting at anytime.
  • Page 19 Computer Operation Displays current training rotations per minute. Count up - If NO preset target, Time will count up from 00:00 to maximum 99:59 with each increment of 1 second. TIME Count down - If training with preset Time, Time will count down from preset value to 00:00.Each preset increment or decrement of 1 minute between 1:00 to 99:00.
  • Page 20: Troubleshooting

    Troubleshooting Troubleshooting (AFTER COMPLETE ASSEMBLY) Solution Troubleshoot Area If the computer is not picking up your hand pulse signal (or you are getting HAND PULSE SIGNAL inaccurate readings), please adjust the following: Slightly moisten/dampen the palms with water so the sensors can detect a pulse signal.
  • Page 21 Warm-Up Instructions Before use, you must read and understand all instructions & warning stated in this Owner's Manual as well as posted on the equipment. The following flexibility exercises are provided to you as a means to prevent injury while you are exercising. A proper warm-up routine decreases the chance of injuring your muscles while you are exercising.
  • Page 22 Warm-Up Instructions Trunk Flexion, Prone 1. Assume the depicted position on your hands and knees. Stretch your hands out in front of you and then slowly start to pull them back in toward your body as you tuck your chin and arch your back upward. 2.
  • Page 23: Proof Of Purchase

    Proof of purchase Model Number BR 2710 version: 3-31-2011 BR 2710...
  • Page 24 Body Flex Sports, Inc. • 21717 Ferrero Parkway, Walnut, CA 91789 • Telephone: (888) 266 - 6789 • Email: info@bodyflexsports.com...
