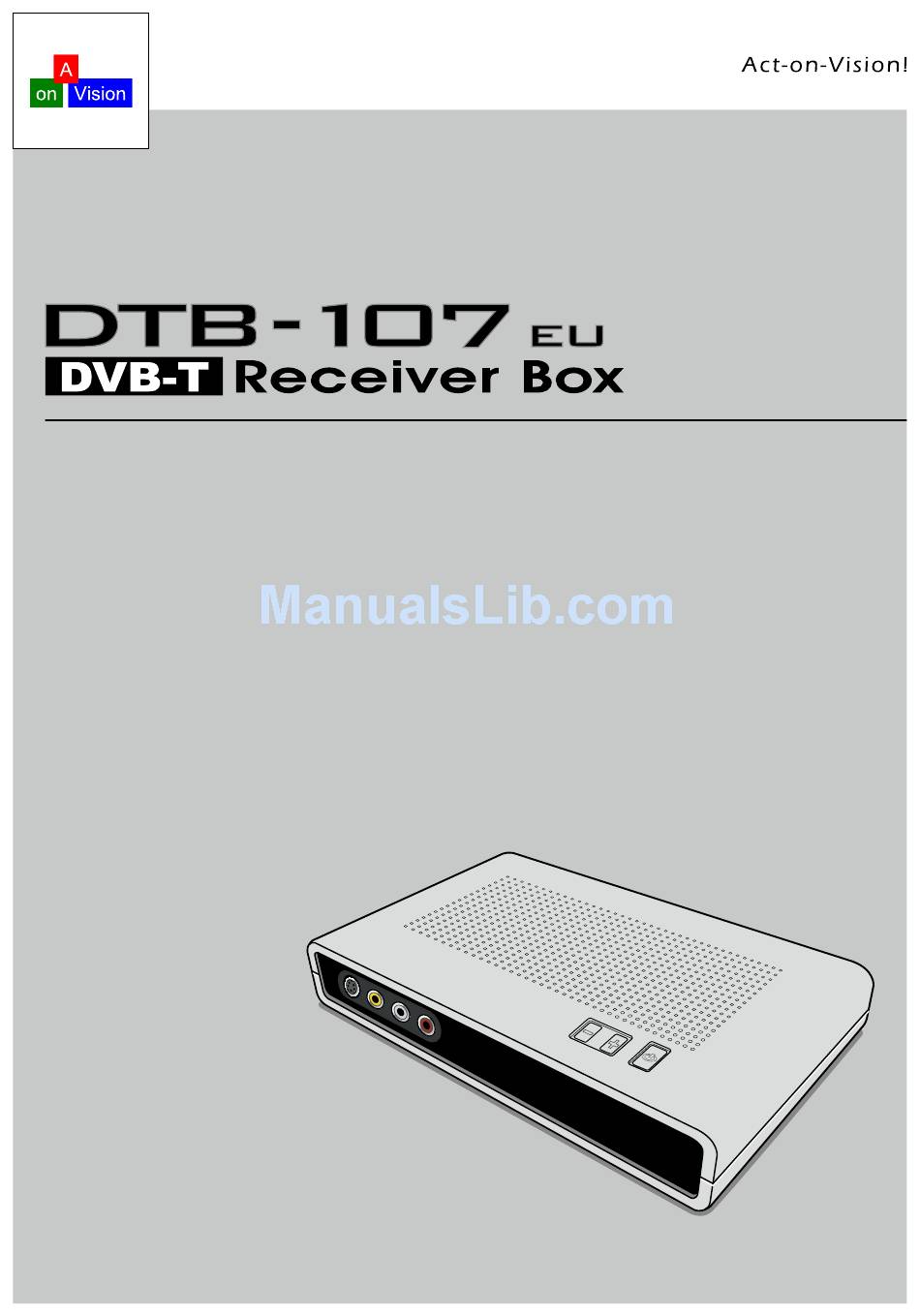

- Page 1 User Manual...
- Page 2 User Manual Index 1. Introduction 2. Panel Illustration 3. Cable Connection 4. Turn on the power 5. Remote Control 6. OSD Menu Operation 6.1 Setup Channels 6.2 Box Installation 6.3 Advanced Options 6.4 EPG...
- Page 3 1. In���d�����n In���d�����n Introduction This is a DTV-400VGA for free-to-air (FTA) terrestrial digital TV broadcasting. You can enjoy the DVD quality video and audio for free. It supports Teletext, 8-day Electronic Program Guide (EPG) and DVB subtitle. Through the EPG, you can set up to 10 program timers to remind you the important programs.
-
Page 4: Front Panel
2. ��ne�� I������������n ��ne�� I������������n Buttons Power On Channel Down Front Panel S-Video Out L-Audio-R Out Composite CVBS Out Rear Panel In – Antenna – Out Out– Audio – In Diagnostic VGA Out VGA In 12V DC NOTE: “DIAG” is for diagnostic only, please DO NOT use it as USB port. -
Page 5: Antenna Connection
3. �����e ��nne����n �����e ��nne����n DTV-400VGA can provide VGA, S-Video and composite outputs to PC monitor, TV and VCR. It can also pass through PC signal (VGA and audio) when box is in standby mode. Following diagrams describe different connection configurations� Antenna Connection Connect the antenna output to “ANT IN”. - Page 6 TV Connection This connection provides digital terrestrial TV program to your TV via AV or S-Video sources. Use the AV cable (Yellow plug) to connect box Composite output (Yellow jack at front panel) and TV AV input. Or, use the S-Video cable to connect box S-Video output (Black mini DIN jack at front panel) and TV S-Video input.
-
Page 7: Cable Connection
4. ���n �n ��e ���e� ���n �n ��e ���e� After the cable connection for antenna and PC/TV is completed at previous section, you are ready to turn on the power by plugging the power adapter to the “12V DC IN” jack. When power on, box will go to standby mode and the RED LED at front panel is turned on. - Page 8 5. �e���e ��n����� �e���e ��n����� POWER Power On or Standby SCAN Auto scan channels TV/RADIO Select TV / Radio programs INFO Show channel / program information information Numeric keys CH +/- Channel up / down VOL +/- Volume adjustment RECALL Go to previous channel MUTE Mute...
-
Page 9: Setup Channels
6. ���� �en� ��e�����n ���� �en� ��e�����n 6.1 Setup Channels Setup Channels Auto Search Scan all available channels according the “Country” setting in “Box Installation”. -
Page 10: Manual Search
Manual Search Enter the channel number to search all the broadcast programs in that frequency. If “User defined” is selected, a specific frequency (KHz) and bandwidth (6/7/8MHz) can be entered to search programs. Edit Favorite Channels There are four favorite groups – RED, GREEN, YELLOW, BLUE. - Page 11 Available Channels List all found channels. You may see the channel signal power level and signal quality here. Favorite Channels List favorite channels. Reorder Channels This is to change the channel sequence. Use the remote direction keypad (LEFT/RIGHT/UP/DOWN) to select the channel, press OK keypad to confirm selection, then use the direction keypads to select the new position and press OK to insert.
-
Page 12: Remote Control
6.2 Box Installation Box Installation Country There are 28-country and one universal frequency plans to choose a suitable frequency plan and bandwidth. Auto scan will search the channels based on this setting. Audio Mode Select the audio channel – Stereo/Mono-L/Mono-R. AUDIO in remote control does the same thing. - Page 13 Language Setup Select the OSD Menu Language – English, Deutchschland, Italiano, Français and Español. The Audio Language option will play the preferred speech when it is available. Video Mode Select the video output Aspect Ratio according the TV aspect ratio. Letter box on a If the video is 16:9 aspect ratio, this mode will show all video and maintain the aspect ration 4:3 TV...
-
Page 14: Time Zone
Time Zone There are three ways to select the time zone: : Auto – The time zone is decided via the service provider. This is the default setting. Receiver will extract the time offset from the received digital stream. Manual – User may select the time zone (Country) and daylight saving time (D.S.T.) if service provider does not provide the data or it is wrong. -
Page 15: Advanced Options
6.3 Advanced Options Advanced Options Parental Lock ■ Activate Parental Lock – Enable password control. ■ Change Password – Change password. Empty password will delete password and disable the parental lock function. ■ Lock Channels – Enter the password to go to the channel list. Select the channel you want to be protected by password. -
Page 16: System Information
Delete by Network Name This is to delete a network frequency from the list. All the programs from that frequency will be removed. System will search the network every 4:30AM in the background when box is in standby mode. Delete by Program Name Delete a program from available channel program list. - Page 17 6.4 EPG Use the EPG key from remote control can display the Electronic Program Guide (EPG). There are two presentation modes for the EPG. In EPG, there are 10 program timers to provide reminder when a program is coming. Move the focus to a program and press “OK”, you can see more detailed program description.
- Page 18 EPG Program Reservation There are 10 program timers to bring up reminder for a reserved program. 20 seconds before the start of the reserved program, a pop-up window will remind viewer. If no further instruction, box will switch to the reserved program. Each timer has 3 modes –...
- Page 19 M e m o...
- Page 20 TEL: 886-3-666-1586 FAX: 886-3-666-1585 2F, No. 58, Park 2nd Ave., Science-Based Industrial Park, Hsinchu, 300 Taiwan, R.O.C. www.aonvision.com sales@aonvision.com...
