Fast EtherCard-32
32-bit Fast Ethernet CardBus PC Card User's Guide
Thank you for purchasing our product! This guide contains
information to install and configure the 10/100 Mbps Fast
EtherCard-32 for proper operation.
Hardware Description
Before you insert the Fast EtherCard-32 into your machine,
please verify if your notebook supports the CardBus standards
and provides the Type II or Type III Slot.
This CardBus PC card's main PCB board is encased in a
stainless compact frame that is easily transportable. It contains
a 68-pin connector for connecting to the PC and a 15-pin flat
connector for attaching the RJ-45 media coupler. You can use
the RJ-45 connector to connect your PC to the Ethernet
network.

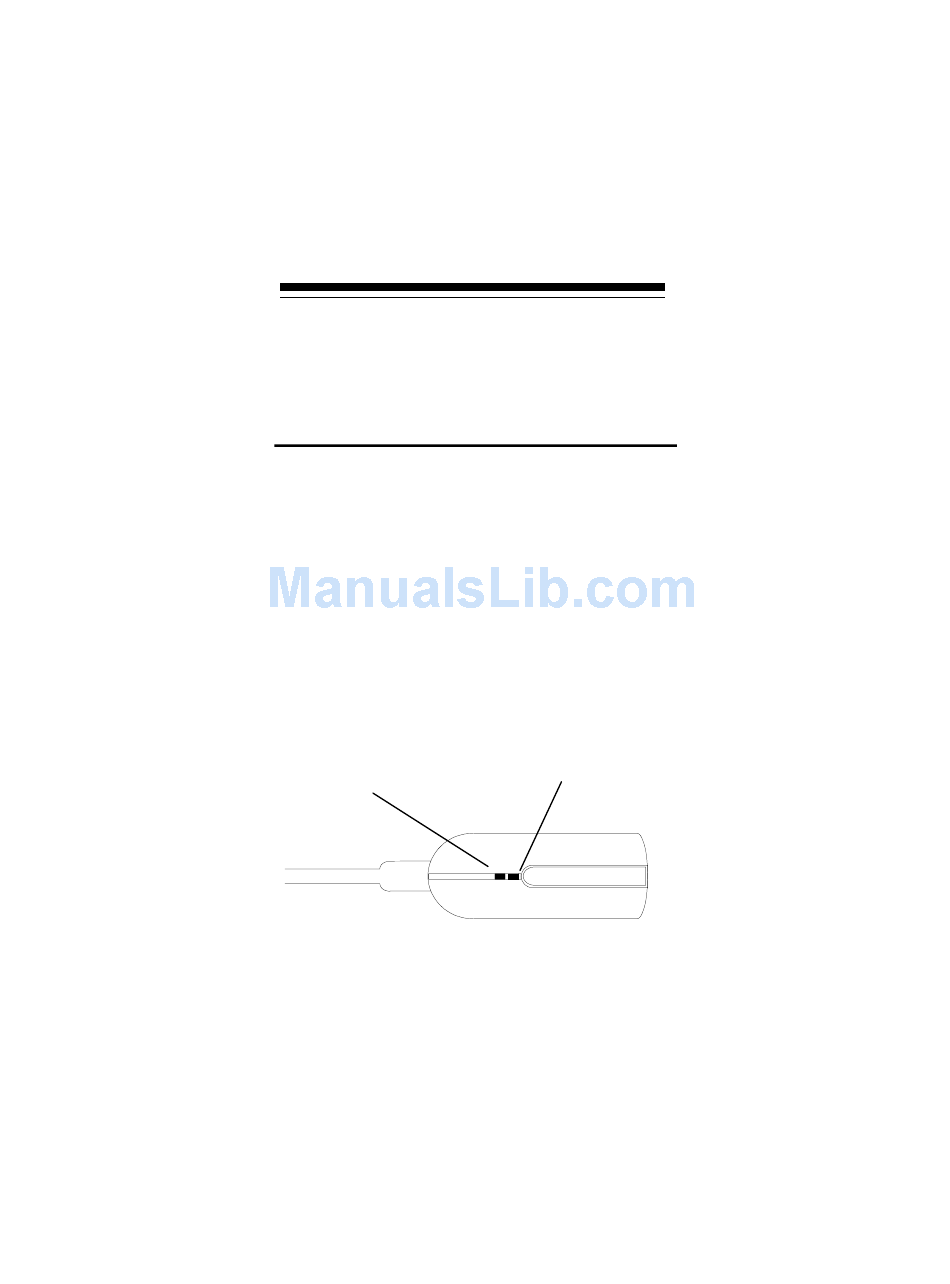

LED Indicators (on Media Coupler)
TRANSMIT/RECEIVE
LINK INTEGRITY
ACTIVITY
ORANGE - 100 Mbps
GREEN - 10 Mbps
YELLOW
1
Advertisement
Table of Contents
Related Manuals for Accton Technology Fast EtherCard-32
Summary of Contents for Accton Technology Fast EtherCard-32
-
Page 1: Hardware Description
10/100 Mbps Fast EtherCard-32 for proper operation. Hardware Description Before you insert the Fast EtherCard-32 into your machine, please verify if your notebook supports the CardBus standards and provides the Type II or Type III Slot. - Page 2 Transmit/Receive Activity Indicator Color: Yellow Function: Indicates incoming and outgoing network traffic The Transmit/Receive LED on the adapter’s media coupler lights up to indicate the presence of network packets passing through the connected port. The rate of flashing is proportional to the amount of network traffic.
-
Page 3: Hardware Installation
Hardware Installation Select an empty CardBus PC Card slot and insert the 10/100 Mbps Fast EtherCard-32 into that slot as shown below. 68-pin connector 15-pin connector Inserting the Fast EtherCard-32 into a CardBus PC Card Slot Connect your PC Card to the network using RJ-45 cable. -
Page 4: Software Driver Installation
Notes: The card auto-negotiates the speed of the network to which it is attached, providing seamless operation on either 10 or 100 Mbps network segments. It supports full-duplex communications, allowing data to be sent and received simultaneously, doubling the effective throughput. Refer to the readme files on the driver diskette for information on setting the transmission mode. - Page 5 area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are required to correct the interference. You may use unshielded twisted-pair (UTP) for RJ-45 connections - Category 3 or greater for 10 Mbps connections, and Category 5 for 100 Mbps connections.
-
Page 6: Specifications
Specifications Standard Conformance Ethernet : IEEE 802.3 for 10BASE-T IEEE 802.3u for 100BASE-TX Host Interface : PC Card 95 CardBus Standard Physical Characteristics Ethernet Data Rate : 10 and 100 Mbps (Auto-Negotiation) or 20 and 200 Mbps at full duplex Data Bus Access : 32-bit Bus Mastering I/O Address/ Interrupt... -
Page 7: Technical Support
Norway site Send your technical questions by email to support@accton.com.tw Mail your technical questions to: • International Headquarters Accton Technology Corporation Attn: Technical Support No. 1 Creation Road III Science-based Industrial Park Hsinchu 300, Taiwan, R.O.C. • USA Headquarters... - Page 8 During local business hours, call: • International Headquarters Monday through Friday 8 a.m. to 6 p.m.: 886-3-5770-270 • USA Headquarters Monday through Friday 7 a.m. to 5 p.m. Pacific Time: 949-707-4847 or 888-398-4101 Warranty Accton warrants to the original owner that the product delivered in this package will be free from defects in material and workmanship for the lifetime of the product.
