Insignia NS-PU95203 Quick Setup Manual

PACKAGE CONTENTS

• USB to VGA Adapter
• Quick Setup Guide

SYSTEM REQUIREMENTS

• Windows® 8.1, Windows® 8, or WHCK/WHQL
certified driver support for Windows® 7
• Computer with a USB port
Note: In USB 2.0 mode, the maximum resolution is
800 × 600 only. To get higher resolution, you need to plug
the adapter into a USB 3.0 port on your PC.
FEATURES
• Instantly connects your desktop or laptop
computer to a VGA display.
• Adds a VGA port to your computer.
• Connects an extra monitor to extend your display.
• Supports up to 1080p resolution (with USB 3.0 port).
• Works with legacy USB ports (maximum resolution
800 × 600).
Before using your new product, please read these instructions to prevent any damage.
Top view
VGA port

INSTALLING THE DRIVER

1 Connect the adapter to a USB port on your PC. The
driver install wizard runs automatically.
2 When the install wizard opens, click Next to
continue with the installation.
Quick Setup Guide |
3 Follow the wizard, then click Finish to complete
the installation.
Cable
USB connector
4 If prompted to restart your computer, please do
so, then connect your display using the adapter
and your own VGA cable (VGA cable not
included).
5 Set the resolution you want on your PC. The
adapter supports up to 1920 × 1080@60 Hz using
USB 3.0 or 800 × 600@60 Hz using USB 2.0.
NS-PU95203 / NS-PU95203-C

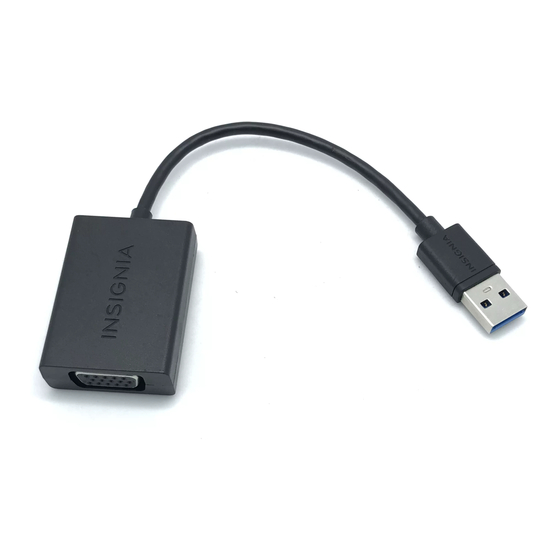

USB to VGA Adapter
