Marvin 7060 Instruction Manual

THREE-YEAR
FOR REPAIRS
LIMITED WARRANTY
Do not attempt to service or repair this
2-YEAR WARRANTY ON HEATING ELEMENTS
heater. If damaged or not functioning
properly, return heater to W.B. Marvin.
W.B.Marvin Manufacturing Co., the
For safety reasons, servicing is only
manufacturer, warrants to original
available at the factory.
purchasers of their electric heaters that
Marvin heaters shall be free from
When returning the heater to us, pack the
electrical defects for a period of three (3)
heater in its original carton THEN pack that
years (2 years for heating elements) from
box in a larger shipping box and pad well.
the provable date of purchase. The
applicability of any implied warranties is
Ship to:
limited to the same three (3) year (2 years
W.B. Marvin Manufacturing Co.
for heating elements) period. Some states
Inspection Department
do not allow limitations on how long an
211 Glenn Avenue
implied warranty lasts, so the above
Urbana, Ohio 43078-0230
limitations may not apply to you. The
For Warranty Repairs
manufacturer is not responsible for any
Include proof of purchase and a note defect or malfunction caused by abuse or
explaining the problem with your heater, misuse occurring while the heater is in
and a return address. the possession of the purchaser including
without limitation uses for purposes not
We will repair or replace (at our option)
intended by the manufacturer.
your heater and return it to you. Please
allow 2 weeks.
The manufacturer is not responsible for
any defect or malfunction caused by
For Out-of-Warranty Repairs
repairs attempted by others, damage in
Return heater along with a note explaining
transit, abusive treatment or commercial
the problem with your heater, a phone
application.
number where you can be reached during
the day, and a return address.
In the event of the occurrence of a defect
covered by this warranty, the original
We will inspect your heater & call you with
a quote for the cost of repairs. purchaser shall, at his expense, return the
heater along with proof of purchase to the
manufacturer, attention Inspection
W.B. Marvin is concerned
Department. If the defect is covered by
about the well being of our
this warranty, the manufacturer shall
environment, and we'd like to
within sixty (60) days after receipt thereof
point out the following:
correct the electrical defect without cost
to the original purchaser. Any questions
1. Many components of our products are
concerning this warranty shall by directed
made from recyclable materials. And, we
to the Inspection Department of the
will continue to look for new materials to
manufacturer.
help the environment.
2. The use of our heaters encourages
This warranty gives you specific legal
conservation by allowing the user to
rights, and you also may have other
conserve on central heating.
rights which vary from state to state.
3. All shipping cartons are recyclable.
The W.B.Marvin
W.B. Marvin is constantly looking for new
Manufacturing Company
ways to help the environment. Please don't
hesitate to send us your suggestions.
797060-2(-)-0703
7

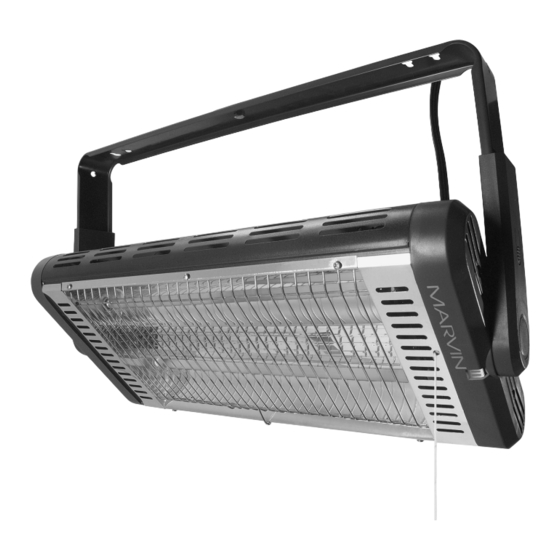

MODEL 7060
WORKZONE OVERHEAD
WORKSHOP HEATER
INSTRUCTION MANUAL

WARRANTY INFORMATION

Tools Needed for Installation:

Socket Wrench (for swivel mounting)
Phillips Head Screwdriver (for key slot
mounting), Drill with 1/8" Drill Bit
W.B. Marvin Manufacturing Company
Want to use your new heater
211 Glenn Avenue,
in multiple locations?
Urbana, Ohio 43078-0230
Additional Mounting Brackets are
937-653-7131, Fax 937-652-1375
available from W.B.Marvin – Brackets Toll-Free: 1-800-733-1706
are $12.95 each including shipping
www.wbmarvin.com
and handling. Send check to:
W.B. Marvin Co.
7000 Bracket UNDERWRITERS
LABORATORIES
211 Glenn Avenue
LISTED
Urbana, Ohio 43078
Made in the U.S.A.
SINCE 1915
Congratulations!
REPLACEABLE
HEATING
On becoming a new
Marvin Heater owner.
®
ELEMENTS
Marvin manufactures high
quality, safe, electric
This model heater features an exclusive,
heaters designed to
replaceable heating element system
provide years of trouble
(patent pending). In the event that a
free service. Our heaters
heating element in this heater should
are made right here in
break, burn-out or become inefficient,
Urbana, Ohio. Many of
you can purchase replacement elements.
our employees are second
To find the nearest location of a retailer
or third generation, and all
®
who sells Marvin Replacement Heating
of them are dedicated to
Elements (Part # E1750), call our
giving you the finest
Customer Service Dept. Toll-Free between
heaters in the world.
9:00 a.m. and 5:00 p.m. EST for
assistance: 1-800-733-1706.
We want you to be
satisfied with your new
Marvin Heater. All of our
REPLACING
heaters are tested at the
ELEMENTS:
factory before shipping to
insure quality.
1. Open Guard
Should you have any
Remove screw located at the bottom
problem, please call our
center portion of the guard. This will
Customer Service
allow the guard to swing open.
Department toll-free at
1-800-733-1706. Your call 2. Remove old element
will receive prompt and Grasp element near the side of the heater
opposite the switch. Push the element
courteous attention.
towards the switch-side of the heater with
We appreciate your
enough pressure to allow the other end of
comments about our the element to disengage from its socket.
products and look forward
to hearing from you.
Thanks again for
choosing Marvin.
Sincerely,
3. Install new element
Insert either end of the element into the
socket located on the switch-side of the
Angus Randolph,
heater. Push the element far enough into
President
this socket to allow the other end of the
W.B. Marvin
element to be inserted into its socket.
Manufacturing
4. Close Guard and
Company
re-install screw.
1
PLEASE READ AND SAVE THESE

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic the like. Arrange cord away from traffic area
precautions should always be followed to and where it will not be tripped over.
reduce the risk of fire, electric shock, and
9. To disconnect heater, turn controls to
injury to persons, including the following:
off, then remove plug from outlet.
1. Read all instructions before using
10. Connect to properly grounded
this heater.
outlet only.
2. This heater is hot when in use. To
avoid burns, do not let bare skin touch hot 11. Do not insert or allow foreign objects to
surfaces. If provided, use handles when
enter any ventilation or exhaust opening as
moving this heater. Keep combustible
this may cause an electric shock or fire, or
materials, such as furniture, pillows,
damage the heater.
bedding, papers, clothes, and curtains at
12. To prevent a possible fire, do not block
least 3 feet (0.9m) from the front of the
air intakes or exhaust in any manner. Do not
heater and keep them away from the sides
use on soft surfaces, like a bed, where
and rear.
openings may become blocked.
3. Extreme caution is necessary when
any heater is used by or near children or 13. A heater has hot and arcing or sparking
invalids and whenever the heater is left parts inside. Do not use it in areas where
operating and unattended. gasoline, paint, or flammable liquids are
used or stored.
4. Always unplug heater when not in use.
14. Use this heater only as described in
5. Do not operate any heater with a
this manual. Any other use not
damaged cord or plug or after the heater
recommended by the manufacturer may
malfunctions, has been dropped or
cause fire, electric shock, or injury to
damaged in any manner. Return heater to
persons.
W.B. Marvin Manufacturing Co. for
examination, electrical or mechanical
15. Avoid the use of an extension cord
adjustment, or repair. (See the section "For
because the extension cord may overheat
Repairs" on the back cover)
and cause a risk of fire. However, if you have
to use an extension cord, the cord shall be
6. Do not use outdoors.
No. 14 AWG minimum size and rated not
7. This heater is not intended for use in
less than 1875 watts.
bathrooms, laundry areas and similar
indoor locations. Never locate heater where
16. The wire guard is an important safety
it may fall into a bathtub or other water
feature and must be securely closed during
container.
operation or for storage. Failure to secure
the grille may result in injury and / or
8. Do not run cord under carpeting. Do
damage to this unit.
not cover cord with throw rugs, runners, or
GROUNDED PLUG
For 120 volts. This cord has a
3-prong plug as shown. An adapter
is available for connecting three-prong
grounding-type plugs to two-slot
GROUNDING
PIN
receptacles. The green grounding lug
OUTLET WITH
extending from the adapter must be
ADAPTOR - SHOWN
GROUNDED
connected to a permanent ground such
CONNECTED TO
3-PRONG
METAL SCREW OF
as a properly grounded outlet box. The adapter should not OUTLET
OUTLET BOX
be used if a three-slot grounded receptacle is available.
COVER.
2
