Summary of Contents for Freeview T1000n

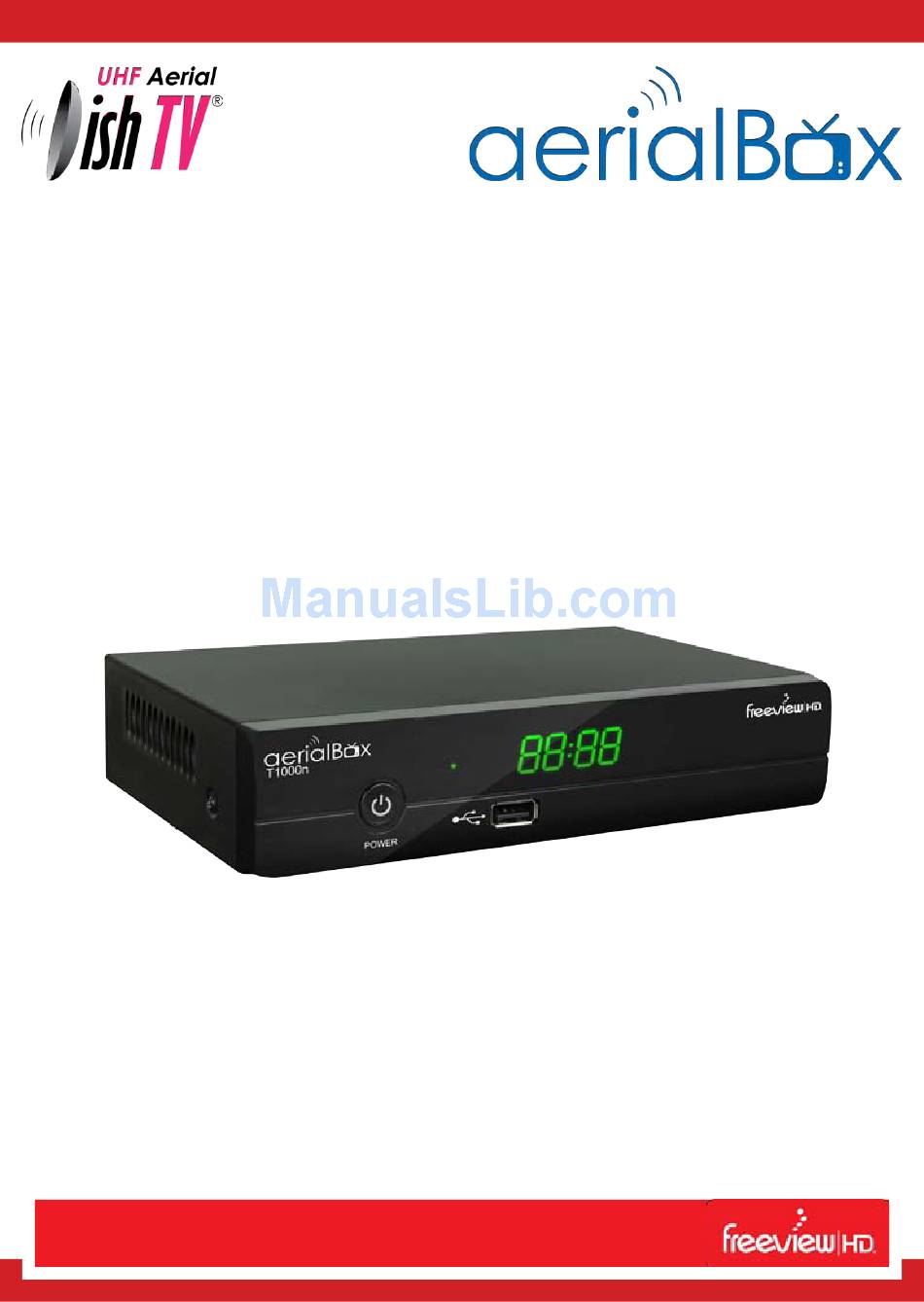

- Page 1 T1000n User Manual...
-
Page 3: Table Of Contents
Contents: Important Safety Instructions Precautions Identify Your Set Top Box Remote Control 1. Initial Install 2. Main Menu 2.1 Installation 2.1.1 Channel Filter 2.1.2 Country 2.1.3 LCN 2.1.4 Auto Search 2.1.5 Manual Search 2.2 Channel 2.2.1 Channel Manager 2.2.2 Favorite List 2.3 Preference 2.4 Setting 2.4.1 Timers... -
Page 4: Important Safety Instructions
Important Safety Instructions: 1. Read, Follow and Keep these Instructions. 2. Do not use this unit near water. 3. Clean only with a damp cloth. Remember to unplug power prior to cleaning. 4. Do not block any of the ventalation openings. Install in accord- ance with the manufacturers instructions. - Page 5 Precautions: Please read these precautions before operating this unit. 1. Power Cord Protection To avoid any malfunctions of the unit and to protect against electric shock, fire or personal injury, please observe the following... - Hold plug firmly when connecting/disconnecting AC power cord. - Keep AC power cord away from heated appliances.
-
Page 6: Identify Your Set Top Box
Identify Your Set Top Box: T1000n Front Panel 01: POWER BUTTON 02: USB PORT Firmware Upgrade & USB Device Connection 03: ANT IN UHF Aerial Input 04: LOOP OUT UHF Signal Output 05: COAXIAL Digital Audio Out 06: HDMI PORT... -
Page 7: Remote Control
Remote Control: 01. POWER: Turn On/Off 02. Number Keys: <0-9> 03. RECORD: TV Program Recording 04. EPG: Electronic Program Guide 05. MENU: Enter Main Menu 06. Direction Keys: Up/Down/Left/Right 07. VOL +/-: Adjust Volume 08. R/G/Y/B Keys: Function Keys 09. SUBTITLE: Select Subtitles 10. -
Page 8: Main Menu
TV. Or you can use an HDMI cable if you have one. 1. Inital Install Follow on screen instructions... 1. Plug in your Dish TV T1000n unit. 2. Turn on your TV and select the correct corresponding input. -
Page 9: Channel Filter
2.1.1 Channel Filter Menu>Installation>Channel Filter Press <menu> for Main Menu. Press <ok> on Installation. 2.1.2 Country Menu>Installation>Country Change country location. 2.1.3 Logical Channel Numbering Menu>Installation>LCN It is best set to <on>. 2.1.4 Auto Search Menu>Installation>Auto Search Press <ok> to select Auto Search. A window will appear. -
Page 10: Channel
2.2 Channel Menu>Channel 2.2.1 Channel Manager Menu>Channel>CH. Manager Press <up/down> to select any channel listed. Four Functions are available, LOCK, DELETE, SKIP, RENAME. LOCK: Press <RED> key to LOCK channel. (Default Password 0000). User will now need to enter Password to view locked channel. DELETE: Press <GREEN>... -
Page 11: Preference
After setting channels to FAV Lists, user can hold down <FAV> on the remote to access them quickly. 2.3 Preference Menu>Preference OSD Language: Set on-screen Language that will be displayed. OSD Timeout: Set the length of time Banners are displayed (Range 1-6 seconds). -
Page 12: Timers
2.4.1 Timers Menu>Setting>Timers This option is used for multi-timer recordings or setting a channel to be displayed at a certain time etc... RECORDING, requires an External USB Device to be connected. <YELLOW> or <ok> to edit/ Press enter the timer window. NOTE, make sure the <ok>... -
Page 13: Child Lock
2.4.2 Child Lock Menu>Setting>Child Lock When entering this option, you will be prompted for the password (Default Password 0000). System Lock: Default is “ON”, this enables Pin Code Channel Lock- ing. If set to “OFF” all Channel Locking is disabled. Parental Rating: Default is UNDEF (Undefined);... -
Page 14: Factory Reset
2.4.4 Factory Reset Menu>Setting>Factory Reset This will reset all settings back to factory, deleting all channels and user settings (Default Password 0000). 2.4.5 Upgrade Menu>Setting>Upgrade USB Upgrade: Insert a USB Device with new firmware/ software on. Select the software file on the USB Device, press <ok>... -
Page 15: Game
2.5 AV Menu>AV In this menu, you can adjust the audio and visual preferences of your receiver. Here you can adjust settings like Brightness, Contrast, Saturation, Hue. SPDIF: Default is PCM (Uncompressed). Mute, disables audio via SPDIF output. Bitstream (Compressed) may be used if PCM is unsuitable. Aspect Ratio: This is to set the output display shape (Full Screen, 16:9). -
Page 16: Media
3. Media Options include... Movie, Music, Photo, Game, EBook, Record Manager and Disk Manager. NOTE: Requires an External USB Device to be connected. Some media file types may not play or be viewed. Please phone support for further information. 3.1 Movie If there is an External USB Device connected, it will show under the Movie option. -
Page 17: Convenient Functions
4. Convenient Functions 4.1 Ways to Select Programs Currently there are 4 ways to select a desired channel. Press <ok> to select a channel from the program list. Press <epg> to select a channel from the Electronic Program Guide. Press <0-9> to change to the corresponding channel. Press <ch+/ch->... -
Page 18: Troubleshooting
No or Poor Sound: -Check the volume level of the TV. -Check the Mute status of the TV and T1000n Receiver. -Press the audio button to change the Sound Track type. No Remote operation: -To manipulate the equipment with the remote control, the control’s emitting part should be directly pointing towards the receiving part (IR Sensor) of receiver. -
Page 19: Warranty
6. Warranty Please keep your receipt as proof of purchase. This product is war- ranted for any defect in materials or workmanship for one year after the original date of purchase. This product is for normal domestic use only. This warranty does not cover damage from misuse or neglect, accidental damage, vermin infestation, excessive voltages such us lightning or power surges or any alteration that affects the perform- ance or reliability of the product.
