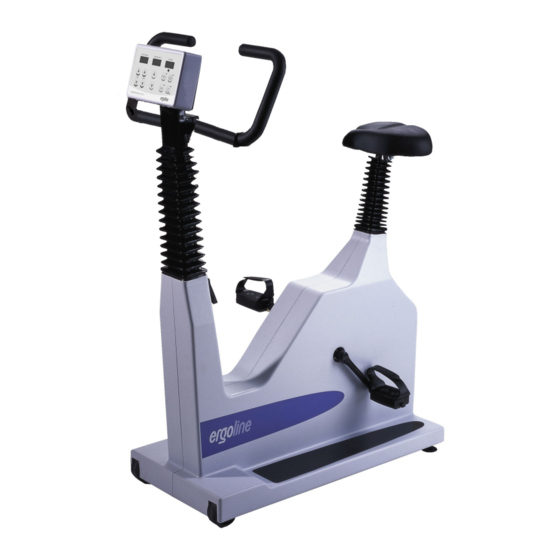

Operation Manual
ergometrics er800S
Art-Nr: 475.051
Version: 05/02
!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ergometrics er 800S and is the answer not in the manual?

Questions and answers

Related Manuals for ergoline ergometrics er 800S

Summary of Contents for ergoline ergometrics er 800S

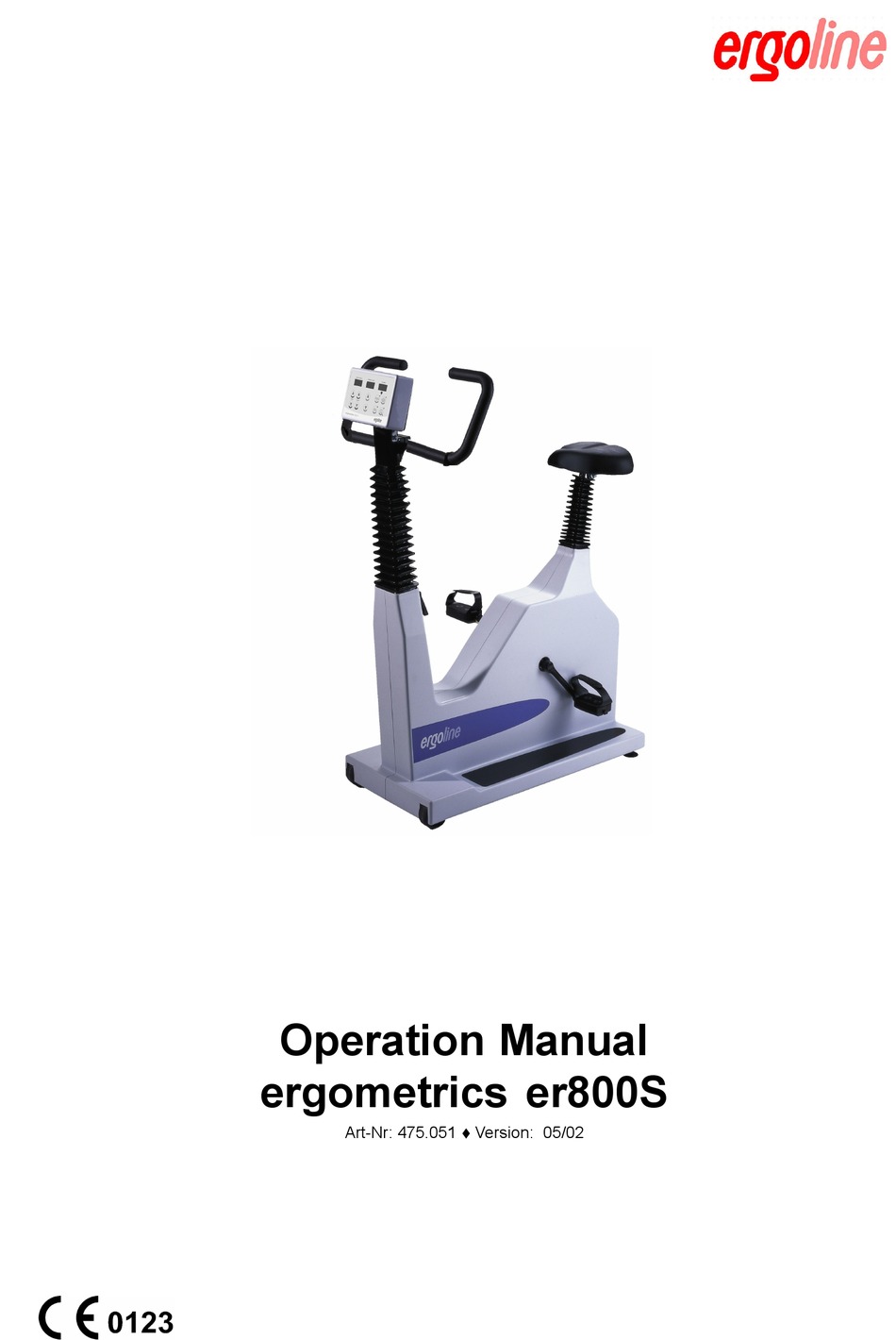

  • Page 1 Operation Manual ergometrics er800S Art-Nr: 475.051 Version: 05/02...
  • Page 2 Information regarding the latest version is available from the manufacturer. Ergometer ergometrics 800S This Operation Manual Version: 05/02 is valid for following Software-Versions: V3.3 / 9.3 ergoline GmbH Lindenstraße 5 D-72475 Bitz Tel.: +49 7431 98 94 - 0 Fax: +49 7431 98 94 - 127 e-mail: info@ergoline.com internet: http://www.ergoline.com...
  • Page 4 Version: 05/02 er800S Operation Manual Art-No: 475.051...

  • Page 5: Table Of Contents

    Operation Manual Ergometer Type er800S Table of Contents EC Declaration of Conformity ................i Table of Contents ....................iii Foreword......................v What the ergometrics er800S Offers ..............vi Installation ......................1 Features and Connections................... 1 Console....................... 2 1.2.a Keypad ....................... 2 Connectors and Interfaces ...................

  • Page 6: Table Of Contents

    Ergometer Operation Manual Type er800S Table of Contents Configuration ....................19 General ......................19 Setting the Load Algorithm ................19 5.2.a Linear Load Increment Program V 3.3 (3.3) ............19 5.2.a.1 Linear Program Setup ..................20 5.2.b WHO Step Program V 9.3 (9.3) ................. 20 Setting an Individual Load Profile ...............

  • Page 7: Foreword

    We hope that you are successful in your work with the ergometrics er800S ergometer. We always welcome your constructive remarks and improvement suggestions with regard to the unit as well as to this handbook. Your ergoline team, GmbH Lindenstraße 5...

  • Page 8: What The Ergometrics Er800S Offers

    Ergometer Operation Manual Type er800S Introduction What the ergometrics er800S Offers The ergometrics er800S ergometer is a computer controlled, speed independent, bicycle type ergometer which incorporates state-of-the-art technology. The ergometer conforms to DIN 13405 and is certified by the Physikalisch Technischen Bundesanstalt (PTB). The ergometer is speed independent within the range of 30 to 130 revolutions per minute and load range between 25 and 999 Watts.

  • Page 9: Installation

    Operation Manual Ergometer Type er800S Chapter 1: Installation 1.1 Features and Connections power connector, fuse and main power switch clamp handle for seat adjustment clamp handle for handlebar height adjustment clamp handle for handlebar angle adjustment transport casters control panel with keypad and LED displays leveling feet for optimal stability Version: 05/02 er800S Operation Manual...

  • Page 10: Console

    Ergometer Operation Manual Type er800S Chapter 1: Installation 1.2 Control Panel 1.2.a Keypad LED display for heart rate LED display for RPM LED display for power manual power change in 5 Watt steps manual power change in 25 Watt steps set base value for start load set value for pulse limit set base value for load change...

  • Page 11: Connectors And Interfaces

    Note: When using an ergoline suction device it is convenient to connect the unit’s power plug to one of the white outlets at the suction device. The ergometer can then be turned on and off by using the main switch on the suction device.

  • Page 12: Signal Interface

    Ergometer Operation Manual Type er800S Chapter 1: Installation 1.3.c Signal Interface Analog interface for analog control Digital RS-232 interface and analog data transfer to an connector for PC or ECG Note: Interface pin descriptions and related technical data are in the appendix to this manual.

  • Page 13: Starting The Ergometer

    Operation Manual Ergometer Type er800S Chapter 1: Installation Starting the Ergometer Turn on the unit by pressing the main power switch. The unit will subsequently execute a self-test. During this time 888 will be displayed. Upon termination of the self-test the indicators will appear as below: Main power switch 0 0 0 0 0 0...
  • Page 14 Ergometer Operation Manual Type er800S Chapter 1: Installation er800S Operation Manual Version: 05/02 Art-Nr: 475.051...

  • Page 15: Operation

    Operation Manual Ergometer Type er800S Chapter 2: Operation 2.1 Your Helper - the Computer The bicycle type ergometer ergometrics er800S was designed as a training ergometer with which cardiovascular training can be carried out simply - quickly - accurately - safely. To this end, the computer is an indispensable aid.

  • Page 16: Control Panel

    Ergometer Operation Manual Type er800S Chapter 2: Operation 2.2 Control Panel 2.2.a Parameters Displayed on the Control Panel and their Meaning Power in Watts This indicator displays the current power rating in Watts during an ergometric program. Prior to beginning a load program (with the START key) this indicator can also display the start load „Po“...

  • Page 17: Ergometric Process

    Operation Manual Ergometer Type er800S Chapter 3: Ergometric Process 3.1 Preparing the Patient Have the patient take his place on the saddle. Position the saddle so that an angle of approx. 170 degrees exists between the extended axis of the upper body and the thigh when the pedal is at its lowest position.

  • Page 18: Preparing Of The Ergometer

    Ergometer Operation Manual Type er800S Chapter 3: Ergometric Process 3.2 Preparing the Ergometer 3.2.a Preparing an Automatic Ergometric Process 1. Program the desired parameters by first pressing the appropriate red labelled key, „Po“, „P (W/MIN)“ or „HR“. The corresponding LED will blink while you establish the desired value by using the red labelled arrow keys.

  • Page 19: Considerations For Control By Ecg Or Pc

    Operation Manual Ergometer Chapter 3: Ergometric Process Type er800S 3.3 Considerations for Control by ECG or PC The ergometrics er800S ergometer can only be controlled by an ECG or a PC if the ECG or the PC supports the interface protocol of the ergometrics er800S. Ask your ECG or PC program supplier for details.

  • Page 20: Starting An Ecg Or Pc Controlled Ergometry

    Ergometer Operation Manual Type er800S Chapter 3: Ergometric Process 3.4.b Starting an ECG or PC Controlled Ergometry Start the ergometric program on your ECG or PC in accordance with the correspond- ing instructions. After a successful start the patient should begin to pedal. 3.5 Process Flowcharts Note: This ergometric process flow description is only valid for use of the ergo-...

  • Page 21: Manually Controlled Ergometric Process

    Operation Manual Ergometer Type er800S Chapter 3: Ergometric Process 3.5.b Manually Controlled Ergometric Process Set all parameters to 000 Before you begin the ergometric process set all parameters to 000. Ergometry Start Press the „START“ key to begin the ergometric process. Advancing to the base load When ergometry is started and the memory is empty, the ergometer will shift to a base load of 20W.
  • Page 22 Ergometer Operation Manual Type er800S Chapter 3: Ergometric Process er800S Operation Manual Version: 05/02 Art-Nr: 475.051...

  • Page 23: Safety & Maintainance

    Special test methods, e.g. echo-cardiography or other high-risk test methods must not be performed by using the bicycle ergometer. For such purpose special su- pine ergometers are offered by ergoline. Application under outdoor conditions is not permitted. In case the ergometer is not being used according to above conditions, and if because of that any injuries or serious impact on individuals or damage of prop- erty are caused, the manufacturer cannot be held liable.

  • Page 24: Normative Notices

    This unit may only be operated for therapy or diagnosis purposes under the supervision of qualified personal. ergoline GmbH is only responsible for the safety and reliability of this device " all revisions, enhancements, repairs and service to the device are carried out by ergoline authorized personnel (e.g.

  • Page 25: Requirements For Operating Personnel

    4.7.1 Load Unit Inspection EC-Directive 93/42/EEC operator regulations require qualified technical maintenance of the load unit at two years intervals. This is to be performed by an ergoline authorized service technician. 4.8 Cleaning The unit and related accessories should be regularly cleaned, if necessary daily.

  • Page 26: Identification Plate, Labelling

    Ergometer Operation Manual Type er800S Chapter 4: Safety & Maintenance Identification Plate, Labelling label with serial number er800S Operation Manual Version: 05/02 Art-Nr: 475.051...

  • Page 27: Configuration

    RS-232 interface can be used to link with a computer system in order to perform a Conconi test program. (Should you be interested in this feature, ergoline would be glad to provide you with a list of suitable programs.) 5.2 Setting the Load Algorithm...

  • Page 28: Linear Program Setup

    Ergometer Operation Manual Type er800S Chapter 5: Configuration 5.2.a.1 Linear Program Setup Press both „+/-25 WATT“ keys simultaneously. The leftmost display will show either „3.3“ or „9.3". Continue to press these keys until „3.3“ appears in the display. To review the current setting, press both „+/-5 WATT“ keys simultaneously.

  • Page 29: Setting An Individual Load Profile

    Operation Manual Ergometer Type er800S Chapter 5: Configuration 5.3 Setting an Individual Load Profile A load profile can be individually set for any test subject. That is, the operator can pre-set all necessary parameters, such as initial load, load increments and, if desired, pulse limit for the individual prior to the start of ergometry.

  • Page 30: Setting The Pulse Limit

    Ergometer Operation Manual Type er800S Chapter 5: Configuration 5.3.c Setting the Pulse Limit Note: Setting a pulse limit only makes sense when a heart rate is put into the system. This can be done with a pulse monitor, an ear/finger clip or an ECG HF-trigger.

  • Page 31: Appendix A: Interfaces

    Operation Manual Ergometer Type er800S Appendix A: Interfaces The ergometrics er800S ergometer features a number of interfaces. Data can be transmitted or received in analog or digital modes. With these interfaces, external control can be exercised by a PC or an ECG and information can be transferred to a suitable device (PC, ECG, Spirometer, etc.).

  • Page 32: Ergometrics Er800S: Rs-232 Interface

    Ergometer Operation Manual Type er800S Appendix A: Interfaces Ergometrics er800S: RS-232 Interface Software version V.3.3/V.9.3 Interface for an er800S Data Connection to PC or ECG Voltages: logic low logic high Transmit Output (Pin 1) >+7V <-7V Receive Input (Pin 5) >+3V <-3V Baud rate:...
  • Page 33 Operation Manual Ergometer Type er800S Appendix A: Interfaces Exchange Protocol: Command from Return Description PC (ECG) from er800S W xxx <CR> Desired load is set to xxx watts. Load increment is set to xxx watts L xxx <CR> (see chapter 4, load increment algorithm). Initial load Po is set to xxx Watt A xxx <CR>...
  • Page 34 Ergometer Operation Manual Type er800S Appendix A: Interfaces er800S Operation Manual Version: 05/02 Art-Nr: 475.051...

  • Page 35: Appendix B: Hf Input

    ECG trigger (J3, Pin 4). B.2 Pulse Monitor Ergoline offers a Polar type pulse monitor for heart rate input without ECG. This unit features a wireless connection to the ergometer. The receiver part of the pulse monitor is connected to the ergometer’s opto input connector. The QRS impulses are then radio transmitted from the chest-strap of the ergometer.
  • Page 36 Ergometer Operation Manual Type er800S Appendix B: HR Input er800S Operation Manual Version: 05/02 Art-Nr: 475.051...

  • Page 37: Appendix C: Service

    Type er800S Appendix C: Service ATTENTION: Service interventions of any type may only be carried out by ergoline authorized personnel. Improper calibration can lead to endangerment of the test subject. ergoline will not guarantee nor accept any responsibility for damage to the unit or injury to persons which result from improper service interventions.

  • Page 38: Load Unit Calibration

    Ergometer Operation Manual Type er800S Appendix C: Service C.2 Load Unit Calibration Use service connector C when calibrating the load unit (see below). Connect service connector B to jack J2 on the ergometer’s console. „000“ will appear in the leftmost display indicator. The internally measured value will now be interpreted as the zero value (offset) and be automatically stored in EEPROM.

  • Page 39: Appendix D: Specifications

    Operation Manual Ergometer Type er800S Appendix D: Specifications D.1 Specifications Braking principal computer controlled eddy current brakes with torque regulation (RPM independent in accordance with DIN 13405) Load range 25 watts ... 999 watts RPM range 30 RPM... 130 RPM Load accuracy 3% (not less than + 3 watt) Load increments...
  • Page 40 Ergometer Operation Manual Type er800S Appendix D: Specifications The Speed-correlated Capacity of Brake Power Control RPM independent range in accordance with DIN 13405 RPM independent range er800S er800S Operation Manual Version: 05/02 Art-Nr: 475.051...
