Kensington PilotBoard Instruction Manual

PilotBoard Laser Wireless Desktop Set
Instruction Guide
For Windows® 2000
Windows XP (32-bit, SP2 and higher)
Apple Mac OS® X 10.4 through 10.6 (32-bit)
Contents
F Save Copy
Esc Help New Open Cut Paste Print Spell Bold Undrln Italic Print Screen Lock Scroll Pause Break
F2
F1 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14 F15
M
+
_
B
A
Instruction Guide
Instructions Instruction Guide
Bedienungsanleitung Instructions
Instructies Bedienungsanleitung
Istruzioni Instructies
Instrucciones Istruzioni
Instrucciones

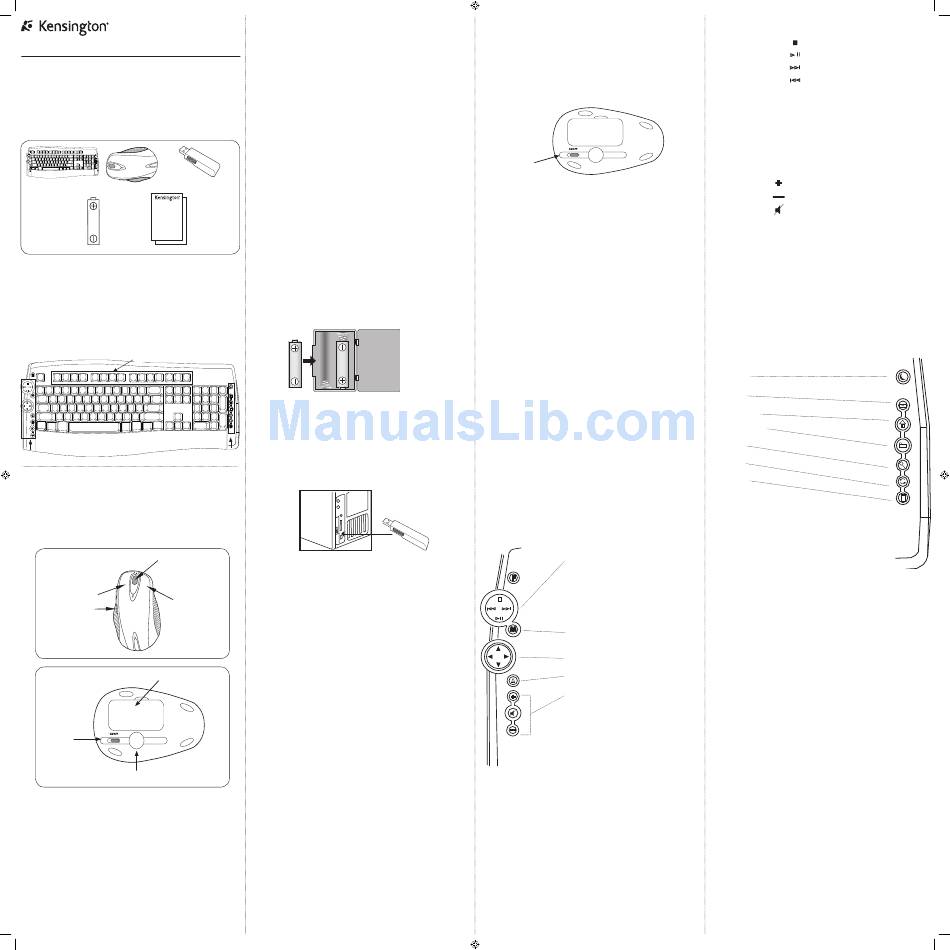

D E
A) Wireless Keyboard
B) 6-Button Mouse
C) USB Wireless Receiver
D) 4 AA Batteries
E) Instruction Guide and Insert
Keyboard Components
I
F
Open Save Cut Copy Print Spell Print
Esc Help New Paste Bold Undrln Italic Scroll Pause
Screen Lock Break
F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14 F15
M
+
_
G
G) Media Buttons. See "The Media Buttons" for details.
H) Internet/Task Buttons. See "The Internet/Task Buttons"
for details.
I) Function Keys. See "The Function Keys" for details.
Mouse Components
L
J
K
M
N
O
P
J) Left-Click Button
K) Right-Click Button
L) Center-Click Button/Scroll Wheel/Tilt Wheel
M) Customizable Buttons
N) Battery Compartment
O) On/Off Switch
P) Laser Sensor
Your new Kensington PilotBoard Laser Wireless Desktop Set gives you
more than just wireless keyboard and mouse use. In addition to
standard functions, you can perform many common Internet and
multimedia functions at a single touch of a button. This guide shows
you how to install and use your new desktop set.
Registration
Be sure to register your new PilotBoard Laser Wireless Desktop
online at www.register.kensington.com. Registration offers you
benefits including free access to technical support (other than
applicable long-distance phone charges).
901-1963-01
KL
System Requirements
Windows® 2000
Windows XP (32-bit, SP2 and higher)
C
Apple Mac OS® X 10.4 through 10.6 (32-bit)
Getting Started
Your Kensington PilotBoard Laser Wireless Keyboard and Mouse are
configured to use out of the box. To use the basic functions, all you
need to do is install the batteries and plug the wireless receiver into
your computer.
1. Install the batteries in the keyboard and mouse according to the
images shown in the battery compartment on each device.
2. Plug the USB connector of the wireless receiver into an active USB
H
port on your computer. On a Windows computer, the computer
will display a Found New Hardware wizard the first time you plug
in the receiver.
The keyboard and mouse work within about 10 meters (30 feet) of
the receiver. If the keyboard or mouse is not working properly:
• Make sure that there are no obstructions between the device and
the receiver.
• Try plugging the receiver into a different USB port on
your computer.
Important: Computer User Health Information
In recent years, medical attention on occupational injuries has
identified normal, seemingly harmless activities as a potential cause
of a wide range of problems collectively known as Repetitive Stress
Injuries (RSI) or Cumulative Trauma Disorders (CTD). It is now
recognized that any repetitive motion my contribute to these health
problems. As a computer user, you might also be at risk.
By paying attention to the way you perform your work, use your
computer and phone, play sports, and work around the house, you
can identify the behaviors that may be putting you at risk. If you
experience pain, swelling, numbness, or weakness in your wrists
or hands (especially during sleep), see your physician immediately.
These symptoms could mean that you are developing a repetitive
stress injury that requires prompt medical attention. For more
detailed information, consult your doctor.
About the Battery
•
Battery life for your PilotBoard Wireless Laser Mouse can be up to
9 months based on 8 hours per day, 5 days per week usage.
• Your mouse includes an optional battery saving feature. To
preserve battery life when not using the mouse for long periods of
time, slide the switch to off.
Switch
• Erratic mouse or keyboard behavior may indicate low battery
power. Replace the batteries to solve this issue.
• Always replace the batteries in sets, using the same age and brand
of batteries. Always dispose of batteries properly.
Download and Install the Optional Software
Download software for Windows® 2000, Windows XP (32-bit, SP2
and higher), and Apple Mac OS® X 10.4 through 10.6 (32-bit) from
www.kensington.com.
Installing this software enables you to do the following on
your keyboard:
• Use the Media and Internet/Task buttons
• Use the F-Lock functions
• View an onscreen alert when the keyboard or mouse battery
is low
• View an onscreen display of Caps Lock, Num Lock, and F-Lock
• Customize your keyboard buttons and functions
This software also enables you to customize your mouse's buttons
and functions, as well as to use the mouse tilt-wheel function on the
center-click button.
The Media Buttons
These buttons let you quickly access functions when you are viewing
photos or videos or listening to music using a media player on your
computer. The Media buttons work with most popular media players.
Media Player dial pad
• Stop
• Play/Pause
• Next
• Previous
M
Media
Scroll dial pad
Eject
Volume controls
Media Player dial pad Contains four functions:
Stop Press to stop the media player.
Play/Pause Press to play or pause the media player.
Next Press to skip to the next item or track.
Previous Press to skip to the previous item or track.
Media Starts your computer's default media player.
Scroll dial pad Press up, down, left, or right to scroll in that direction.
Eject Ejects the media device (such as a CD) that is playing.
Volume controls:
Press to increase the volume.
Press to decrease the volume.
Press to mute the sound.
The Internet/Task Buttons
These buttons let you quickly perform tasks when viewing web
pages in a browser or using an email application. They also perform
common tasks such as opening the My Computer folder or using
your computer's calculator. The Internet buttons work with most
popular web browsers. The buttons may not work with all web
browsers and email applications.
Sleep
Mail
Web|Home
My Computer
Search
Refresh
Calculator
Sleep Puts your system to sleep.
Mail Starts your email application.
Web/Home Starts your default web browser and goes to your
home page.
My Computer On a Windows computer, opens the My Computer
folder. On a Mac computer, displays the
Home Folder.
Search Searches your computer for files based on the search
criteria you enter.
Refresh Refreshes the current web page or document.
Calculator Starts the calculator application.
NOTE: The Sleep, My Computer, and Calculator buttons are not
supported on computers running Windows 2000.
