Summary of Contents for Matrix Fitness MX-E5xc

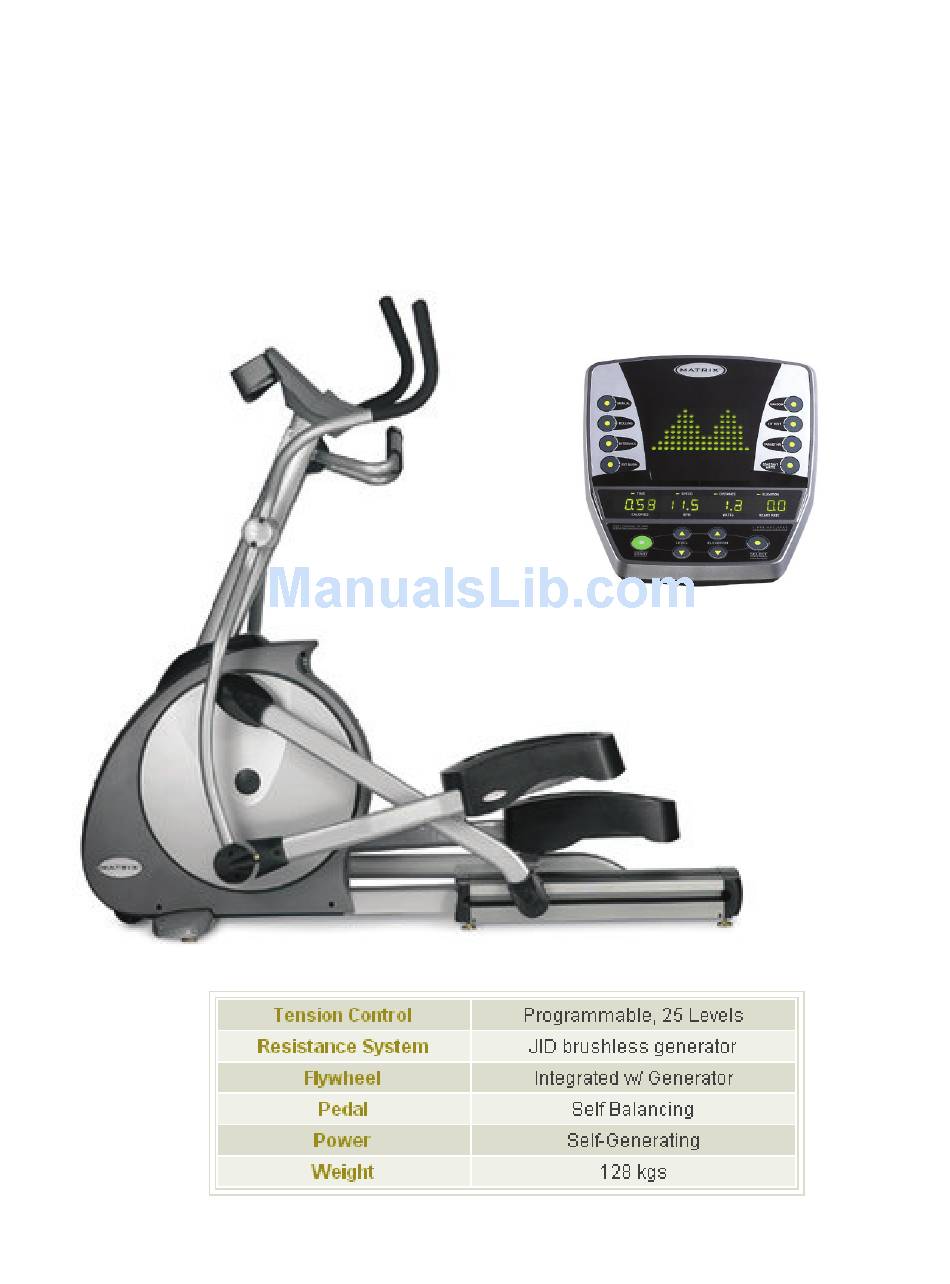

  • Page 1 MX-E5xc SERVICE MANUAL...
  • Page 2: Table Of Contents

    SECTION 1: MAINTENANCE PROCEDURE…………….…...3 1. Preventive maintenance schedule……………………..……..…..4 2. Cleaning the grooves………………………………………..5 SECTION 2: WIRING DIAGRAM INSTRUCTION…...…6 1. MX-E5xc wiring diagram instruction…………………………….7 2. Console cable wiring diagram ………………….………………..8 3. Pulse sensor wire wiring diagram…………………..……...….….8 SECTION 3: CONSOLE ENGINEERING MODE GUIDE…….9 1.
  • Page 3: Section 1: Maintenance Procedure

    SECTION 1 MAINTENANCE PROCEDURE...
  • Page 4: Preventive Maintenance Schedule

    PREVENTIVE MAINTENANCE SCHEDULE VISION BIKE Item Daily Weekly Monthly Quarterly Biannual Annual Console Mounting Inspect Bolts Frame Clean Inspect Display Console Clean Inspect Handlebar Clean Inspect Handrail & Inspect Handlebar Belt Grooves Inspect V Belt Clean Inspect Air Shock Lubricate...
  • Page 5: Cleaning The Grooves

    CLEANING THE GROOVES Caution: If there is any dust in the grooves of the Poly-V belts and pulleys, noises will be generated during operation. Frequency: Every 3 to 4 months. Procedure: 1.Remove the Poly-V belts and check the grooves of the belt for dirt or dust and clean it if any.
  • Page 6: Section 2: Wiring Diagram Instruction

    SECTION 2 WIRING DIAGRAM INSTRUCTION...
  • Page 7: Mx-E5Xc Wiring Diagram Instruction

    MX-E5xc WIRING DIAGRAM INSTRUCTION...
  • Page 8: Console Cable Wiring Diagram

    P01 : Console cable P03 : Pulse sensor wire...
  • Page 9: Section 3: Console Engineering Mode Guide

    SECTION 3 CONSOLE ENGINEERING MODE GUIDE...
  • Page 10: How To Enter Into The Engineering Mode

    How to enter into the engineering mode? Press & Hold both “DOWN” and “UP” at the same time for 3-5 sec. Then, the dot vision display will show “MANAGER” Press the " UP or DOWN" to select you want and press the “SELECT" key enter. key name function Select address or add parameter...
  • Page 11 ADDRESS description SOURCES MAX TIME USER TIME MAX TIME DF LEVEL 150LB 60LB 400LB DF WEIGHT /75kg /30kg /180kg MILE SPEED IS MILE/KM MACHI IS EL/BI/RE CARDIO IS ON/OFF AC DIST AC TIME LANGUAGE ENGLISH VERSION Remarks: If you want to clean the accumulated distance and time, Please enter engineer mode of “MANAGER”...
  • Page 12: Section 4: Troubleshlooting

    SECTION 4 TROUBLESHOOTINGS...
  • Page 13 CONTENTS 1. No display on the console or the display is dim 2. No RPM is displayed during the exercise 3. All or some of the function keys do not respond 4. No resistance change or too hard for pedaling 5.
  • Page 14: No Display On The Console Or The Display Is Dim

    No display on the console or the display is dim Possible causes: 1. Console is damaged or the console cable is not connected properly. 2. Poor connection to all the terminals on the control board. 3. Control board is damaged. 4.
  • Page 15: No Rpm Is Displayed During The Exercise

    No RPM is displayed during the exercise Possible causes: 1. Console cable is damaged or the console cable is not connected properly. 2. Console is damaged. 3. Control board is damaged. Fix: 1. Remove the console and check if the terminal of console cable is connected properly to the console.
  • Page 16: All Or Some Of The Function Keys Do Not Respond

    All or some of the function keys do not respond Possible causes: 1. Keypad connecting plug has been not fit-in properly. 2. Keypad is damaged. 3. Upper board is damaged. Fix: 1. Remove the console cover, and then check if keypad cable is connected properly to the upper board.
  • Page 17: No Resistance Change Or Too Hard For Pedaling

    No resistance change or too hard for pedaling Possible causes: 1. Console is damaged or the console cable is not connected properly. 2. Console cable is damaged. 3. Power resistance is damaged. 4. Control board is damaged. Fix: 1. Remove the console and check if the console cable has been connected properly.
  • Page 18: Feel Slipping While Pedaling

    Feel slipping while pedaling Possible causes: 1. Belt tension is not enough. 2. One way bearing is damaged. Fix: 1. Remove all of the cover. 2. Pedaling and check if the belt tension is correctly. 3. One way bearing is damaged. Replace it with a new one.
  • Page 19: Heart-Rate-Control Function Does Not Work

    Heart-Rate-Control function does not work Possible causes: 1. Bike does not contact with user's chest very well. 2. Bike (Polar-belt) is at low battery status. 3. Bike (Polar-belt) is damaged. 4. Heart-rate-control board is damaged. 5. PCB is damaged. Fix: 1.
  • Page 20: Section 5: Software Upgrade Procedure

    SECTION 5 SOFTWARE UPGRADE PROCEDURE...
  • Page 21: Mx-U5X Bike Software Upgrade Sop

    MX-E5xc BIKE SOFTWARE UPGRADE SOP A. Service Tools & Accessories: Computer (Notebook is preferred) Connection cables ( Parts NO: MQMXCV001 and MQMXCV002) Software MQMXCV001 MQMXCV002...
  • Page 22 B. Steps: MQMXCV002 2. Turn ON the power switch. 3. Find out the software version file in the computer and then actuate/open the file by “click” the mouse twice. 4. The computer will be turned into DOS mode, and run the installation work.
