Page 1: Installation Guide

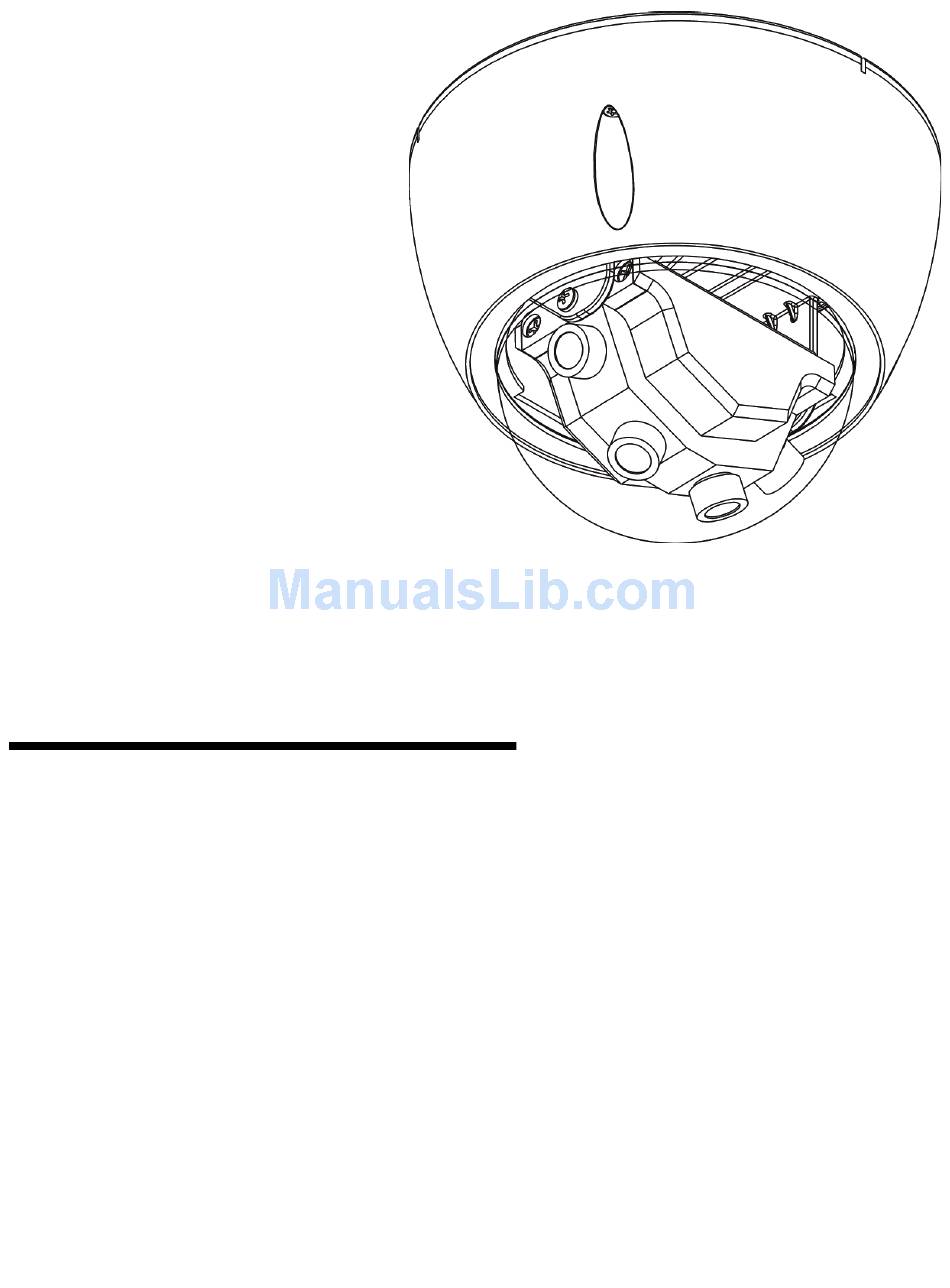

Installation Guide ClearPix 180° Panoramic High Definition IP Dome Camera 920-0029A-Rev1... - Page 2 7 W min. • Any external power supply connected to the dome camera may only be connected to another ClearPix dome camera of the same model series. External power connections must be properly insulated. • Do not connect the dome camera directly to mains power for any reason.
- Page 3 Do not use strong or abrasive detergents when cleaning the dome camera body. • Use only accessories recommended by ClearPix. • Avoid leaving the image sensor exposed for extended periods of time. Always cover the image sensor with either a lens or a dust cap.
- Page 4 Changes or modifications made to this equipment not expressly approved by ClearPix Corporation or parties authorized by ClearPix Corporation could void the user’s authority to operate this equipment.
- Page 5 The contents of this manual and the specifications of this product are subject to change without notice. ClearPix reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible...
-
Page 6: Table Of Contents
Table of Contents Overview ........1 Cover View . -
Page 7: Overview
Overview Cover View Feature Description Dome Cover Vandal proof dome cover constructed out of aluminum with a polycarbonate bubble. Tamper Proof Screws Torx tamper-proof captive screws used to fix the dome cover to the base. -
Page 8: Bottom View
Bottom View Cable Entry Hole Dome Mounting Slot Dome Mounting Slot Dome Mounting Slot Serial Number Tag Feature Description Cable Entry Hole Entry hole for all network, power and I/O cables. Dome Mounting Slot Mounting points for the dome camera. Serial Number Tag Serial and part numbers for the dome camera. -
Page 9: Front View
Front View Feature Description Ethernet Port Accepts an Ethernet connection to a network. NVR communication and image data transmission occurs over this connection. Provides power to camera when connected to a network that provides Power over Ethernet. The Ethernet Port has two status lights indicating link (left) and activity (right). -
Page 10: Rear View
Rear View Feature Description Tilt Lock Screws Provides a locking mechanism for the image tilt adjustment. Connection Status Provides information about the camera’s operation. See the Connecting the Dome Camera to a Network Video Recorder section for more information about the Connection Status LED. It can be turned off during operation for covert installations. -
Page 11: Heater View
Heater View Feature Description Heater Provides heat for the camera to extend the operating temperature range. The heater is not included with all models. -
Page 12: Installation
Small slotted screwdriver with 5/64” or 2 mm blade width — for connecting power when not using Power over Ethernet. Checking the Package Contents Ensure the package contains the following: • ClearPix Panoramic High Definition IP Dome Camera • Terminal Block • T20 TORX tamper resistant key •... -
Page 13: Mounting The Dome Camera
Mounting the Dome Camera The dome camera can be mounted to a surface on its own or using one of the four dome camera mounting accessories: indoor electrical box mounting plate, indoor in-ceiling mount, indoor/outdoor mounting base, and indoor/outdoor pendant mount. To mount the dome camera, complete the following steps: 1. -
Page 14: Connecting Power
Connecting Power NOTE: Do not perform this procedure if the dome camera is powered through Power over Ethernet (POE). If PoE is not available, the dome camera needs to be powered through the removable power connector block on the dome camera. Refer to the dome camera diagrams for the location of the power connector block. -
Page 15: Aiming The Dome Camera
Important: To avoid networking problems, only use network switches recommended by ClearPix. Connect the dome camera to the same network as the server running the ClearPix Video Management software. The dome camera will automatically obtain an IP address and will be detected by the software. For more information on how to configure the dome camera, consult the software user guide. -
Page 16: Ip Address Selection
When the dome camera IP address is set using Zeroconf, its IP address is in the 169.254.* subnet. The dome camera can be set to a static IP address from the ClearPix Video Management software, consult the software user guide for details. -
Page 17: Advanced Features
Advanced Features Upgrading the Firmware The dome camera firmware can be field-upgraded through the ClearPix Video Management software. Consult the software user guide for details on how firmware upgrades are performed. It is possible for the dome camera firmware to become corrupted during an upgrade —... -
Page 18: Connecting To Input/Output Devices
Connecting to Input/Output Devices External devices are connected to the dome camera through the I/O terminal. The pinout for the I/O terminal is shown in the following table and diagram. Table 3: External I/O Terminals Function Description Ground for RS-485 interface. RS-485 RX/TX+ Half-duplex RS-485 interface for controlling external equipment... -
Page 19: Connecting Microphones
Connecting Microphones The dome camera can be connected to an external microphone through the audio connector. The audio connector is a 3.5 mm (1/8”) input for a mono microphone, or a line-in mono signal. The left channel of the stereo signal is used. Consult the software user guide for details on how configure the audio input. -
Page 20: Cleaning
Cleaning Body Use a dry or lightly dampened cloth to clean the camera body. Caution — Do not use strong or abrasive detergents when cleaning the camera body. -
Page 21: Specifications
Specifications Network Network 100Base-TX Cabling Type CAT5 Connector RJ-45 Security Protocol UDP, TCP, SOAP, DHCP, Zeroconf Mechanical Dimensions ØxH 150mm x 120mm 5.9” x 4.7” Weight 0.91kg (2.0lbs) without lens Dome Bubble Polycarbonate, clear Body Aluminum Housing Surface mount, vandal resistant Finish Powder coat, cool gray 2 Adjustment Range... -
Page 22: Limited Warranty & Technical Support
Limited Warranty & Technical Support ClearPix warrants to the original consumer purchaser, that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
