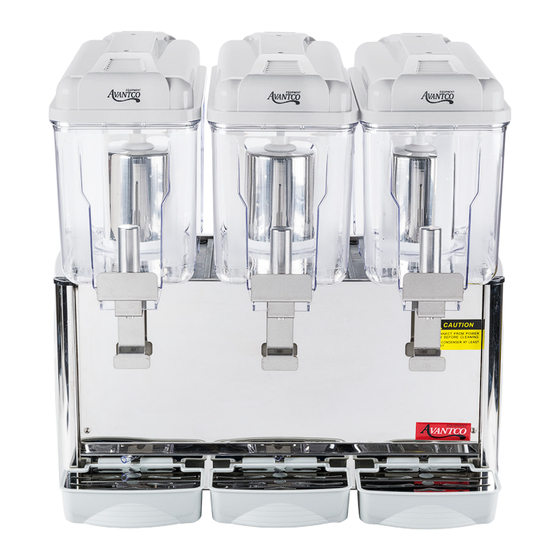

- Page 1 User Manual User Manual Refrigerated Beverage Dispensers Models: RBD31, RBD32, RBD33 9/2015 Please read and keep these instructions. Indoor use only. www.AvantcoEquipment.com...
-
Page 2: Table Of Contents
User Manual Index General Information ................3 Parts Overview & Technical Data ............4 Operating Instructions ..............5-6 Cleaning and Maintenance ............... 7-8 Wiring Diagram ................... 9 Troubleshooting ................10 Warranty Information ............... 10 www.AvantcoEquipment.com... -
Page 3: General Information
User Manual Important Safeguards When using electrical appliances, basic safety precautions should always be followed including the following: 1. Read all instructions 2. Close supervision is necessary when any appliance is used by or near children. 3. Make sure the appliance is OFF when not in use, before putting on or taking off parts, and before cleaning. -
Page 4: Parts Overview & Technical Data
User Manual Parts Overview Voltage (V) Power Dimensions Model Capacity (HZ) (Inch) & Technical data RBD31 1 X 3 Gal 120/60 7x18x25 R134a RBD32 2 X 3 Gal 120/60 17x18x25 R134a RBD33 2 X 3 Gal 120/60 24x18x25 R134a 1. Cover 2. -
Page 5: Operating Instructions
User Manual Operating Instructions Positioning 1. Do not install the appliance in the area where a water jet could be used. 2. Place machine on a horizontal and sturdy surface. 3. Please install the appliance in locations where it can be overseen by trained personnel. - Page 6 User Manual Operating Instructions How To Use: Before using, the tanks and taps of the appliance should be cleaned carefully. Filling To ensure correct usage of the machine ensure that the liquid level of the tank does not go below 3-4 Qt (please use the level lines on the tank for reference).
-
Page 7: Cleaning And Maintenance
User Manual Cleaning and Maintenance Observe the Ambient Temperature The appliance is suitable for an ambient temperature ranging between 16°C - 32°C. Cleaning For health standard and good quality of beverages, clean tanks, lids and the mixing paddles / pumps as often as possible. Caution: Do not clean the appliance by water jet. - Page 8 User Manual Cleaning and Maintenance Disassembling and Assembling the Tanks: Fig. 6 To disassemble and assemble the tanks or to change the rubber tank gaskets : 1. Disconnect the unit by removing the plug. 2. Remove the cover from the tank. 3.
-
Page 9: Wiring Diagram
User Manual Wiring Diagram Item Description Main Switch Mixer / Pump motor Switch M2 (see note 1, 2) Mixer / Pump motor S3 (see note 2) Switch M3 (see note 2) Mixer / Pump motor S4 (see note 2) Switch Thermostat Compressor Relay... -
Page 10: Troubleshooting
Work performed by unauthorized personnel or unauthorized service agencies voids this Warranty. This warranty does not apply to, and Avantco is not responsible for, any warranty claims made on products sold or used outside of the United States.
