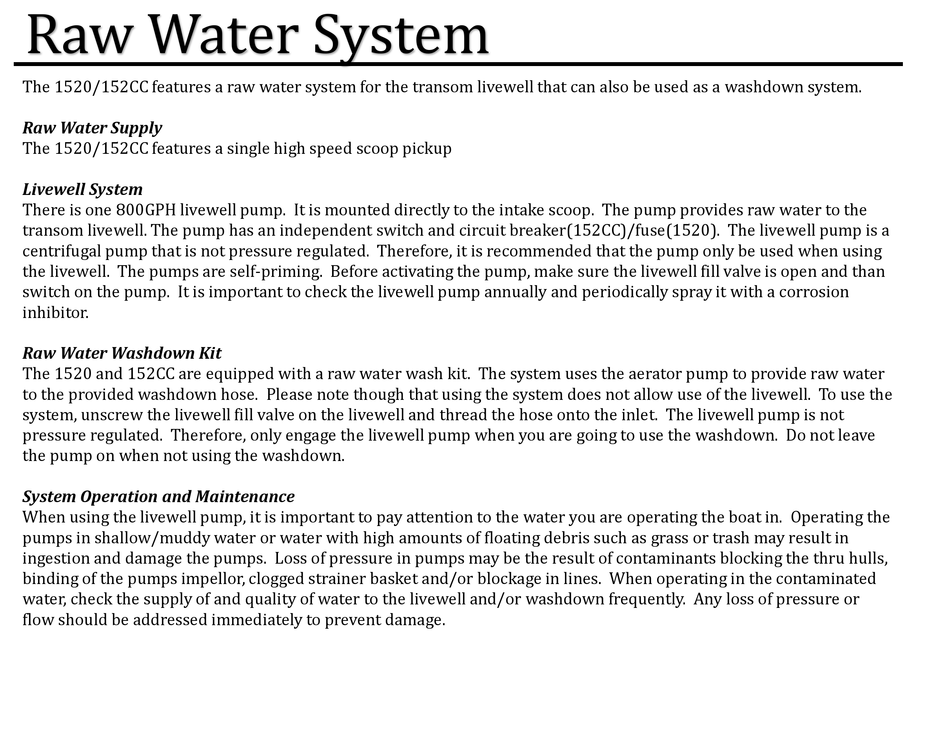

Raw Water System

The 1520/152CC features a raw water system for the transom livewell that can also be used as a washdown system.
The 1520/152CC features a single high speed scoop pickup
Raw Water Supply
There is one 800GPH livewell pump. It is mounted directly to the intake scoop. The pump provides raw water to the
Livewell System
transom livewell. The pump has an independent switch and circuit breaker(152CC)/fuse(1520). The livewell pump is a
centrifugal pump that is not pressure regulated. Therefore, it is recommended that the pump only be used when using
the livewell. The pumps are self-priming. Before activating the pump, make sure the livewell fill valve is open and than
switch on the pump. It is important to check the livewell pump annually and periodically spray it with a corrosion
inhibitor.
The 1520 and 152CC are equipped with a raw water wash kit. The system uses the aerator pump to provide raw water
Raw Water Washdown Kit
to the provided washdown hose. Please note though that using the system does not allow use of the livewell. To use the
system, unscrew the livewell fill valve on the livewell and thread the hose onto the inlet. The livewell pump is not
pressure regulated. Therefore, only engage the livewell pump when you are going to use the washdown. Do not leave
the pump on when not using the washdown.
When using the livewell pump, it is important to pay attention to the water you are operating the boat in. Operating the
System Operation and Maintenance
pumps in shallow/muddy water or water with high amounts of floating debris such as grass or trash may result in
ingestion and damage the pumps. Loss of pressure in pumps may be the result of contaminants blocking the thru hulls,
binding of the pumps impellor, clogged strainer basket and/or blockage in lines. When operating in the contaminated
water, check the supply of and quality of water to the livewell and/or washdown frequently. Any loss of pressure or
flow should be addressed immediately to prevent damage.
