PURE Highway 300Di Owner's Manual

In-car dab digital radio adapter
Hide thumbs Also See for Highway 300Di:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
Highway
300Di
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Highway 300Di and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PURE Highway 300Di

Summary of Contents for PURE Highway 300Di

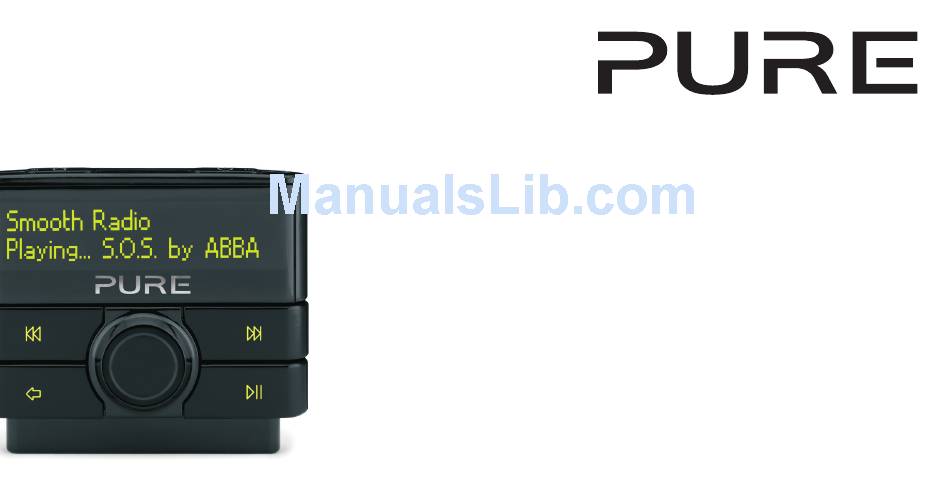

  • Page 1 Highway 300Di Owner’s Manual...
  • Page 3 Highway 300Di Thank you for choosing Highway 300Di. This manual will get you up and running in no time, and explains how to make the most of your Highway 300Di. We’re constantly improving and adding new features to our products. To take advantage of any enhancements made since your product was shipped, please visit www.pure.com where you can check for any updated versions of software and download the latest...

  • Page 4: Safety Instructions

    Safety instructions Warning Fit the unit and the antenna in a position that does not obscure the driver’s view. Fit the unit securely. Do not fit the unit or the antenna in such a way that may interfere with the safe operation of the vehicle, the deployment of air bags or other safety equipment. Avoid objects or liquids getting into the unit.

  • Page 5: Table Of Contents

    Contents Introduction Controls and connectors Getting started Listening to digital radio 11 Connecting an iPod/iPhone/iPad/USB device 13 Using aux-in 14 Removing/fitting the controller 15 Settings 17 Resetting Highway 300Di 18 Technical specifications 20 Pure Warranty Statement for Australia...

  • Page 6: Introduction

    Introduction This manual provides instructions for using Highway 300Di. Highway is designed for professional installation and there are a number of different options for how Highway can be connected to your existing car stereo depending on your car and your stereo.

  • Page 7: Controls And Connectors

    Controls and connectors Controller Presets/More button Power/Home button Digital Radio: Press to view and cycle through station Press to switch Highway on. presets list. Press again to cycle through iPod/USB: Press and repeat to change track shuffle available sources and settings. options.

  • Page 8: Main Unit

    Main unit The Highway 300Di main unit is usually installed out of sight, so you may only see cable extensions enabling you to connect to the Aux In and USB sockets. 1 USB Usually connected to the supplied USB extension cable. Connect your iPod or USB media player to the extension (or directly) for playback and charging.

  • Page 9: Getting Started

    Highway 300Di Startup screen Forecourt pause Ideal for quick stops at the petrol station or cashpoint, forecourt pause keeps Highway 300Di on standby for 15 minutes after you remove the keys, making sure it’s ready for your return. Restart the ignition or...
  • Page 10 (default 87.6 MHz). You can change this frequency in Settings, see page 15. Selecting your audio source Digital radio Highway 300Di gives you a choice of available audio sources depending on your installation. iPod Choose from Digital radio, USB (USB connection), iPod (USB connection) or Auxiliary input via (3.5mm connection) as follows:...

  • Page 11: Listening To Digital Radio

    Listening to digital radio To listen to digital radio, select the Digital radio source as described on page 8. Selecting stations Amazing Radio Turn the Select knob to browse the list of available stations and press the Select knob to change station. Smooth Radio UK Changing station Changing the information on the display...
  • Page 12 Using presets BFBS Radio dedications to and from You can save up to 30 of your favourite digital stations in a presets list for easy access. By default some of our favourite partner stations appear as the first few presets. You can replace these if you want. Tune to your favourite station Saving presets 1.

  • Page 13: Connecting An Ipod/Iphone/Ipad/Usb Device

    Connecting an iPod/iPhone/iPad/USB device Connect your iPod, iPhone, iPad* or USB device (MP3 player, mobile phone or USB memory stick) to Highway 300Di’s USB input using its cable. (If your main unit is inaccessible your installer will have fitted a USB extension cable for easy access.) Once connected, you can use Highway’s controller to select tracks and control playback.
  • Page 14 Information on the selected track. Track time Track name with time into track and time remaining. Note: Apple devices which draw more than 500mA when charging such as iPad will charge more quickly if iPod source is selected on Highway 300Di.

  • Page 15: Using Aux-In

    Using aux-in Connect the line out or headphone socket of any audio device to Highway 300Di using an appropriate 3.5mm to 3.5mm audio cable plugged into the AUX in input on Highway. Depending on the position in which your main unit has been fitted this cable may have been pre-fitted by your installer.

  • Page 16: Removing/Fitting The Controller

    Hold the bracket and pull the controller firmly up by the sides to remove it. If Highway 300Di is switched on when you remove the controller it will continue radio or track playback until you replace and stop playback, turn off Highway or turn off your ignition.

  • Page 17: Settings

    V1.0 4.85.1.26.007 Software updates for your Highway 300Di may be made available in the future which you can load on Insert USB stick then pres to Highway using a USB stick connected to the USB input. If you register your product and include a valid e-mail address you will receive notification of software updates (register at www.pure.com/register).
  • Page 18 1. Press the button, select Settings > Restore defaults. 2. Press the Select knob to confirm you want to restore Highway 300Di defaults. Confirm restore defaults Highway will reset, switch off and on again, you will then be asked to choose your preferred language, an autotune will be performed to refresh the digital station list and Highway will tune to a digital station.

  • Page 19: Resetting Highway 300Di

    - and at the same time insert the controller back into the mounting bracket. 3. Let go of the buttons when you see the Highway logo appear on the controller screen and wait for Highway 300Di to reset.

  • Page 20: Technical Specifications

    Hereby, Pure declares that this Band II LPD device is in compliance with the essential requirements and other provisions of the Directive 1999/5/ EC. Please go to www.pure.com for the full Declaration of Conformity. Suitable for use in the following markets:- A, B, BG, CY, CZ, DK, EE, FIN,...

  • Page 22: Pure Warranty Statement For Australia

    • If equipment has been used according to its accompanying instruction manual and is used in a domestic situation, a two year warranty period applies. How do you make your claim? Call 1800 988 268 for instructions on how to return your Pure product for warranty service or go to http://support.pure.com/au/ and complete the contact us form. What’s NOT covered by this warranty? Under this express warranty Pure will not be liable for loss or damage of any kind whatsoever, whether direct, indirect, incidental, consequential or otherwise.

  • Page 23: Warranty Information

    The recycling of with your unit please contact your supplier or contact Pure Support at the address shown on the materials will help to conserve natural resources. For more detailed information rear of this manual.
  • Page 24 Pure UK Headquarters Pure Australasia Pty Ltd Imagination Technologies Ltd. PO Box 5049 Home Park Estate Wonga Park Kings Langley Victoria 3115 Herts, WD4 8LZ Australia United Kingdom sales.au@pure.com www.pure.com http://support.pure.com/au http://support.pure.com 103YK...
