Denon DBP-1610 Service Manual
  1. Manuals
  2. Brands
  3. Denon Manuals
  4. Blu-ray Player
  5. DBP-1610
  6. Service manual

Denon DBP-1610 Service Manual

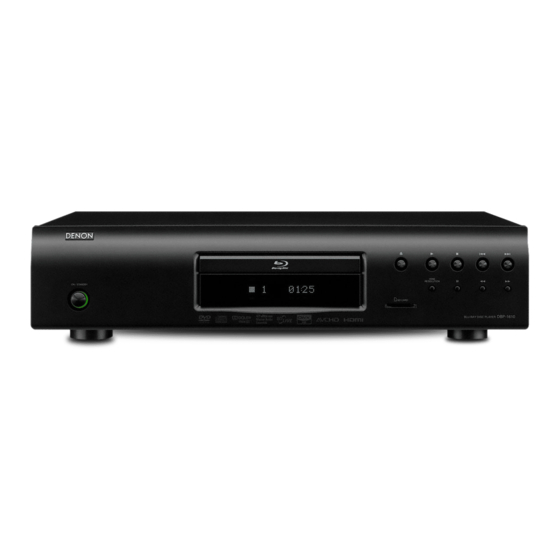

Blu-ray disc/dvd video player
Hide thumbs Also See for DBP-1610:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Ver. 2
Please refer to the
MODIFICATION NOTICE.

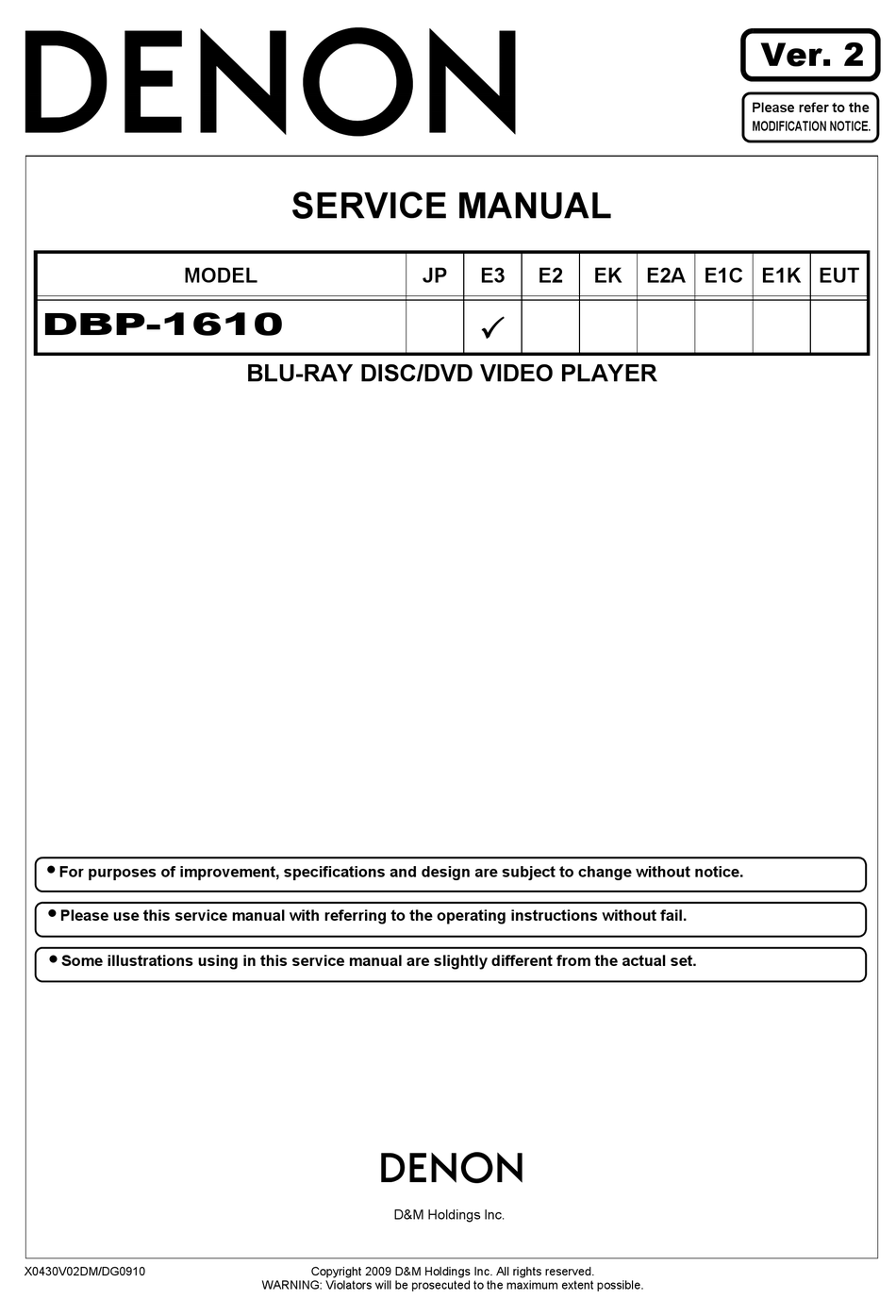

SERVICE MANUAL
MODEL
JP
E3
E2
EK
E2A E1C E1K EUT
DBP-1610
BLU-RAY DISC/DVD VIDEO PLAYER
For purposes of improvement, specifications and design are subject to change without notice.
●
Please use this service manual with referring to the operating instructions without fail.
●
Some illustrations using in this service manual are slightly different from the actual set.
●
e
D&M Holdings lnc.
X0430V02DM/DG0910
Copyright 2009 D&M Holdings Inc. All rights reserved.
WARNING: Violators will be prosecuted to the maximum extent possible.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DBP-1610 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Denon DBP-1610

Summary of Contents for Denon DBP-1610

  • Page 1 MODIFICATION NOTICE. SERVICE MANUAL MODEL E2A E1C E1K EUT DBP-1610 BLU-RAY DISC/DVD VIDEO PLAYER For purposes of improvement, specifications and design are subject to change without notice. ● Please use this service manual with referring to the operating instructions without fail.

  • Page 2: Safety Precautions

    Care is also taken with the positions of the wores omsode amd clamps or other dangerous situations. are used to keep wires away from heating and high voltage parts, so be sure to set everything back as it was originally. DBP-1610...
  • Page 3 DIMENSION s (91) (139) DBP-1610...
  • Page 4 If wire bundles are untied or moved to perform adjustment or parts replacement etc., be sure to rearrange them neatly as they were originally bundled or placed afterward. Otherwise, incorrect arrangement can be a cause of noise generation. Wire arrangement viewed from the top DBP-1610...

  • Page 5: Specifications

    SPECIFICATIONS DBP-1610...
  • Page 6 DBP-1610...

  • Page 7: Laser Beam Safety Precautions

    30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser beam. CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in hazardous radiation exposure. Drive Mechanism Assembly Laser Beam Radiation Laser Pickup Turntable Location: Inside Top of BD mechanism. DBP-1610...

  • Page 8: Safety Check After Servicing

    Connected in i 2mA DC Antenna terminals parallel 120 V RES. i 0.7mA AC Peak Connected in A/V Input, Output i 2mA DC parallel Note:This table is unofficial and for reference only. Be sure to confirm the precise values. DBP-1610...

  • Page 9: Standard Notes For Servicing

    2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from Connector damage. (Fig. S-1-2) * Be careful to avoid a short circuit. DBP-1610...
  • Page 10 CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6) 4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6) DBP-1610...

  • Page 11: Installation

    Pin 1 of the Flat Pack-IC is indicated by a " " mark. Fig. S-1-7 Hot Air Blower Presolder Iron Wire Soldering Iron To Solid Mounting Point Fig. S-1-5 Flat Pack-IC Fig. S-1-8 Fine Tip Soldering Iron Flat Pack-IC Tweezers Fig. S-1-6 DBP-1610...

  • Page 12: Instructions For Handling Semi- Conductors

    Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing. <Incorrect> <Correct> Grounding Band 1MΩ 1MΩ Conductive Sheet or Copper Plate DBP-1610...

  • Page 13: Disassembly Flowchart

    D2 --------------- following torque. Front Torque D3 7(S-3), (S-4) Bracket 0.45 ± 0.05 N·m SD CBA D3 2(S-5), *CN5001 5(S-6), (S-7), 2(S-8), Rear Panel D4 (S-9), (S-10), 8(S-11), 2(S-12), *CN1006 Motor DC D4 --------------- [10] Inlet CBA D4 *CN1001 DBP-1610...

  • Page 14: Reference Note

    & BD Mechanism Assembly as a unit. (L-1) CN3001 [1] Top Cover (S-1) (S-1) [2] Tray Panel (L-2) [3] Front Assembly Fig. D2 (S-5) CN5001 (S-4) (S-1) [7] SD CBA [6] Front Bracket (S-3) (S-3) Fig. D1 Fig. D3 DBP-1610...
  • Page 15 [9] Motor DC Fan CN1001 CN6001 CN7601 (S-17) CN1006 [16] Loader Bracket Fig. D4 (S-13) * See Reference Notes 3. Fig. D6 [12] Audio CBA CN2007 CN2008 CN2005 (S-19) (S-18) [17] Power Supply (S-20) [18] Power Holder Fig. D5 Fig. D7 DBP-1610...

  • Page 16: How To Eject Manually

    3. How to Eject Manually 1. Remove the Top Cover. 2. Insert a screwdriver, etc. into the straightly so that the Portion A is pushed. 3. Pull the tray out manually and remove a disc. Screwdriver, hexagon wrench Portion A DBP-1610...

  • Page 17: How To Initialize The Blu-Ray Disc Player

    " ******* " differ depending on the models. Version Info F/W Name : ******* Version : *.*** Region : *-* EEPROM CLEAR : OK EEPROM CLEAR <STOP> EXIT <POWER> Fig. b Fig. c 5. To exit this mode, press [POWER OFF] button. DBP-1610...

  • Page 18: Firmware Renewal Mode

    F/W Name : ******* Ver. *.*** ************A*.b20 Version : *.*** (*1) Now Loading... Region : *-* EXIT : POWER EEPROM CLEAR <STOP> EXIT <POWER> Fig. c Programming Mode Screen (Example) Fig. g Fig. d VFD in Programming Mode (Example) DBP-1610...
  • Page 19 " ******* " differ depending on the models. Version Info F/W Name : ******* Version : *.*** Region : *-* EEPROM CLEAR : OK EEPROM CLEAR <STOP> EXIT <POWER> Fig. h Fig. i To exit this mode, press [POWER OFF] button. DBP-1610...

  • Page 20: Firmware Renewal Mode (Network Update)

    The unit will start updating the firmware version. It may take a while to complete the updating. (Please wait until “100%” appears on the front panel display.) 8. After updating finishes, this unit will restart and open the disc tray automatically. DBP-1610...

  • Page 21: Service Mode

    Surround Back LR Front Lch Center CHANNEL Front Rch TEST Surround Rch Surround Back Surround Back Lch Surround Lch Sub woofer SD CARD TEST DEFAULT Default setting SETTING Note: If some test are performed continuously, any error will occur DBP-1610...
  • Page 22 Note: Press the number key to select items. Or, press the cursor button (up/down) to select items and press [ENTER] button. INDICATION DESCRIPTION REMARK F/W Name Model Name E5K***D, etc. Region BD region - DVD region A-1, etc. Release Ver. Release version D.jpp, etc. DBP-1610...

  • Page 23: Tray Lock Mode

    3. To exit this mode, press [SETUP], [TOP MENU], [3], [AUDIO], [0] and [SETUP] buttons on the remote control unit in that order. "Trade-Off" appears in the upper right corner on the screen, and Fig. b appears on the VFD for 2 seconds. Fig. b DBP-1610...

  • Page 24: Remote Lock Mode

    Fig. b VFD a. If [STILL/PAUSE] button is not pressed for 2 seconds or any other button is pressed within 2 seconds, the unit will be released from "Remote Lock Mode". b. When initializing, set the Remote Lock Mode "off". DBP-1610...

  • Page 25: Troubleshooting

    Is the "L" signal outputted to the collector of Is the "H" signal inputted to the base of Q2603? Q2603? Replace Q2603. Check FL-SW line and service Check Q2601, Q2602, D2603 and their periphery, it if defective. and service it if defective. DBP-1610...
  • Page 26 Check D1025, D1030, D1031, C1029, C1034 and their periphery, and service it if defective. ls "L" signal outputted to the collector of Q1005? Check Q1005 and PWSW1 line and service it if defective. Check IC1008, D1040 and their periphery circuit, and service it if defective. DBP-1610...
  • Page 27 When pressing each switches (SW3001, SW3101, Check the switches (SW3001, SW3101, SW3102, SW3104, SW3106, SW3108, SW3110-3113) and their SW3102, SW3104, SW3106, SW3108, SW3110-3113), do the voltage of Pin(1, 62) of IC2000 increase? periphery, and service it if detective. Replace IC2000. DBP-1610...
  • Page 28 Replace the BD Main CBA & BD Mechanism Assembly. FLOW CHART NO.17 The disc tray cannot be opened and closed. [No Disc] indicated. Both functions of picture and sound do not operate normally. Replace the BD Main CBA & BD Mechanism Assembly. DBP-1610...
  • Page 29 VIDEO OUT terminal (JK4002, JK4003, JK4005)? IC4000 and service it if defective. Check the periphery of the VIDEO OUT terminal Are the composite video signals outputted to (JK4004) from Pin(25) of IC4000 and service it if the VIDEO OUT terminal (JK4004)? defective. DBP-1610...
  • Page 30 IC2200? IC2200 7PIN AUDIO(L) Replace IC2200. IC2200 1PIN AUDIO(R) Check the periphery between Pin(1,7) of IC2200 Are the audio signals outputted to the audio and the audio terminal (JK2200, JK2201), and terminal (JK2200, JK2201)? service it if detective. DBP-1610...
  • Page 31 1. Remove the Top Cover, Tray Panel, Front Assembly, Front Bracket, Video CBA and AV PCB Holder. 2. Disconnect Connectors and replace the BD Main CBA & BD Mechanism Assembly. Refer to CABINET DISASSEMBLY INSTRUCTIONS. BD Main CBA & BD Mechanism Assembly DBP-1610...

  • Page 32: System Control Block Diagram

    BLOCK DIAGRAMS System Control Block Diagram KEY-2 KEY-1 DBP-1610...
  • Page 33 Digital Signal Process 1 Block Diagram DBP-1610...
  • Page 34 Digital Signal Process 2 Block Diagram DBP-1610...

  • Page 35: Video Block Diagram

    Video Block Diagram TMDS SERIALIZER TMDS ENCODER HDCP CIPHER/ ENCRYPTOR CONTROLLER AUDIO DBP-1610...

  • Page 36: Audio Block Diagram

    Audio Block Diagram DBP-1610...

  • Page 37: Power Supply Block Diagram

    Power Supply Block Diagram DBP-1610...
  • Page 38 ---MEMO--- DBP-1610...

  • Page 39: Schematic Diagrams And Test Points

    2. All resistance values are indicated in ohms (K = 10 , M = 10 3. Resistor wattages are 1/4W or 1/6W unless otherwise specified. 4. All capacitance values are indicated in F (P = 10 5. All voltages are DC voltages unless otherwise specified. DBP-1610...
  • Page 40 : Indicates a test point with a jumper wire across a hole in the PCB. : Used to indicate a test point with a component lead on foil side. : Used to indicate a test point with no test pin. : Used to indicate a test point with a test pin. DBP-1610...
  • Page 41 Audio 1/2 Schematic Diagram DBP-1610...
  • Page 42 Audio 2/2 Schematic Diagram DBP-1610...
  • Page 43 Video Schematic Diagram DBP-1610...
  • Page 44 Otherwise it may cause some components in the power supply circuit to fail. d'Incele n'utiliser que des fusible de même type. Risk of fire-replace fuse as marked. "This symbol means fast operating fuse." "Ce symbole reprèsente un fusible à fusion rapide." DBP-1610...
  • Page 45 Front A & Front B Schematic Diagram DBP-1610...
  • Page 46 Remote Jack Schematic Diagram DBP-1610...
  • Page 47 SD Schematic Diagram DBP-1610...
  • Page 48 BD Main 1/11 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. DBP-1610...
  • Page 49 BD Main 2/11 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. DBP-1610...
  • Page 50 BD Main 3/11 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. DBP-1610...
  • Page 51 BD Main 4/11 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. DBP-1610...
  • Page 52 BD Main 5/11 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. DBP-1610...
  • Page 53 BD Main 6/11 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. DBP-1610...
  • Page 54 BD Main 7/11 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. DBP-1610...
  • Page 55 BD Main 8/11 Schematic Diagram DBP-1610...
  • Page 56 BD Main 9/11 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. DBP-1610...
  • Page 57 BD Main 10/11 Schematic Diagram DBP-1610...
  • Page 58 BD Main 11/11 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. DBP-1610...
  • Page 59 Pin 22 of CN2007 VIDEO-Cr 0.2V 10μs AUDIO(L) 0.5ms Pin 7 of CN4000 Pin 11 of CN4000 SPDIF 0.1μs VIDEO-Cb 0.2V 10μs C4018 PLUS LEAD VIDEO-CVBS 0.5V 20μs NOTE: Input Signal (DVD) VIDEO: 75% COLOR BAR AUDIO: 1KHz, 0dB DBP-1610...

  • Page 60: Wiring Diagram

    SLD1(+) AC120V SLD2(-) AC120V SLD2(+) SDDAT3 SDDAT2 P-ON+5V(2) HU(+) SDDAT1 HU(-) P-ON+1.2V HV(+) P-ON+1.2V SDDAT0 HV(-) P-ON+1.2V HW(+) P-ON+1.2V SDCLK HW(-) D+3.3V HB(-) D+3.3V P-ON+1.8V SDDAT3 P-ON+1.8V P-ON+1.8V TRAY-IN SDDAT2 TRAY-OUT P-ON+3.3V INLIMIT P-ON+3.3V LOAD(+) P-ON+10.5V LOAD(-) P-ON+10.5V P-ON+5V(1) DBP-1610...

  • Page 61: Lead Identifications

    PQ070XF01SZH KTC2026-Y/P 2SK3563(Q) STC403 PQ070XFC1SZF 2SK3563(Q M) Note: A: Anode K: Cathode E: Emitter C: Collector B: Base R: Reference G: Gate D: Drain S: Source 1 2 3 4 B C E G D S E C B DBP-1610...
  • Page 62 --MEMO-- DBP-1610...
  • Page 63 Assembly 2L081 2L054 2L072 2L089 2L081 Audio CBA W009 FM1001 Inlet CBA W007 2L040 2L027 2L051 2L015 SD CBA Power Supply CBA 2L057 Front A CBA 2L036 2L018 2L026 2L036 2L036 2L018 2L018 2L036 2L018 2L036 Front B CBA DBP-1610...
  • Page 64 --MEMO-- DBP-1610...
  • Page 65 A6 9H2407001020S FOOT ASSEMBLY E5H50UD 1VM430199A A8 9H2418001990D TRAY PANEL ASSEMBLY E5KA0UD 1VM227177 LABEL SERIAL NO. E57E0UD LICENSE LABEL E5KA0UD FRONT BRACKET(B2 DENON MOLD) E5KC1UD S/No.~04800 1VM330757 FRONT BRACKET(B2 DENON MOLD) E5KC1UD S/No.04801~ 1VM330757C POWER HOLDER E5KA0UD 1VM122880 LEAD CLAMPER 100MM...
  • Page 66 B-TIGHT SCREW M3X8 E5E00UD 1VM428563 2L073 B-TIGHT SCREW M3X8 E5E00UD 1VM428563 2L079 S-TIGHT SCREW M3X6 E5E00UD 1VM428564 2L081 S-TIGHT SCREW M3X6 E5E00UD 1VM428564 2L082 S-TIGHT SCREW M3X6 BIND HEAD+BLACK GBHS3060 2L083 S-TIGHT SCREW M3X6 E5E00UD 1VM428564 2L089 S-TIGHT SCREW M3X6 E5E00UD 1VM428564 DBP-1610...
  • Page 67 PACKING VIEW Upper Side Lower Side DBP-1610...
  • Page 68 AV CORD RCA(M*2)TO RCA(M*2) WPZ0102LTE01 X15 00D9H26000887 AC CORD WITH A GND WIRE UL/CSA/ 162/NO/BLACK WAV0162LW001 CORD W/O A GND WIRE UL/CSA(VW-1)/152/NO/ WAV0152LTE01 CORD W/O A GND WIRE UL/CSA(VW-1)/152/NO/ WAV152ZHN001 X19 9H2307002060D REMOTE CONTROL UNIT NB420UD NB420UD WARRANTY SHEET E6E80UD 1VM323952C DBP-1610...
