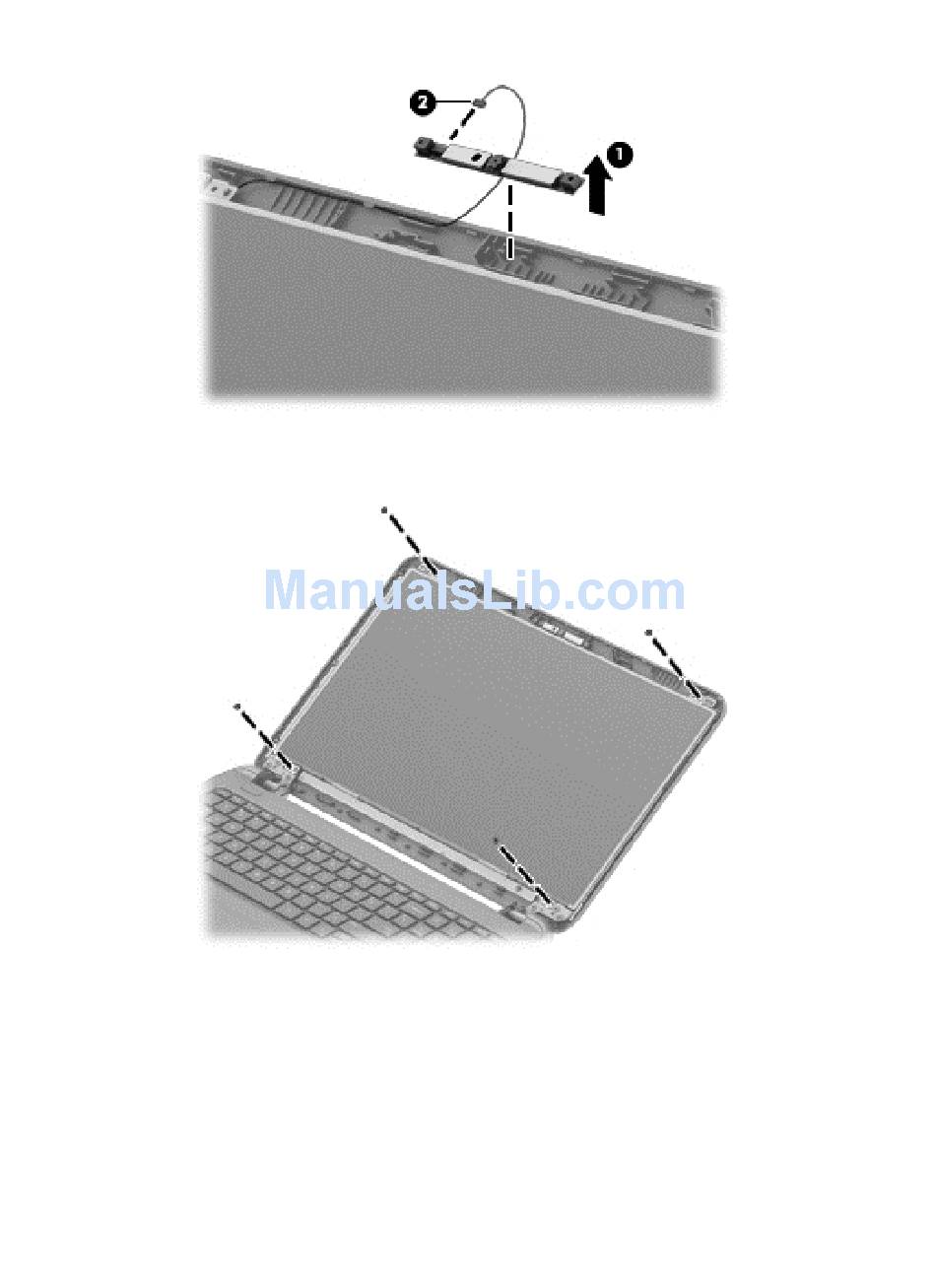

Disconnect the cable (2) from the module.
5.
To remove the display panel:
a.
Remove the four Phillips PM2.5×3.5 screws that secure the display panel to the enclosure.
b.
Rotate the display panel onto the keyboard to gain access to the display cable connection on the
back of the panel (1).
Component replacement procedures
45
