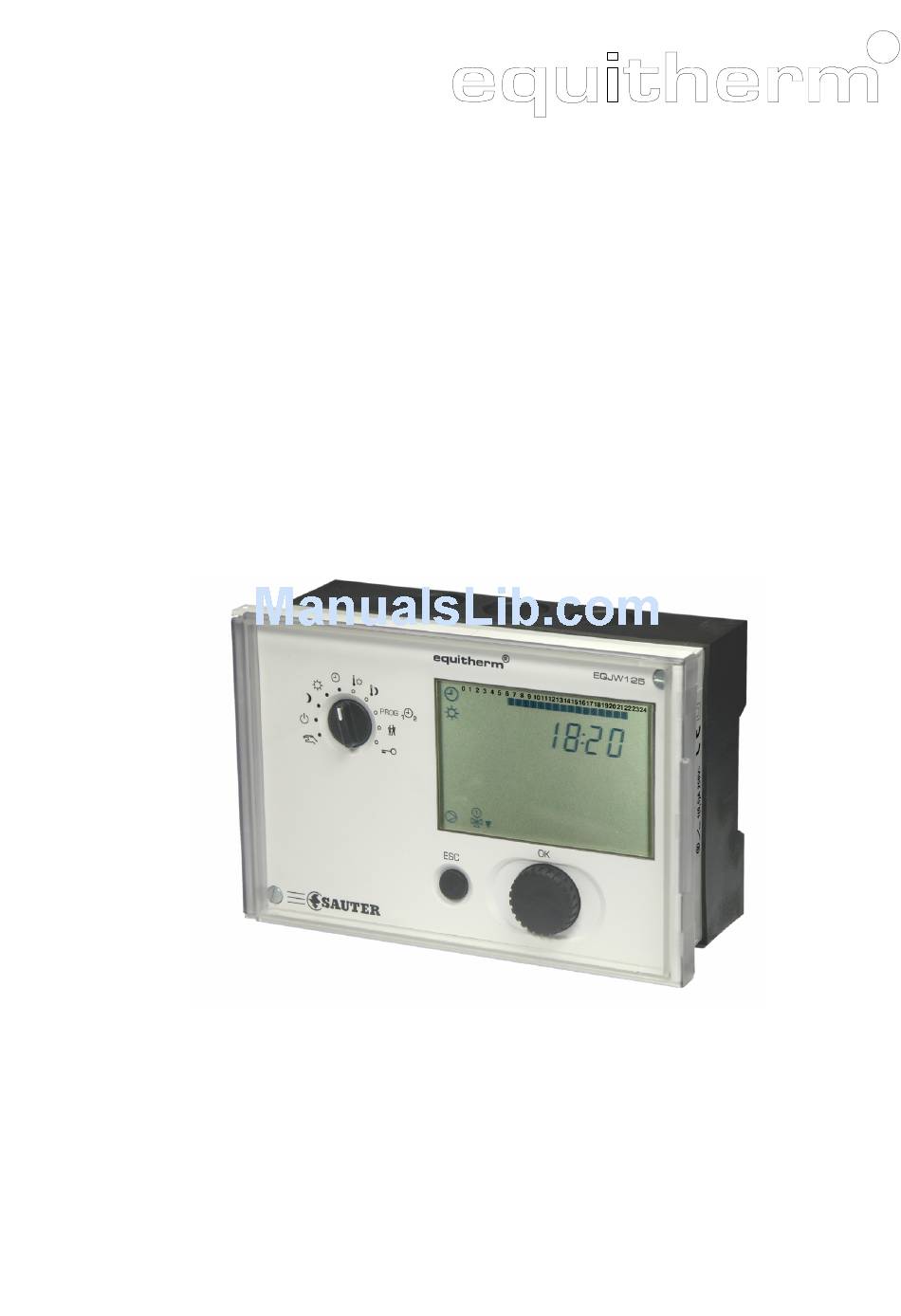

Page 1: Heating Controller
Heating controller User's Manual EQJW 125 7001029003 T8 Sauter Components 7001029003 T8... - Page 2 Sauter Components 7001029003 T8...
-
Page 3: Table Of Contents
Calendar switching programme ........................... 26 4.5.1 Calling up the calendar switching programme..................... 26 4.5.2 Viewing switching commands..........................27 4.5.3 Entering a switching command..........................27 4.5.4 Changing and deleting a switching command ..................... 27 Temporary temperature change ..........................28 Sauter Components 7001029003 T8... - Page 4 14 Overview of controller settings............................40 14.1 List of SERVice parameters ............................40 14.2 List of communication parameters ..........................40 14.3 Weekly switching programme ............................. 41 14.4 Calendar switching programme........................... 41 15 Index of key words ................................42 Sauter Components 7001029003 T8...
-
Page 5: General Information
1 General information 1.1 Introduction Thank you for purchasing a heating controller from Sauter. The equitherm EQJW 125 is a quality product from one of the leading manufacturers of controls products for heating, ventilation and air-conditioning. The equitherm EQJW 125 is a compact weather-compensating heating controller with switched outputs to control the flow temperature. -
Page 6: Description Of The Controls
Access to SERVice and communication level Access to manual mode Normal mode corresponds to nominal mode as per EN12098-1. Back-up mode means that the heating is switched off. The anti-frost function is active. Sauter Components 7001029003 T8... -
Page 7: Input Knob
Display of setpoint temperature; flashing: display of actual temperature Display of flow temperature Display of outdoor temperature Display of room temperature Controller is in summer mode Calendar switching programme is currently active An error has occurred (see Section 6) Floor-drying (operational heating) is active Sauter Components 7001029003 T8... -
Page 8: Commissioning
3.1 Operating the device for the first time When you operate the equitherm EQJW 125 for the first time, you have to set the date and time. The controller is then basically ready to use. However, depending on the particular application, it may be necessary to change more settings after this. -
Page 9: Manual Mode
'Heating medium pump output' option on the menu Push the input knob; select the menu option Turn the input knob; specify pump output (0= pump off, 1=pump on) Push the input knob; the setting is accepted Sauter Components 7001029003 T8... -
Page 10: Ending Manual Mode
Some of the parameters cannot be changed - they can only be viewed (version number, status information). 3.3.1 Accessing SERVice mode Set the rotary switch to the Service position Push the input knob Turn the input knob, display the code Push the input knob; the first SERVice parameter is shown Sauter Components 7001029003 T8... -
Page 11: Viewing Service Parameters
Turn the input knob; the value for the parameter is changed Push the input knob; the new value is confirmed Push the ESC button to cancel the procedure. The value is not accepted unless it has already been confirmed. Sauter Components 7001029003 T8... -
Page 12: List Of Service Parameters
Summer/winter time change-over 01.01...31.12 SP24 25.03 Winter/summer time change-over 01.01...31.12 P23 = P24 means no summer/ winter time change-over SP60 Floor drying 0;7d;8;9 0,7d;8;9 0 = not enabled 7d = enabled 8 = malfunction 9 = successfully completed Sauter Components 7001029003 T8... -
Page 13: Explanations Of Service Parameters
SP11 Correction of outdoor temperature The measured value for the outdoor temperature is adjusted with the help of this parameter. The value that is entered is added to the measured value for the outdoor temperature. Sauter Components 7001029003 T8... - Page 14 Valves with a motorised actuator need a certain time (known as the valve run-time) to open or close completely. This SERVice parameter is used to set the equitherm EQJW 125 to the run-time for the valve drive that is being used. Optimal control quality and various protective functions are only ensured if the valve run-time is set correctly.
- Page 15 SP23, P24 Summer/winter or winter/summer time-change Thanks to the calendar time-switch integrated into the equitherm EQJW 125, the winter/summer time-change and the summer/winter time-change are carried out automatically. The date for the change-over is specified by the value for SERVice parameters SP23 and SP24.
-
Page 16: Communication Mode
3.4.2 Viewing the communication parameters Turn the input knob; select the communications parameter you want Push the input knob; the value for the parameter is shown BAUD To leave the value unchanged, push ESC to exit from the display Sauter Components 7001029003 T8... -
Page 17: Changing Communication Parameters
BAUD Push the input knob; the new value is confirmed Push the ESC button to cancel the procedure. The value will not be accepted unless it has already been confirmed. Sauter Components 7001029003 T8... -
Page 18: List Of Communication Parameters
0 = not enabled; 1 = enabled CP24 MOD bus via RS485 or MOD bus via modem: control station commands 0…1 expire after control station is inactive for 30 minutes 0 = not enabled; 1 = enabled Sauter Components 7001029003 T8... -
Page 19: Explanations About Individual Communication Parameters
If CP 12 is set to 1, this controller sends its current flow temperature (TF) setpoint on the device bus. CP13 Device bus: receive heat requirement If CP 13 is set to 1, the controller receives flow temperature requirement requests from the device bus. The mixer is then controlled to this temperature as a minimum. Sauter Components 7001029003 T8... - Page 20 When CP24 = 1: if the controller is no longer receiving any Modbus enquiries, operating statuses specified via Modbus become invalid after 30 minutes and the controller operates independently of the control station again. If CP24 = 0, the operating statuses continue to have unlimited validity even beyond these 30 minutes. Sauter Components 7001029003 T8...
-
Page 21: Operation
10. Service level and communication parameters; contains all the other parameters (heating characteristic, control parameters, communication settings, etc.) This is mainly needed for commissioning or in case of faults on the plant. Normal mode corresponds to nominal mode as per EN12098-1. Sauter Components 7001029003 T8... -
Page 22: Display In Automatic Mode
( Section 6) can be added in case of a fault, • a display of the connection status can be added for modem operation. Press the ESC button once to go directly to the time display. Sauter Components 7001029003 T8... -
Page 23: Display When Off Mode, Reduced Mode And Normal Mode Are Set
( Section 6) can be added in case of a fault, • a display of the connection status can be added for modem operation. Press the ESC button once to go directly to the time display. Sauter Components 7001029003 T8... -
Page 24: Entering The Setpoint Temperature In Normal Mode
... and you can now change it by turning it upwards or downwards (step value: 0.1°C). Push the input knob again to confirm the changed numerical value. Press the ESC button once before confirming to cancel the input; the old value is retained. Sauter Components 7001029003 T8... -
Page 25: Weekly Switching Programme
Push the input knob; the time for the switching command is confirmed. Turn the input knob; select the mode for the switching command. Push the input knob; the mode is confirmed. Sauter Components 7001029003 T8... -
Page 26: Changing And Deleting A Switching Command
Set the rotary switch to PROG Turn the input knob to go to the calendar programme Push the input knob; this selects the calendar programme. You see '_ _ _ _' or the first switching command if one is present. Sauter Components 7001029003 T8... -
Page 27: Viewing Switching Commands
If the switching command was deleted, the next switching command is shown, or '_ _ _ _' if there are no more switching commands. For a change (SEt), the rest of the procedure is as described in the Section on 'Entering a switching command'. Sauter Components 7001029003 T8... -
Page 28: Temporary Temperature Change
While the time is running down, the remaining time is shown in days, hours or minutes. After the temporary temperature change has finished, the heating circuit is again controlled in accordance with the automatic mode. N.B.: Use the ESC button or set the rotary switch to another position to cancel the temporary temperature change function. Sauter Components 7001029003 T8... -
Page 29: Communication Functions
Then, this controller sends its system time to the device bus once every 24 hours. This time is adopted by the other controllers. Regardless of the setting of communication parameter CP09, if the time is adjusted on one of the interconnected controllers, it will be adopted by the others. Sauter Components 7001029003 T8... -
Page 30: Modbus Communication
(modem with compression and error correction functions, digital telephone network). Details about the protocol extension are available on request. Sauter Components 7001029003 T8... -
Page 31: Modbus Bus Wiring
°C 41004 Night_Setp_Rk1 Setpoint - reduced mode °C 41006 Slope_HeatCh_Rk1 Slope of heating characteristic 41065 Kp_Rk1(Y1) Proportional band 41066 Tn_Rk1(Y1) Reset time 41067 Ty_Rk1 Run-time for actuator N.B.: The data points are transmitted in 16 bits. Sauter Components 7001029003 T8... -
Page 32: Modbus Data Points (Coils)
116) or that the functions are activated as a basic rule (nos. 150, 157, 158, 159). If coil register 4 is set, then coil registers 89, 90, 96 and 116 are also set automatically as a result. Sauter Components 7001029003 T8... -
Page 33: Modem Operation
The line between the controller and the modem must not be longer than 1.5 m for reasons related to EMC. No guarantee is given of the availability and correctness of these numbers. Up-to-date information on this subject must be requested from the network operator. Sauter Components 7001029003 T8... -
Page 34: Faults
Flow temperature sensor: If the flow temperature sensor is faulty, the valve assumes the 30% valve position. Room temperature sensor: If the room sensor fails, the controller operates according to the settings for operation without a room sensor. Sauter Components 7001029003 T8... -
Page 35: Application
Caution: this application requires an additional safety thermostat. The recommended values have been tried and tested but they are not necessarily the ideal solutions for every plant. No liability is accepted for the values indicated here. Sauter Components 7001029003 T8... -
Page 36: Economy Tips
1417 See the table of values (DIN 43760). Within the specified 1353 tolerances, the sensors can be exchanged without calibration. 1291 1230 1171 1112 1056 1000 –10 –20 –30 –40 Sauter Components 7001029003 T8... -
Page 37: Accessories
- 37 - 10 Accessories See the Sauter PDS for more components. 11 Wiring diagram EQJW125 MODEM 27 28 27 28 27 28 27 28 EGS 52/15 EGT 333 EGS 52/15 EGT 333 A10175a 12 Dimension drawing 138 × 92 DIN 43700... -
Page 38: Technical Data
– 1 K; OFF when T > T Aged Aged can be set via SP 18 up to ± 6 K is possible Zero-point correction for room temp up to ± 9 K is possible Zero-point correction for outside temp. Sauter Components 7001029003 T8... -
Page 39: Overview Of Main Functions
An additional modem is used to send alarm texts as SMS to a mobile telephone, via a provider. An interface similar to an RS 232 is used for this purpose. The TAP protocol (Telocator Alphanumeric Protocol) is used here. The settings are made in the communication level. Sauter Components 7001029003 T8... -
Page 40: Overview Of Controller Settings
CP04: ______ CP17: ______ CP05: ______ CP18: ______ CP06: ______ CP19: ______ CP07: ______ CP20: ______ CP08: ______ CP21: ______ CP09: ______ CP22: ______ CP10: ______ CP23: ______ CP11: ______ CP24: ______ CP12: ______ CP13: ______ Sauter Components 7001029003 T8... -
Page 41: Weekly Switching Programme
____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ ____________ Sauter Components 7001029003 T8... -
Page 42: Index Of Key Words
Flow temperature .................................. 14, 39 Flow temperature sensor ................................34 Frost protection ................................... 39 Functions ....................................39 Heat requirement ..................................19 Heating characteristic ................................. 14 heating limit....................................38 Heating limit ....................................14 Holidays ...................................... 26 Installation instructions................................... 5 Sauter Components 7001029003 T8... - Page 43 Software version..................................13 stop bit......................................30 Switching command ................................ 13, 25, 26 Switching programme................................... 39 Table of contents................................... 3 Technical data..................................... 38 Temperature level ..................................5 time constant ....................................38 Time synchronisation .................................. 19 Valve runtime ....................................14 Sauter Components 7001029003 T8...
- Page 44 - 44 - Weekly switching programme ............................... 25, 41 Wiring diagram.................................... 37 Printed in Switzerland Subject to changes © Fr. Sauter AG, CH-4016 Basel Sauter Components 7001029003 T8...
