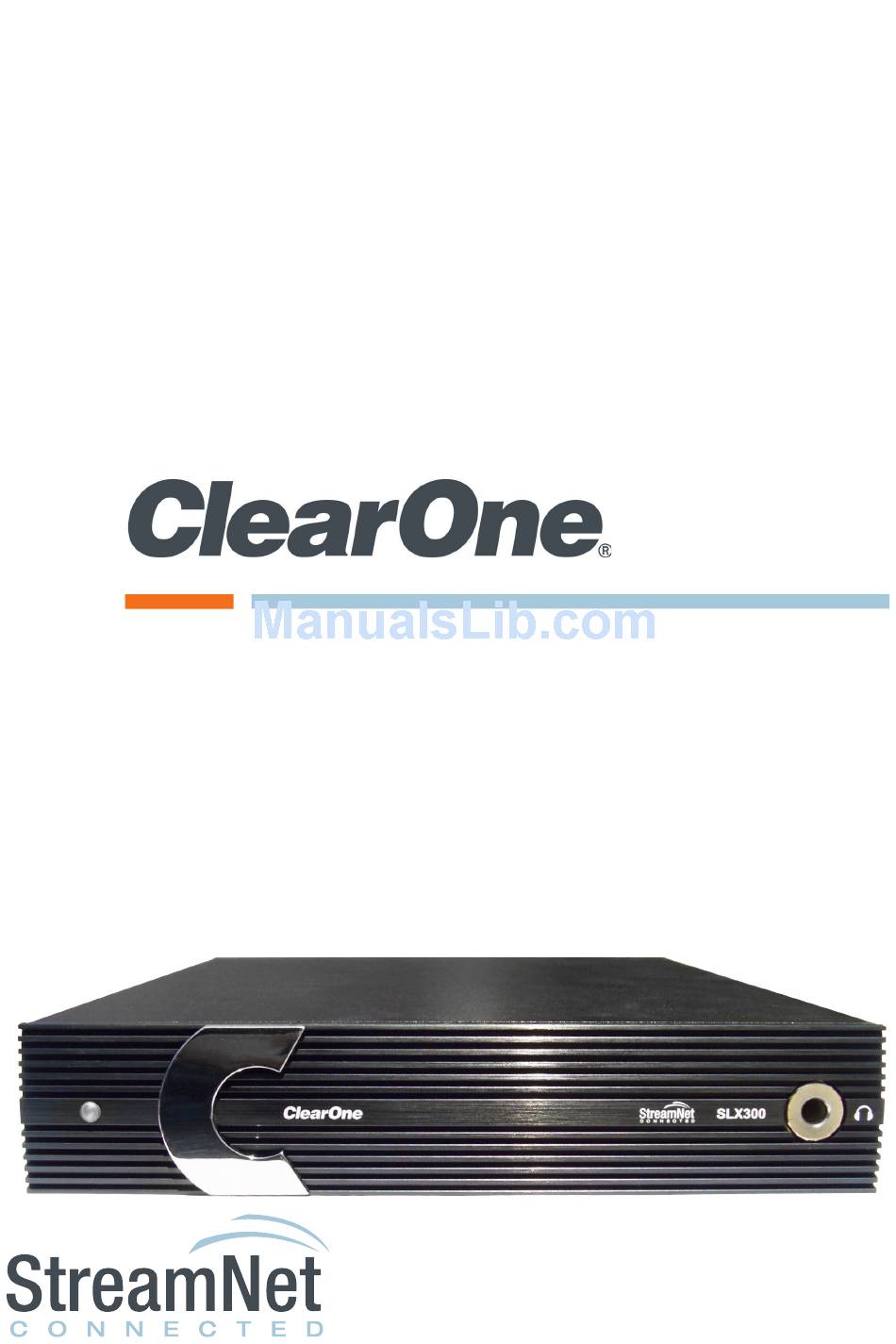

- Page 1 VIEW™ SLX300 S X™ peaker ip Z mpLifier nStaLLation and etup uide AVoIP™...
- Page 2 ClearOne 5225 Wiley Post Way Suite 500 Salt Lake City, UT 84116 Telephone 1.800.283.5936 1.801.974.3760 Tech Sales 1.800.705.2103 1.801.974.3669 E-mail tech.support@clearone.com support@netstreams.com On the Web www.clearone.com www.netstreams.com www.streamnetpartners.com SLX300 S X ip Z peaker mpLifier nStaLLation and etup uide Lear oCument 800-000-000-08 Rev 1.1 - June 13, 2012 ©...
-
Page 3: Table Of Contents
Table of Contents Important Safety Notices ............4 Chapter 1: Installing the SLX300 .......... 5 Connections and Indicators ................5 Ethernet Connection ..................6 EIM Connection (Expansion Interface Module) ........... 6 Speaker Connections ................... 6 Balanced Audio Connections ............... 6 LED Indicators .................... -
Page 4: Important Safety Notices
Important Safety Notices Read these warnings, heed all warnings, and keep for future reference. • Clean only with a dry cloth. • Do not use this apparatus near water. » CAUTION: To reduce the risk of electrical shock, do not expose this appliance to rain or moisture. -
Page 5: Chapter 1: Installing The Slx300
Chapter 1: Installing the SLX300 The SLX300 SpeakerLinX is a high power, networked audio amplifier. This amplifier may be mounted any distance from the speaker location; however, longer speaker wires may result in some distortion of the audio waveform. In addition to being a very capable amplifier, the SLX300 can also function as the zone or room controller and has a built-in web server which can provide a user interface. -
Page 6: Ethernet Connection
Power/ Monitoring Status Jack thernet onneCtion The 10/100 Ethernet connector allow connection to a TCP/IP network that is setup to run StreamNet. Using a standard (straight through) Category-5 or Category-6 Ethernet cable, connect the Ethernet port on the SLX300 to an available port on your network router or switch. -
Page 7: Led Indicators
Led i ndiCatorS The front panel indicator glows blue as soon as power is applied, but turns red when either channel amplifier experiences a fault. The balanced input has two LEDs on the back panel by the connectors, one per channel. -
Page 8: Chapter 2: Slx300 Setup
Chapter 2: SLX300 Setup The SLX300 is setup for use in a commercial or residential network using the StreamNet Dealer Setup program and the StreamNet Dealer Setup manual. StreamNet Dealer Setup is a PC-based program that allows you to configure devices so that they can communicate across a StreamNet network. -
Page 9: Configuring The Slx300
Audio Port Name - If you are installing an Audio Port in that room, you can name the source input connected to that Audio Port (such as MP3 Player). Enable Audio Port Service - Enable the Audio Port service only if you intend to install an Audio Port in that room. - Page 10 SLX300 Dealer Setup - Info Tab SLX300 Dealer Setup - Audio Tab TechSales StreamNet Design Help: 1.800.705.2103...
- Page 11 SLX300 Dealer Setup - Stream Tab SLX300 Dealer Setup - IR/KeyLinX Tab Chapter 2: SLX300 Setup...
- Page 12 SLX300 Dealer Setup - IR/Tab TechSales StreamNet Design Help: 1.800.705.2103...
-
Page 13: Chapter 3: Mounting Options
Chapter 3: Mounting the SLX300 By varying the use of the included mounting brackets, screws and the joiner plate, one or two SLX300 units can be mounted in different ways: • Under surface mount • Wall mount or top surface mount • Rack mount (dual with joiner plate) The following illustrations show how each of these is accomplished using the mounting brackets, screws, filler plate and the joiner plate:... - Page 14 Brackets Attached for Wall or Top Surface Mount Underside of Two SLX300s Prepared for Front Attach- ment Rack Mount with Joiner Plate TechSales StreamNet Design Help: 1.800.705.2103...
- Page 15 Two SLX300s Prepared for Front Attachment Rack Mount with Joiner Plate Two SLX300s Prepared for Rear Attachment Rack Mount with Joiner Plate Chapter 3: Mounting the SLX300...
-
Page 16: Chapter 4: Compliance
Chapter 4: Compliance ompLianCe VerView UL Compliance This equipment is compliant with applicable UL (Underwriters Laboratory) safety standards. RoHS Compliance All components and processes used to produce the SLX300 complies with the RoHS initiative. Sustainability The SLX300 is compliant with the WEEE recycling initiative. It is made from easily recyclable materials such as aluminum and steel. -
Page 17: Chapter 5: Service And Support
Chapter 5: Service and Support If you need assistance setting up or operating your product, please contact us. We welcome your comments so we can continue to improve our products and better meet your needs. eChniCaL upport Telephone: 1.800.283.5936 E-mail: tech.support@ClearOne.com Web site: www.ClearOne.com, www.NetStreams.com...
