Raynor SECURITY+ 2.0 882RGD Installation Manual

For use with Security+ 2.0 TM Garage Door Openers. All Security+ 2.0
yellow Learn button and a yellow antenna wire. The features are adjustable and may be turned off
or on as desired. Refer to the Feature Settings section.
Feature Overview
LIGHT BUTTON
Press the LIGHT button to turn the garage door opener lights on or off. When the lights are turned
on they will stay on until the LIGHT button is pressed again, or until the garage door opener is
activated. Once the garage door opener is activated the lights will turn off after the specified period
of time (the factory setting is 4-1/2 minutes). The LIGHT button will not control the lights when the
door is in motion.
LOCK
The LOCK feature is designed to prevent activation of the garage door opener from remote controls
while still allowing activation from the door control and keyless entry. This feature is useful for
added peace of mind when the home is empty (i.e. vacation).
MAINTENANCE ALERT SYSTEM (MAS)
This feature assists the homeowner in ensuring the garage door opener system stays in good
working condition. When the garage door opener needs to be serviced (approximately 4500 garage
door opener cycles) the command (yellow) and service (red) LEDs will begin to alternately flash
back and forth. The MAS feature can be activated at time of installation. Contact your installing
dealer for service. The factory setting for the MAS feature is off.
NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifi cations of this receiver and/or transmitter are
prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.
Tested to Comply with FCC Standards for Home or offi ce use. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
TM Garage Door Openers have a
To prevent possible SERIOUS INJURY or DEATH from electrocution:
• Be sure power is NOT connected BEFORE installing door control.
• Connect ONLY to 12 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a closing garage door:
• Install door control within sight of garage door, out of reach of children at a minimum
• NEVER permit children to operate or play with door control push buttons or remote control
• Activate door ONLY when it can be seen clearly, is properly adjusted, and there are no
• ALWAYS keep garage door in sight until completely closed. NEVER permit anyone to cross
1

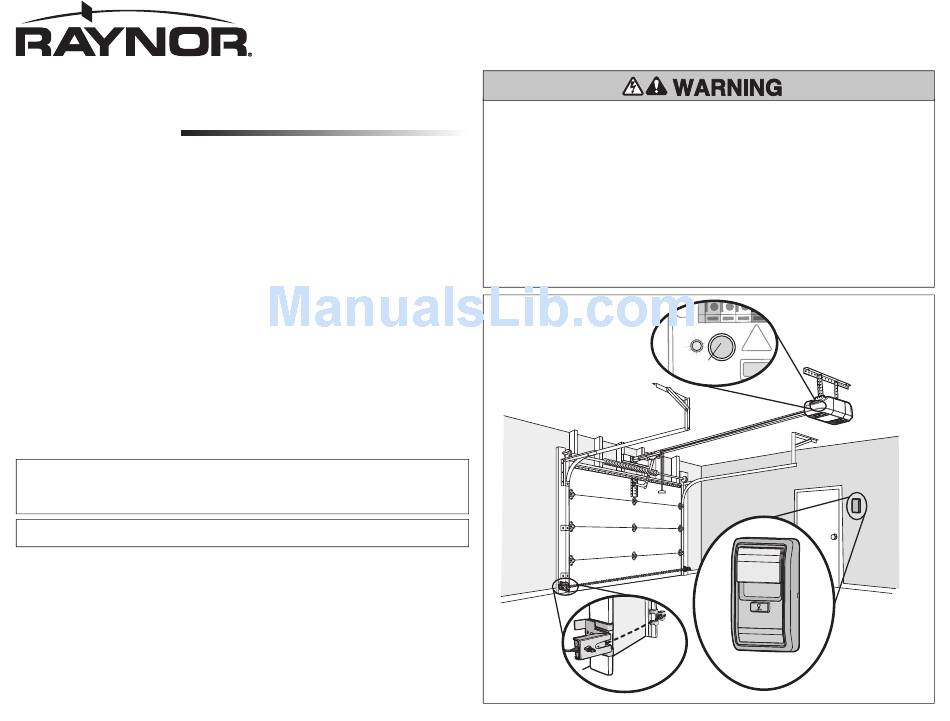

MULTI-FUNCTION CONTROL PANEL (SECURITY+ 2.0
height of 5 feet (1.5 m), and away from ALL moving parts of door.
transmitters.
obstructions to door travel.
path of closing garage door.
Yellow
LEARN Button
Safety Reversing
Sensors
TM
MODEL 882RGD
Multi-Function
Control Panel
)
